Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data excepted :



H E L L E R                       (Germany)

5 Axis - CNC Controlled Horizontal Machining Centre

Model  FST- MC 160 / 800 / E                          Year 1999

Only approx. 500 hours in operation



Working range:     Longitudinal stroke       X axis                             800  mm

                              Vertical stroke               Y axis                             630  mm

                              Cross stroke                  Z axis                              560  mm

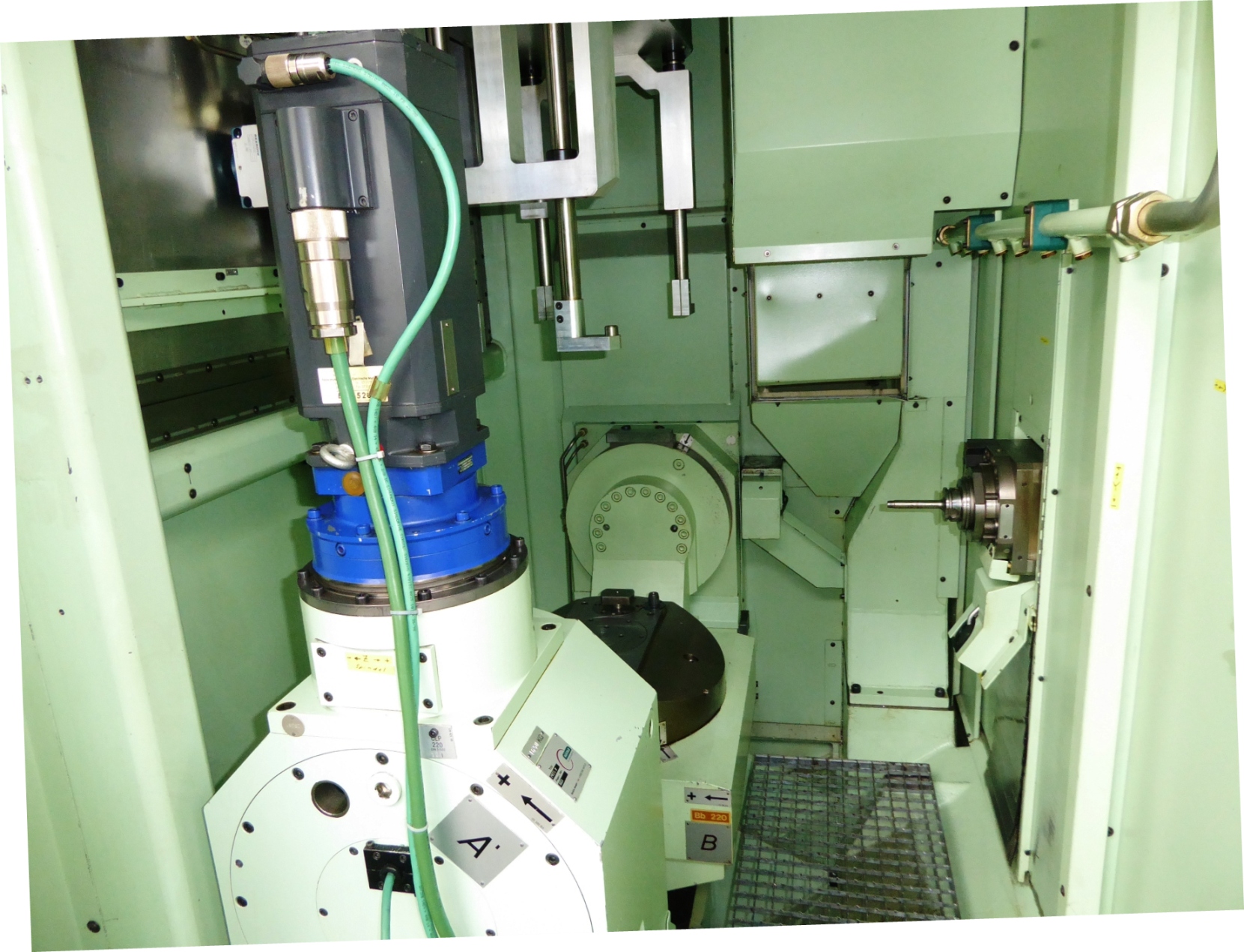

NC rotary table    Tilting                            A axis                             180  °

                              Turning                          B axis                             360  °



max. size of workpiece approx.                                  450 x 450 x 340  mm

(larger workpiece sizes in exceptions possible)

Size of pallet, approx.                                                              450  x 620  mm

Tool holder                                                                                 HSK 63A

Spindle speeds, infinitely variable                                    63 – 20,000  rpm



Feeds / quick feeds                                    XYZ                      1 – 70,000  mm/min



Spindle drive approx..                                                                                 24          kW

Total electrical load, approx.                                  60 kW  -  400 V  -  50  Hz

Weight, approx.                                                                              12,500  kg



Accessories / Special Features

*       5-Axis SIEMENS CNC Path Control, Model SINUMERIC 840 D, allows working

operations on 5 sides.

*       Workpiece handling system:  Workpiece is mounted on a pallet outside the machine and is transported via a conveyor into a lifting/turning device, which brings the workpiece onto the table,

*       Pallet  is automatically clamped and machined.

*       40-position tool magazine with tool replacement door, and laser-operated tool breakage control.

*       Internal high pressure coolant supply, 50 bar.

*       Coolant preparation unit with filter and temperature control.

*       Oil mist exhaust.

*       Separate cooling aggregate for motor spindle and switch cabinet.

*        CO² fire extinguisher.     * Chip conveyor.     *   Complete covers for the working area.

Machine comes from the design department of a car manufacturer and was only used for trials.  The new price in 1998 was approx. 1.3 million DM  (EUR 650,000.00).  The machine is very suitable for medium-sized production series.  Ideal for aluminium, cast iron, etc.





Condition :     Excellent, mint condition – almost like a new machine, Best Quality Construction!

Machine can be inspected under power.

Delivery    :     Ex site / ex stock, as inspected.       Payment   :     Net, after conclusion of contract.



We would appreciate your order. Further Machining Centers always on stock - please do not hesitate to inquire !
