Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error

in technical data excepted :

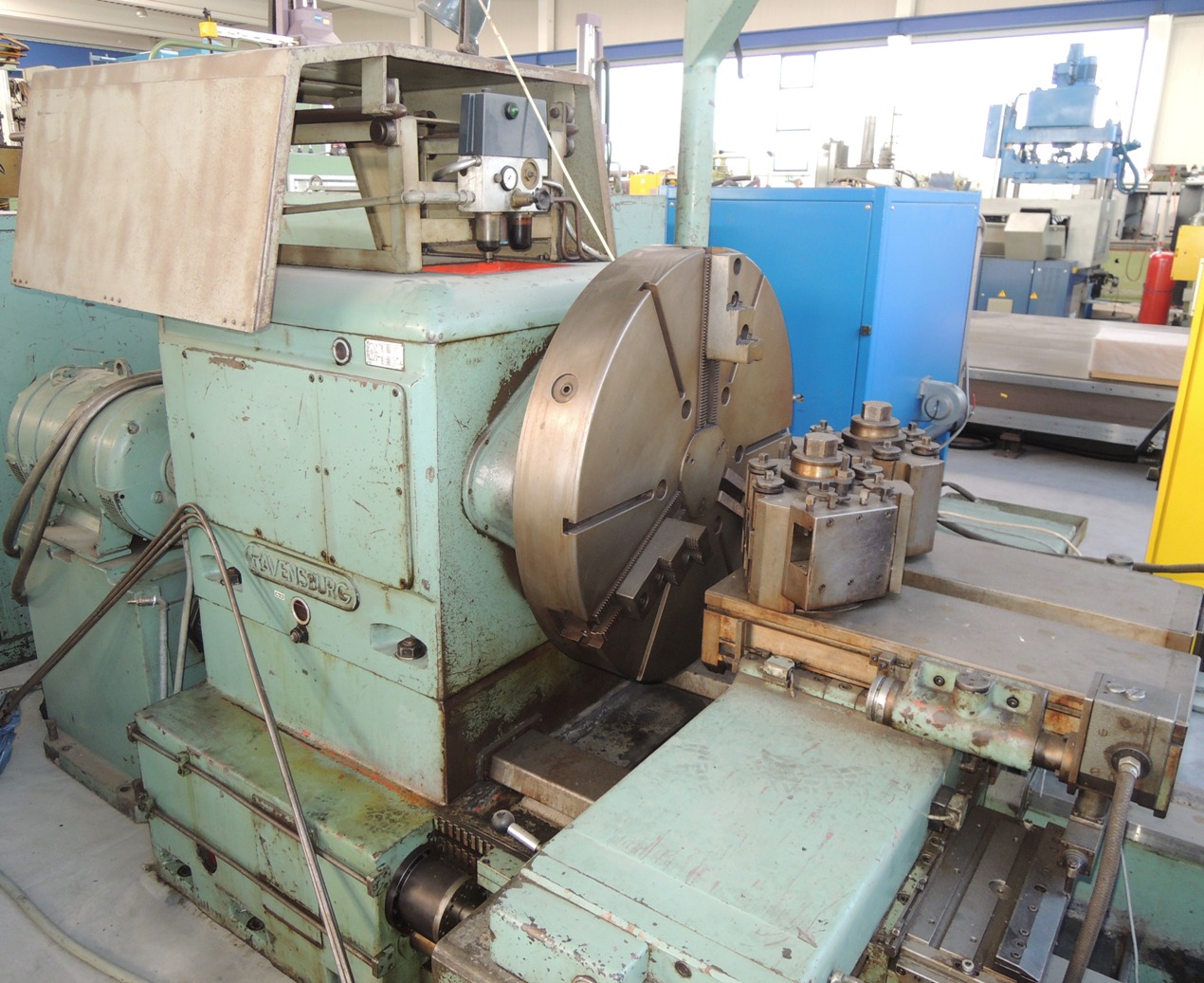

R A V E N S B U R G   (Germany)

Hydraulic Face Turning and Copying Lathe

Model  K 900 KG

Year 1966, but the machine was not working during the last years.

________________________________________________________



Height of centres                                                                550   mm

Max. turning Ø                                                                 1,200   mm

Max. turning Ø above slide, approx.                                     900   mm

Max. turning length, approx.                                             1,000   mm

Spindle bore, approx.                                                            90   mm



24 Spindle speeds                                                       4.3 - 587   rpm

Feeds                                                                           1 - 170   mm/min



Total electrical load                                   25 kW  - 380 V  -  50   Hz

Weight, approx.                                                               8,000   kg



Accessories / Special Features



*       Hardened and ground guideways.

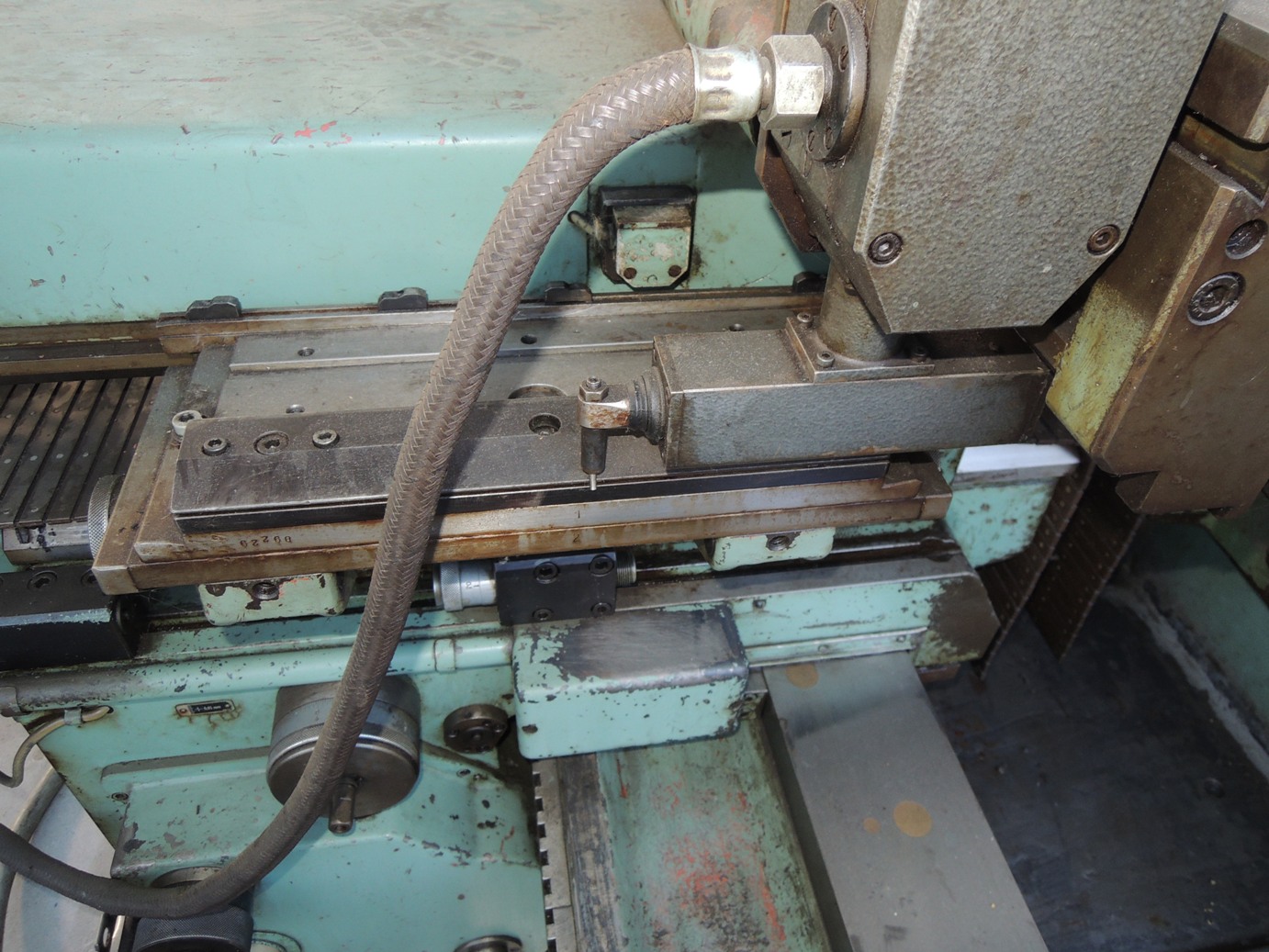

*       Two bed slides, independent from another, each equipped with a 2-coordinate copying device via templates with contour copying process and with line copying device.  Each slide has a quick-change tool holder with various inserts.

*       Plug board program control.  Machine can also be controlled manually.

*       Reinforced spindle and spindle bearings.

*       FORKHARDT 3-Jaw Power Chuck, Ø approx. 900 mm.

*       Separate switch cabinet.     *   Hydraulic unit.     *   Coolant equipment.

*       Various chip and splash guards.





This machine is very suitable for complicated profiling of heavy workpieces such as forging forms.  High precision and high capacity machine.



Condition :  Good to very good.

Delivery    :  ex stock

Payment   :  Net, after conclusion of contract.





Thank you for your interest.

We have a selection of lathes available on stock.  Please let us know your requirements.
