Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data excepted :



G I L D E M E I S T E R     (Germany)

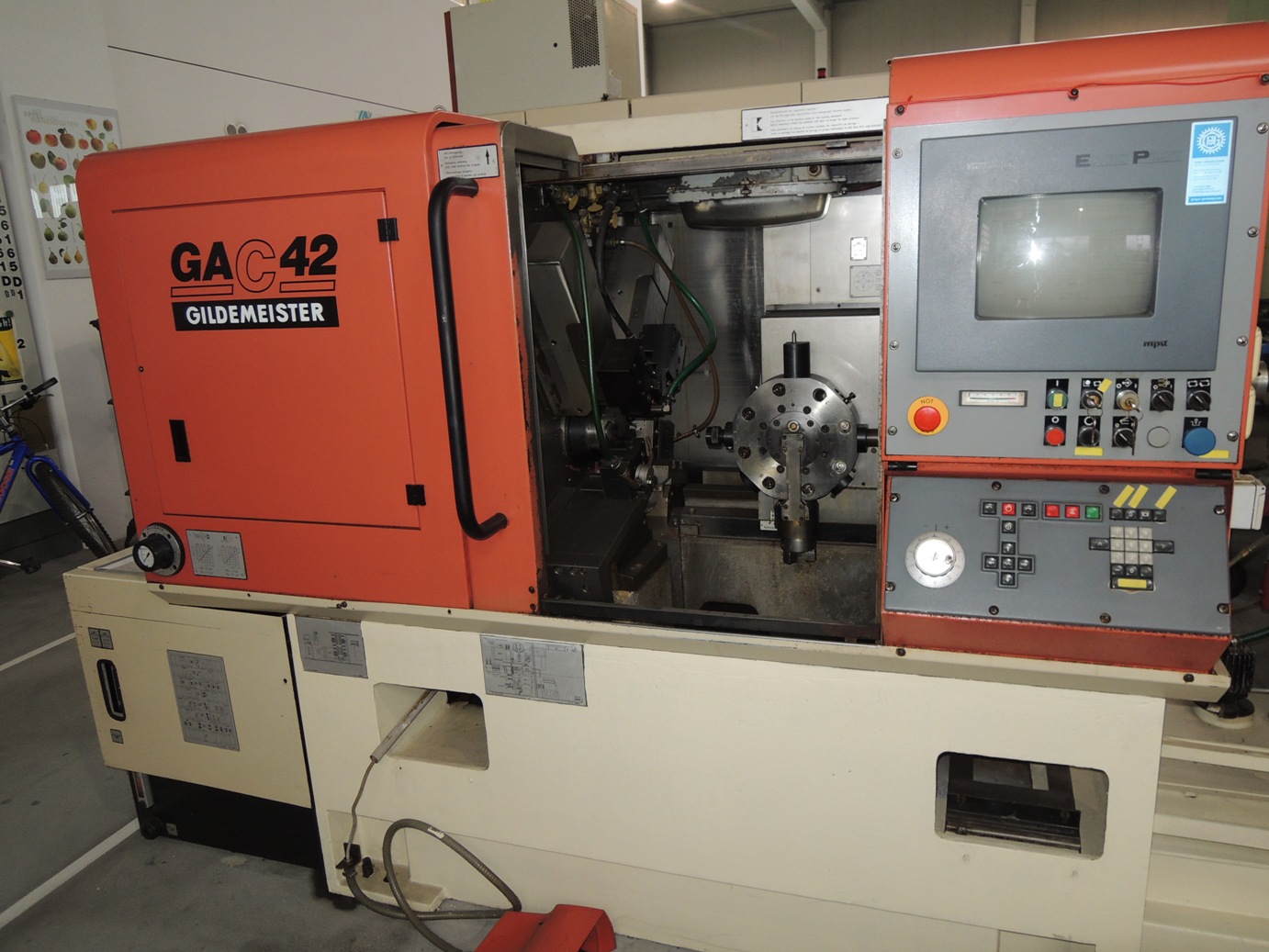

Universal 8-Axis CNC Controlled Lathe with Bar Feed

Model GAC 42                    Year 1991                     Serial No. 5.1096

______________________________________________________________________

Bar Ø                                                                                                     42   mm

Chuck Ø                                                                                               140   mm

Spindle bore                                                                                            56   mm

Spindle speeds (485 Nm max.)                                                    71 – 6,300   rpm



The machine is equipped with 2 x 2-axis side cross slides,

2 x 1-axis side cut-off slides, and 1 x 2-axis turret slide.



Turret Slide:  Surface / longitudinal travel (X5 / Z5)                         40 / 274   mm

Feed / quick feed                                                                                5 / 15   m/min

Feed pressure, surface / longitudinal                                           600 / 1,120   daN



Cross Slide: Surface / longitudinal travel (X3/Z3, X4/Z4)                   70/164   mm

Feed / quick feed                                                                                 5 / 8   m/min



Cut-Off Slide:  Surface travel (X1, X2)                                                    70   mm

Feed / quick feed                                                                                 5 / 8   m/min



Spindle drive                                                                                           18   kW

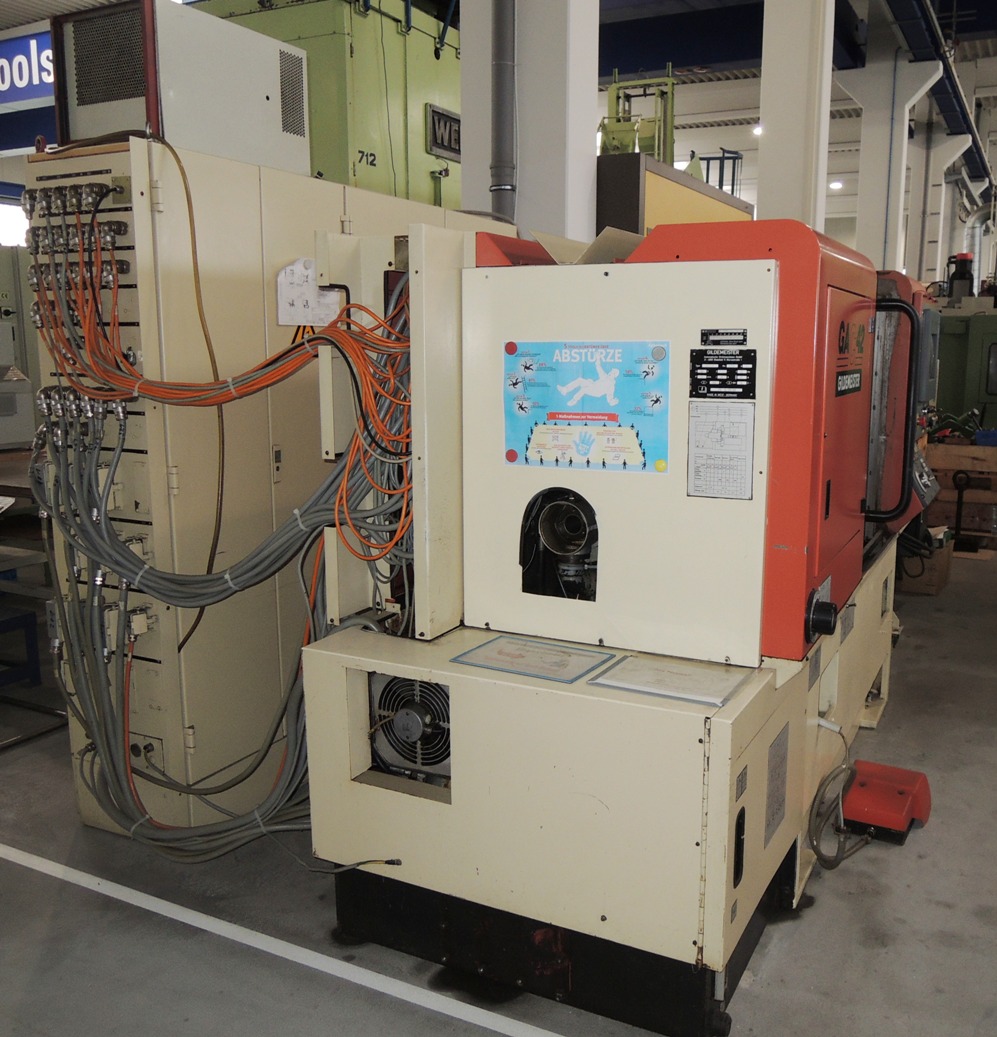

Total electrical load, approx.                                       25 kW  -  380 V  -  50   Hz

Weight, approx.                                                                                  4,500   kg



Accessories / Special Features:

*        GILDEMEISTER CNC Continuous Path Control, Model EPL 2, for 8 axes, with colour monitor, electronic hand wheel and all the usual options like graphics, cycles, subprograms, parallel programming, etc.

*        4 pieces CNC side slides: 2 pieces with surface/longitudinal axis and 2 with surface axis. Quick change system can be preset, tool shaft 20 mm, square.

*        Tool turret with 8 tool holders, Model VDI 30.  4 tool holders are driven for drilling, milling, and thread grinding with driven tools, and also for the ….

*        Rotating gripping device, chuck Ø 80mm, for back work using the linear tool holder (for max. 3 tools) which is built on the right-hand bed side.

*        Hydraulic hollow clamping device with collet chuck.

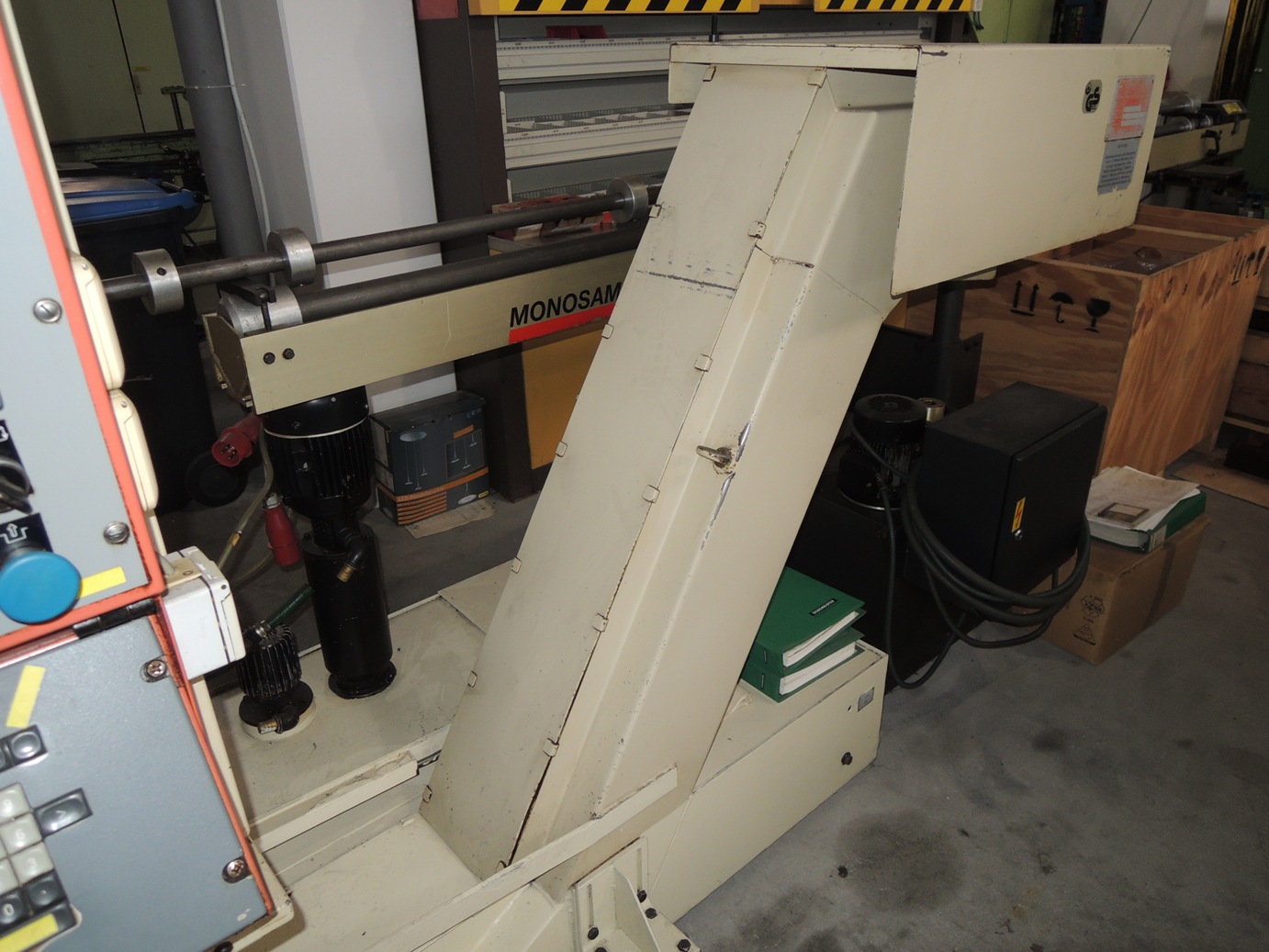

*        SAMECA Hydrostatic Bar Feed, Model MONOSAM 45.

*        Double circuit coolant device.     *   BMF Chip Conveyor.     *   Lockable sliding doors.

*        Various driven tool holders.     *   Operating manual.     *   Various other accessories.





This is a very flexible machine because of the combined advantages of the turret with driven tools, the back work, and the four CNC side slides.



Condition :  Good to very good.  Machine can be inspected under power.

Delivery    :  Ex stock, as inspected.

Payment   :  Net, after conclusion of contract.



Thank you for your interest.

We have a selection of lathes available on stock.  Please let us know your requirements.
