Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data excepted :

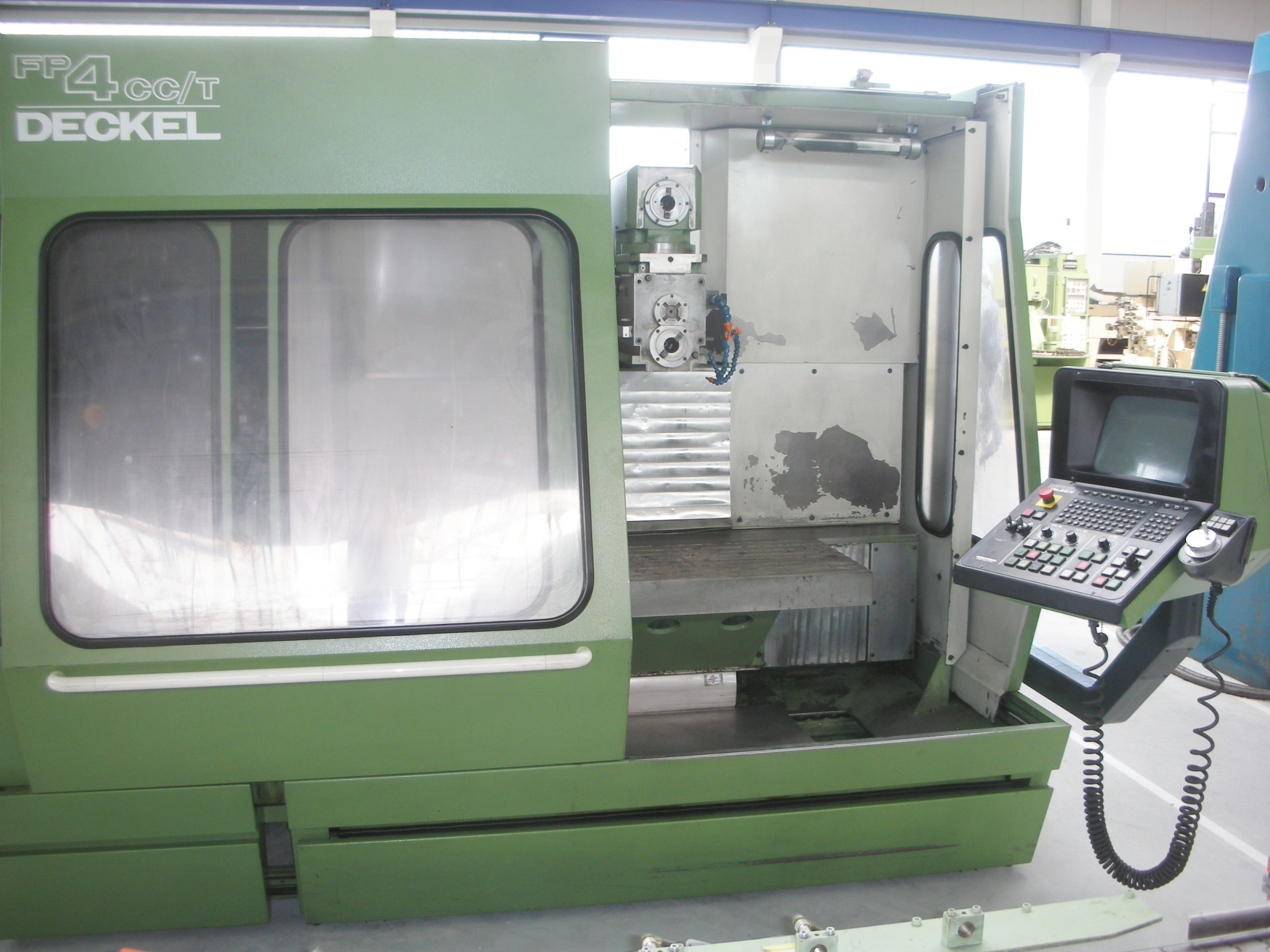

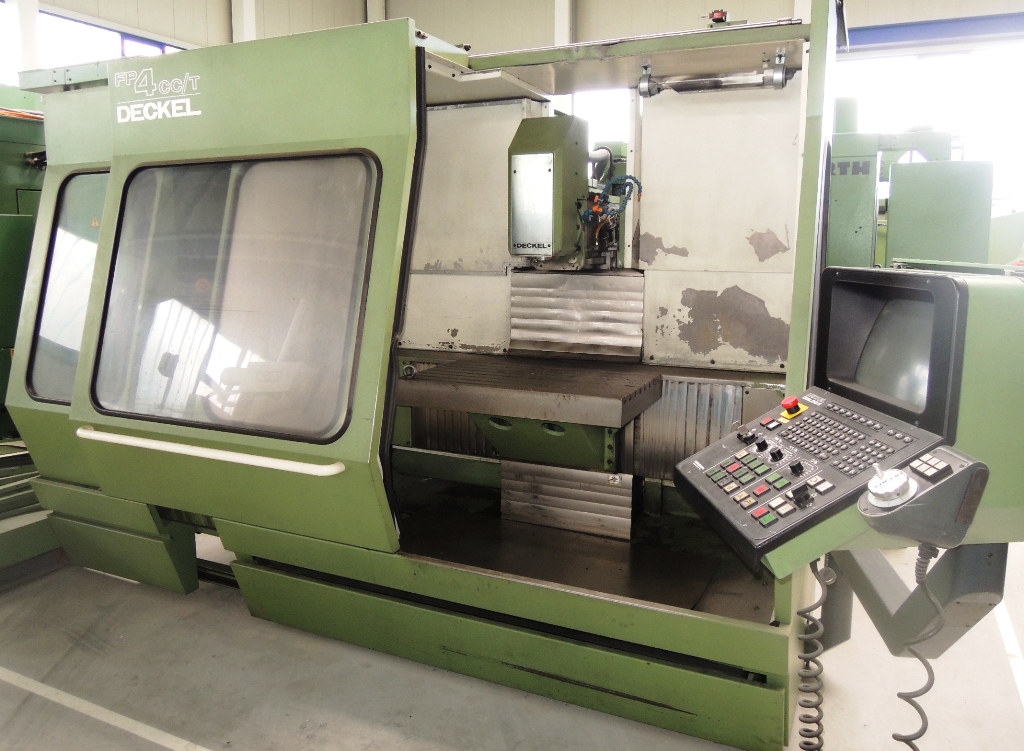

D E C K E L   (Germany)

Vertical / Horizontal CNC Machining Centre

with tool changer and angle table

Model  FP 4 CC / T                 Year 1991           Serial No. 2826 0210





Working range:      Longitudinal stroke        X axis                              600  mm

                              Vertical stroke               Y axis                              500  mm

                              Cross stroke                  Z axis                              500  mm



Clamping size of angle table                                                     530 x 900  mm

Max. weight of workpiece on table                                                      450  kg

Distance from table to vertical spindle, min./max.                      120 / 620  mm

Distance from table to horizontal spindle, min./max.                 156 / 656  mm



Tool taper                                                                                        SK 40

Spindle speeds                                                                          0 – 6,300  rpm



Feeds  X, Y and Z Axes, max.                                                 2 – 10,000  mm/min

Quick feed  X, Y and Z Axes                                                          10,000  mm/min



Spindle drive                                                                                           8  kW

Total electrical load, approx.                                   15 kW  -  400 V  -  50  Hz

Weight, approx.                                                                                5,500  kg



Accessories / Special Features

*       DIALOG 11 CNC Control in 4 axes with all the usual options, cycles, and subprograms.  Graphic display and electronic hand wheel.

*       Vertical milling head can be pushed up manually so that the horizontal milling spindle is free.  This is also served by the tool changer.

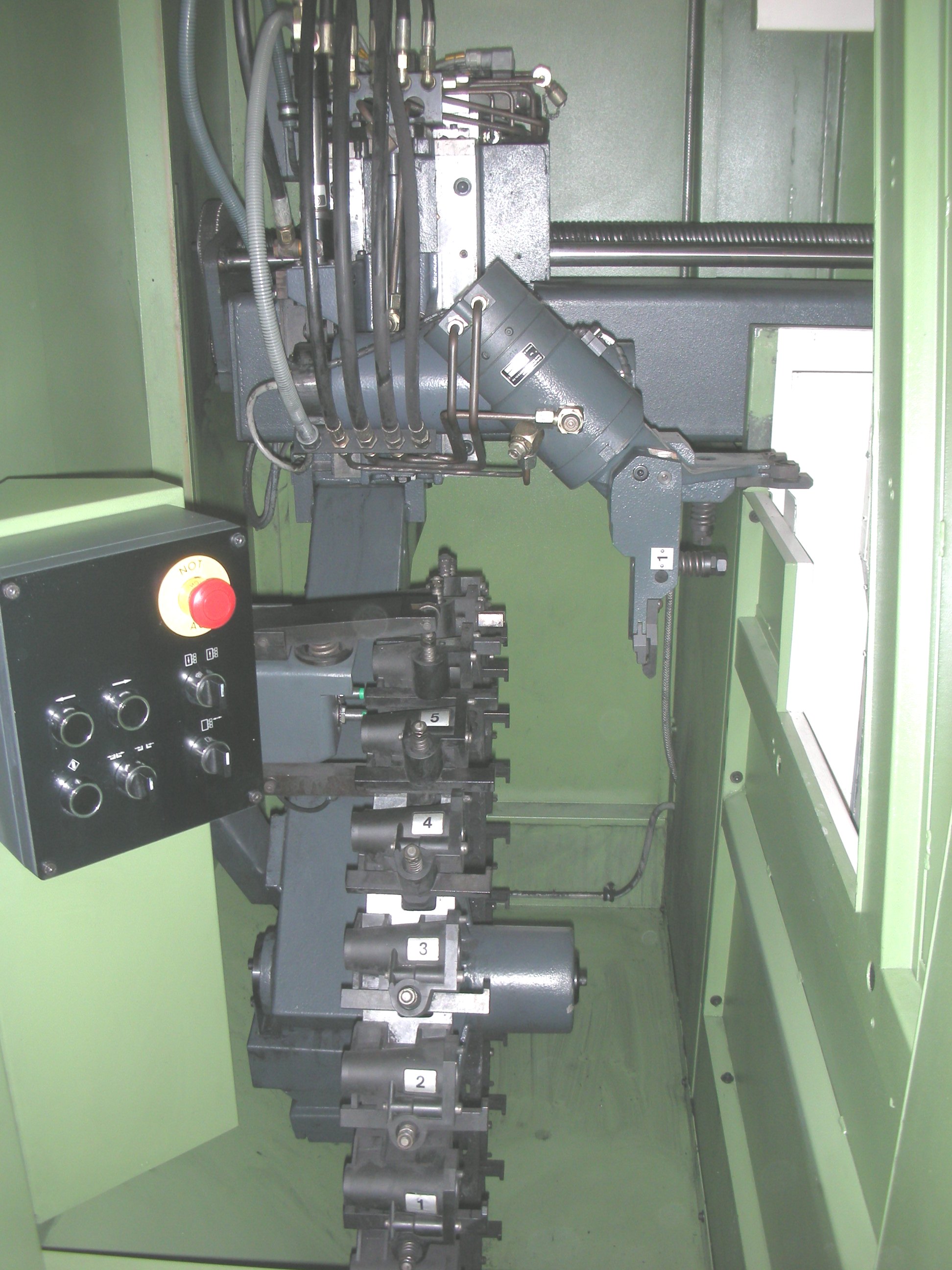

*       Tool magazine with positions for 26 tools, max. Ø 100 mm x length 300 mm.  Max. weight 10 kg.

*       Completely covered working area with two sliding doors allows easy loading of table.

*       Coolant device.





Condition :     Good to very good.  Machine can be inspected under power.  Modern software!

Delivery    :     Ex stock, as inspected.

Payment   :     Net, after conclusion of contract.



We always have a selection of CNC machining centres available.

We have a Deckel FP 3 CC/T with 4^th axis on stock at the moment.
