T R A U B

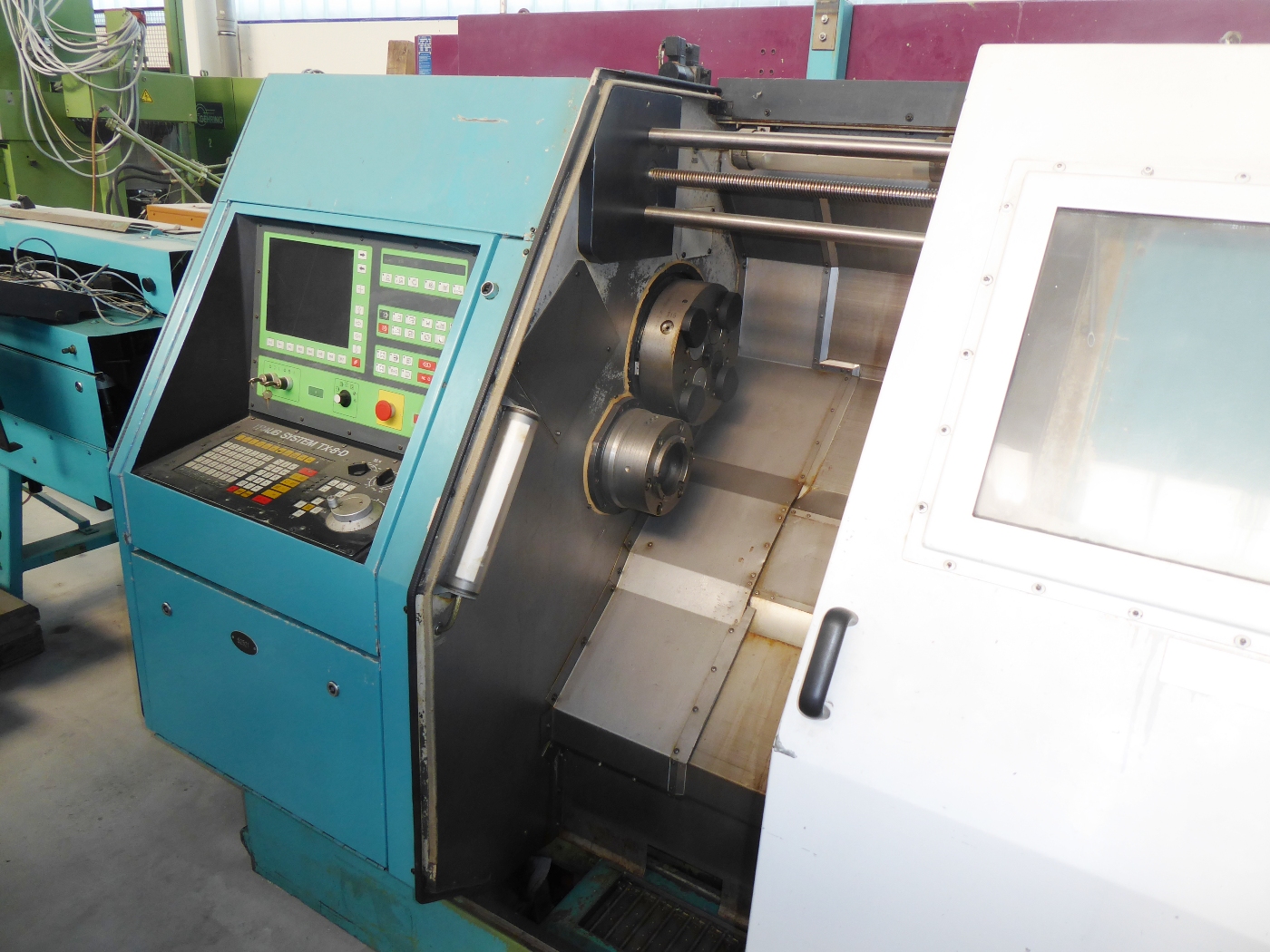

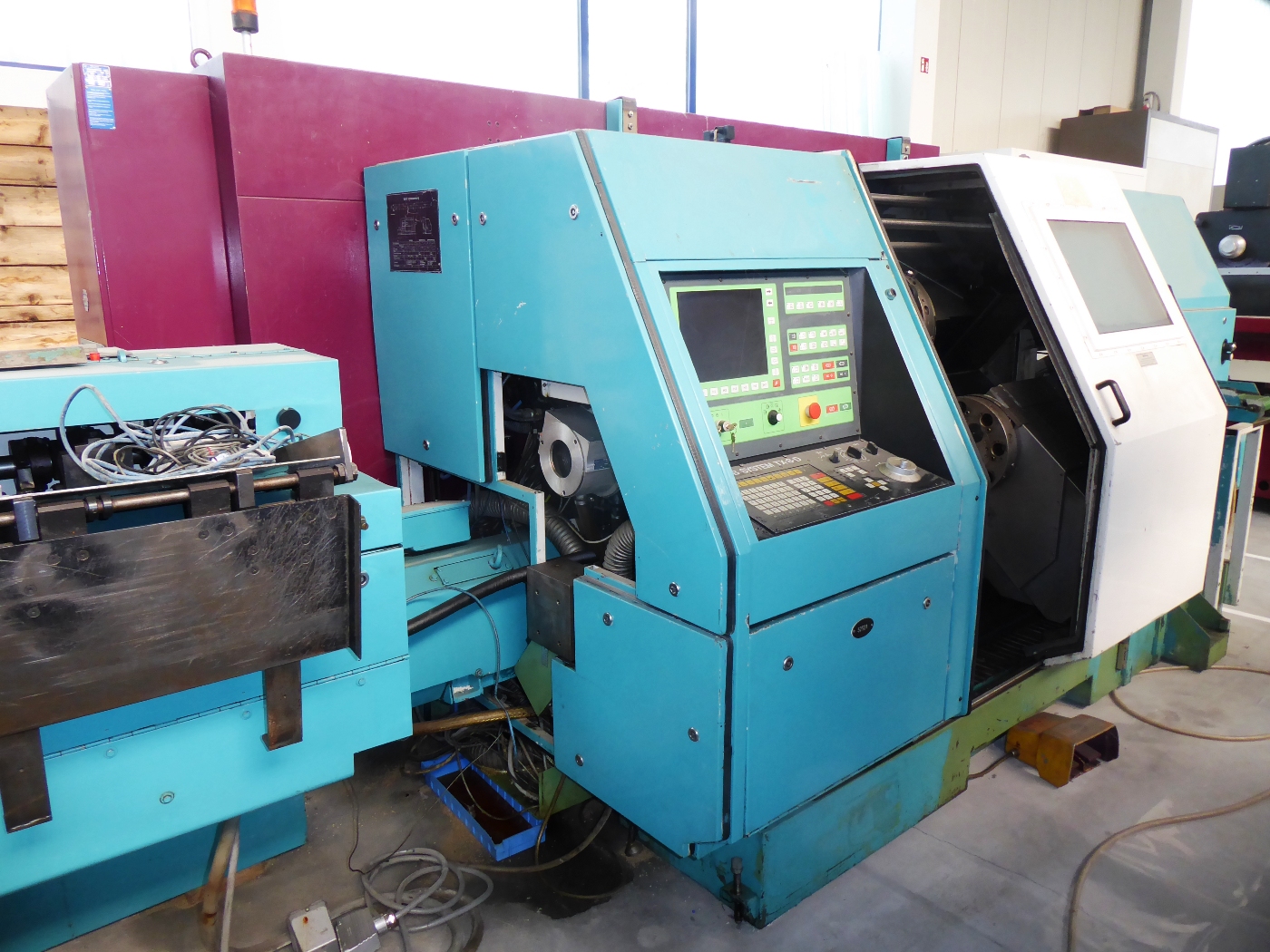

CNC - controlled  5  axes  Bar – Turning Machine

Model              TNS  65 / 80 D

Year                 1990                                                                     No.  359

______________________________________________________



Bar Ø max.                                                                                         80    mm

Turning-Ø normal (chuck turn parts)                                                  240    mm

Swing-Æ above longitudinal slide max.                                               450    mm,

Swing-Æ above cross slide max.                                                        320    mm,

Turning length / slide range max.                                                630/630    mm,



spindle speed infinitely programmable                                     10  - 3.150    rpm

Feed/rapid feed range of turrets max.                                 10.000/15.000    mm/min.

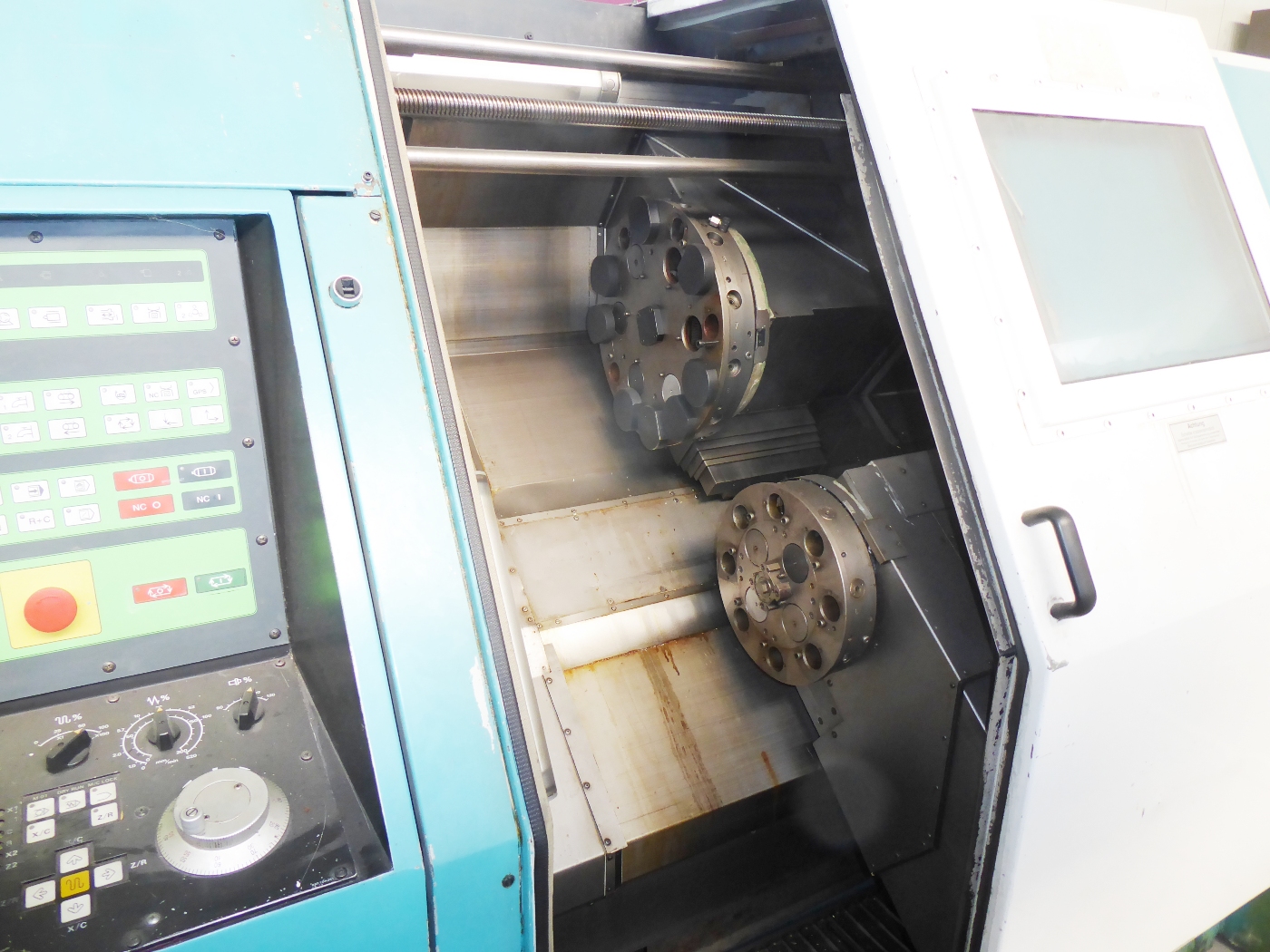

Turret 1 (top) including 12 tool-holder bores per                                  40    mm,

                travelling range longitudinal/cross approx.                   185/630    mm

                6 power driven tools, 6,7 kW-drive

Turret 2 (botttom) including 8 tool holder bores per                             40    mm,

                travelling range longitudinal/cross approx.                   175/630    mm

                4 power driven tools, 1,5 kW-drive

Turret 3 (back side machining) including 4 tools dia                           40    mm,

                4 power driven tools, 1,5 kW-drive



Spindle drive max.                                                                               42    kW

Total electrical load                                                                           60    kW - 380 V - 50 Hz(140A)

Weight                                                                                           7.500    kg



Accessories/Special Features:



·  TRAUB 5 Axes-CNC-Continous Path Control Model TX 8 D including colour monitor and all the usual options, graphics, cycles, sub-programs, manual wheel etc.

·     1 x  12-Station Turrethead above turning centre and 1 x 12 Station Turrethead

underneath turning centre, as well as one 4 Station Turrethead sideways above the main spindle

for rear-side machining of  turn parts each with powered tools (6/4/4)

·    Main spindle-C-Axis also for opposed spindle ( Pick-up )

·    Hydraulic hollow spindle clamping device RÖHM for collets in connection

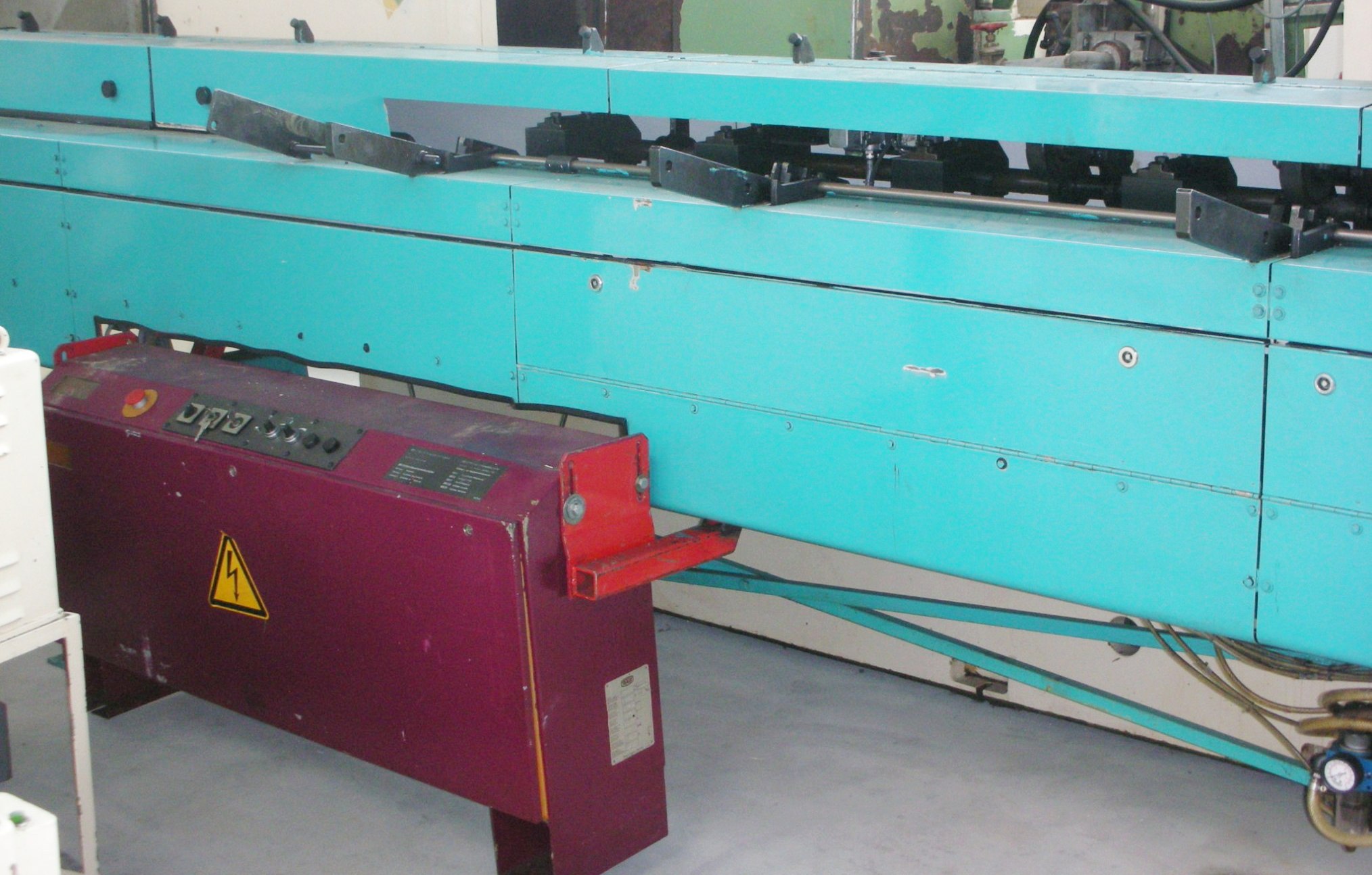

with a hydraulic bar feed magazine make TRAUB, for bars up to 80 mm x 3000 mm long.

    including rest and an additional hydraulic lifter for heavy bars.

·    Finished parts handling system with linear gripper and with ejection of the finished parts on the conveyor

·    Various tool holders also for power driven tools, also including pick-up facility (opposed spindle)

·    Coolant system with chip conveyor, lockable sliding doors, adjusting microscope, etc.



Machine is ideal for medium and larger series and very easy to program,

especially suitable for complete machining of complicated turn parts





Condition       :           good to very good – can be seen under power

Delivery          :           ex stock – as viewed

Payment         :           net – after completion of contract

We would appreciate your order – please inquire per phone, fax, email or internet at any time.
