Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:

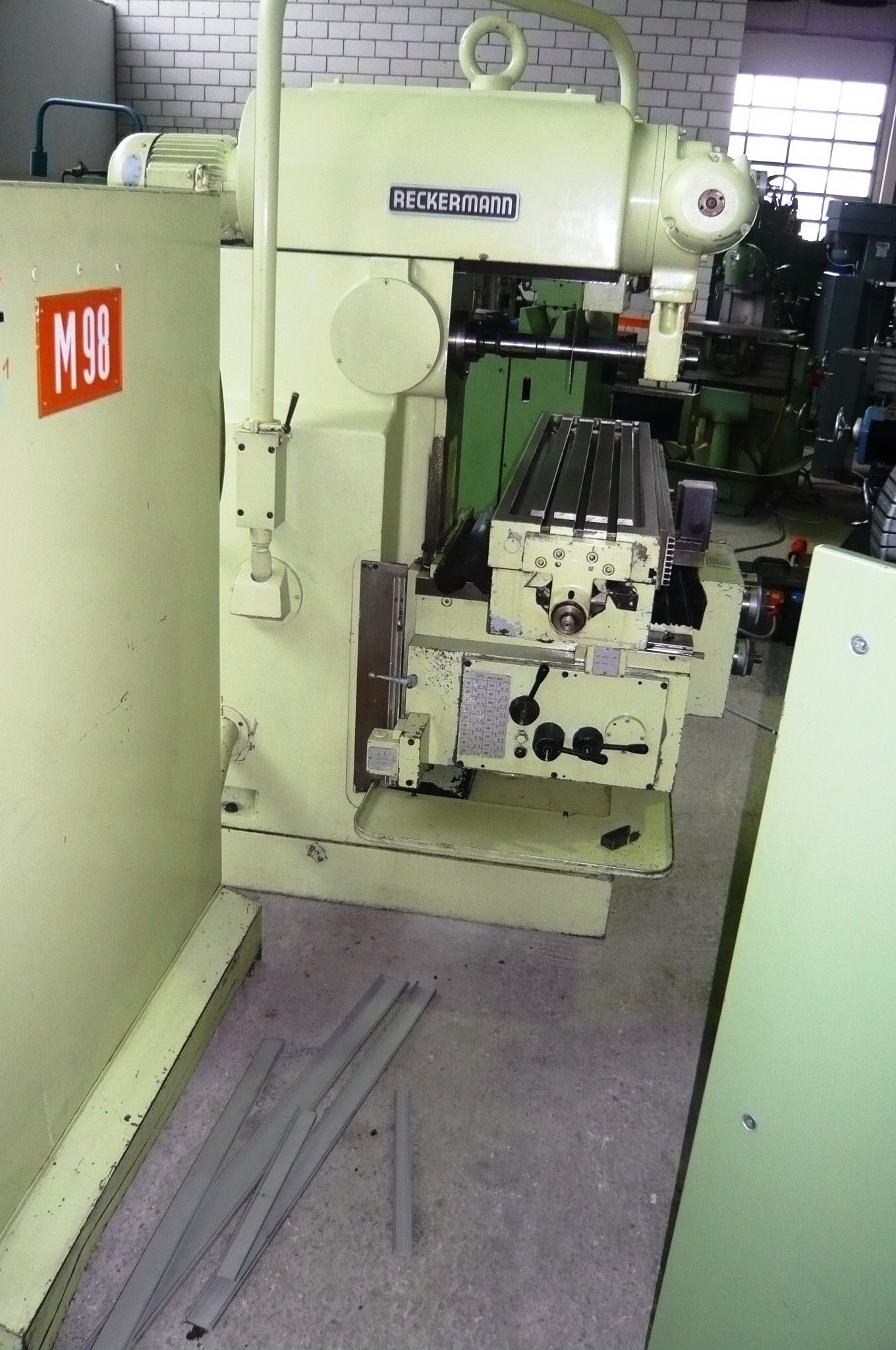

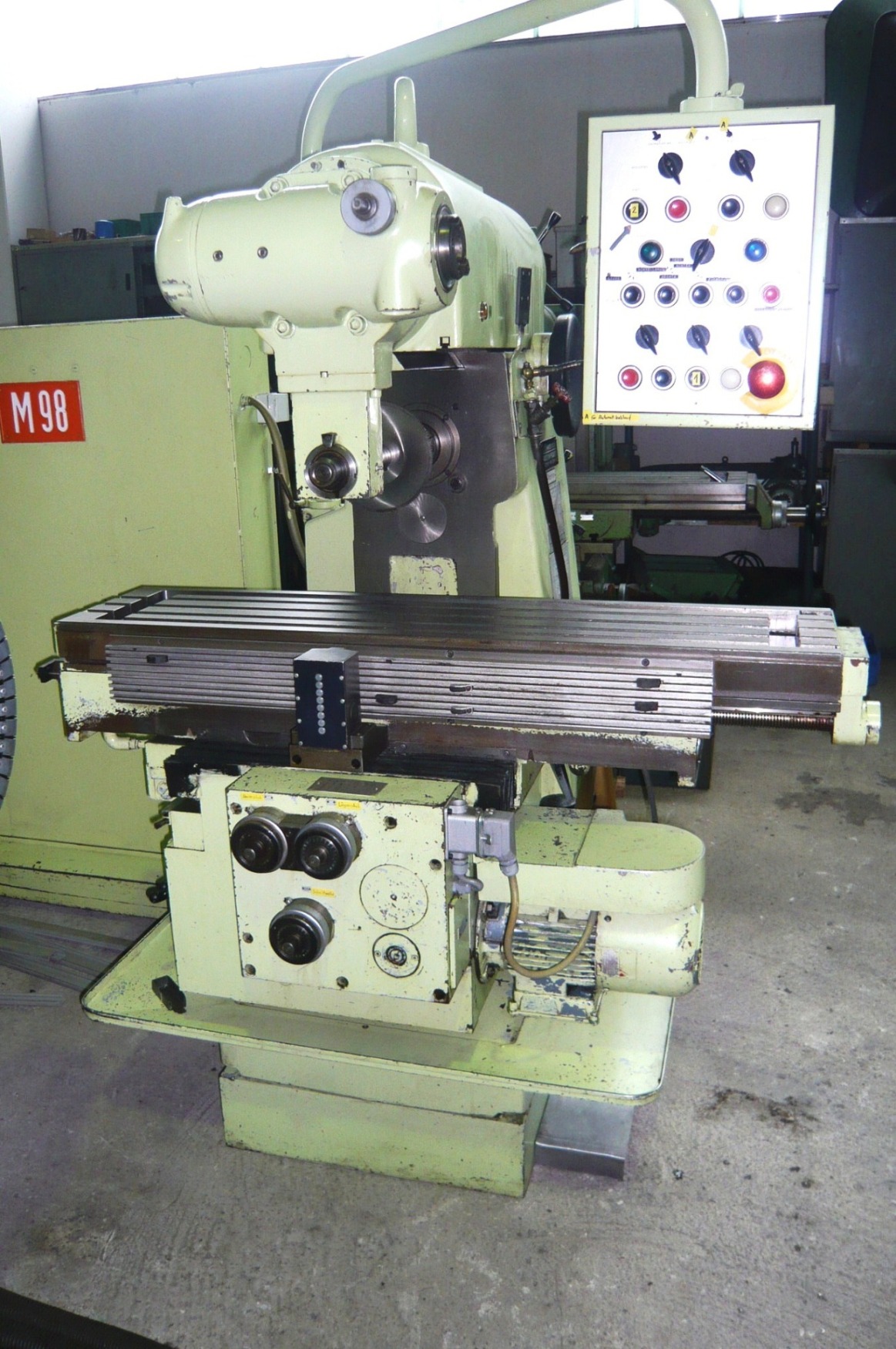

R E C K E R M A N N   (Germany)

Combined Horizontal and Vertical Milling Machine

with Program Control

Model  KOMBI 900 PONY                                                  Year 1974

                                                                                                                                                                      _________________________



Table size                                                                          300 x 1,300                            mm



Table travel:          Longitudinal stroke        X axis                            800                            mm

                            Vertical stroke              Y axis                            300                            mm

                            Cross stroke                 Z axis                             250                            mm



Mounting height under milling spindle,

       horizontal / vertical, approx.                                            300 / 370                            mm



Quill adjustment                                                                             120                            mm



Spindle taper                                                                              SK 40

10 spindle speeds                                                                32 – 2,800                            rpm



Feed                                                                                      16 – 800                            mm/min



Spindle drive, approx.                                                             each 4.1                            kW

Total electrical load                                              10 kW  -  400 V  -  50                            Hz

Weight, approx.                                                                          2,400  kg



Accessories / Special Features:



*        Separate drives for horizontal and vertical spindles.

*        Universally adjustable vertical head with quill.

*        Horizontal milling spindle with counter bracket.

*        Program control for longitudinal travel, with 6 different working cycles:

      milling, right/left; with/without quick feed; with/without automatic return; continuous

      reciprocal milling, with/without quick feed; and reciprocal milling with stop in the middle.

*        Operating panel for manual operation of the machine.

*        Electronic table feed in all three axes.

*        Built-in coolant device with chip collection tray.

*        Various milling mandrels.     *   Electro motor driven table feed.





Condition :     Good to very good.  Machine can be inspected under power.

Delivery    :     Ex stock, as inspected.

Payment   :     Net, after conclusion of contract.



Thank you for your interest.

We always have a good selection of milling machines available.

Please let us know what you need.
