Q U O T A T I O N
We are pleased to offer you ex our stock,
subject to prior sale and error in technical data :

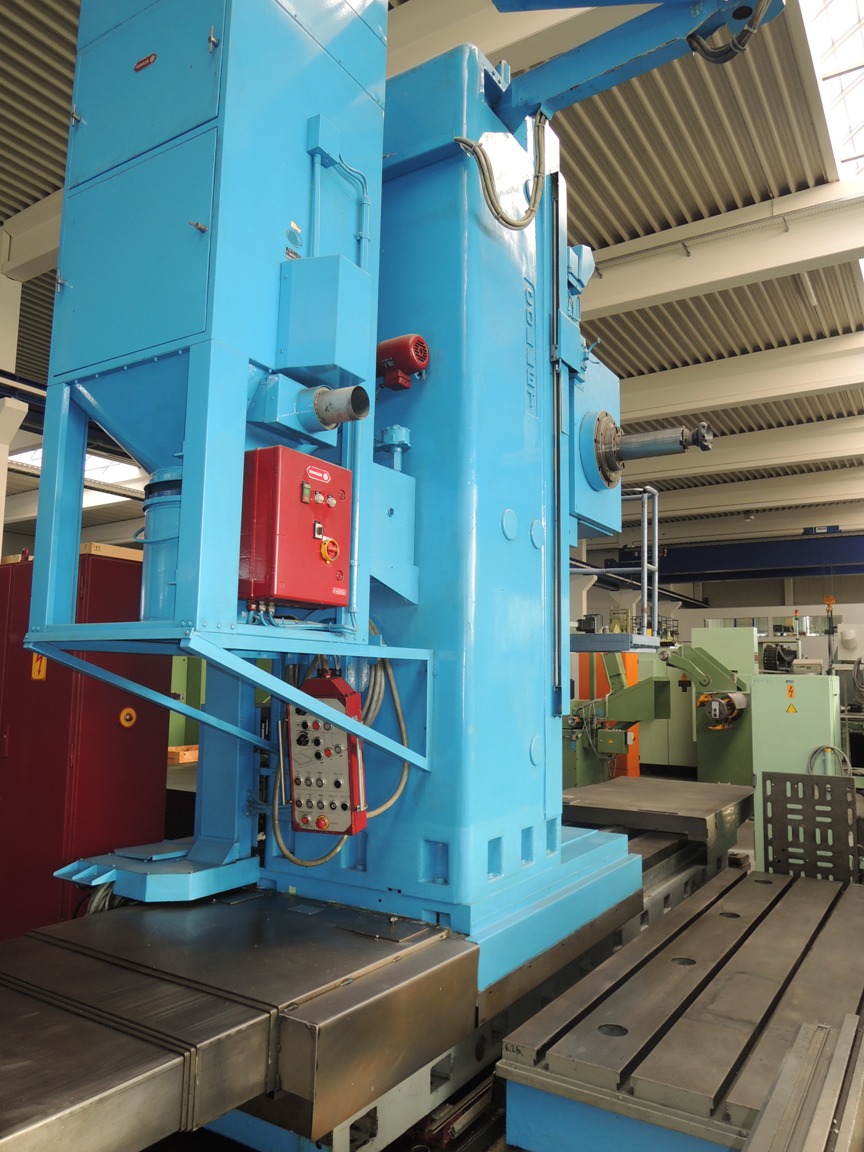

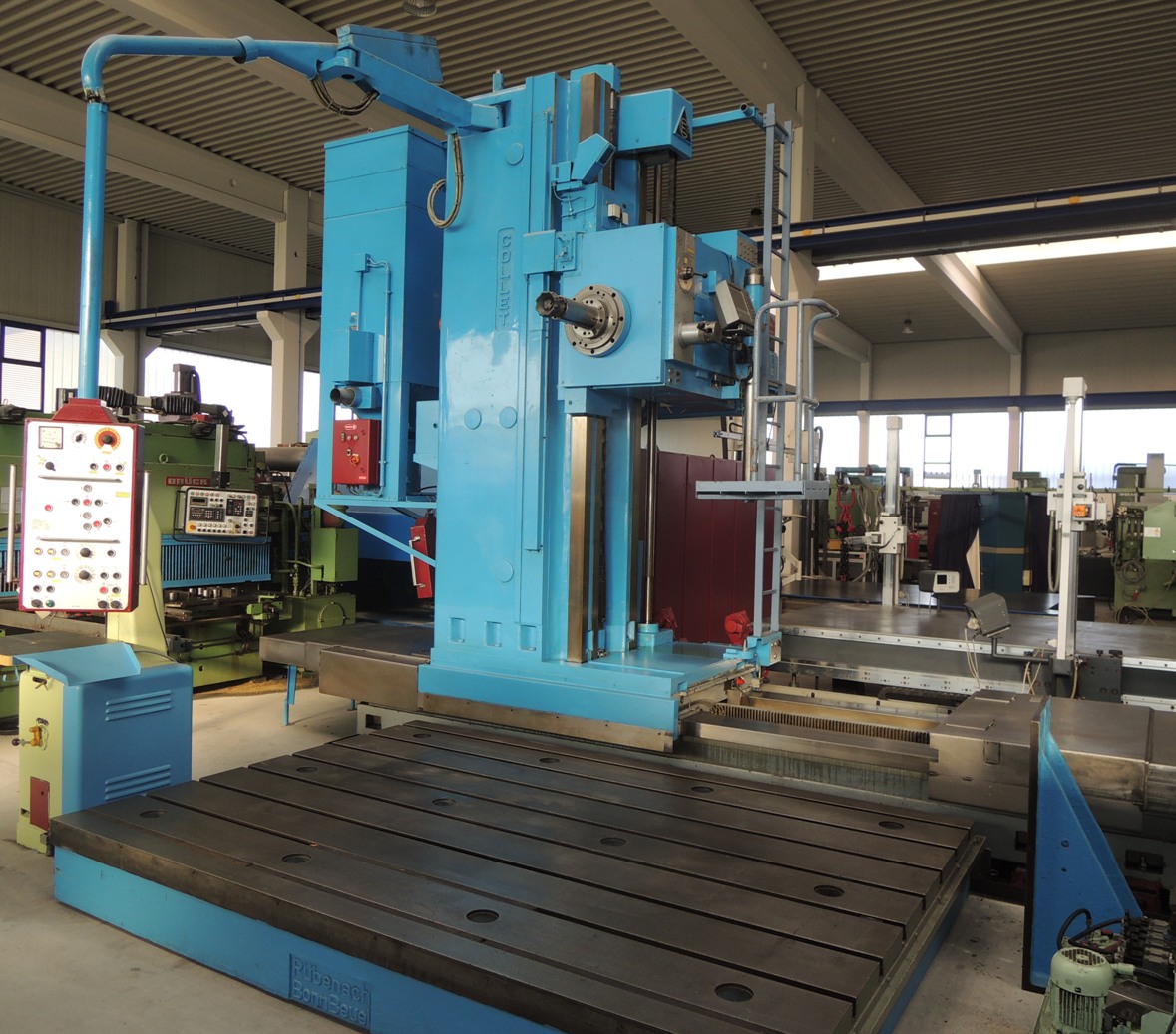

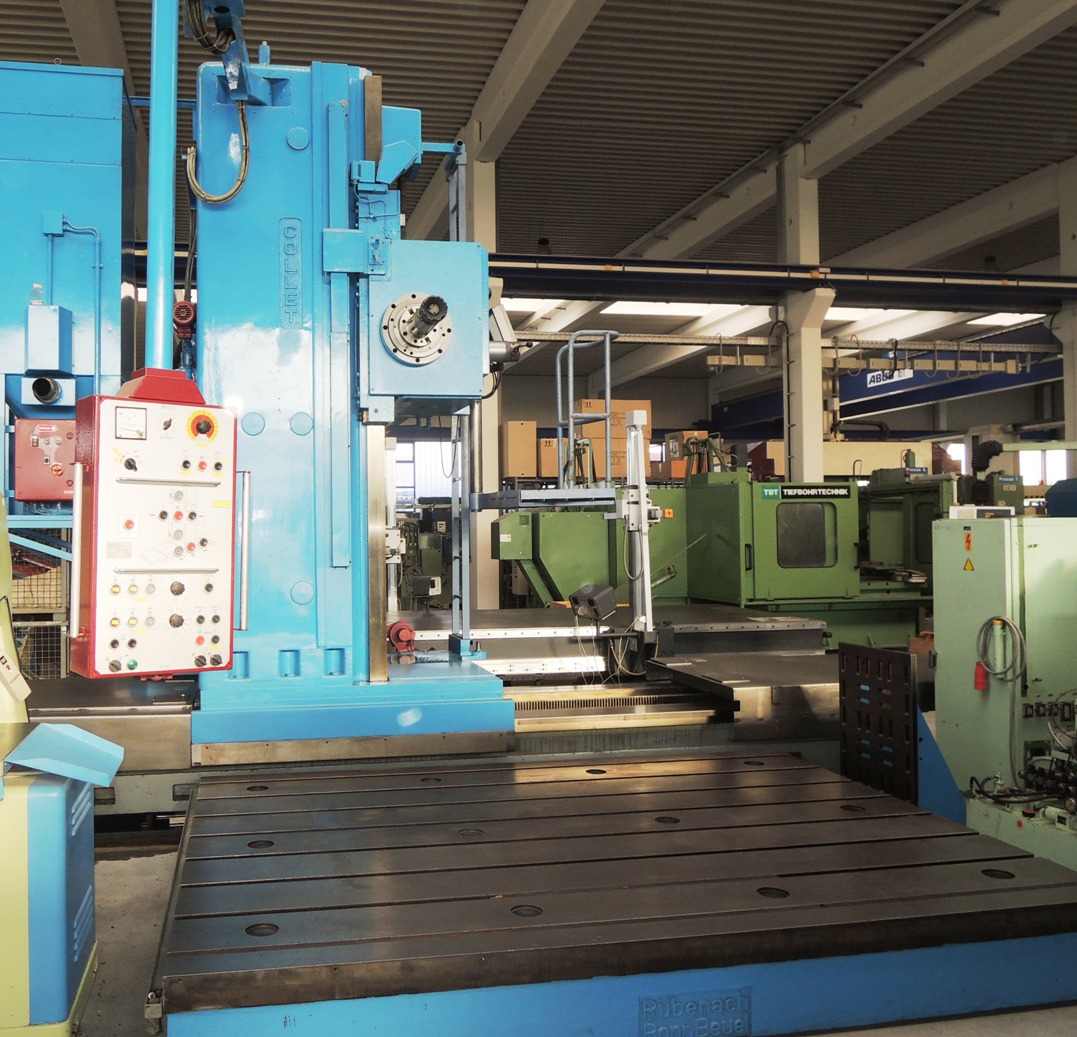

COLLET & ENGELHARDT (Germany)
Horizontal
Boring Machine Floor Type, with Table
Model BF
130 - 11
Year
1973 - machine was regularly
reconditioned and modernized
________________________________________________________
Spindle
Ø 130 mm
Spindle taper SK
50
Working
range: X = column,
longitudinal 3,000 mm
Y =
headstock, vertical 2,000 mm
Z =
spindle stroke 1,000 mm
Lower table 3,300
x 2.400 mm
Max. weight on table 10 tons/m²
Min./ max position of work spindle above
table 770 / 2,770 mm
Feeds 0.9
2,000 mm/min
Quick feed for headstock and column 5,000 mm/min
Quill feed 0.5
1,200 mm/min
Speed range, partially infinitely variable 4.5 1,250 rpm
Spindle Load/ Total Load 25/42 kW
Weight, approx. 30,000 kg
Accessories
/ Special Features:
*
HEIDENHAIN Digital Display for 3 axes.
*
Hardened guideways. *
Ball screw spindles.
*
Infinitely variable spindle speeds and
feeds. Feeds can be individually driven
with motor.
*
Moving operating platform. *
Hanging control panel. * Manual operating control.
*
Platform. *
Hydrostatics in the column displacement.
*
Mounting plate 3,200 x 2,500 mm, planed,
with t-slots.
*
Top table approx. 1,400 x 2,600 x height
900 mm, one face is handled.
*
Hydraulic clamping of column and
slides. * Motor driven tool clamp.
*
Lots
of accessories, including tool holders with and without tools, separate chip
extractor, clamping aids, 1 angle plate, and other plates. Lots of other accessories.
This is a strong machine which is very
suitable for heavy cuts and therefore ideal for the machine tool industry and
for tool manufacturers.
Condition : Good.
Machine can be inspected under power.
Delivery
: Ex stock as inspected
Payment
: Net, after conclusion of
contract
Thank you for your interest. We have other horizontal borers on
stock. Please let us know what you need.
