Q U O T A T I O N



We are pleased to offer you ex stock, subject to prior sale and error in technical data :

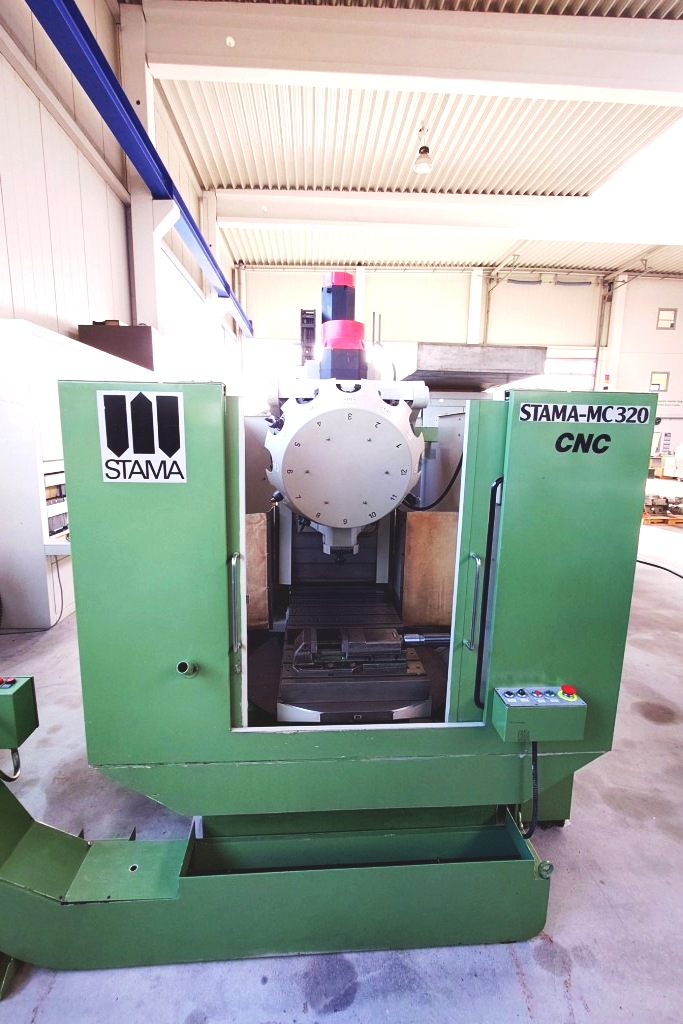

S T A M A                      (FANUC)

Vertical - 3 - Axis - CNC – Machining Center

Model         MC  320

Year           1990                                            # KMH 320 1379



____________________________________________________________



Working area:               Longitudinal stroke    X-axis                 500     mm

                                       Vertical stroke             Z-axis                 350     mm

                                       Cross stroke                Y-axis                300     mm



Table size                                                                             510 x 300     mm

Table load approx. (each)                                                            100     kg

Daylight between table/spindle                                            150-540     mm

Throat to spindle center                                                               350     mm



Workpiece taper                                                                        SK 30

Spindle speeds                                                                   45 - 6.000     rpm

Feed values / rapid feed max.                                     up to 5 m / 20     m/min

Bore capacity/milling capacity in units                         25 mm /130     cm

Milling in aluminium                                                                     500     cm3



AC-main drive approx.                                                                   5,5     kW

Total electrical load approx.                                12 kW - 380 V - 50     cycles

Weight approx.                                                                           3.800     kg

Exterior dimensions LxWxH                                                                   mm



Accessories/Special Features:



·        Original FANUC Control Model O-M with monitor and graphics, with all

      modern sub programs, error diagnosis, electronic handwheel, RS 232,

      simple and fast programming, directly on machine possible and much more.

·        Vertical turret head with 12 tool positions ISO 30, quick changing approx.

      6 seconds chip to chip,

·        Pendular machining on 180° swivelling table with 2 tables approx. 550 x 380 mm,

      Loading and unloading of workpieces is done outside of machining work area

·        Separate freestanding coolant facility, chip conveyor,

·        complete enclosure however easily accessible from all sides

·        hydr. collet, mounted, various tool holders



Ideal machine for productive drilling, threading and milling in steel and aluminium





Condition :         good – can be inspected in operation, 1 tool station not in working order

Delivery :            ex stock, loading on truck included

Payment :           net – after completion of contract



We would appreciate your order.

We always have a big selection of CNC-Machining Centers of all kinds on stock – please inquire for alternative solutions for your needs at any time !
