Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data excepted :

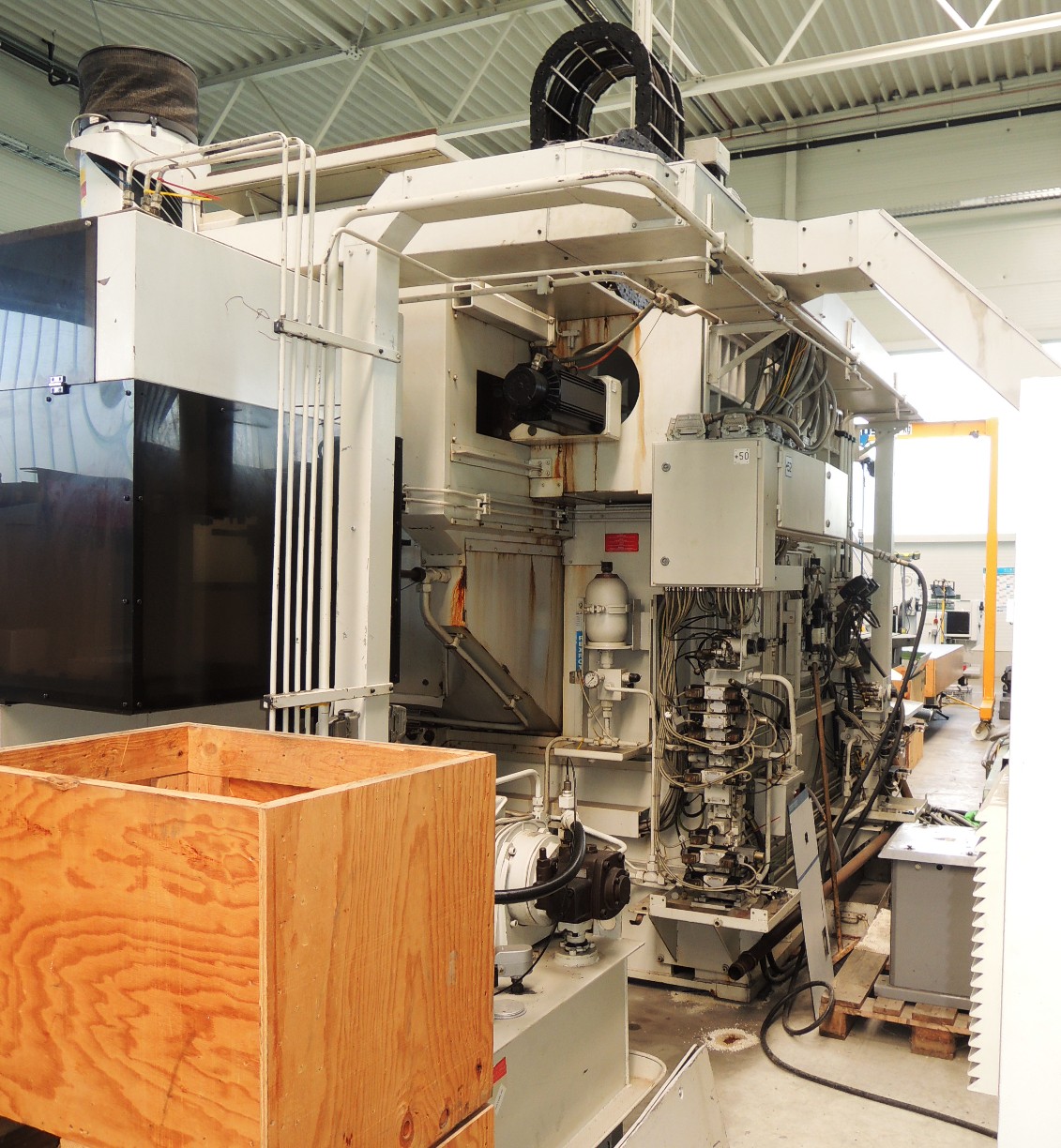

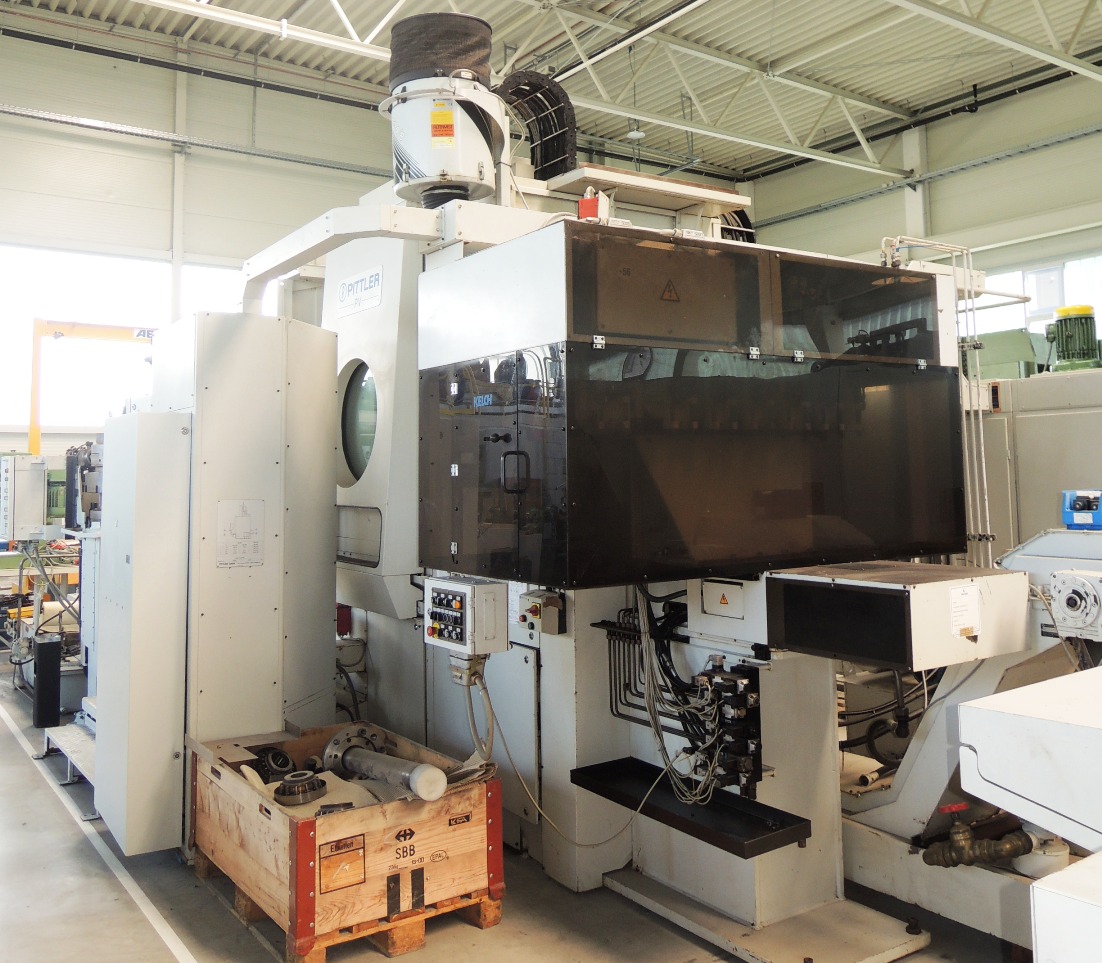

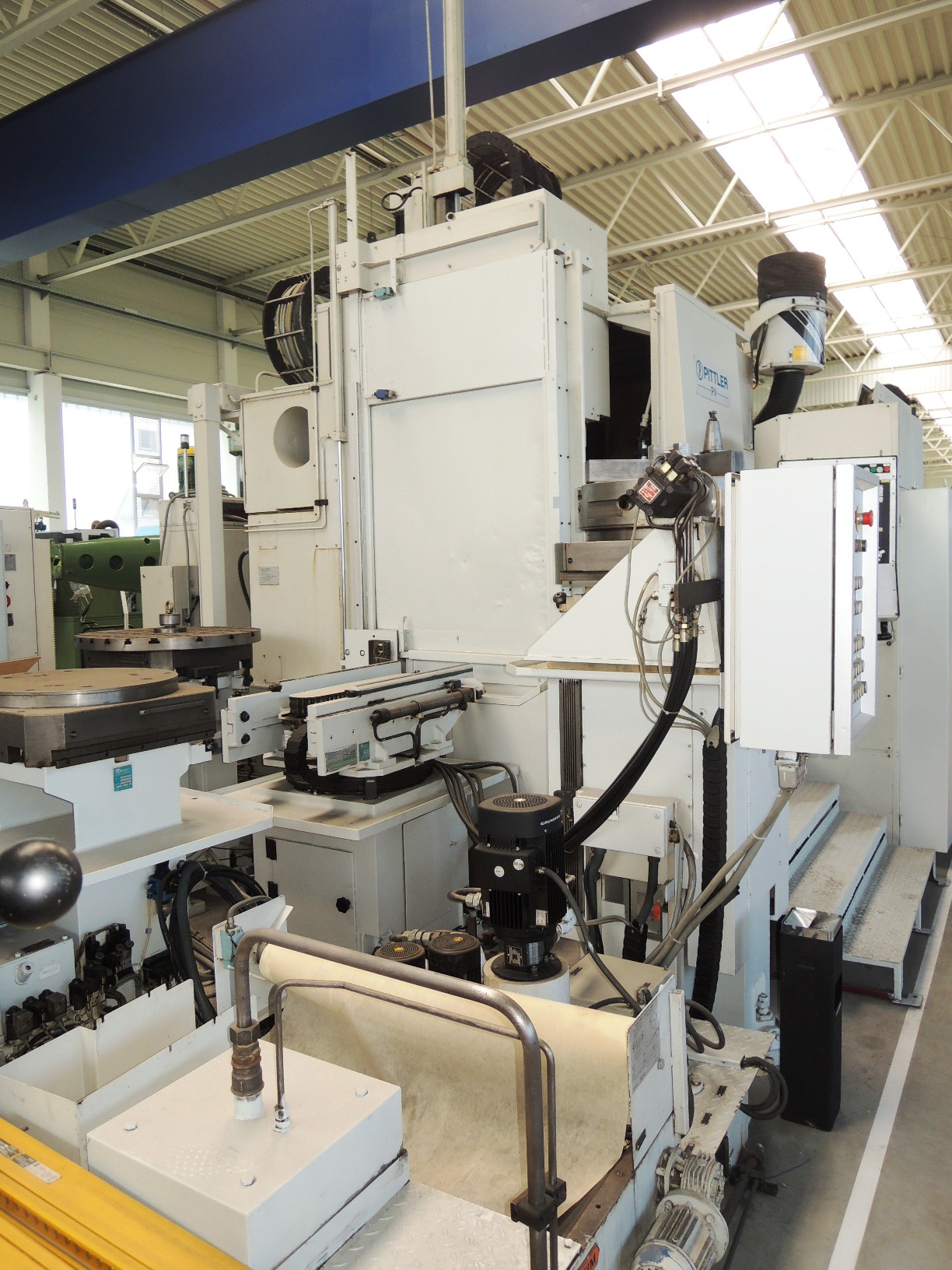

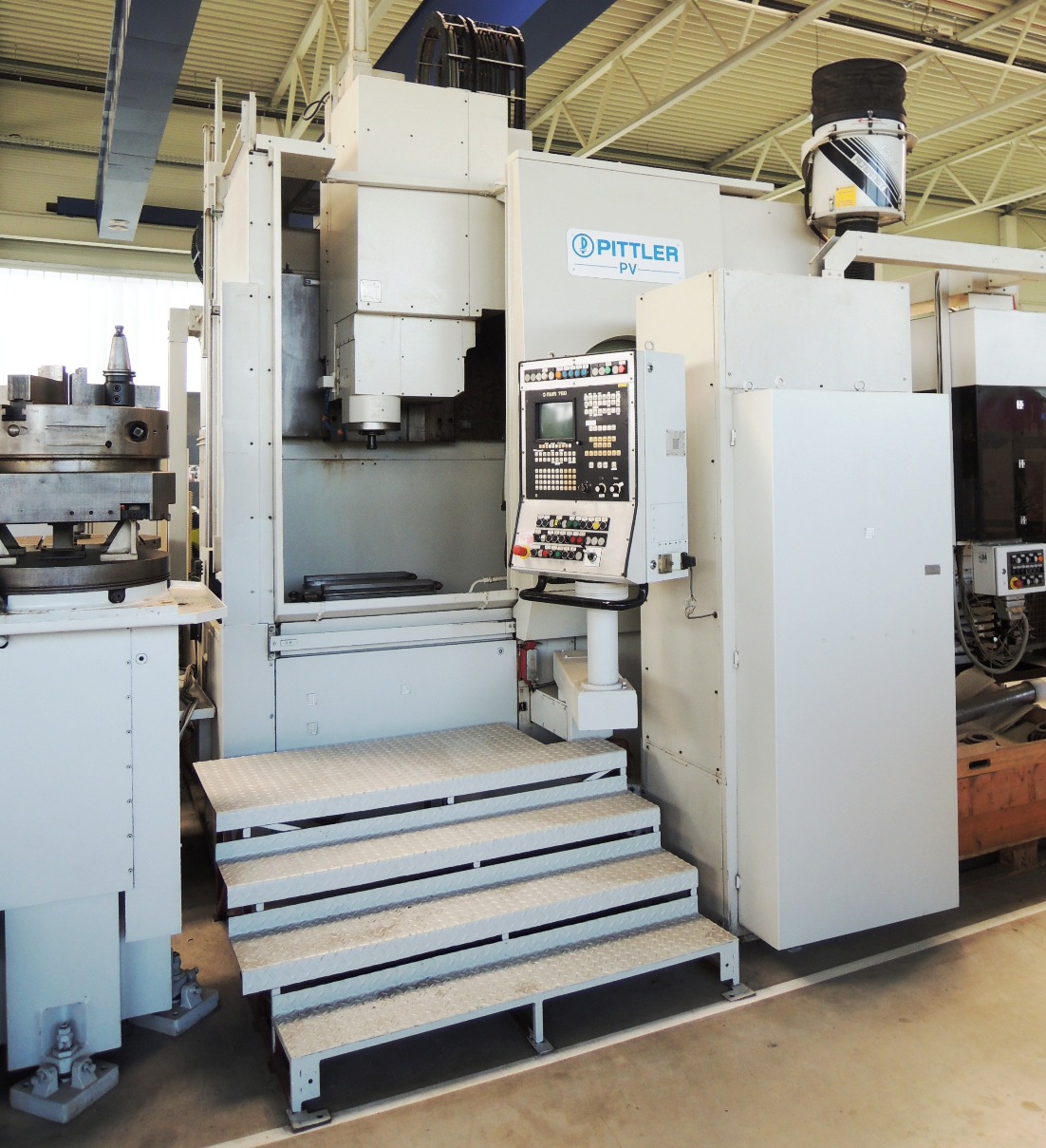

P I T T L E R        (Germany)

CNC Controlled Vertical Turning and Milling Centre

With Tool Changer and Pallet Changer

Model PV 1250 / 1-1               Year 1994             Serial No. 5142-23

_______________________________________________________

Turning Ø max.                                                                                           1,000   mm

Swing Ø max.                                                                                              1,160   mm

Turning length                                                                                                800   mm



X Axis – horizontal                                                                                     1,300   mm

Y Axis – vertical                                                                                             800   mm

Feed / quick feed                                                                                      16,000   mm/min



Main spindle speeds                                                                         10 – 1,000   rpm !

Main spindle speeds via separate C Axis                                           0.1 – 16   rpm

Positioning accuracy of C Axis 360°                                                        + / - 5   “



Tool holder                                                                                                ISO 50

Tool drive                                                                                                          22   kW

Max. torque / spindle speed                                                     315 Nm / 2,500   rpm



Pallet size                                                                                             630 x 630   mm



Spindle drive                                                                                                     63   kW

Total electrical load                                                          97 kW  -  400 V  -  50   Hz

Weight, approx.                                                                                        25,000   kg



Accessories / Special Features

*         CNC Contouring Control Model NUM 760 TX in 3 axes, with graphics, menu-guided dialogue programming, and all the usual options, cycles and sub-programs; with tool compensation, thread cutting cycles, constant speed programming, etc.

*         2-axis CNC tool slide (1,300 x 800 mm) with driven tool holders, ISA 50 / 22 kW.

*         Tool changer with 16 tool holders, max. length 450 mm, max. weight 40 kg.

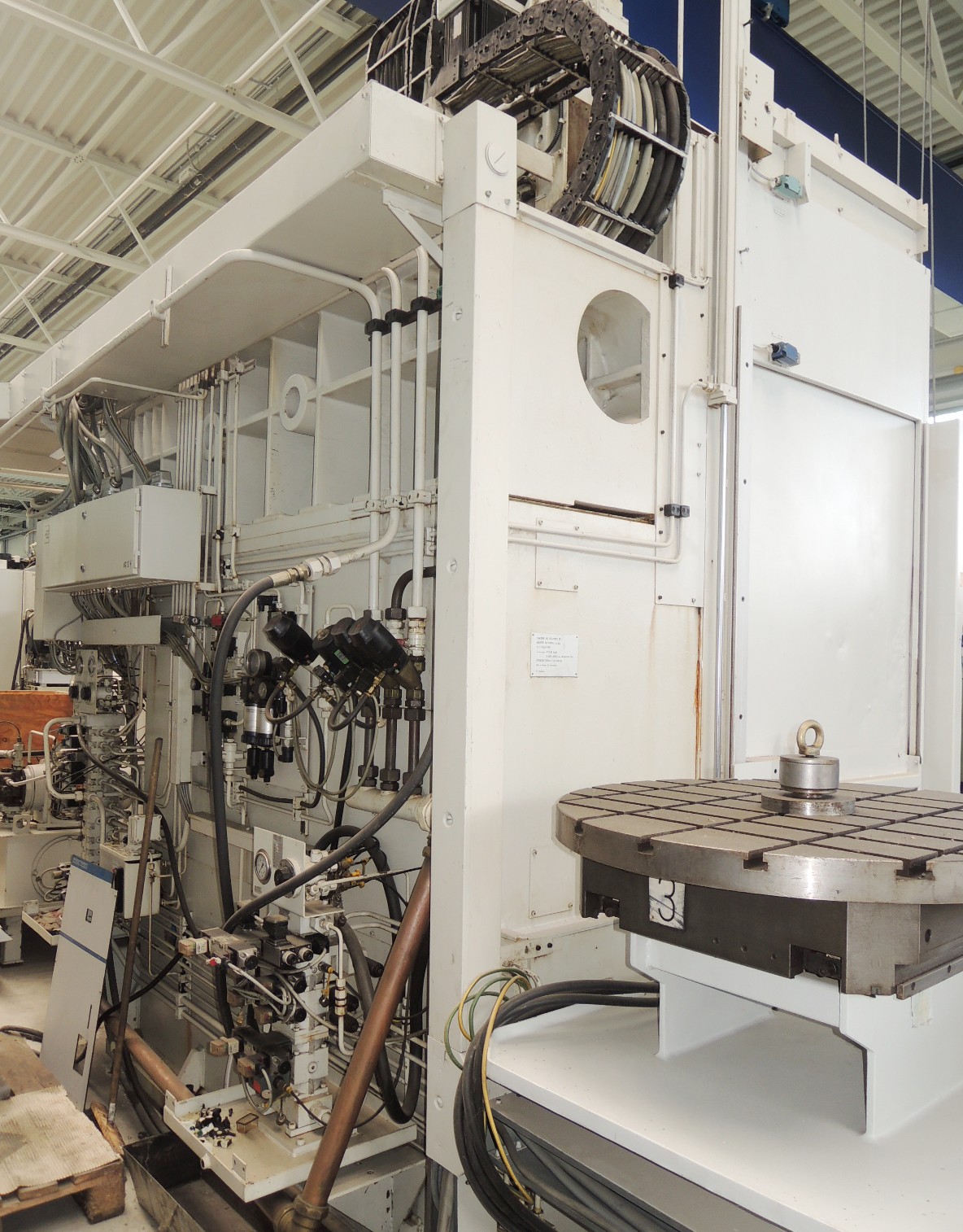

*         Pallet changing system, pallet size 630 x 630 mm, with setup station with indexing and drive of the pallet, and 2 separate pallet stations.

*         3 pallets, 630 x 630 mm.     *   3-jaw chuck, Ø 650 mm.     *   Face plate, Ø 900 mm.

*         Chip conveyor.     *   Band filter coolant equipment.     *   Completely covered working area, including safety fence for the pallet changing area.     *   Separate switch cabinet.     *   Operating manual.

*         Approx. 20 tool holders.    *   Various other accessories.





High performance universal turning and milling centre for full range of machining (turning, boring, drilling, milling, and threading) with high speeds and high turning volume.



Condition  :  Good to very good.  Machine can soon be inspected under power.

Delivery     :  Ex stock as inspected

Payment    :  Net, after conclusion of contract



Thank you for your interest.

We have a selection of modern lathes available.  Please let us know your requirements
