Q U O T A T I O N



We are pleased to offer you ex stock, subject to prior sale and error in technical data:



S T A M A

CNC-controlled Vertical Machining Centre for Bar Machining,

for 5 axis machining of complicated forms in all angle positions

with the highest productivity and precision

Model                             MC  530  SM

Year                                1997                                      # 530 1195

_____________________________________________________________



Bar-Ø/profile size  x  maximum length                                        60 x 800          mm  (!)

Longitudinal travelling range     X-axis                                               800          mm

Transverse travelling range      Y-axis                                                400          mm

Vertical range of milling heads  Z-axis                                               350          mm

work piece axis turning/swiveling                                            360°/120          °



Daylight underneath vertical spindle approx.                                      300          mm



Spindle taper HSK                                                                                63          hollow shank tapers

Speed in rpm of spindle infinitely adjustable                           36.-.10.500          rpm

Feed of all 3 axes                                                                     1 - 10.000                                                                                                     mm/min

Rapid feed                                                                                      40.000                                                                                                     mm/min



Spindle drive                                    14 to 32 kW

Total electrical load                          40          kW - 380 V  -  50 Hz

Weight approx.                                 8            to



Accessories/Special Features:

·         CNC-Continuous path control FANUC Type 16 MB, for all 5 axes including monitor display and direct in-put, and various sub-programs, tool corrections, tool monitoring, parallel programming, 3-D and helicoid interpolation, and various other equipment

·         IRCO Bar feeding magazine on the left side of machine, up to 10 bars of Ø 60 mm,

·         mounted CNC-Turning-Swivelling system including collet clamping device for take up of bar materials in connection with hydr. tailstock as centre support,

·         automatic tool magazine including 42 tool stations ,up to Ø 100 x 200 long

tools also with internal coolant supply, including own tool data base, chip to chip time 4 sec.

      Control of tool breakage via laser-light barrier, etc.

·         pneumatic telescopic catcher for finished parts between workpiece head and tailstock;

·         Conveyor belt  for extraction of parts without opening the working area

·         Complete enclosure of work area, including chip conveyor, however without coolant facility (central cooling supply)

Threading without compensation chuck possible, no tool holders available





Condition   :    good to very good  -  can be shown in operation under current soon, very solid machine-

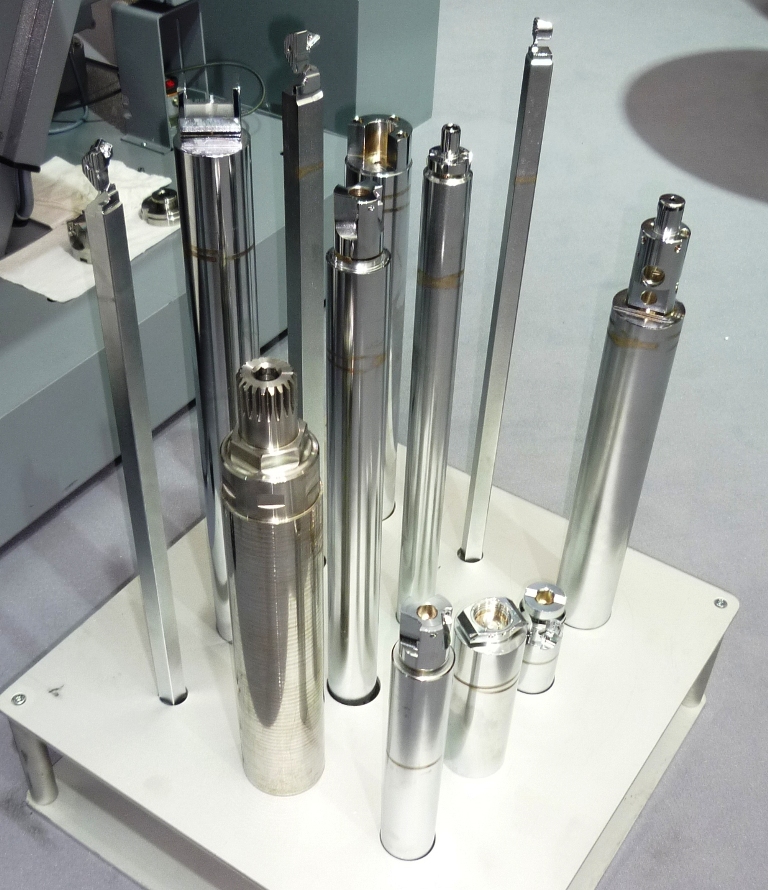

Delivery:          ex stock – as viewed                           ideal for production of cuttingtool holders.

Payment     :    net – after completion of contract



We would appreciate your order.

Further machining centers on stock, please inquire by phone, fax or internet at any time.
