STAMA MC 535 SM Single 1998
 zurück  Add to cart
HJGLogokleinHJGTextlogo
D-72555 Metzingen James-Watt-Str. 12 Industriegebiet
Telefon +49 (0)7123 / 18040 Telefax +49 (0)7123 / 18384
E-Mail: geiger@geiger-germany.com
Internet: http://www.geiger-germany.com
    458174

Q U O T A T I O N



We are pleased to offer you ex stock, subject to prior sale and error in technical data:

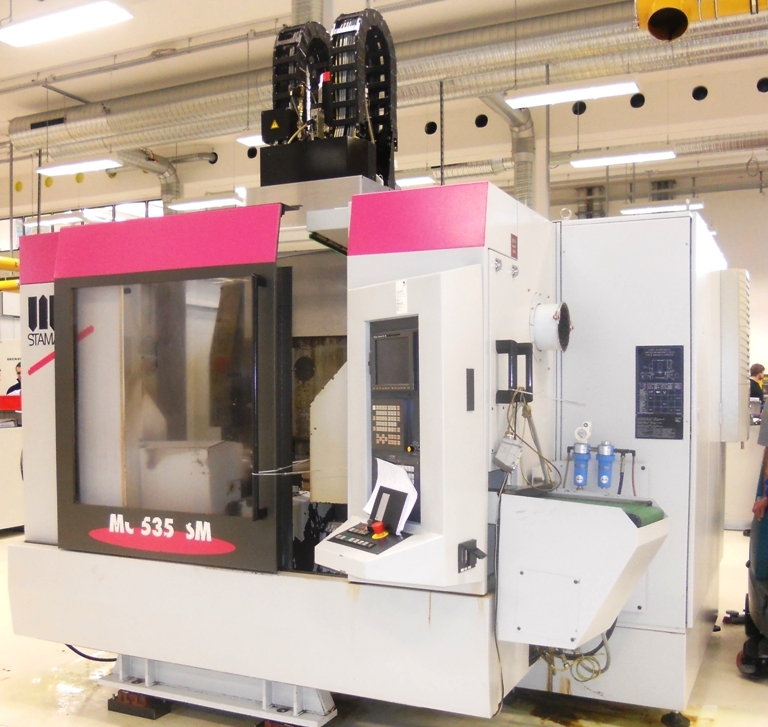

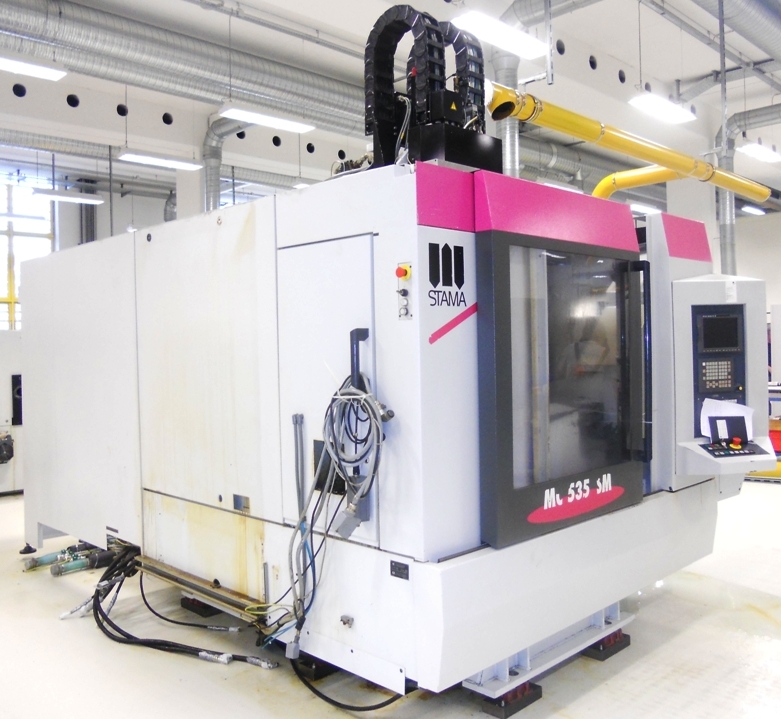

S T A M A

CNC-controlled Vertical Machining Centre for Bar Machining.

for 5 axis machining of complicated forms in all angle positions

with the highest productivity and precision

Model                             MC  535  SM

Year                                1998                                      # 535 1107

_____________________________________________________________



Bar-Ø/profile size  x  maximum length                                        80 x 800          mm  (!)

Longitudinal travelling range     X-axis                                               800          mm

Transverse travelling range      Y-axis                                                500          mm

Vertical range of milling heads  Z-axis                                               510          mm

workpiece axis turning/swiveling                                             360°/120          °



Daylight underneath vertical spindle approx.                                      350          mm



Spindle taper                                                                                         63          hollow shank tapers

Speed in rpm of spindle infinitely adjustable                           36.-.10.000          rpm

Feed of all 3 axes                                                                     1 - 10.000                                                                                                     mm/min

Rapid feed                                                                                      40.000                                                                                                     mm/min



Spindle drive                                    22 bis 32           kW

Total electrical load                          60          kW - 380 V  -  50 Hz

Weight approx.                                 10          to



Accessories/Special Features:



·         CNC-Continuous path control FANUC Type 16 iM, for all 5 axes including monitor display and direct in-put and various sub-programs, tool corrections, tool monitoring, parallel programming, and various other equipment

·         Bar feeding magazine on the left side of machine, up to 10 bars of Ø 80 mm,

·         mounted CNC-Turning-Swivelling device including collet clamping device for take up of bar materials in connection with hydr. tailstock as center support,

·         automatic tool magazine including 66 tool positions, up to Ø 125 x 300 long, tools also

with internal coolant supply, including own tool data base, chip to chip time 4 sec.

      Control of tool breakage via laser-light barrier, etc.

·         Grip and swivel device for holding the workpiece while „cut-off-milling“ as well as for extracting the finished part and placing it on the conveyor belt

·         Complete enclosure of work area, including chip conveyor, however without coolant

facility (central cooling supply)

       Probe sensor control for scanning workpieces possible, watercooled milling spindle,

       various collets, no tools available





Condition:       good to very good  -  can be shown in operation soon, very solid machine, ideal for the

Delivery:          ex stock – as viewed                                       production of Cutting Tool Holders

Payment:         net – after completion of contract



We would appreciate your order.

Further milling machines and machining centers on stock, please inquire by phone, fax or internet at any

time.
