Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data :



H E L L E R                       (Germany)

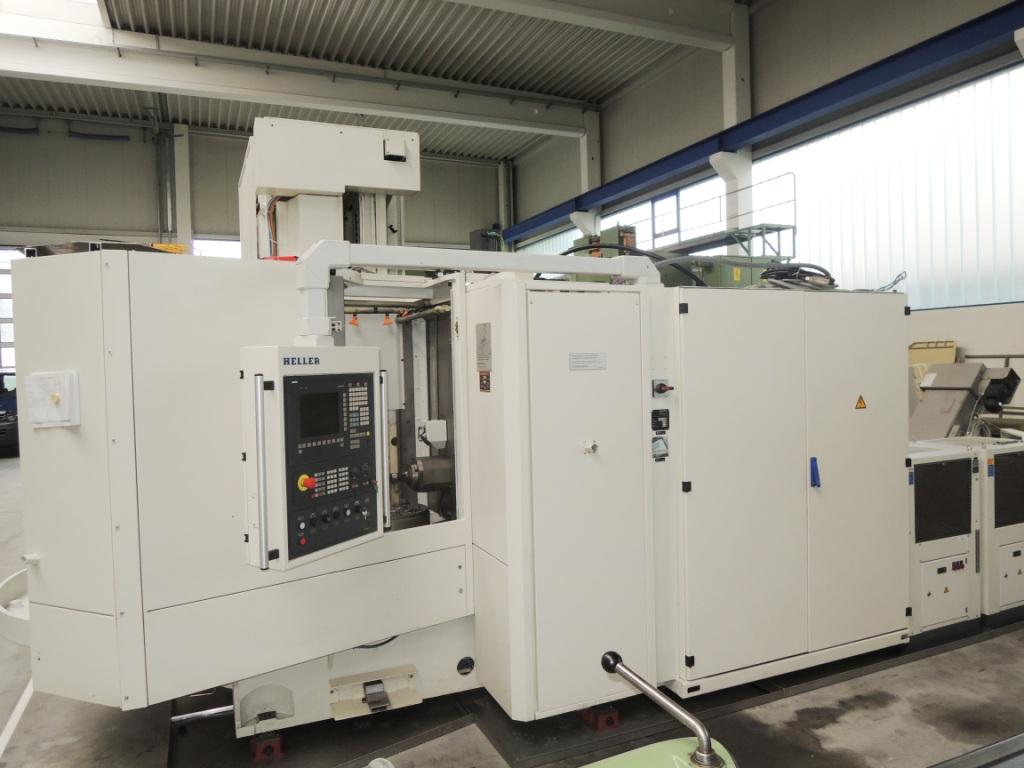

CNC Controlled Horizontal Machining Centre

with SIEMENS-CNC-Control 840 D

Model  MC 16          Year  2002                 # 3161-45523-00

                                                                                                                                                                     ___



Working range:     Longitudinal stroke        X axis                            630  mm

                            Vertical stroke              Y axis                            630  mm

                            Cross stroke                 Z axis                            630  mm

Pallet size                                                                            400 x 500 mm

Max. workpiece size Ø x height                                             720 x 800  mm

Max. workpiece weight                                                                   500  kg

Pallet exchange time                                                                          9  sec.



NC rotary table    Tilting                           B axis         360.000 x 0,001  °

                            Turning   Speed            B axis                             40  rpm/min



Tool holder cone                                                                      HSK 63

Tool size Ø x lg. x weight                                             150 x 227 x 12  mm/kg

Spindle speeds, infinitely variable                                   45 – 24,000  rpm



Feeds / quick feeds                                  XYZ                     1 – 60,000  mm/min

Feed force                                                                                10.000  nm

Spindel torque                                                                             48/72  nm

Spindle drive                                                                                    30  kW

Total electrical load, approx.                                60 kW  -  400 V  -  50  Hz

Total weight, approx.                                                                    12.500 kg



Accessories / Special Features :

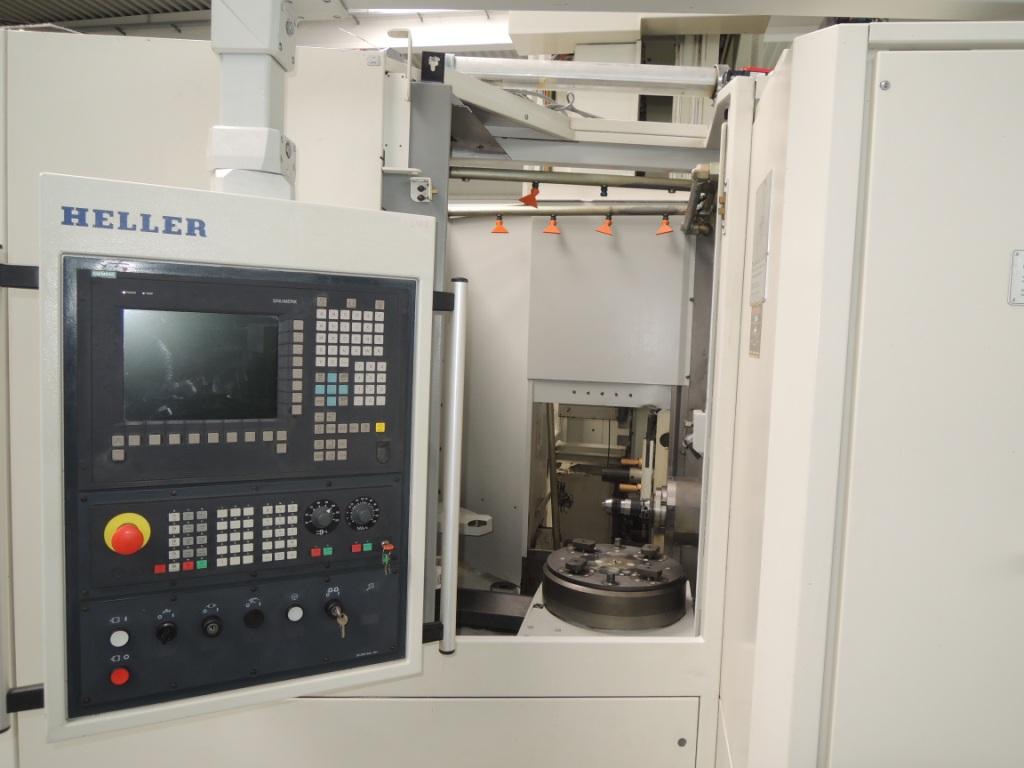

*        4-Axis SIEMENS CNC Path Control, Model SINUMERIC 840 D with all Sub programs,

graphics etc. a. with separate CNC-Control for Tool-Magazine System…

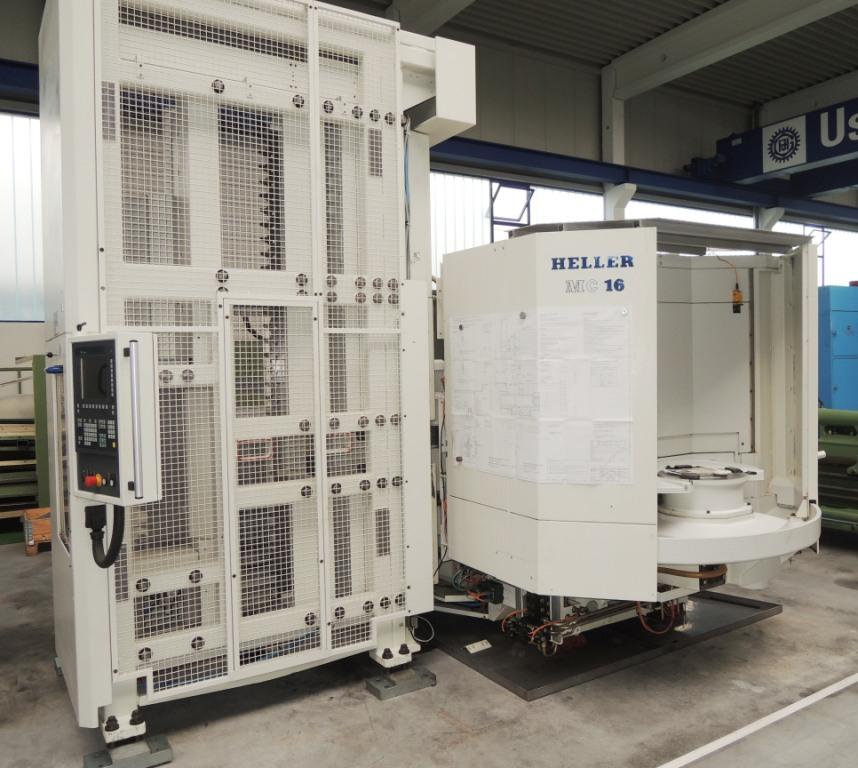

*        Separate standing 252 position Rack-Type tool Magazine with tool placement door and

      double Swivel gripper, own SIEMENS PC-Control with screen Tool Administration System, etc

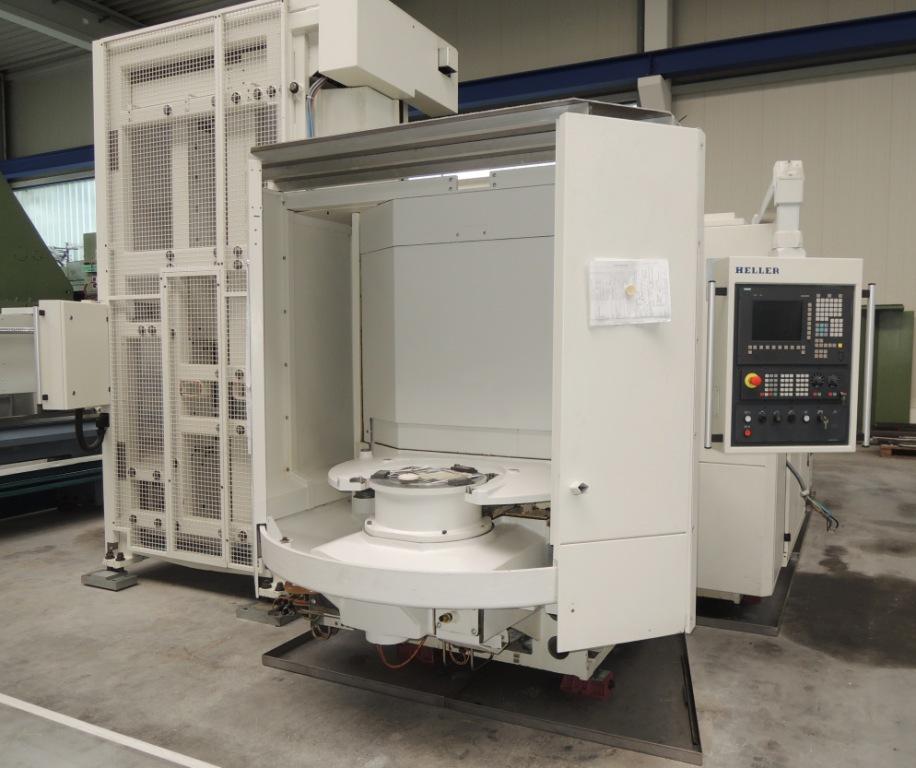

*        Pallet changer with divider splash guard  for mounting the work pieces during

the machining process onto the outside pallet, which can be turned manually 4 x 90°.

workpiece table built in hydraulic clamping system.

*         Tool Brakeage Control and Transmitter for RENISHAW Measuring Probe Head for Workpiece

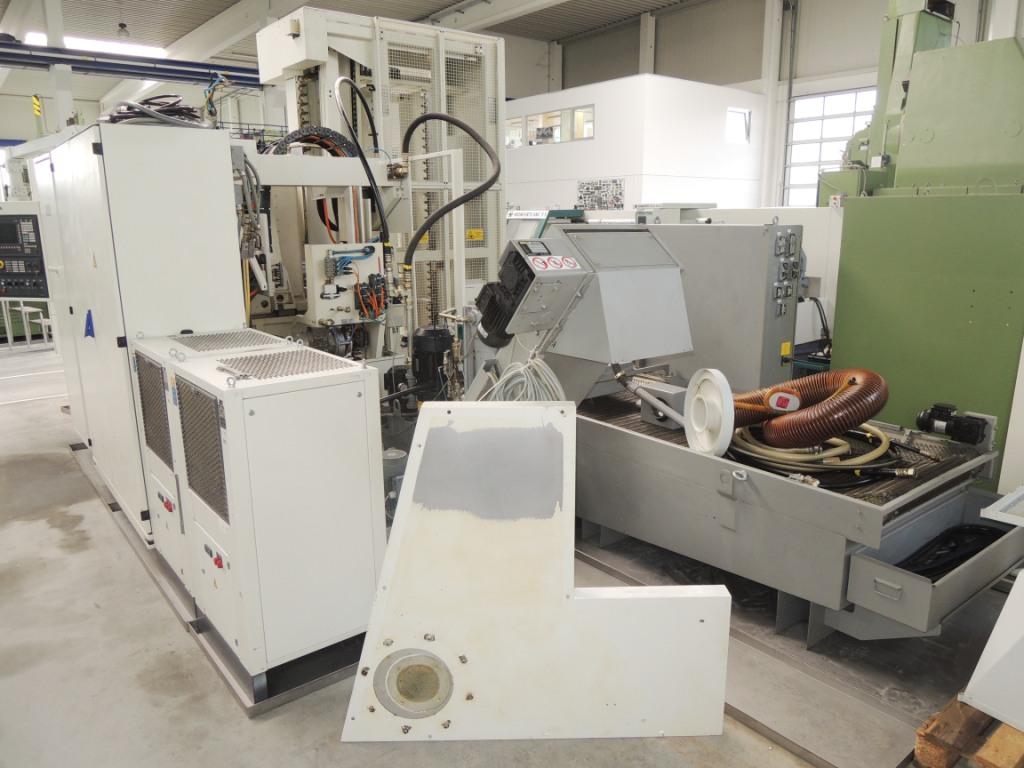

*         Large coolant preparation unit KNOLL Model AE 1110 with Filter and High Pressure Pump

      6,3 kW Model KTS 25 for internal Coolant supply thru the spindle and with Paperband Filter system

*        built in mobile KNOLL Chip conveyor.

*        Separate cooling aggregates for the motor spindle and for Coolant agent.

REMARKS: Machine was interlinked with a FASTEMS Pallet storage system and has got no

Safety door in front of the machine, which could be managed by safety light bars.





Condition :     Good to very good.  Machine can be soon inspected under power.

                           Ideal Machine for the Machining of High Precision Aluminum Parts

Delivery    :     Ex stock, as inspected.       Payment   :     Net, after conclusion of contract.



We ask for your order.
If you need any other machining centers please let us know or check our website.
