Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale,

and error in technical data excepted :



G.  M Ü L L E R    (Germany)

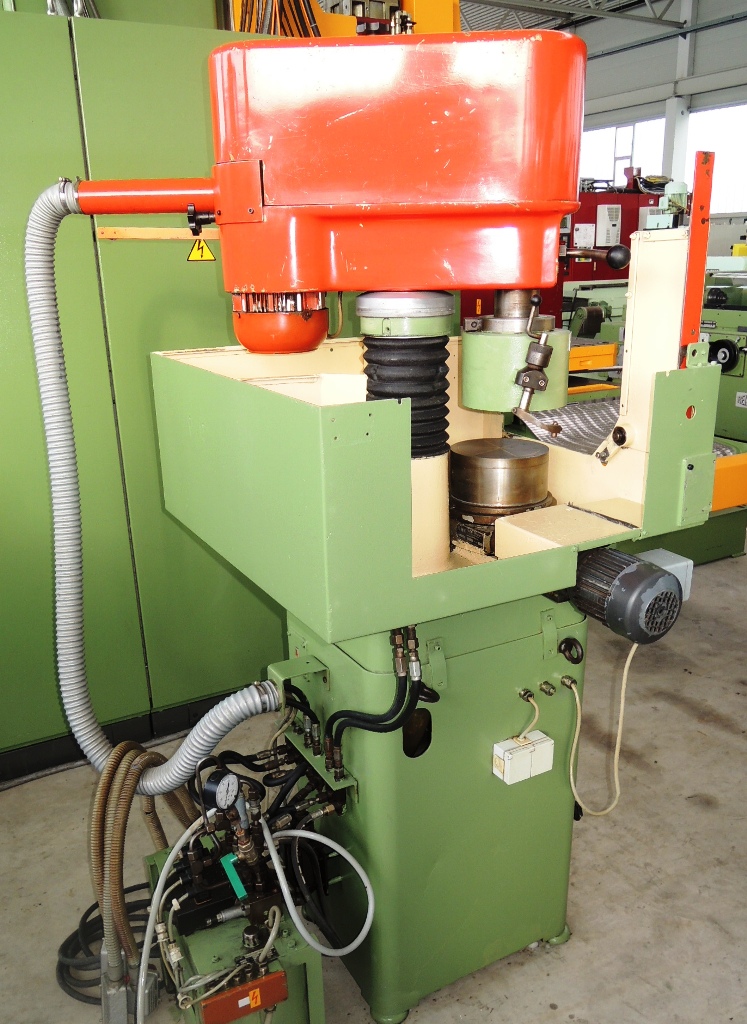

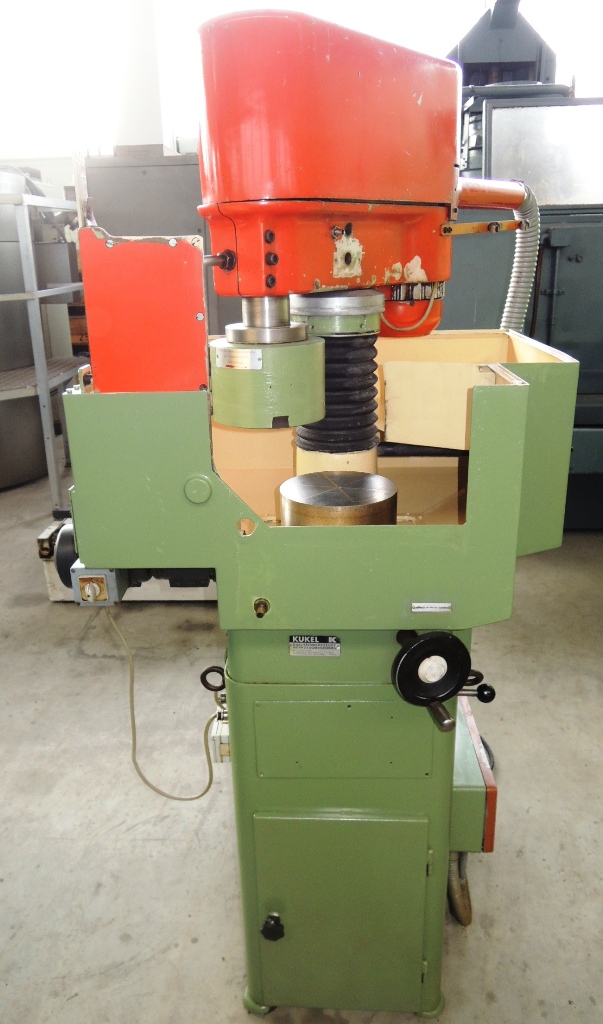

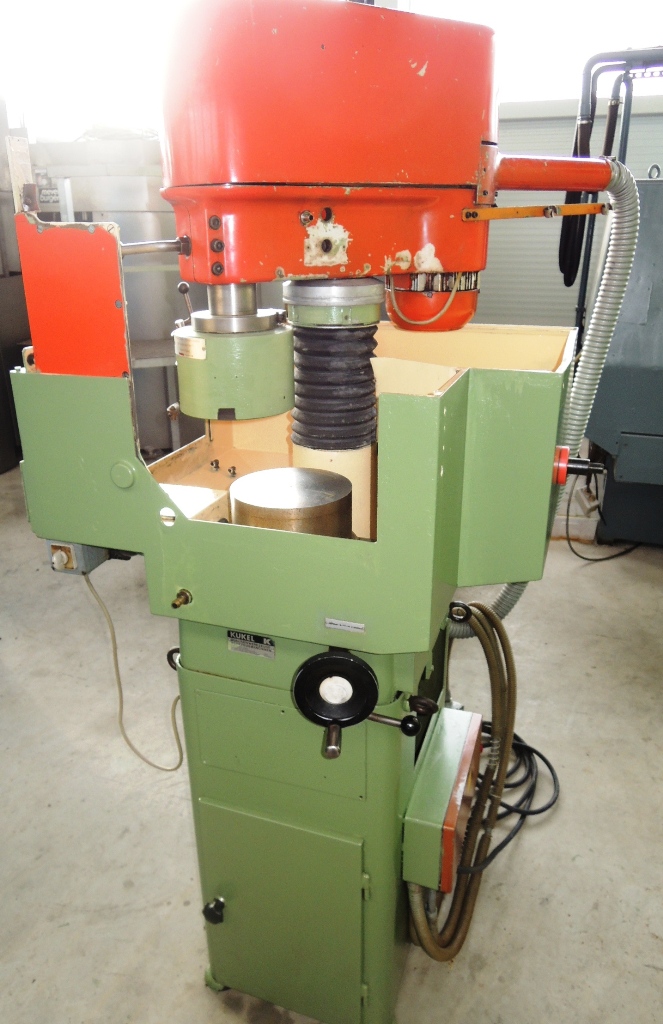

Vertical Precision Surface Grinding Machine with rotary table

Model  MPS 2 R

Year    1983                                                Serial Nos. 9432 and 9383

_______________________________________________________



Rotary table Ø                                                                             200   mm

Grinding wheel Ø                                                                        175   mm

Working height under grinding wheel                                          100   mm



Grinding wheel speed                                                              2,560   rpm

Grinding spindle drive, approx.                                                       2   kW



Total electrical load, approx.                          2.5 kW  -  380 V  -  50   Hz

Weight, approx.                                                                           500   kg



Accessories / Special Features

*        MARPOSS Electronic Size Control with direct tracing of workpiece, and digital presetting of infeed amount.

*        Hydraulically swivelling measuring tracer.

*        Precision rotary magnet with its own infinitely variable drive.

*        Grinding wheel drive via belt disk.

*        Manual precision adjustment via handwheel, or via infeed control.

*        Grinding wheel dressing device is swivable and mounted on grinding wheel hood.

*        Workpieces can be centred on the magnet for exact concentricity measurements.

*        Machine is standing on a box-type base.

*        Built-on coolant equipment.





This is an ideal machine for precise adaptive grinding of workpieces, e.g. ball bearing rings, spacer washers, and lots of other parts.



Condition  :    Good.  Machine can soon be inspected under power.

Delivery     :    Ex stock, as inspected.

Payment    :    Net, after conclusion of contract.



Thank you for your interest.

We have a large selection of surface grinders available on stock.

Please let us know your requirements.
