Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data :

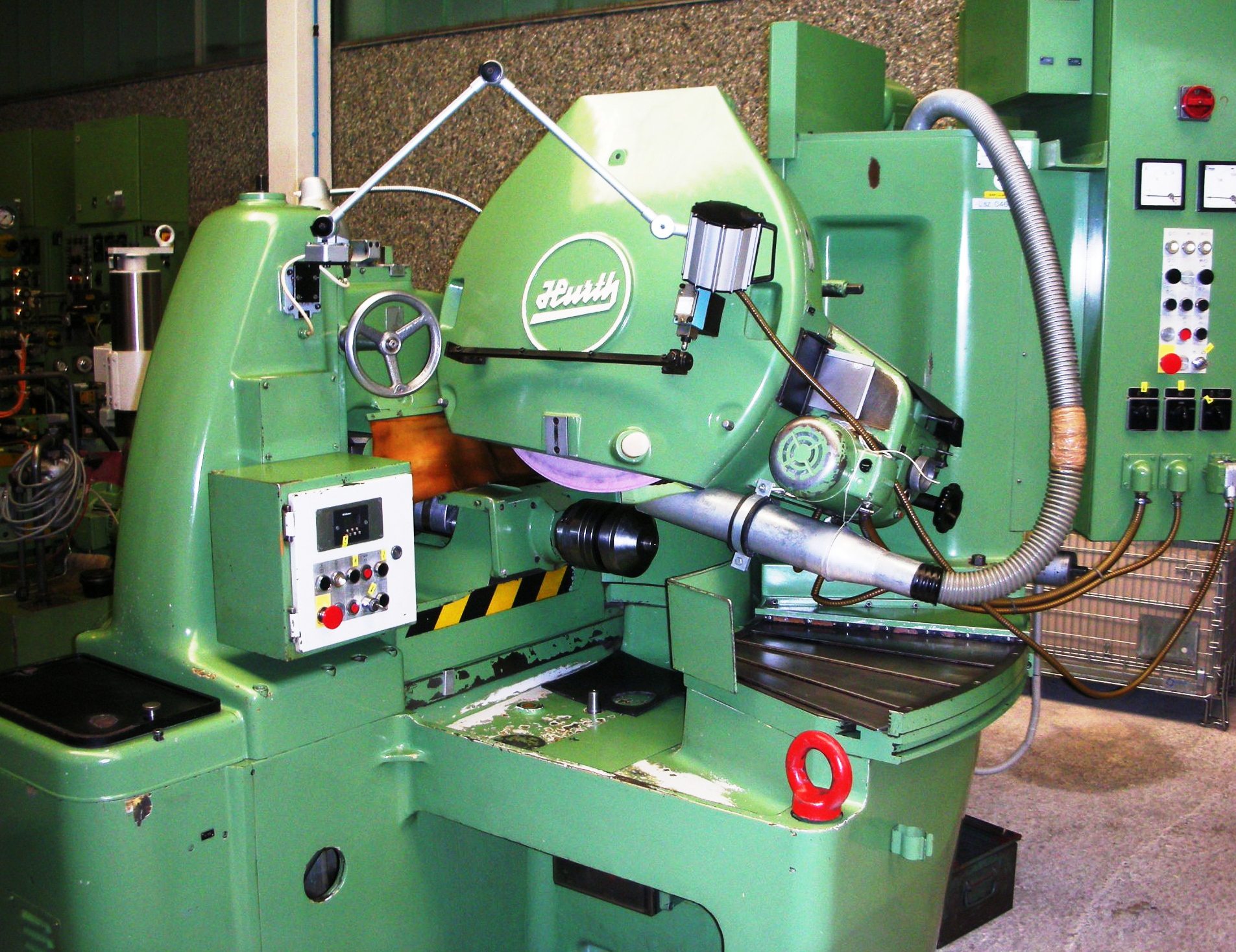

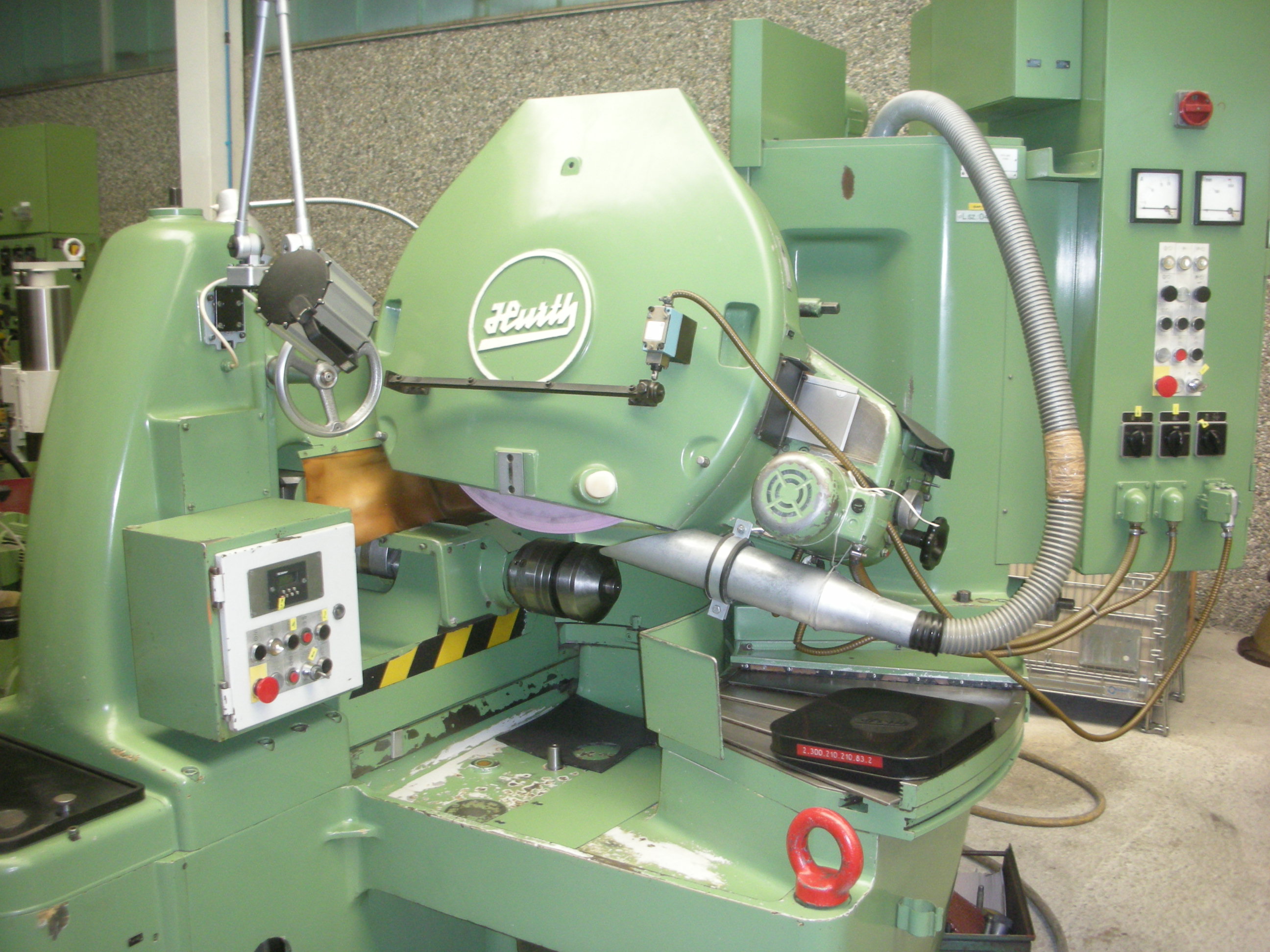

H U R T H     (Germany)

Universal Shaving Tool  Grinding Machine

Model SRS 400                                                                      Year 1977

_____________________________________________________________



Shaver cutter Ø, min./max.                                                64 - 320                                                                                     mm

Module range                                                                   1 - 12

Shaver cutter width, max.                                                                                             40                                                                                           mm



No. of teeth                                                                  13 – 240

Pitch block Ø                                                                      73 – 320                                                                                     mm



Speeds of workpiece slide                                        5 / 20 / 30 / 40                                                                        teeth per min.

Grinding slide speed                                                                                           690                                                                                           rpm

Grinding slide Ø                                                                                           762                                                                                           mm



Grinding wheel swivelling (pressure angle)                            5 – 21                                                                                            °

Grinding slide swivelling (helical angle)                                 2 x 35                                                                                            °

Grinding slide adjustment, vertical                                                                                           240                                                                                           mm



Cutting speed                                                                1 / 0.5 / 0.25                                                                                 m/min



Spindle drive                                                                                            1.1                                                                                             kW

Total electrical load, approx.                             3 kW  -  500 V  -  50                                                                                         Hz

Weight, approx.                                                                                        4,200                                                                                             kg



Accessories / Special Features

*      Machine is suitable for grinding internal and external shaver cutters.  It is also suitable for master gears as well as cutters for gear shapers.



Unfortunately the machine does not have many accessories.  It would therefore be a good investment as a second machine if you already have suitable accessories available.



Condition :  Good to very good.  Machine can be inspected under power

Delivery   :   Ex stock as inspected

Payment  :   Net, after conclusion of contract



Thank you for your interest.  We always have a good selection of gear machines on stock.

Please let us know what you need.
