Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale,

and error in technical data excepted :



G L E A S O N     (USA)

Curvic Coupling Grinder

Model  120 (888)                 Serial No. 763402                   Year 1980

_______________________________________________________

Max. depth of tooth                                                                                10   mm

Max. workpiece Ø (for clearance)                                                   1,010   mm

Max. external Ø of coupling                                                                610   mm



Sliding base withdraw                                                                         216   mm

Max. distance from grinding wheel to workpiece nose               90 – 430   mm

Max. weight of workpiece, including clamp                                        500   kg



No. of teeth                                                                                 32 to 150



Grinding wheel Ø, approx                                                          152 - 320   mm

Grinding wheel speeds, infinitely variable                                  0 – 3,600   rpm



Work spindle bore                                                                                 60   mm



Total electrical load, approx.                                    15 kW  -  380 V  - 50   Hz

Weight, approx.                                                                                9,500   kg



Accessories / Special Features

*         Automatic roughing and finishing process via pre-settable counter and

built-in feed cam.

*         Counter for number of teeth.

*         Counter for number of dressing cycles.

*         2 built-on dressing units with three dressing diamonds for radius dressing,

      side dressing and wheel end dressing.

*         Built-on index plate for 48 teeth.

*         Separate coolant device with band filter.     *   Separate hydraulic unit.

*         Separate TRION oil mist exhaust.     *   Various small parts.

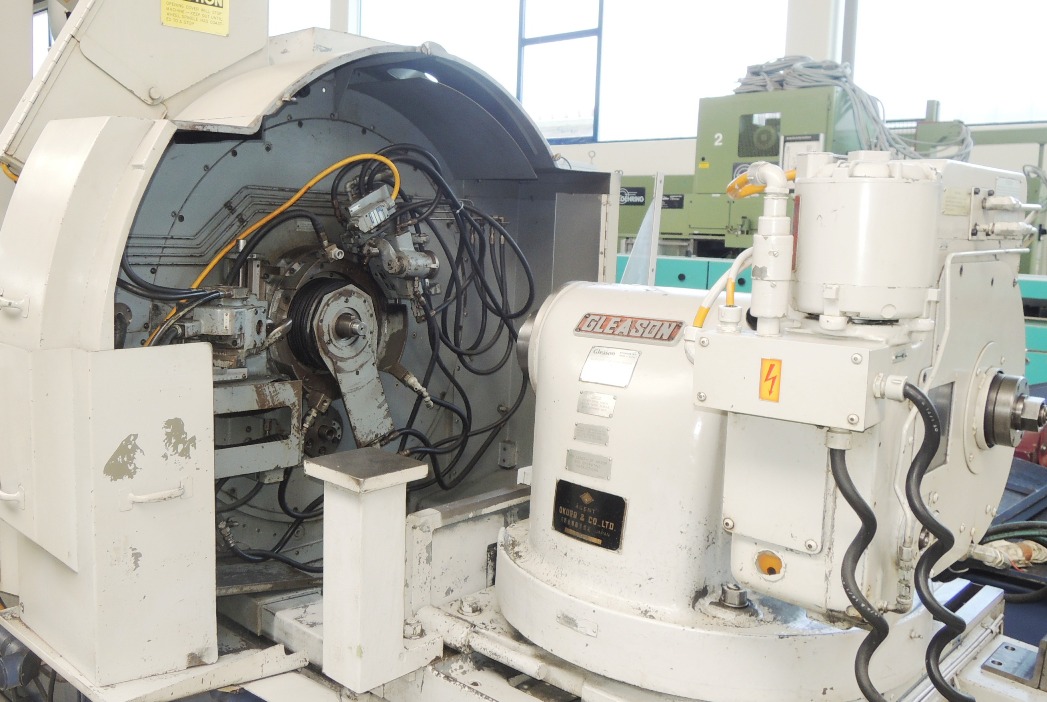

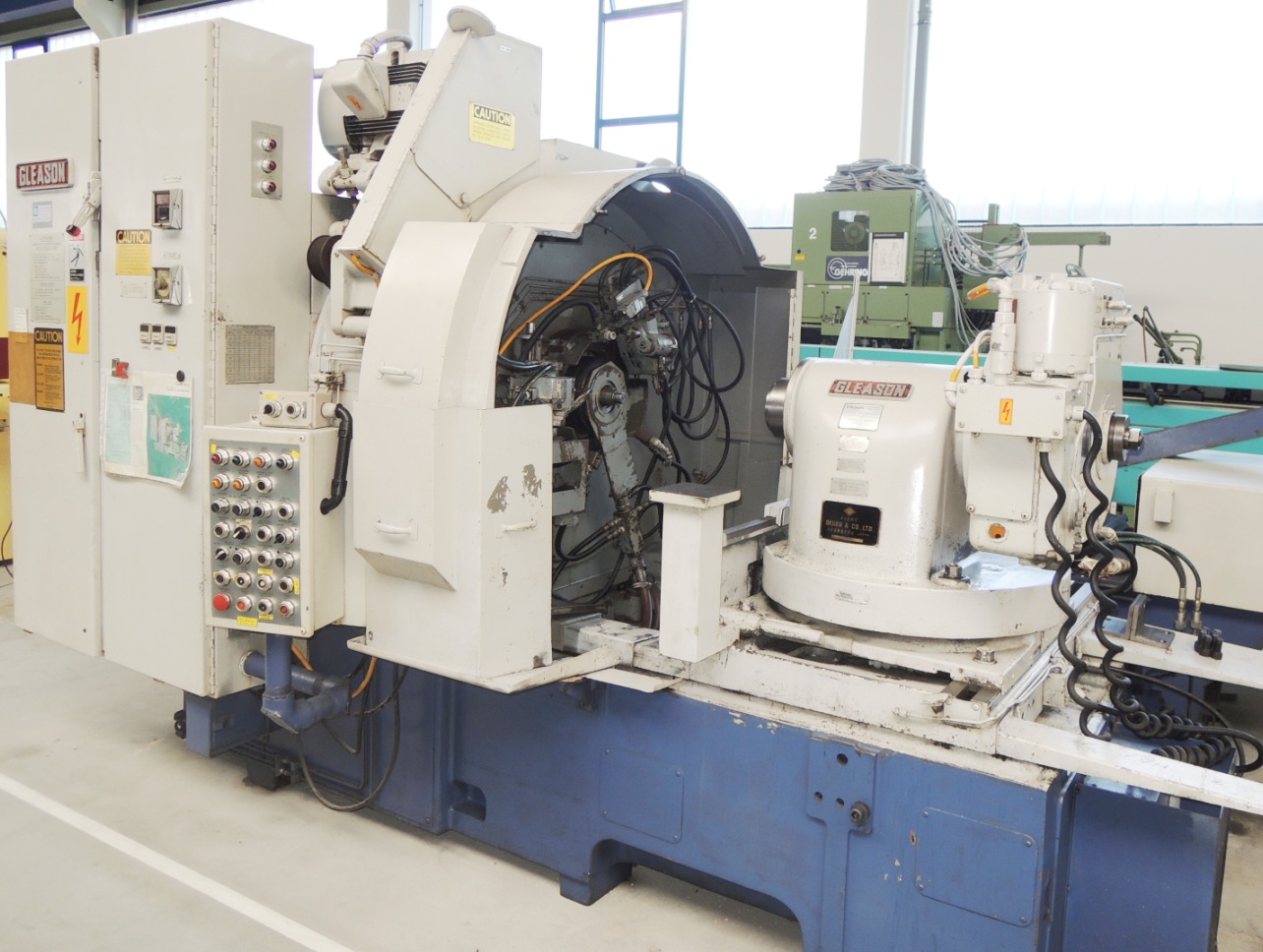

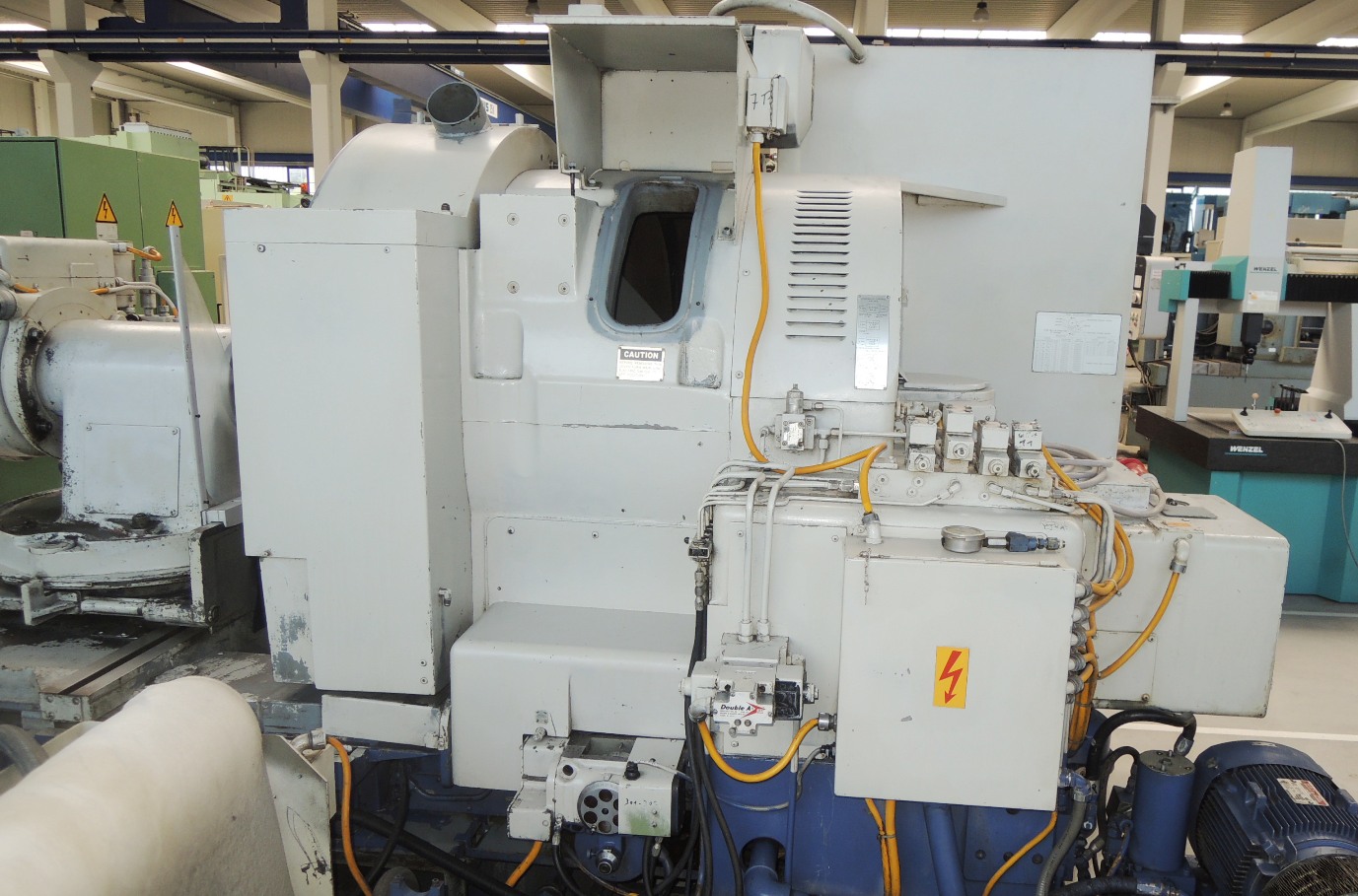

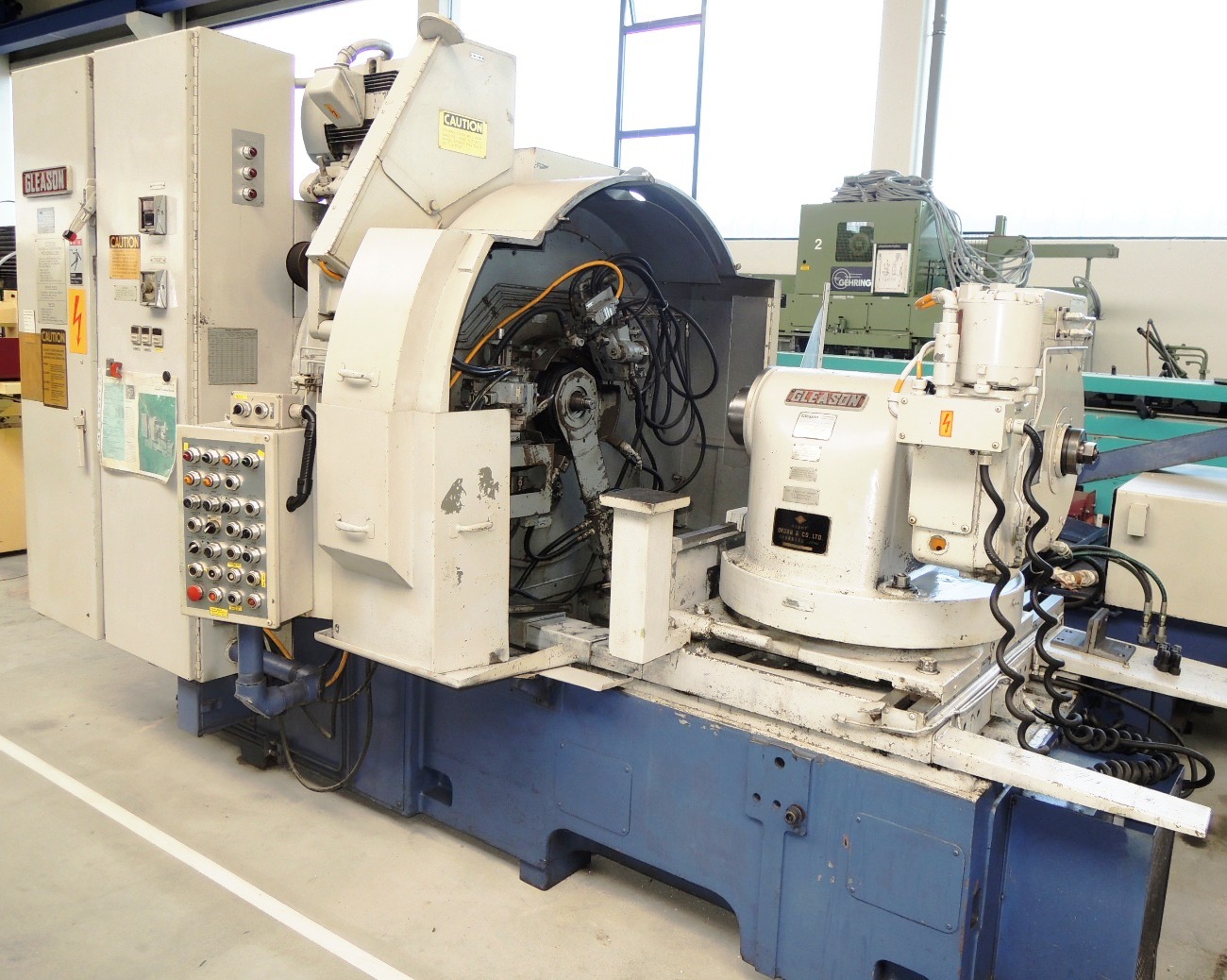

The Gleason 120 is an automatic high speed machine for grinding Curvic teeth in face

couplings.  Concave as well as (on the opposite side) convex teeth are ground into the

faces of the parts to be connected, with the advantage that the couplings both

centre and drive.



Condition :  Good.  Machine can soon be inspected under power.

Delivery    :  Ex stock, as inspected

Payment   :  Net, after conclusion of contract



Thank you for your interest.  We have a selection of gear machines available.

Please let us know your requirements.
