Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data :



A B A               (Germany)

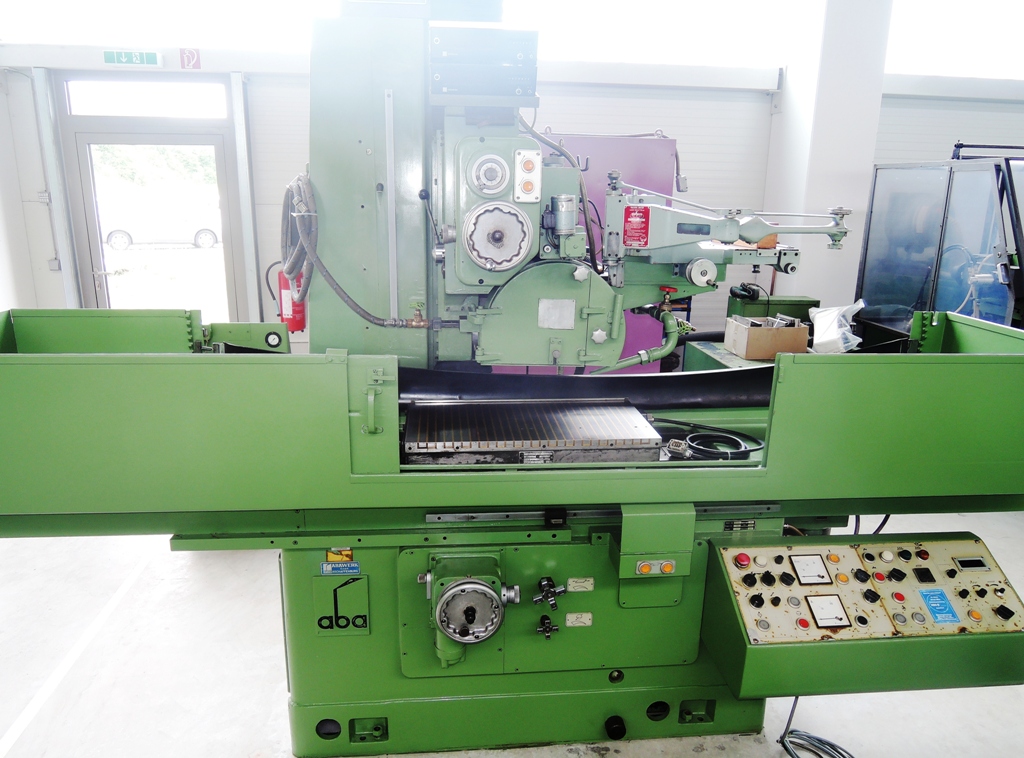

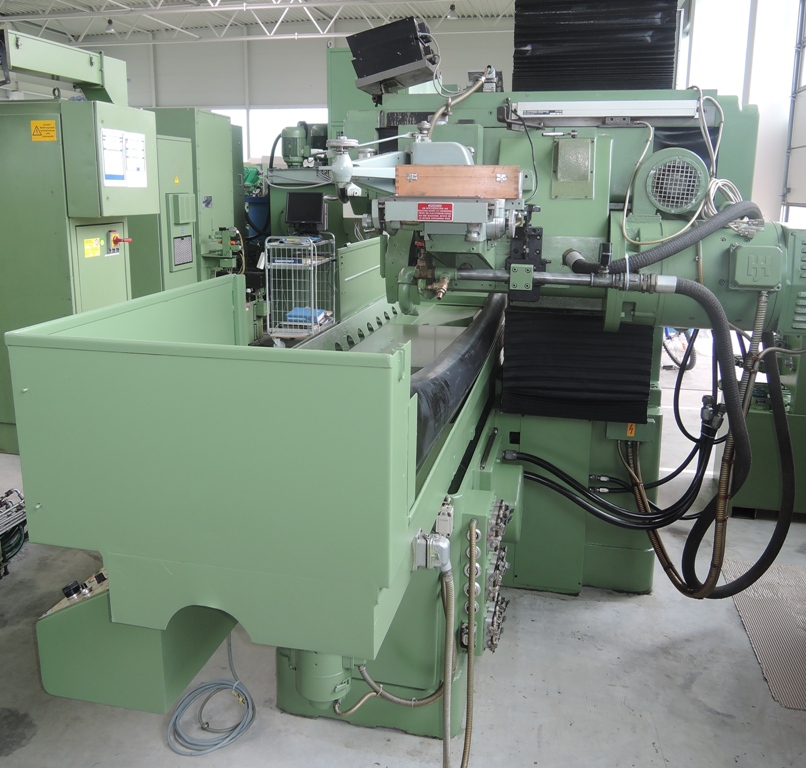

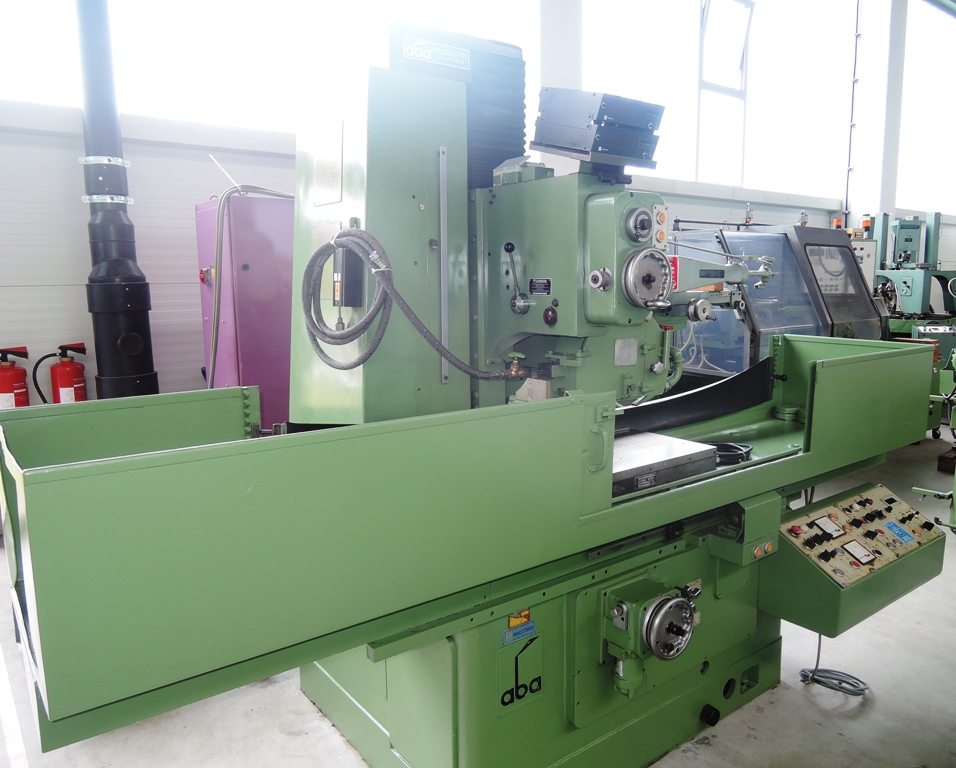

Horizontal Precision Surface and Profile Grinding Machine

Model        FUV 750 / 50  (V = solid grinding)

Year           1977 / Reconditioned in 1990                 Serial No. 6330

_________________________________________________________



Grinding length, max.                                                       750 mm

Grinding width, max.                                                        500 mm



Cross movement of grinding slide                                    450 mm

Working height under grinding wheel, max.                      500 mm



Grinding wheel size                                                        Æ 400 x 100 mm

Grinding wheel speeds, infinitely variable                        300-3,000 rpm



Table speed, hydr.                                                           0 - 30 m/min

Table speed, creep feed                                                  0.02 - 1,000 mm/min

Vertical infeed, infinitely variable                                     0.002 - 0.03 mm/stroke



Grinding spindle drive, max.                                           32 kW

Total electrical load, approx.                                          50 kW - 380 V - 50 Hz

Weight approx.                                                               5,000 kg



Accessories / Special Features

·        Creep feed Grinding Device with electromechanical Table drive, permits high stock removal

(but also hydraulic table movement), with digital display, programable by cam limit switches.

·        Infinitely variable grinding wheel speeds, with V-constant.

·        Automatic vertical infeed device, Model AT 2, with pre-setting device for infeed amount and

presettable roughing/finishing process by potentiometer.

·        HEIDENHAIN Digital Readout for cross and vertical movement.

·        Crush-dressing device for the grinding wheel, mounted on the table.

·        Face and plunge grinding processes are possible when the grinding slide is fixed.

·        Quick feed for vertical and cross movement of grinding slide.

·        Electro-magnetic chuck, approx. 750 x 400 mm.

·        DIAFORM Profiling Device for grinding wheel.

·        Straight Grinding wheel Dressing device, motorized, mounted above grinding wheel.

·        Various grinding wheels with flanges.  *  Separate switch cabinet

·        Amperemeter/speed display mounted in control station.





Condition  :   Good/very good.  Machine can be inspected under power.

Delivery    :    Ex stock as inspected.

Payment   :   Net, after conclusion of contract.



Thank you for your interest.  We have a selection of surface grinders

on stock.  Please let us know your requirements.
