Quotation



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:



T R I P E T            (Switzerland)

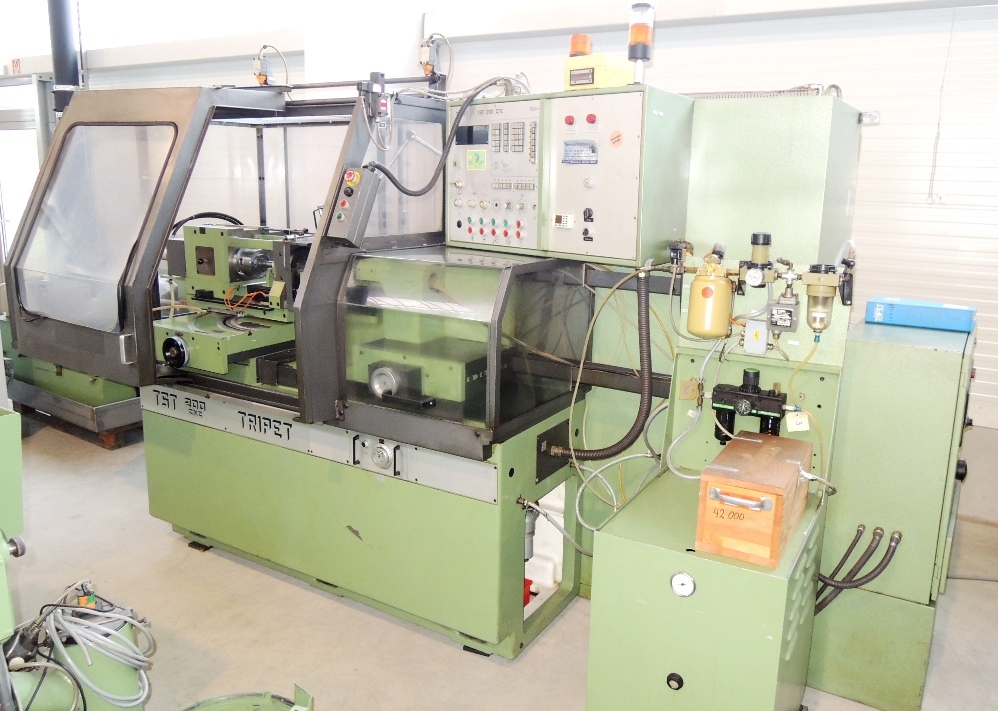

CNC-Controlled High Precision Internal Grinding Centre

Model  TST 200 CNC

Serial No. 2003/1005 // 2300/8/218                                 Year    1986

_______________________________________________________



Grinding diameter, internal, max., approx.                                             3 - 120   mm

Grinding depth, approx.                                                                                200   mm



Height of centres above rotating workpiece slide                                      132   mm

Max. swing Ø in front of rotating workpiece slide, approx.                        450   mm

Work spindle admission                                                                                  40   mm



Table stroke, max.  (Z axis)                                                                          480   mm

Workpiece cross adjustment (X axis)                                                            50   mm

Turret head cross adjustment (U axis)                                                          50   mm



Workspindle head swivelling (B axis)                                                  -30 / +45   ° (manual)



Speeds of workspindle, infinitely variable                                       75 – 1,300   rpm

Grinding spindle speeds                                                         9,500 – 150,000   rpm



Grinding spindle drive                                                                                        4   kW

Total electrical load, approx.                                              8 kW  -  380 V  -  50   Hz

Weight, approx.                                                                                           3,000   kg



Accessories / Special Features

*         TRIPET (Bruetsch) CNC Control for 3 axes (Z, X and U) with electric hand wheel, with the usual programs such as pendular grinding, double pendular grinding, blind hole grinding (with face grinding), plunge-cut grinding, and automatic compensation of the dressing amount.  Feed movements via stepping motor and roller-thread spindles (with hydraulic linear amplifier in the Z Axis).

*         Separate REFU Converter for the mounted PRECISE High Frequency Grinding Spindle, Model SC 40-0, n = 60,000 – 120,000 rpm.  (One extra spindle is available.)

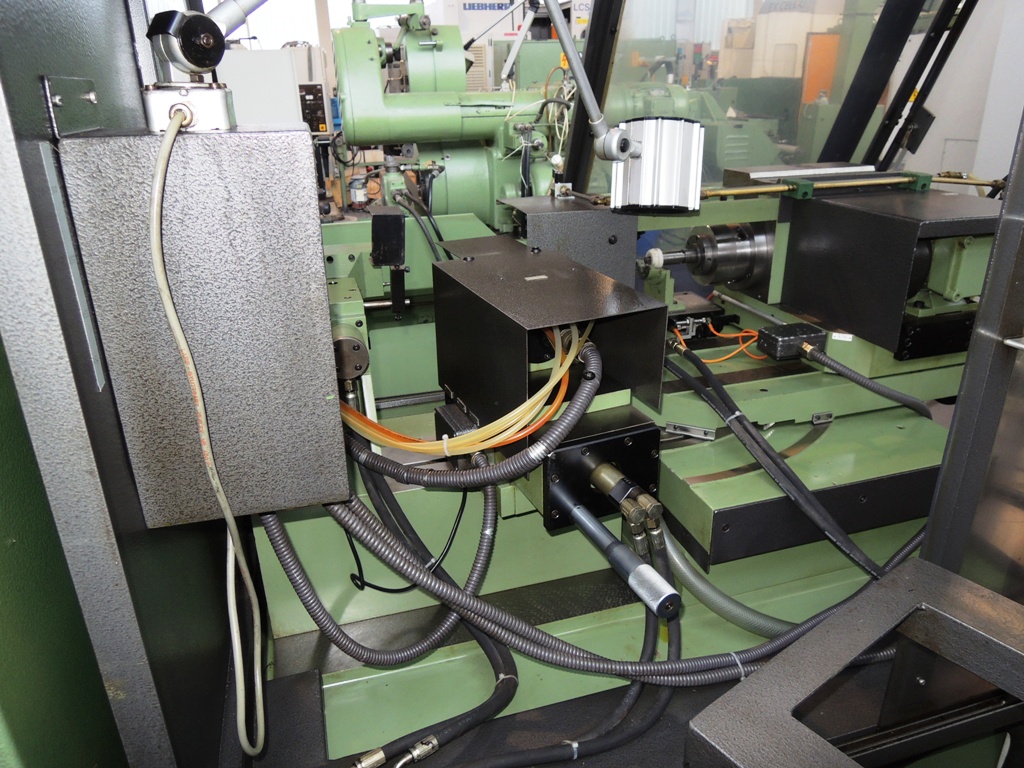

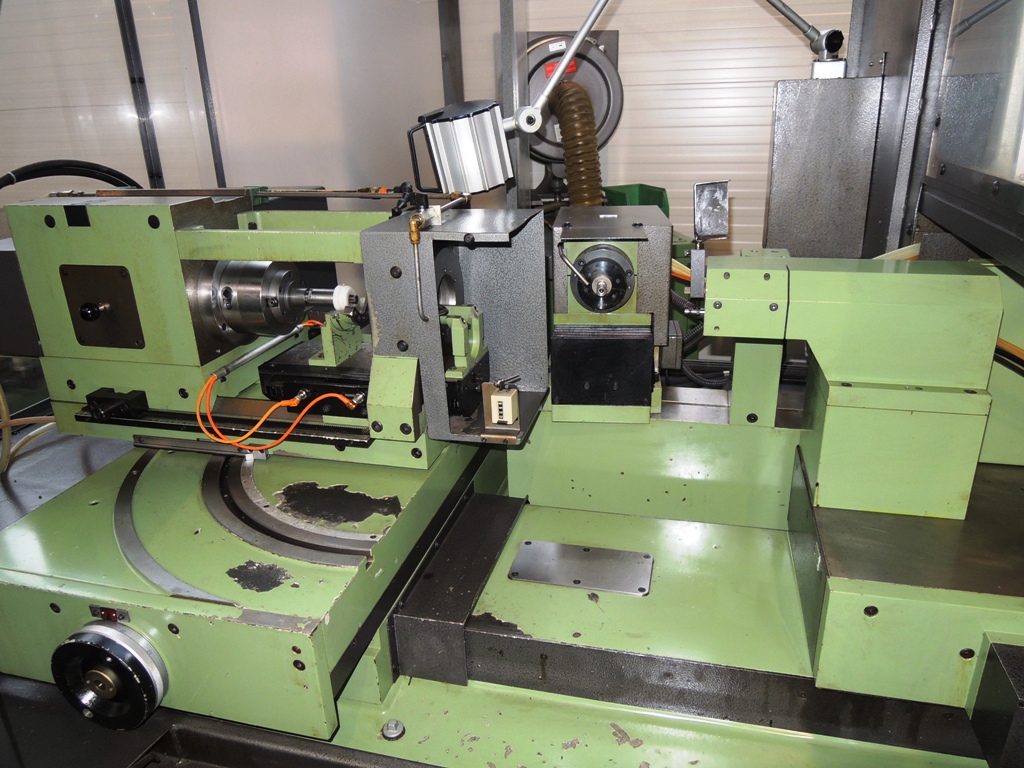

*         Workpiece headstock with hydraulic workpiece clamping device.  (Also mounted at present is a special clamping device for long parts, which can be hydraulically clamped between the workpiece headstock and the live driving collar.)

*         Motor-driven dressing device.     *   Coolant preparation with centrifuge.

*         Integrated switch cabinet.     *   Internal hydraulic aggregate.     *   Separate cooling aggregate for hydraulic oil.

*         Oil mist exhaust.     *   Compressed air processing.

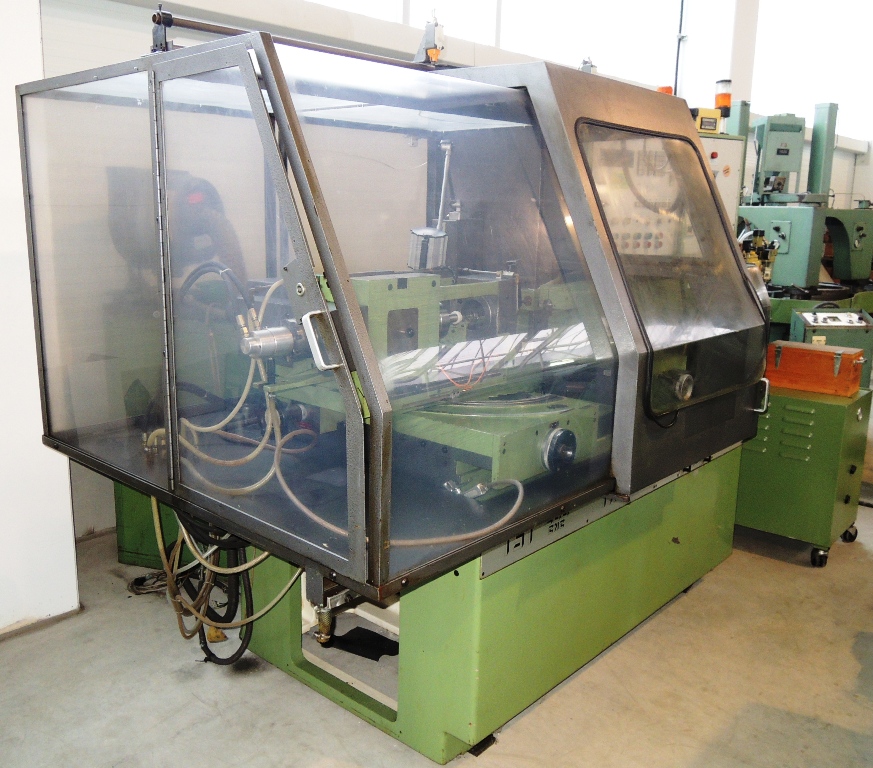

*         Completely enclosed working area.





Condition :       Mechanically very good – CNC Control must be revised or replaced.

Delivery :          Ex stock - as inspected under power.

Payment :         Net, after conclusion of contract



Thank you for your interest.  We always have a good selection of grinding machines available.  Please let us know your requirements.
