Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in

technical data excepted :



S C H Ü T T E     (Germany)

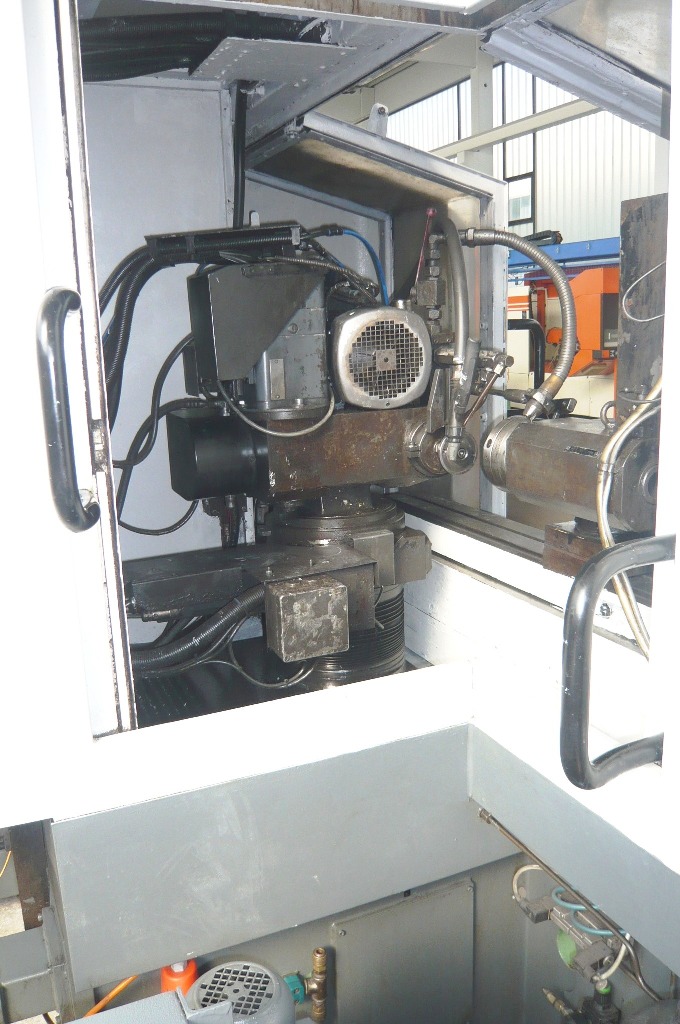

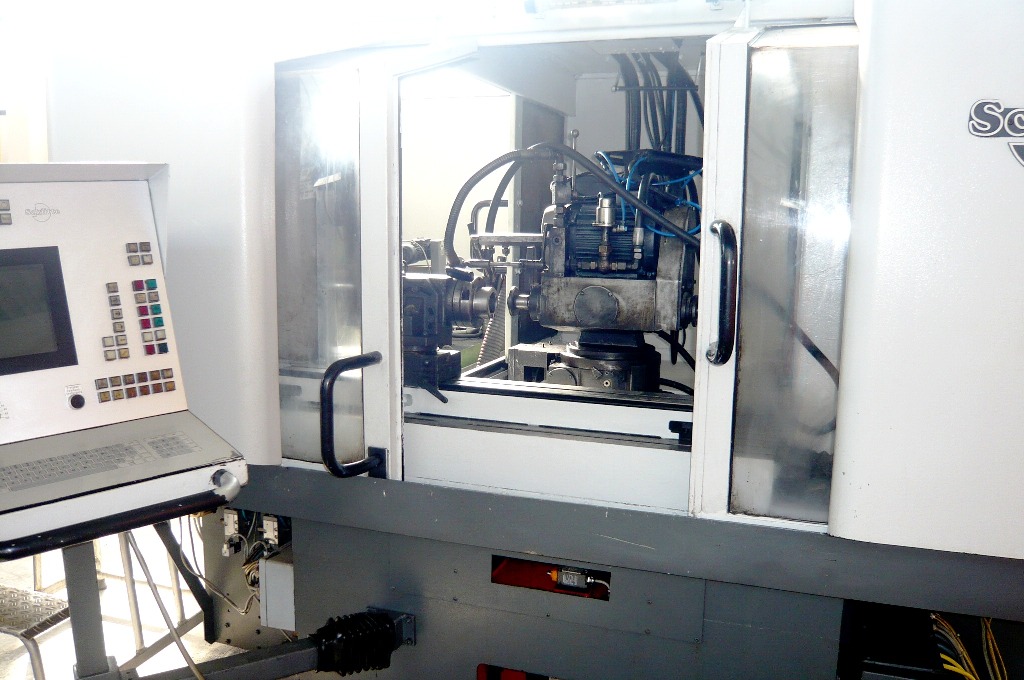

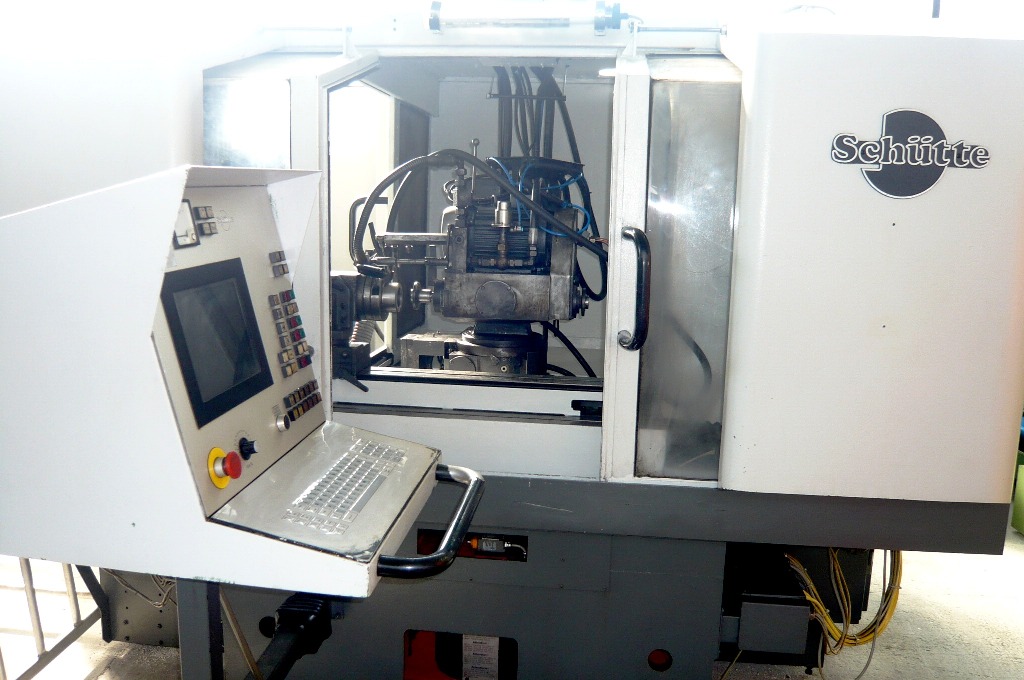

Universal Tool Grinding Machine with CNC Control in 6 Axes

Model WU 500 NC 6                  Year 1989                Serial No. 4-10

______________________________________________________________________

Height of centres                                                                                 200   mm

Distance between centres / clamping length                             750 / 500   mm



Table size                                                                               290 x 1,600   mm

Intermediate table                                                                  110 x 1,200   mm



X / Y / Z axes                                                                    500 / 320 / 320   mm

Feed speeds, X, Y & Z axes                                                      0.005 – 5   m/min



Grinding head swivelling, vertical axis (B axis)                                  300   °

Grinding head tilting (C axis)                                                           +/- 30   °

Speed range of R axis                                                                    0 – 50   rpm

Grinding spindle speeds, approx.                                     5,000 – 10,000   rpm

Workpiece holding fixture                                                                      50   ISO

Indexing                                                                                        1 – 999   °

Leads                                                                                    0.5 – 10,000   mm



Spindle drive                                                                                           4   kW

Total electrical load, approx.                                   10 kW  -  380 V  -  50   Hz

Weight, approx.                                                                                4,000   kg



Accessories / Special Features:

*       SCHÜTTE CNC Continuous Path Control for 6 axes with SIEMENS components and a SIEMENS SPS Control, Model S5-100 U, with colour monitor.  Program input is directly on a keyboard, freely programmable.

*       Various program parameters for grinding all kinds of workpieces:  Cutting tools with straight and spiral grooves, relief grinding, grinding with or without radius, and also for grinding solid carbide cutting tools.

*       Grinding spindle can be used with two grinding tools.     *   Ampere display.

*       Small coolant device.     *   Oil mist exhaust system, mounted above the machine.

*       Completely covered working area with 4 doors.

*       Various tool holding mandrels.     *   Small 3-jaw chuck, Ø approx. 120 mm.

*       Gap of approx. 60 mm in the upper housing to allow mounting of long tools (deep hole drilling tools) through the workspindle bore.     *   Central lubrication, etc.





Condition :  Good.  Machine can be inspected under power.  The machine is ideal for all kinds of regrinding work, as well as manufactured-to-order grinding tools.

Delivery   :   Ex stock as inspected

Payment  :   Net, after conclusion of contract



We have a selection of tool grinding machines available.  Please let us know your requirements.
