Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in

technical data :



H Y D R A P

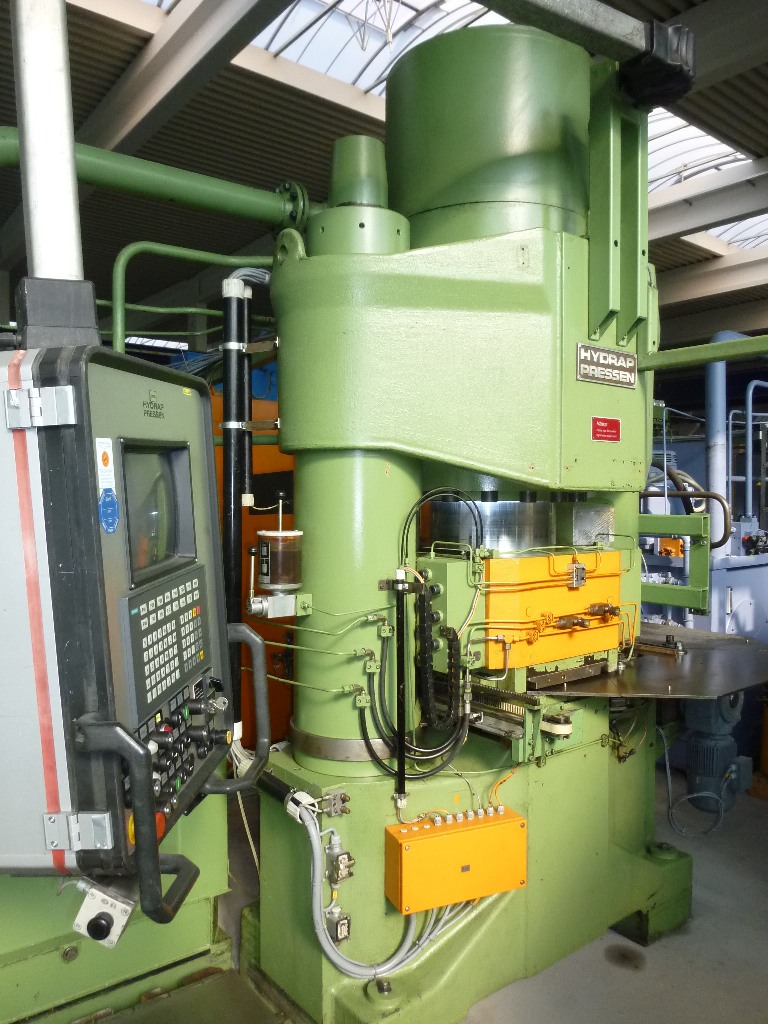

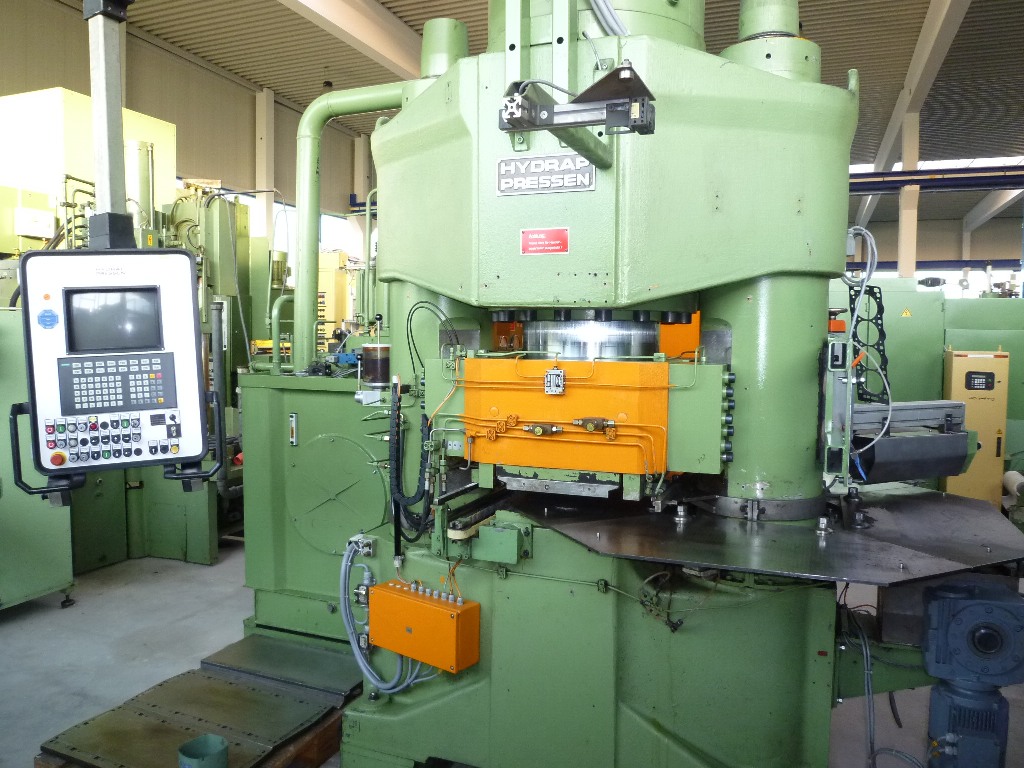

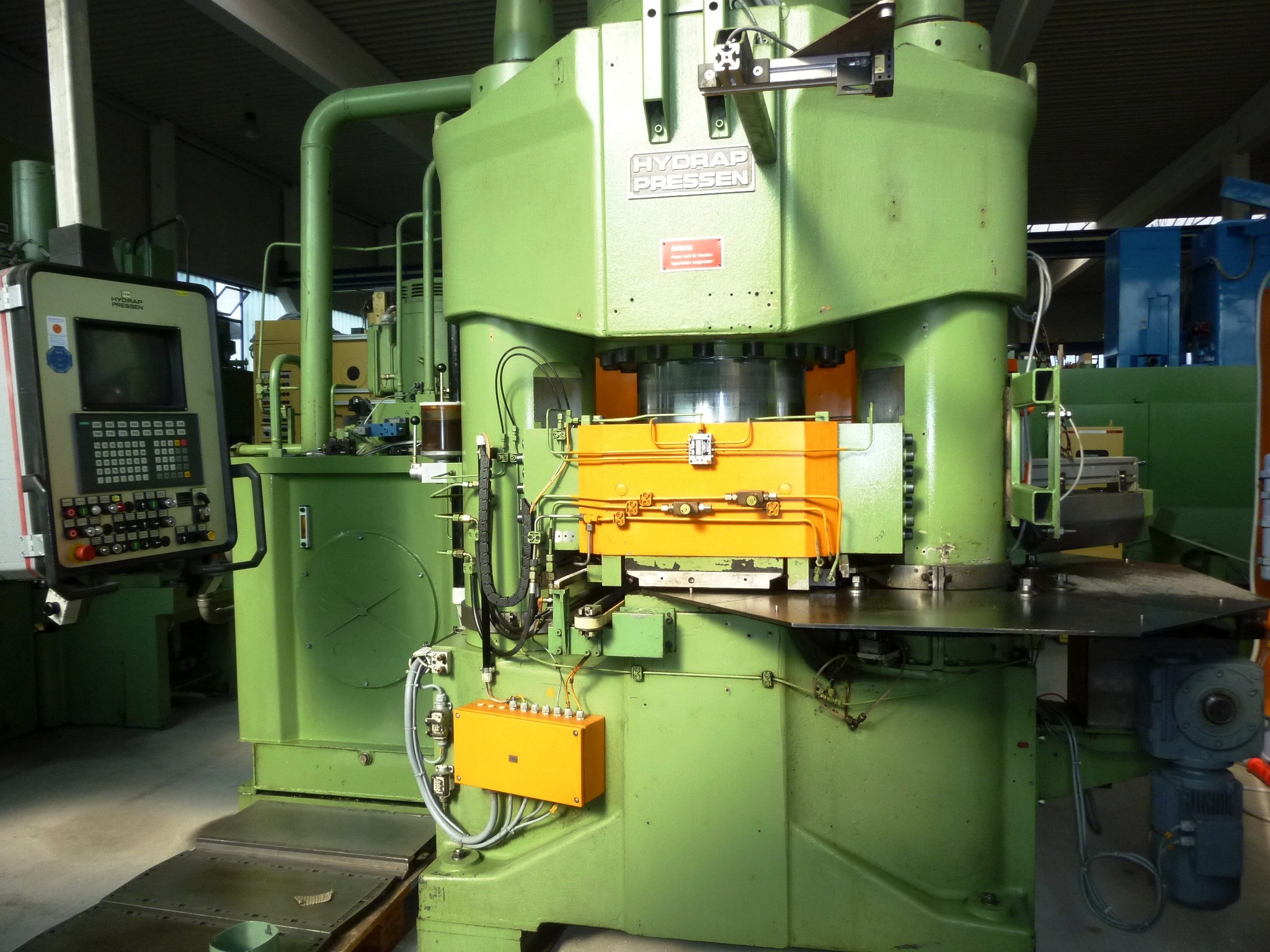

CNC-Controlled Hydraulic Press (Embossing/Hobbing/Plane Sealing Press)

Model HPD - S – 500- CNC             Year 1984               serial-No. H 40/5215





Pressure of upper piston                                                                  500    to

Return power                                                                                    38    to

Stroke approx.                                                                                 120    mm



Table size                                                                              400 x 740    mm

Ram plate                                                                              330 x 760    mm

Mounting height max. (without workpiece handling device) approx.     200    mm

Stroke speeds, up-down/ full load                                        150/130 / 10    mm/sec.

Daylight between columns, front                                                       750    mm



Pump drive                                                                   37     kW

Total electrical load approx.                                           57     kW - 380 V - 50 cycles

Weight approx.                                                       16.000     kg



Accessories / Special Features :



Very robust double column press with readjustable 4 fold guides.

This machine was used for levelling and stamping of cylinder head gaskets, which are moved

with a circular feed  under the piston. Cycle time approx. 6 sec./part

·     All travelling and pressing times are programmed by CNC-Control.

·  HYDRAP-CNC-Press Control with monitor and SIEMENS SIEMATIC-Control S 5

·  Infinitely variable workpiece transport device which goes past the right column

·     Ram is equipped with a quick changing device for the upper tool

·  Lag travel 13 mm, lag time 72 ms with intergr. monitoring

·  Display for oil pressure and oil temperature





This machine is ideal for thin stamping-, forming- and straightening processes under high pressure.



Condition     :            very good – can be inspected under power

Delivery        :           ex stock – as inspected

Payment       :           net – after completion of contract



We would appreciate your order.

We always have a wide selection of hydraulic and mechanical presses on stock – please do not hesitate to inquire per phone, fax or email at any time.
