Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data excepted :



S C H Ü T T E     (Germany)

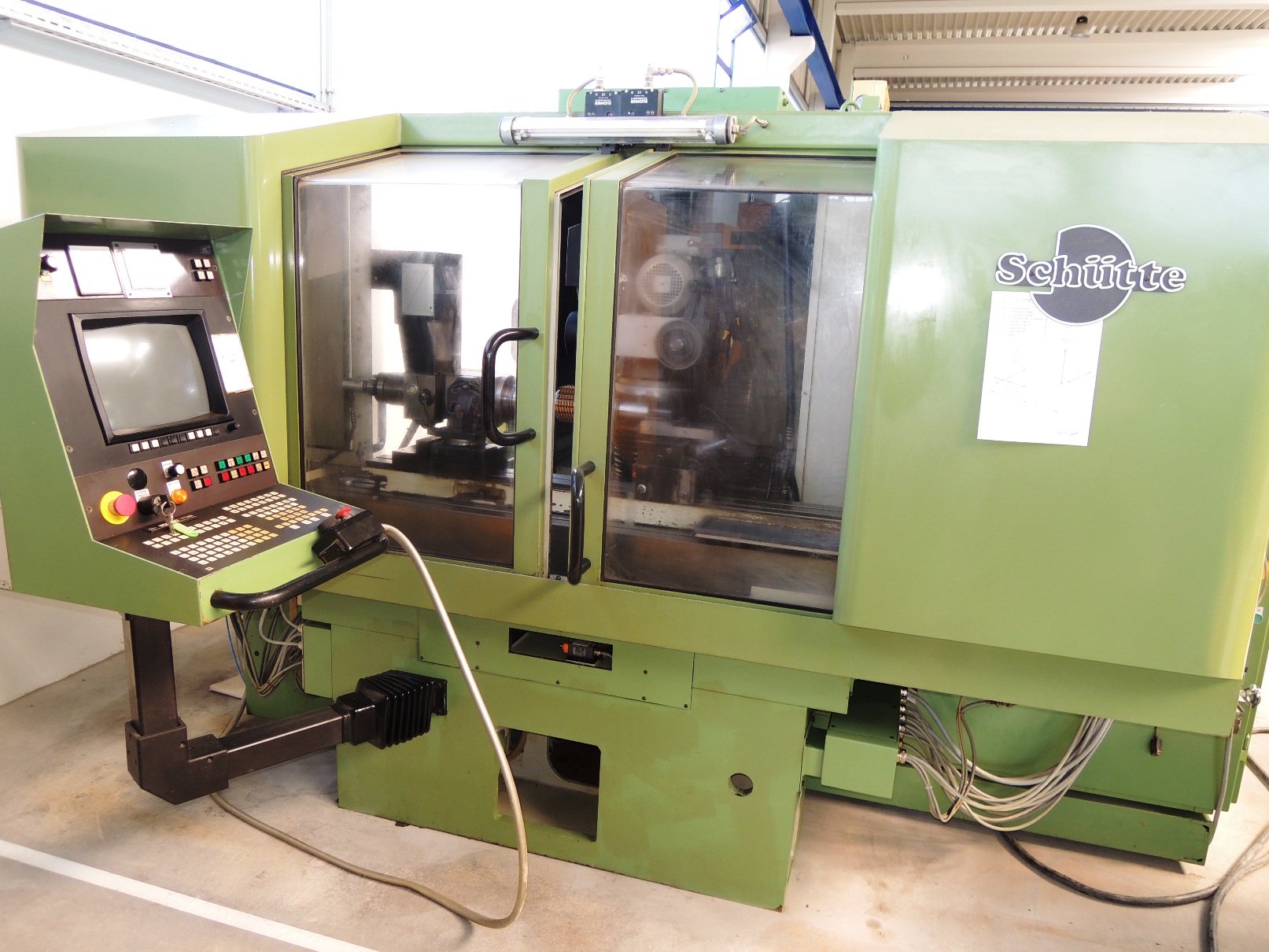

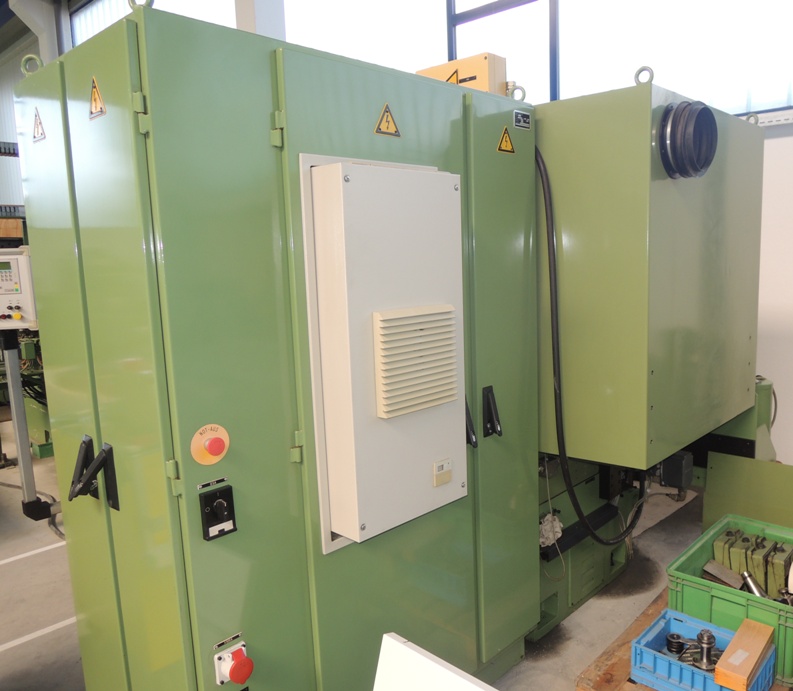

Universal Tool Grinding Machine with CNC Control in 6 Axes

Model WU 750 CNC 6              Year 1992                Serial No. 12/8

______________________________________________________________________



Height of centres, with base                                                                                         220    mm

Distance between centres / clamping length (w/o tailstock)                                           970    mm



Table size                                                                                                           1,900 x 300    mm

Upper table                                                                                                         1,500 x 160    mm



X / Y / Z Axes                                                                                                750 / 320 / 320    mm



Grinding head tilting (B Axis)                                                                                      +/- 25    °

Grinding head rotating, vertical axis (C Axis)                                                                 200    °

Speed range of R Axis (rotary grinding)                                                                    0 – 50    rpm



Feed speeds, X, Y & Z Axes                                                                                  0.005 – 5    m/min



Grinding spindle speeds, infinitely variable                                                   2,000 – 12,000    rpm

Workpiece holding fixture                                                                                                 50    ISO

Indexing                                                                                                                     1 – 999    °

Leads                                                                                                                 0.5 – 10,000    mm



Spindle drive                                                                                                                        6    kW

Total electrical load, approx.                                                               12 kW  -  380 V  -  50    Hz

Weight, approx.                                                                                                            5,000    kg



Accessories / Special Features:

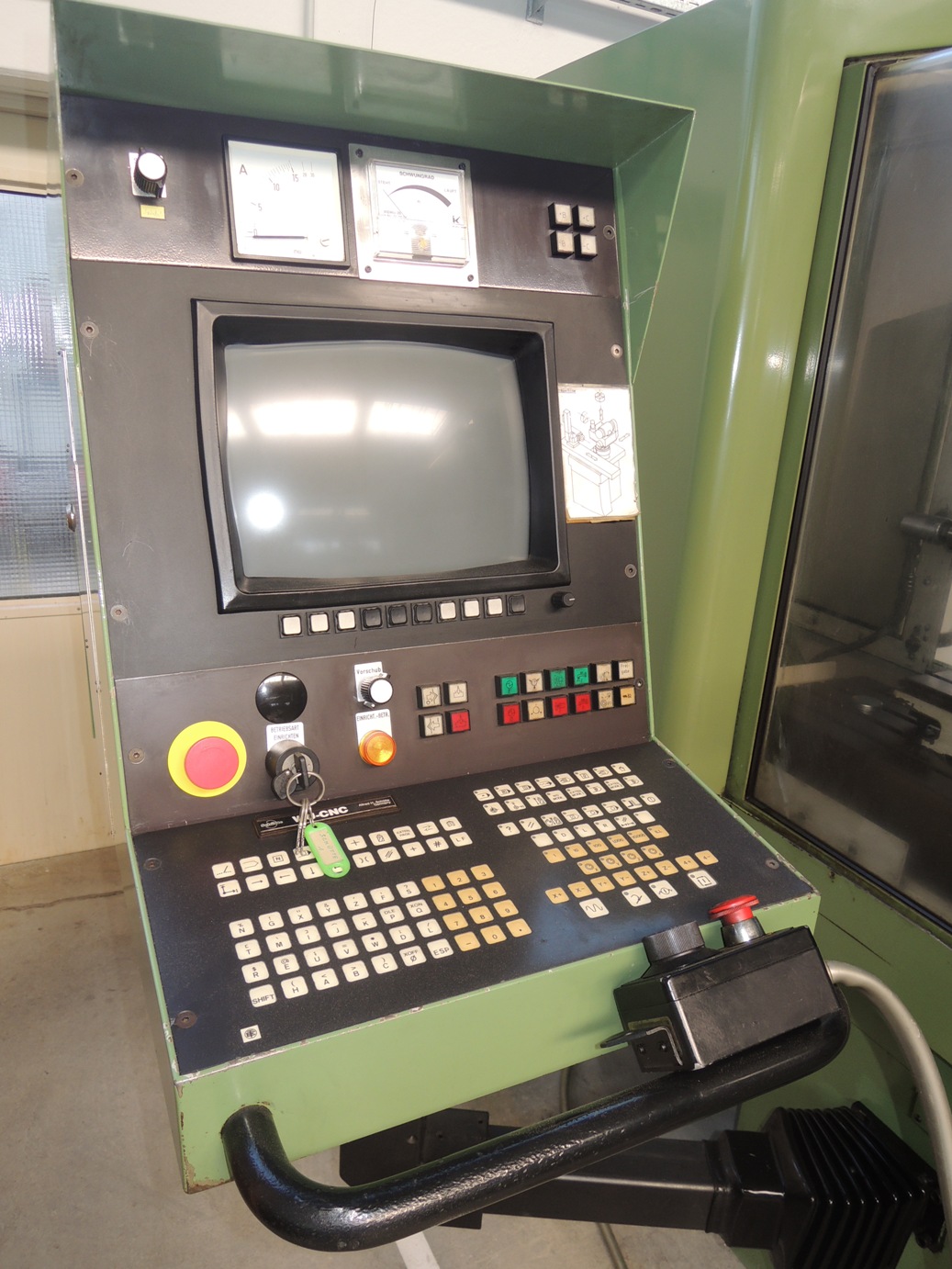

*        SCHÜTTE / NUM 760 CNC Continuous Path Control for 4 + 2 axes, with BOSCH and SIEMENS components, with monitor.  Program input is directly on a keyboard, using clear text; or via a separate PC, freely programmable to ISO/DIN standards for any type of workpiece.  Comprehensive  archive of standard tool grinding programs is available, as well as combinations, etc..

*        C Axis as a rotary table on the Z Axis column for turning the workpiece 10-180-10°, with hydraulic clamping.

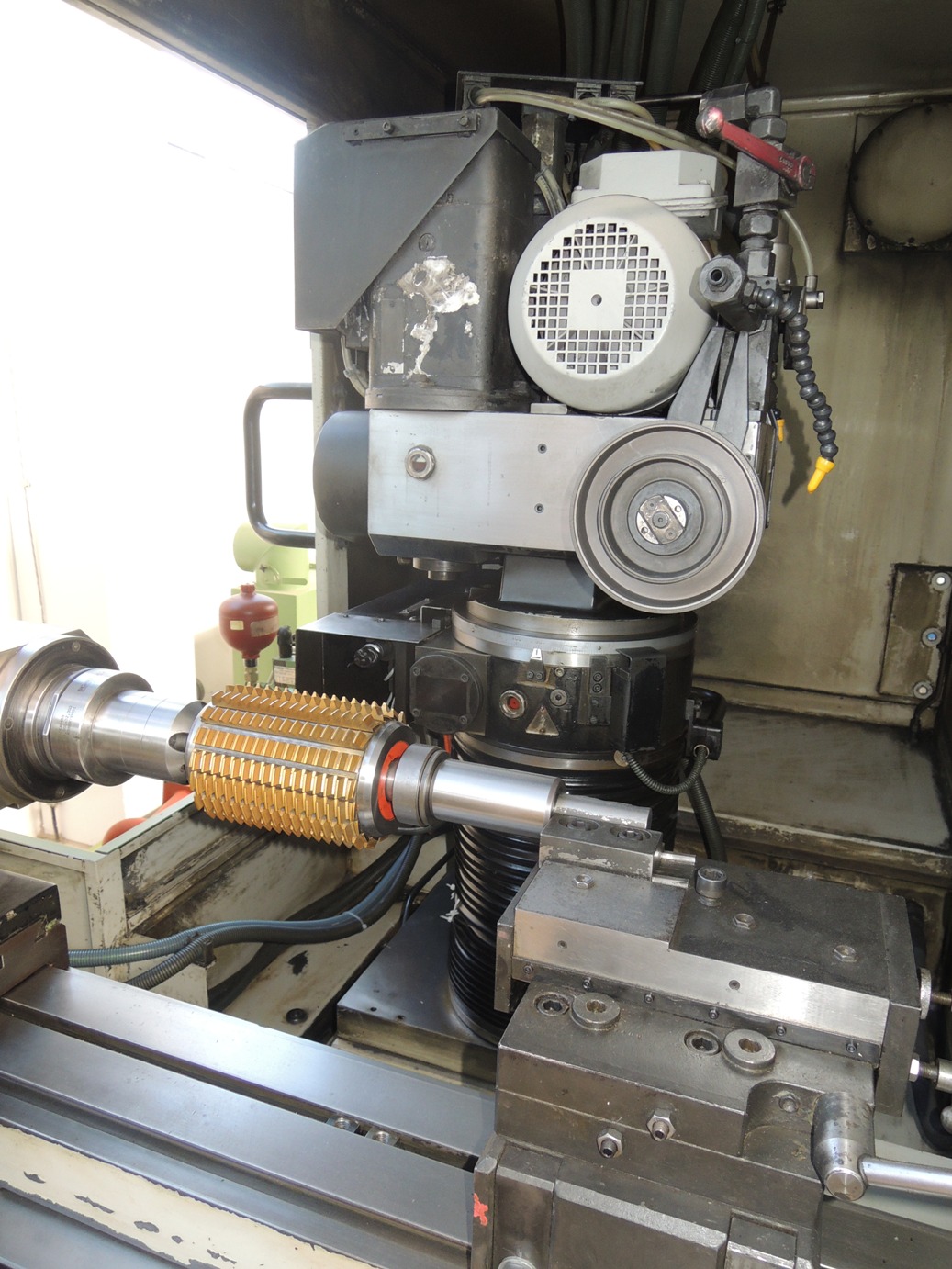

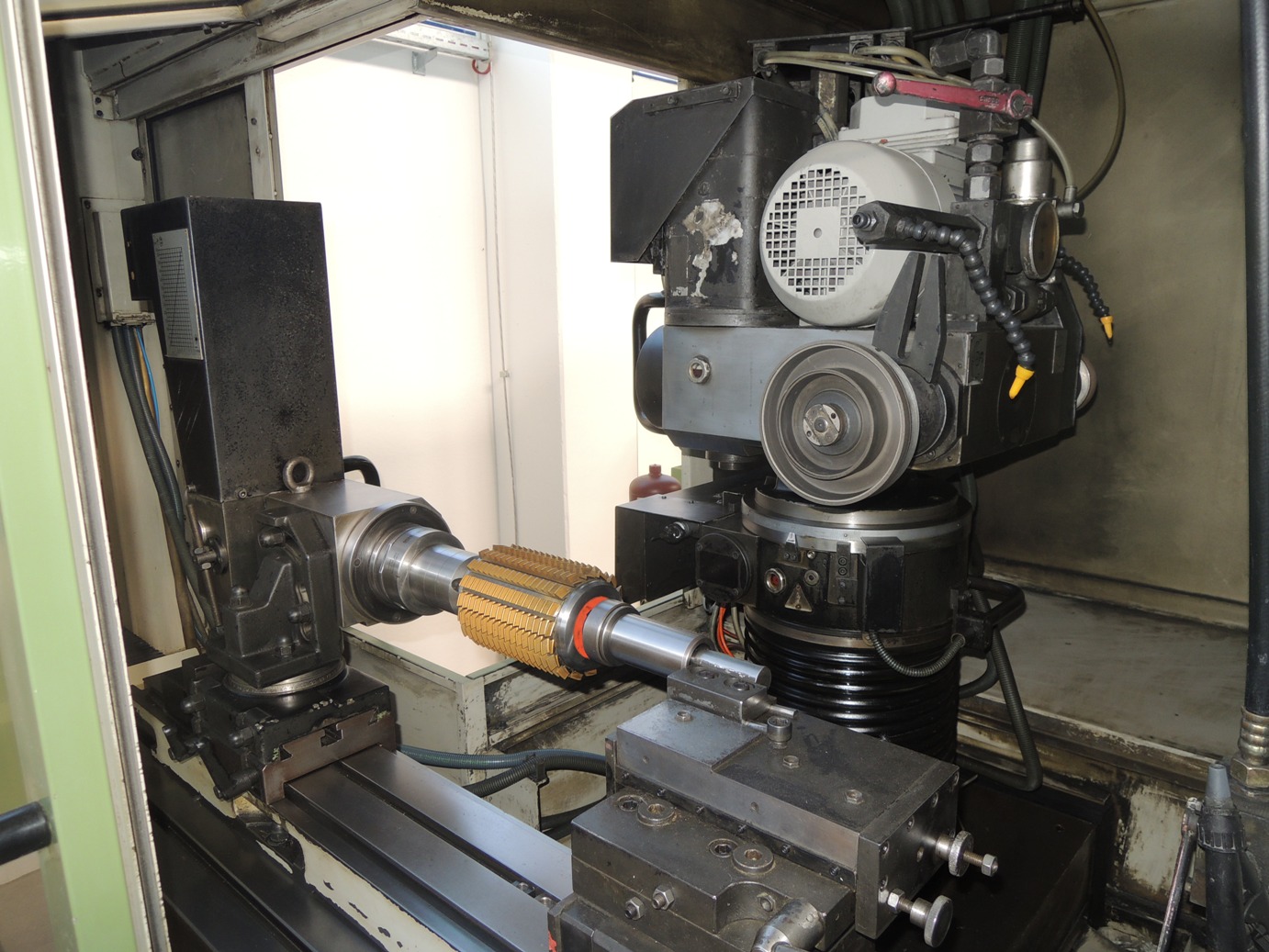

*        B Axis as motor-driven tilting grinding head, +/- 25°, with hydraulic clamping.

*        B and C Axes are ideal for various grinding operations in one automatic cycle, e.g. Flute grinding, hob grinding, circumference grinding and front-side grinding of workpieces.

*        R Axis for indexing and rotary grinding, with manual rotation and tilting, and hydraulic workpiece clamping.

*        4 + 2 axis interpolation for finish grinding of complicated straight-fluted and spiral-fluted cutting tools, solid carbide tools, deep hole drilling, etc.

*        Grinding spindle with infinitely various speeds (6 kW), and holder for grinding wheels, left and right.

*        RENISHAW Measuring Probe, LP 2, on the grinding head, for set-up and specification of workpiece data.

*        Large coolant device with high pressure valve and POLO Band Filter, year 1999, and oil mist exhaust system.

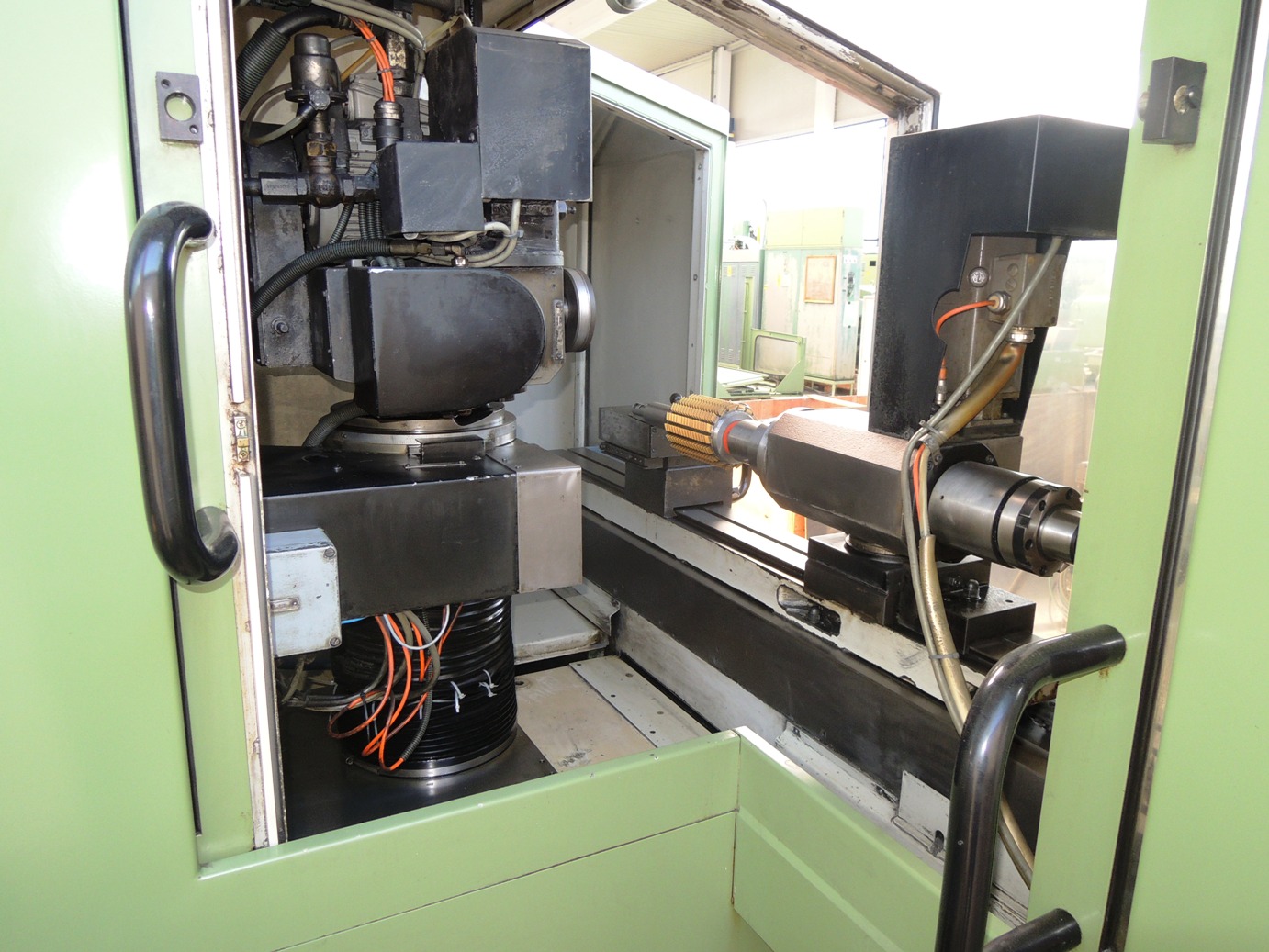

*        Completely covered working area with 3 doors (for locking the CNC).

*        3 grinding wheel holders.     *   Workpiece holders, SK 50.     *   Reducers, etc.

*        Measuring sensor, ISO 50, in conjunction with aligning mandrel, and grinding spindle measuring norms.





Condition :  Very good.  Machine can be inspected under power.  The machine is ideal for all kinds of regrinding

                     work, as  well as manufactured-to-order grinding tools.

Delivery   :   Ex stock as inspected

Payment  :   Net, after conclusion of contract



We have a selection of tool grinding machines available.  Please let us know your requirements.
