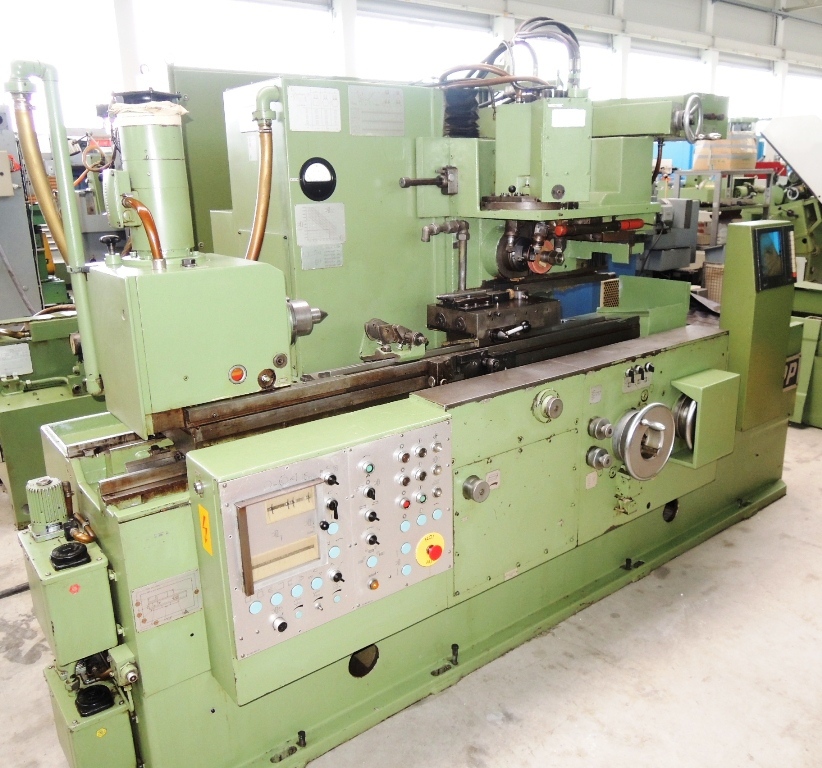

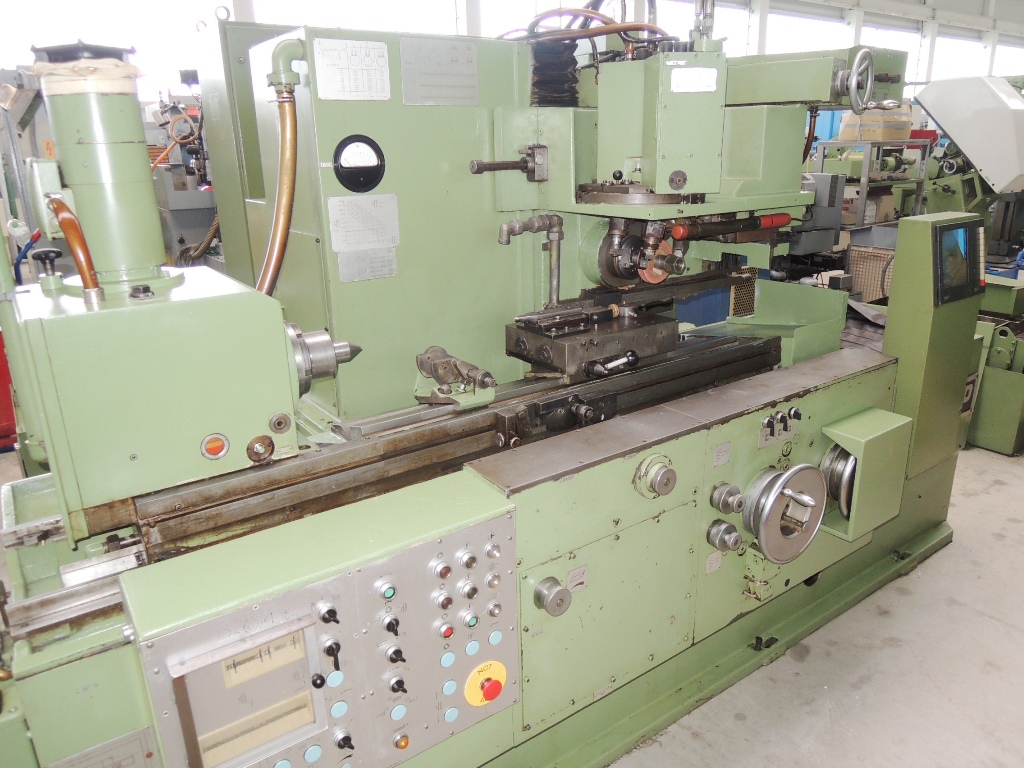

Hydraulic  Spine Shaft Grinding  Machine

Model KS 803                    Year 1978                    Serial No. 3233-10

________________________________________________________



Distance between centres                                                              800   mm

Height of centres                                                                           150   mm

Max. grinding length                                                                       780   mm



Spindle bore                                                                                    88   mm



Min./max. infeed amounts for roughing                              0.004 – 0.06   mm

Min./max. infeed amounts for finishing                               0.004 – 0.02   mm



Grinding wheel speeds                                                    2,000 – 9,000   rpm

Grinding wheel Ø                                                                    40 – 250   mm

Grinding head travel, vertical, max.                                                 170   mm

Grinding head lift off stroke                                                              12   mm



Table travel, infinitely variable speeds                                          1 – 30   m/min



Spindle drive                                                                                     3   kW

Total electrical load                                              10 kW  -  380 V  -  50   Hz

Weight                                                                                        6,500   kg



Accessories / Special Features



*        Automatic grinding cycle with automatic infeed/spark-out.

*       After attaining the final workpiece dimension, the infeed stops and machine goes back

     to start position.

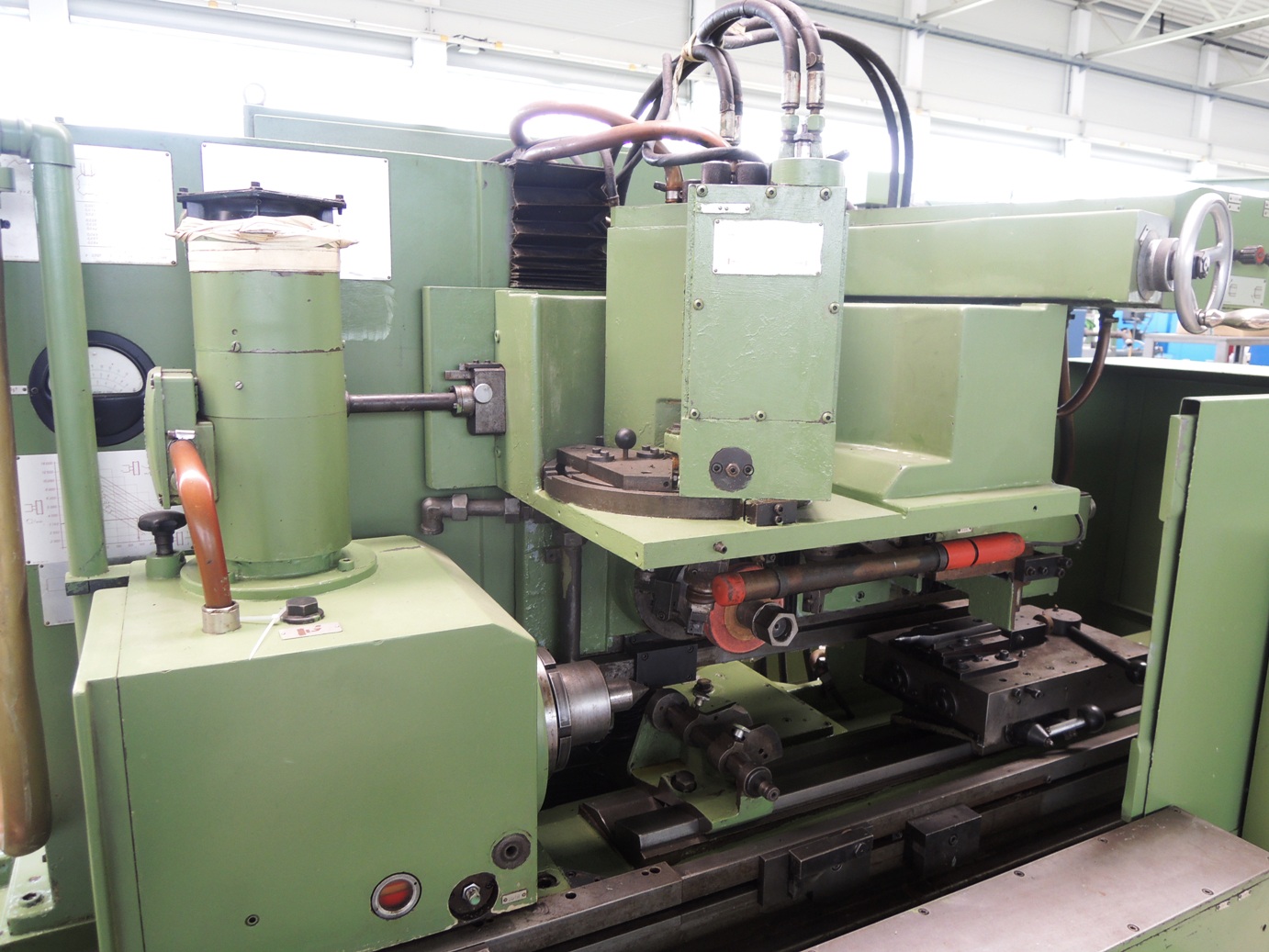

*        Profile dressing device consisting of one radius dressing device and two flank

     dressing devices (electrically driven).

     Suitable for all standard profiles, with automatic infeed and compensation.

      Automatic dressing cycles at pre-selected intervals via a counter mechanism.

*        Infinitely variable grinding spindle speeds via frequency converter.

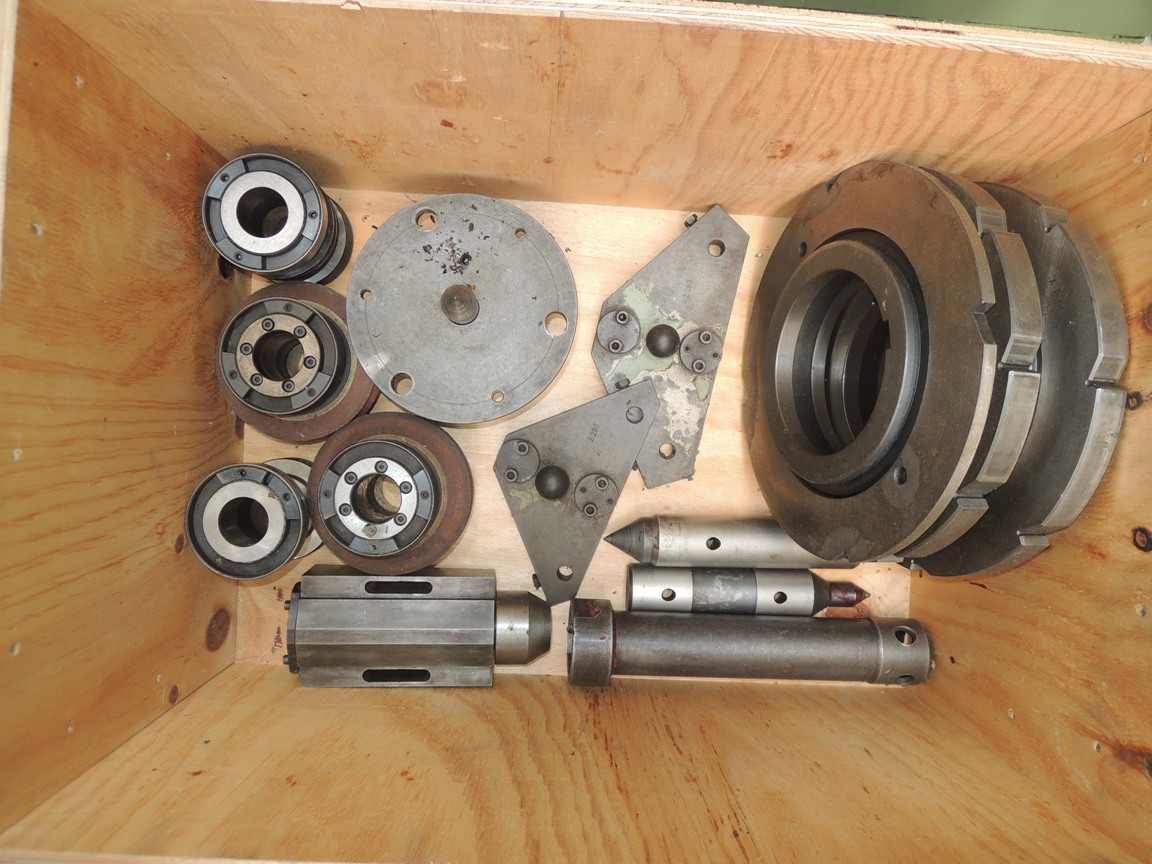

*        Workpiece setting gauge   *   Workpiece indexing head with three index plates (6/8/10)

*        Separate hydraulic unit.     *   Central lubrication.    *   Separate switch cabinet.

*        Splash shield housing around the working area.





Condition :  Average to good - Machine can be inspected under power.
