Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:



E L B     (Germany)

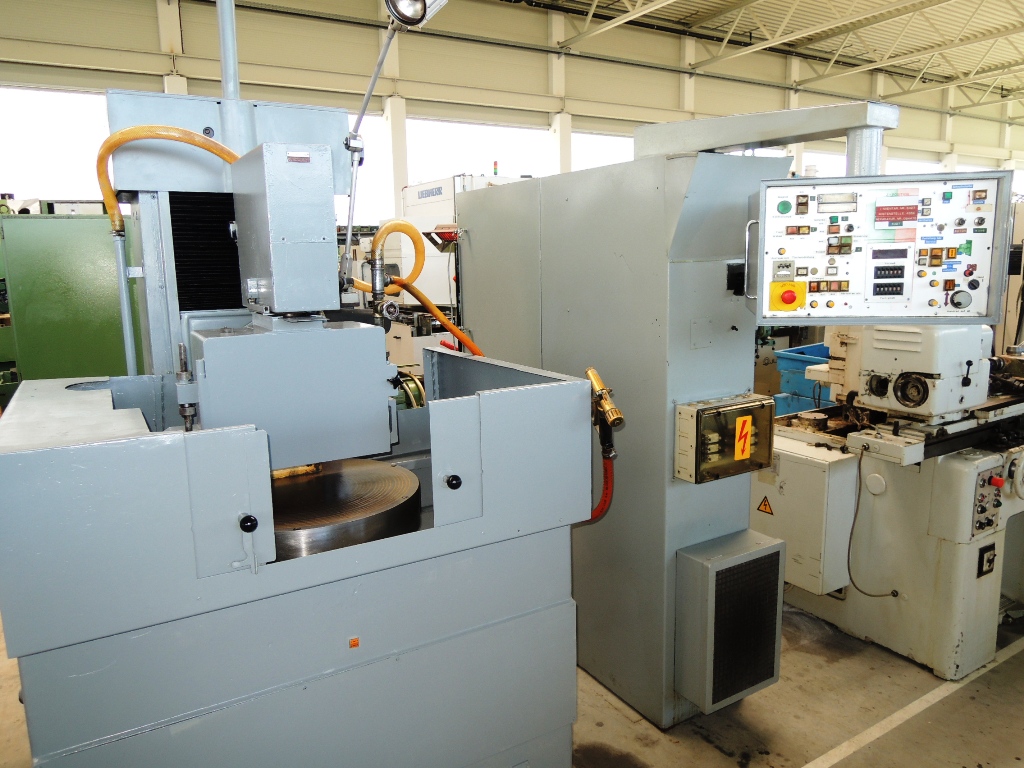

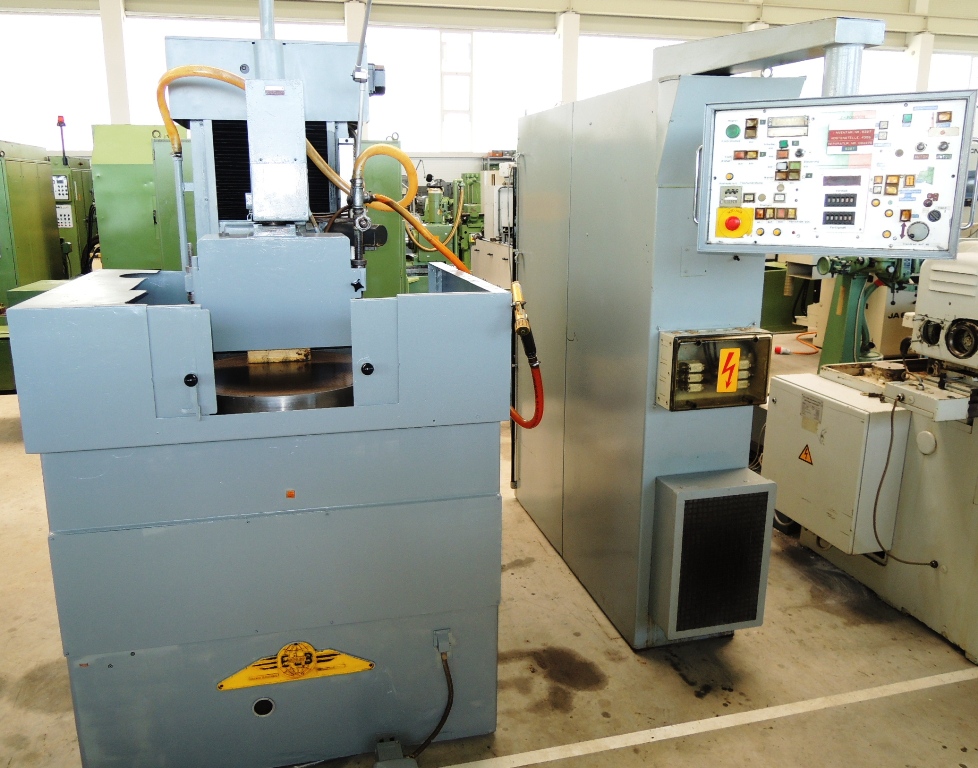

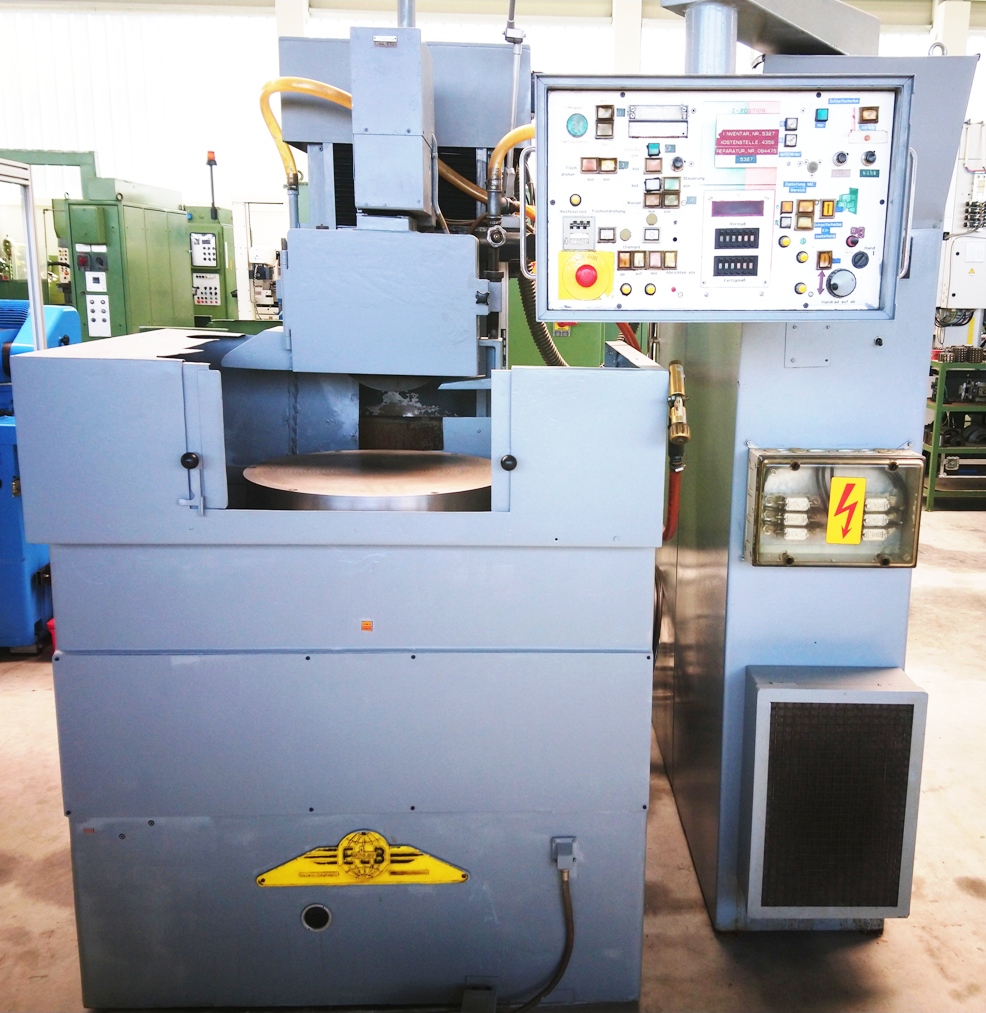

Horizontal Rotary Table Surface Grinding Machine

Model  SWR 60 T NC-K

Year 1980                                  Ser.-Nr. 169371080

___________________________________________________________________



Grinding range, max.                                                                       600   mm



Table Ø / magnetic chuck Ø                                                               600   mm

Workpiece - Swing Ø approx.                                                            800   mm

Table speeds, infinitely variable                                                   20 – 80   rpm



Max. grinding height above table approx.                                          300   mm

Vertical movement of grinding head                                                  220   mm

Cross movement of grinding slide                                                      320   mm

Max. weight of workpiece on table                                                     400   kg



Vertical infeed, automatic                                                         0.01 – 0.2   mm/stroke



Grinding spindle speeds, infinitely variable                       1,000 – 2.400   rpm

Grinding wheel Ø, max.                                                    400 x 120 x 76   mm



Grinding spindle drive approx.                                                             28   kW

Total electrical load                                                35 kW  -  380 V  -  50   Hz

Weight, approx.                                                                               4,500   kg



Accessories / Special Features:



*       Control panel on the machine for setting the following functions:

      infinitely variable grinding spindle speeds (potentiometer) with display of cutting speed in          m/sec and also as amperemeter, infinitely variable table speeds, infinitely variable cross    stroke speeds of the grinding slide, and infinitely variable vertical infeed of the grinding            wheel, with roughing, finishing and spark out.

*       Manual control panel with push button for manual control of various functions,

*       e.g. dressing device forwards/backwards, cross slide forwards/backwards,

*       vertical slide up/down/creep feed.

*       2 counters for presetting the starting and finished measurements, with automatic switch-off.  Selection switch +1µ/-1µ.  Digital display of Y Axis.

*       Automatic straight dressing device, motor-driven, mounted above grinding slide, dressing

      speed and dressing stroke can be presetted.

*       Built-on normal-poled magnetic chuck, Ø approx. 600 mm.

*       Separate switch cabinet and separate small coolant pump.





Condition  :    Good.  Machine can be inspected under power.

Delivery     :    Ex stock as inspected.

Payment     :   Net, after conclusion of contract.



Thank you for your interest.  This machine is ideal for aligning and adjusting work. We have selection of surface grinders available.  Please let us know your requirements.
