Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:

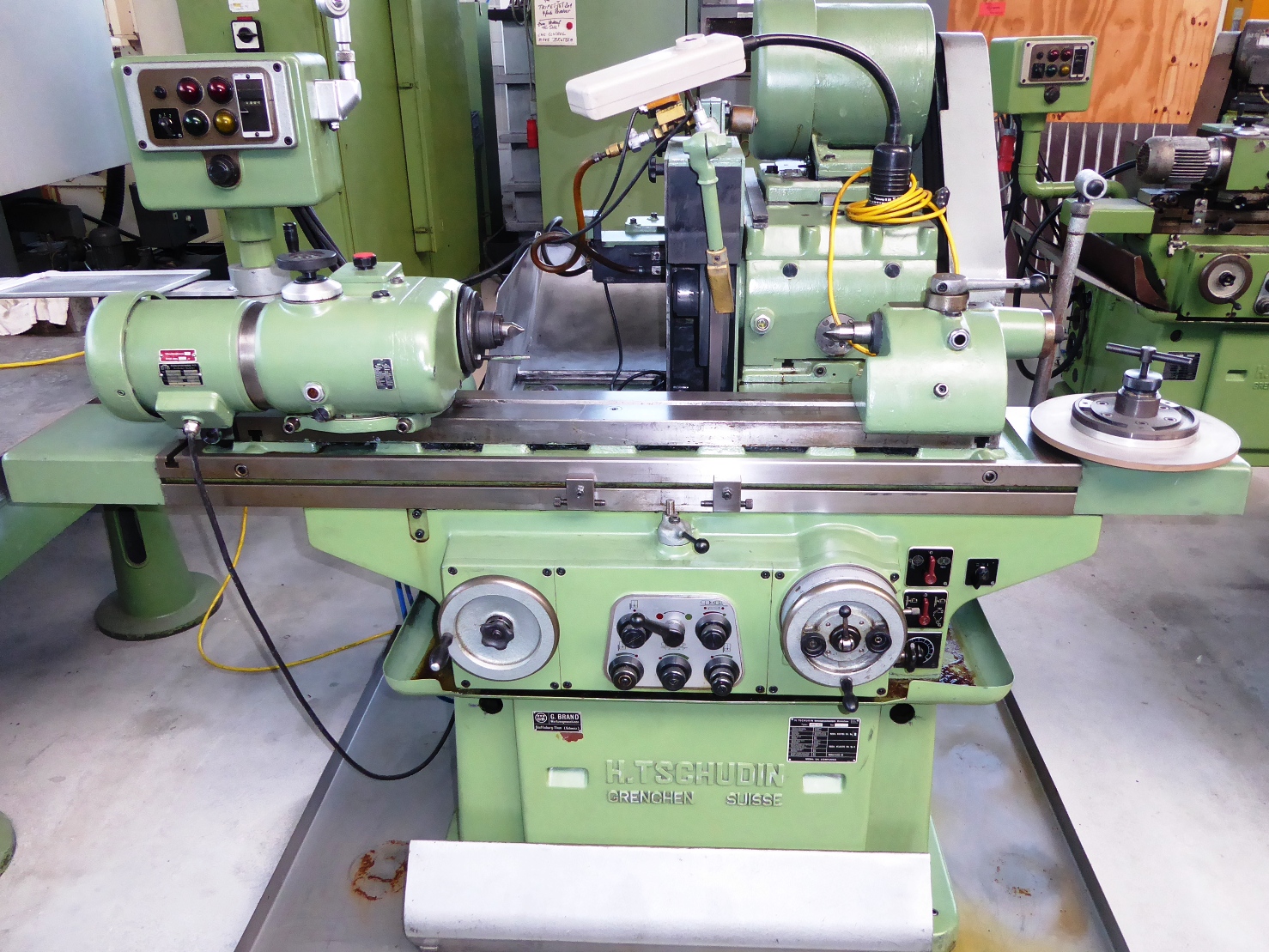

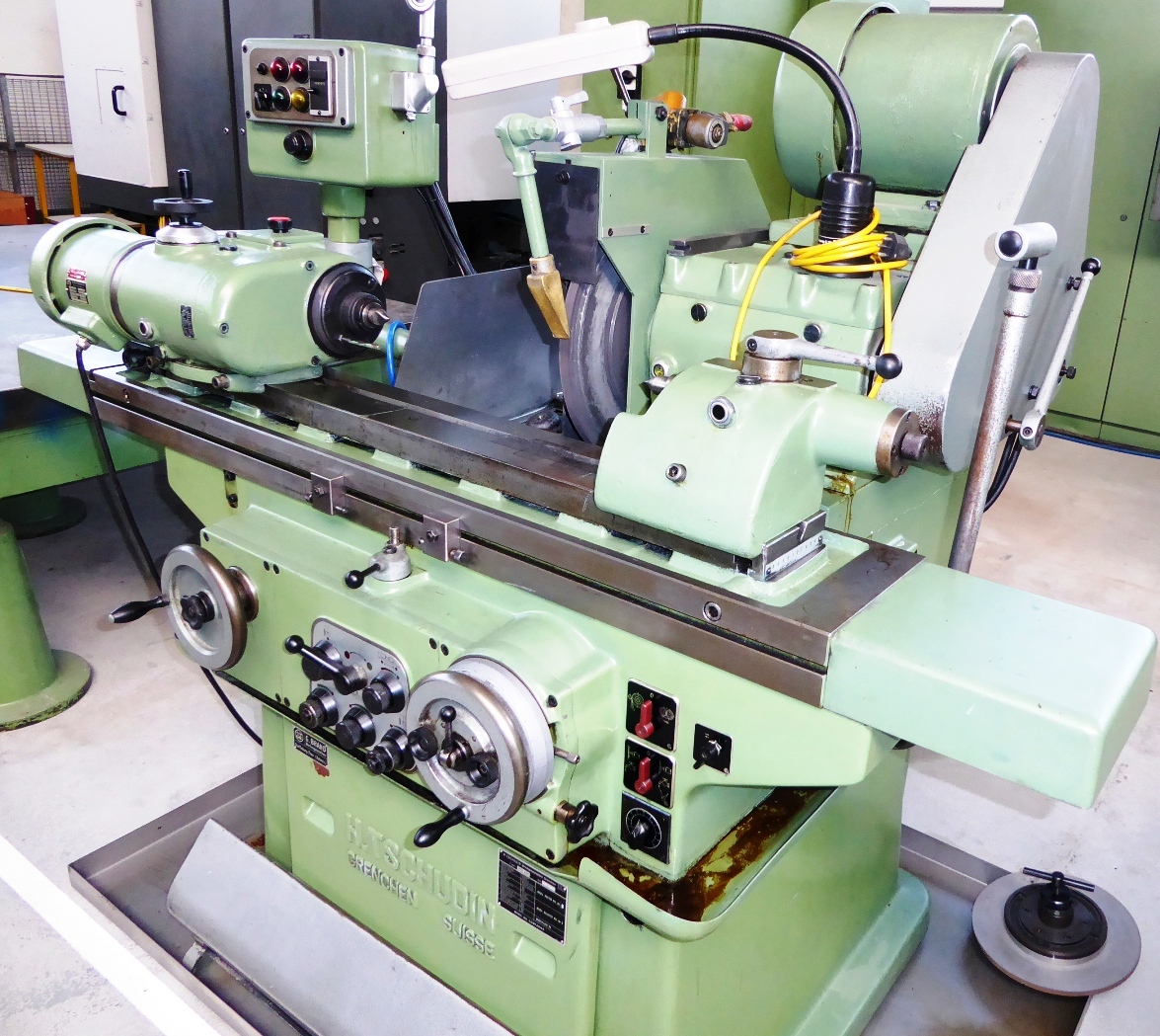

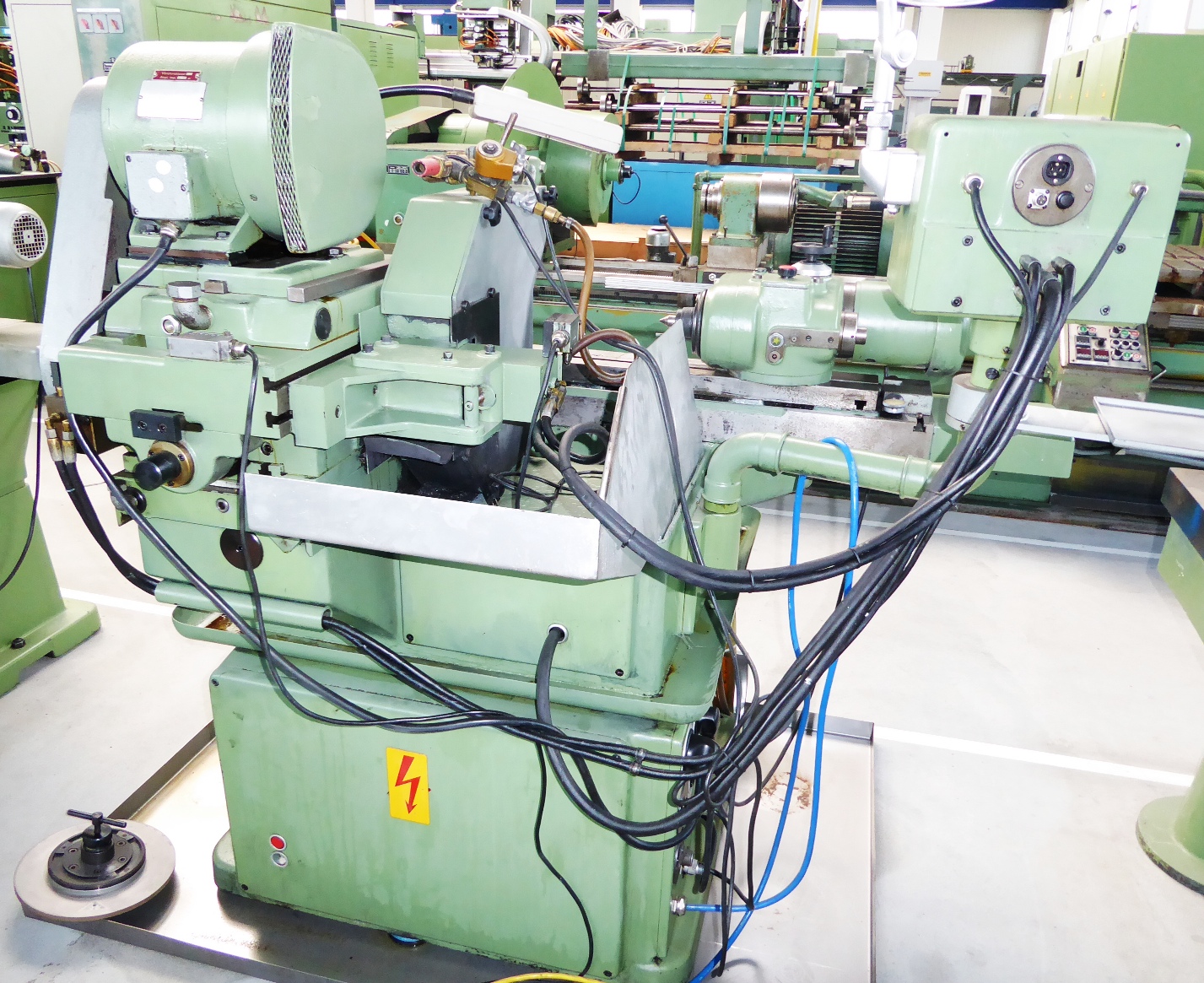

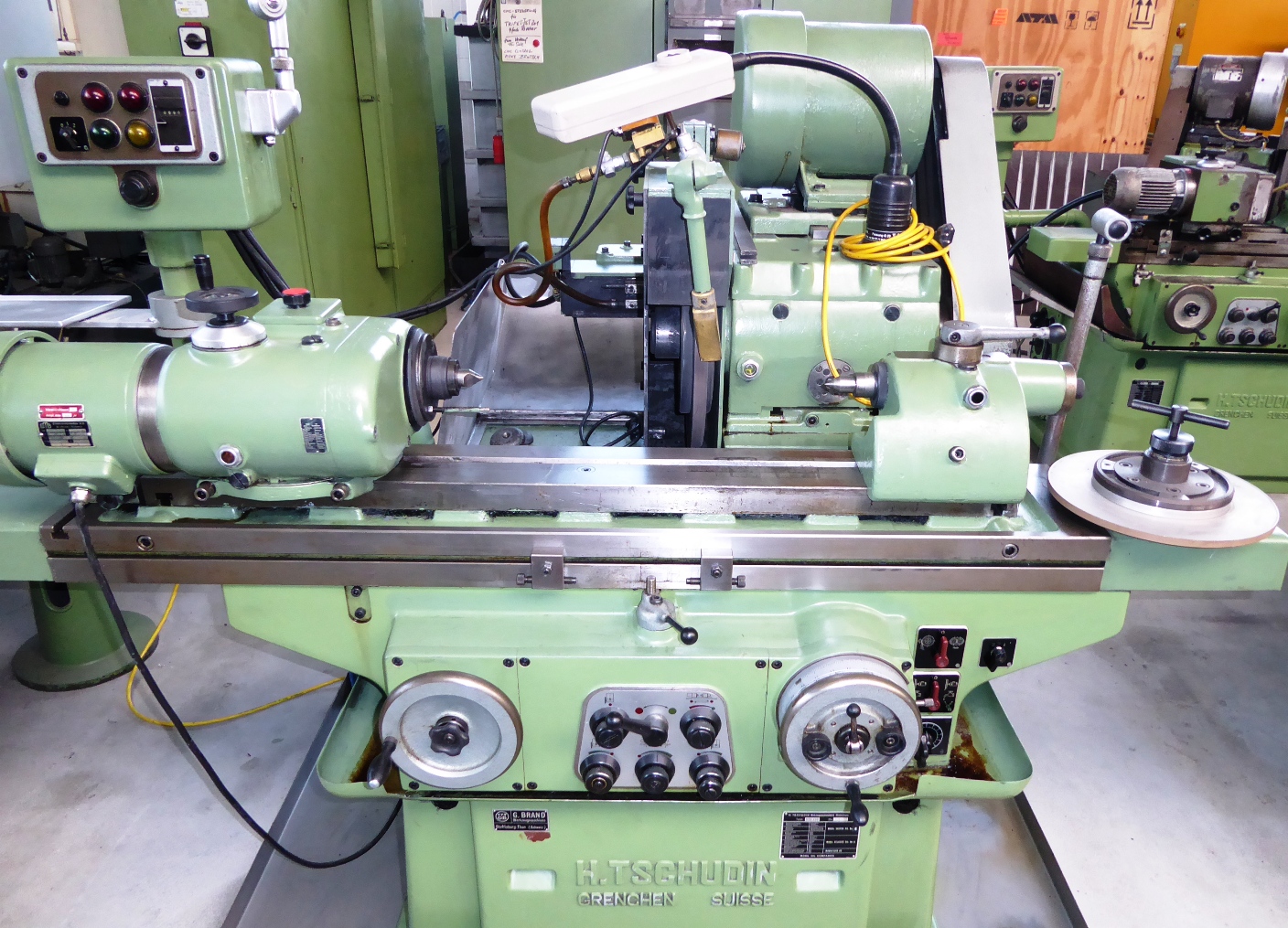

T S C H U D I N     (Switzerland)

Hydraulic Universal Cylindrical Grinding Machine

Model   HTG 400                                           Year  1969          69 1237

________________________________________________________



Height of centres                                                                                           100                                                                                           mm

Distance between centres                                                                                           400                                                                                           mm

Grinding length, approx.                                                                                           420                                                                                           mm



Grinding wheel, Ø x width                                                 300 x 50                                                                                       mm

Grinding spindle speeds, approx.                                                                                        2,240                                                                                           rpm

Grinding slide rapid traverse                                                                                             38                                                                                           mm

Grinding slide swivable                                                          +/- 8                                                                                              °



Workhead swivability                                                                                           360                                                                                               °

Workhead speeds, infinitely variable                                   65 – 500                                                                                     rpm

Workhead spindle taper                                                                                               4                                                                                            MK



Table travel                                                                                           420                                                                                           mm

Table speed                                                                                               6                                                                                        m/min

Table swivable                                                                      +/- 8                                                                                              °



Spindle drive, approx.                                                                                            3.5                                                                                            kW

Total electrical load                                          5 kW  -  380 V  -  50                                                                                         Hz

Weight, approx.                                                                                            2.5                                                                                              to



Accessories / Special Features



*      Simple Cylindrical Grinder with Semi-automatic grinding process and

Hydraulic Straight Dressing device at the backside of the grinding wheel

*      Counter for dressing cycles, and automatic compensation and correction.

*      Separate Grinding Flange with disc.

*      Workpiece head with W 20 Collet holder and steplessly adjustable Work-

Piece Speed.





Condition :  Good -  Machine can be inspected under power.

Delivery    :  Ex stock as inspected.

Payment   :  Net, after conclusion of contract.



Thank you for your interest.



We have a selection of cylindrical grinders on stock.  Please let us know your requirements.
