Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:

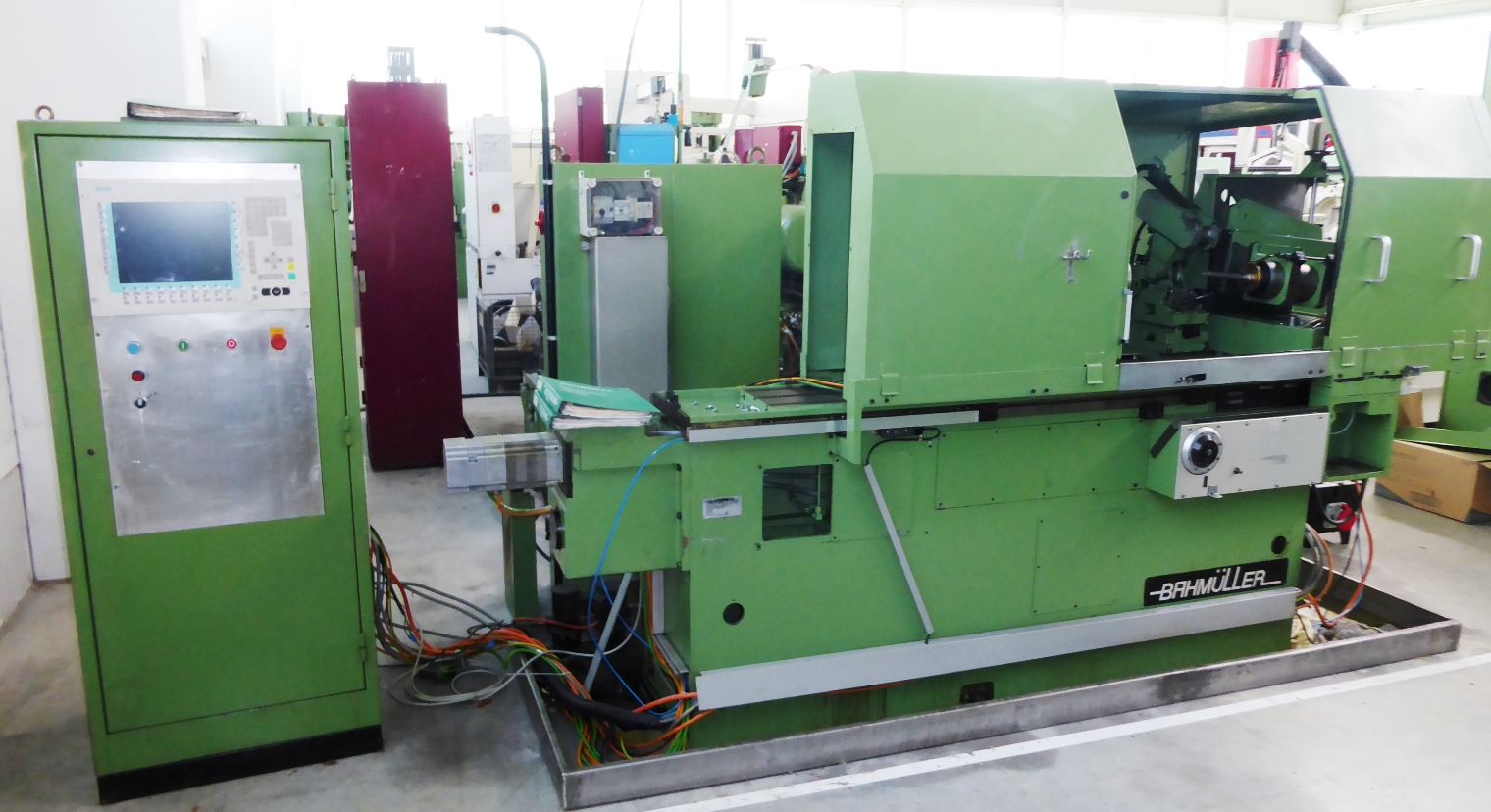

B A H M Ü L L E R

CNC - Controlled

Internal Thread Grinding Machine for Ball Screw Spindle Nuts

Model   IPE 12 i.S.

Year     1985 /Modernized in 2000                         Serial No. 103174

_______________________________________________________



height of centers (WP spindle/grinding spindle)                          300   mm

table stroke approx.   (Y-Axis)                                                        450   mm



length between centers                                                                      700   mm

workpiece length, approx.                                                                  350   mm

workpiece Ø, max.                                                                      10 - 250   mm



Total adjustment/travel for Grinding slide (X-Axis)                           250   mm

Lead range approx..                                                                    0,3 – 80   mm

Lead angle max.                                                                                   10   °

Vertical adjustment of grinding spindle                                              100   mm

Grinding spindle can swivel                                                         10-0-10   °



Spindle drive approx. 4,5 kW

Total electrical load, approx.                                  15 kW  -  400 V  -  50   Hz

Weight, approx.                                                                               4.500   kg



Accessories / Special Features



The Preowner of the machine

( a very well known manufacturer of ballscrew spindle sets) has placed a

SIEMENS – Control Model SIECOMP with soft keys and Monitor, for 3 Axis

with SIEMENS Motors and HEIDENHAIN Scales in the X/Z/C-Axis

*       All Movements/Leads/Infeeds will be generated by the Control System.

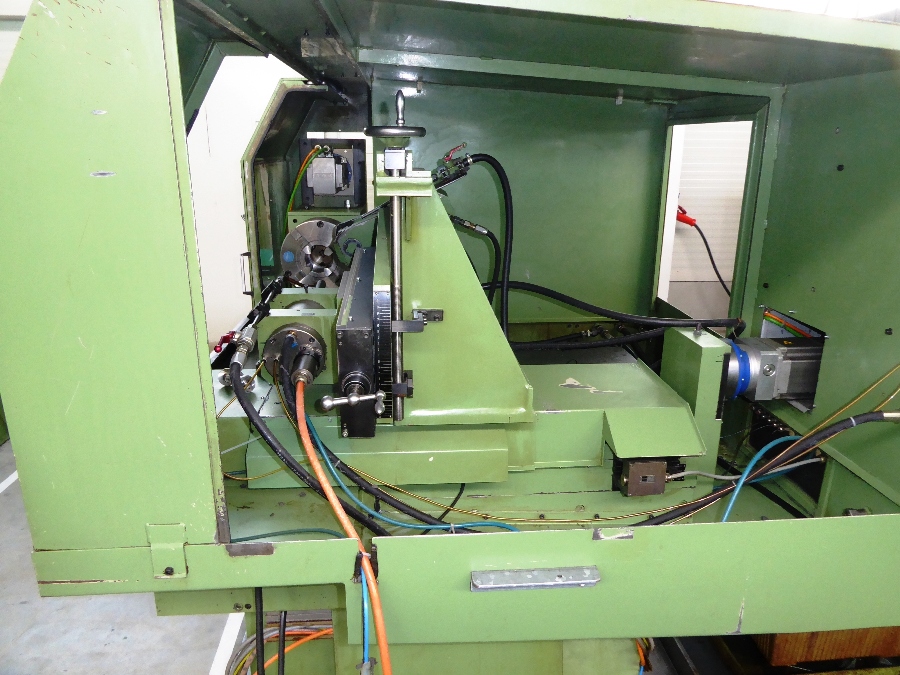

*       Mounted Diamand Roll Profiling Device Make KW, swivable +/- 10 ° for preparing

the Ball Screw profile into the grinding tool, with hydraulic motor for the Tool speed

and the Tool holder arm can be hydraulically moved into/out of working area for

profiling procedure.

*       FISCHER HF Internal grinding spindle up to 30.000 rpm with oil and air lubrication

and with Infinitely variable grinding spindle speeds, Ø 120 mm,

spindle can be moved horizontally approx. 100 mm, and can be swivelled 2x10°

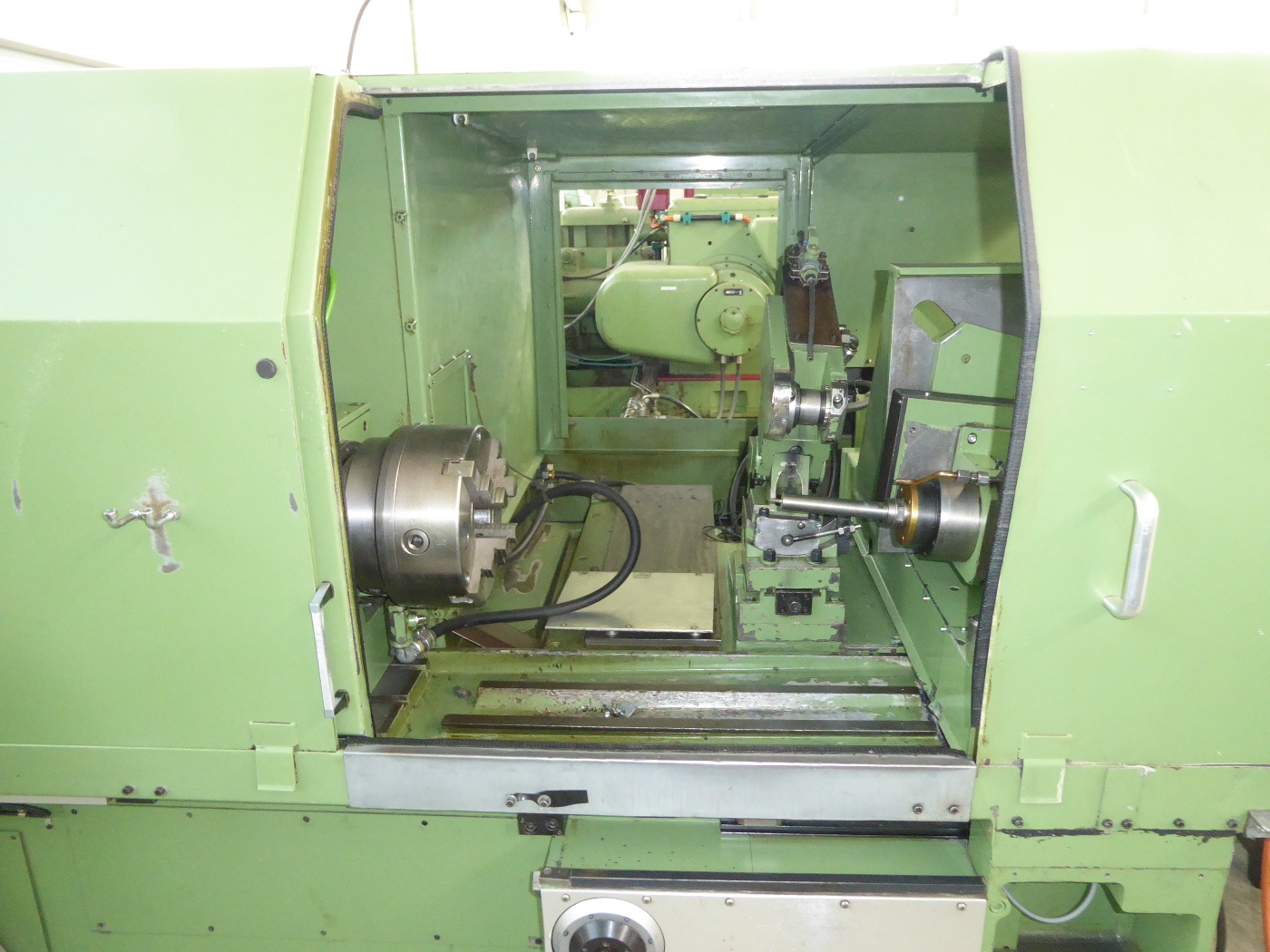

·      Built-on FORKHARDT 4-jaws chuck approx. Ø  250 mm with connection to internal

coolant supply thru spindle

·      Workpiece head can be displaced manually on the table for approx. 400 mm (Z-axis)

·      Separate switch and Control cabinets, Hydraulic aggregate, Lubrication device

·      Covered Grinding area with hood and sliding door, cabinoil drip pan, etc.





Condition :  Average to Good.  Machine under power,   rare machine - ideal for reconditioning purposes !

Delivery    :  Ex stock, as inspected.             Payment   :  Net, after conclusion of contract.



We always stock a good selection of thread grinding machines up to a length of 2.200 mm
