We are pleased to offer you ex our stock, subject to prior sale, and error in technical data:



E M A G    (Germany)

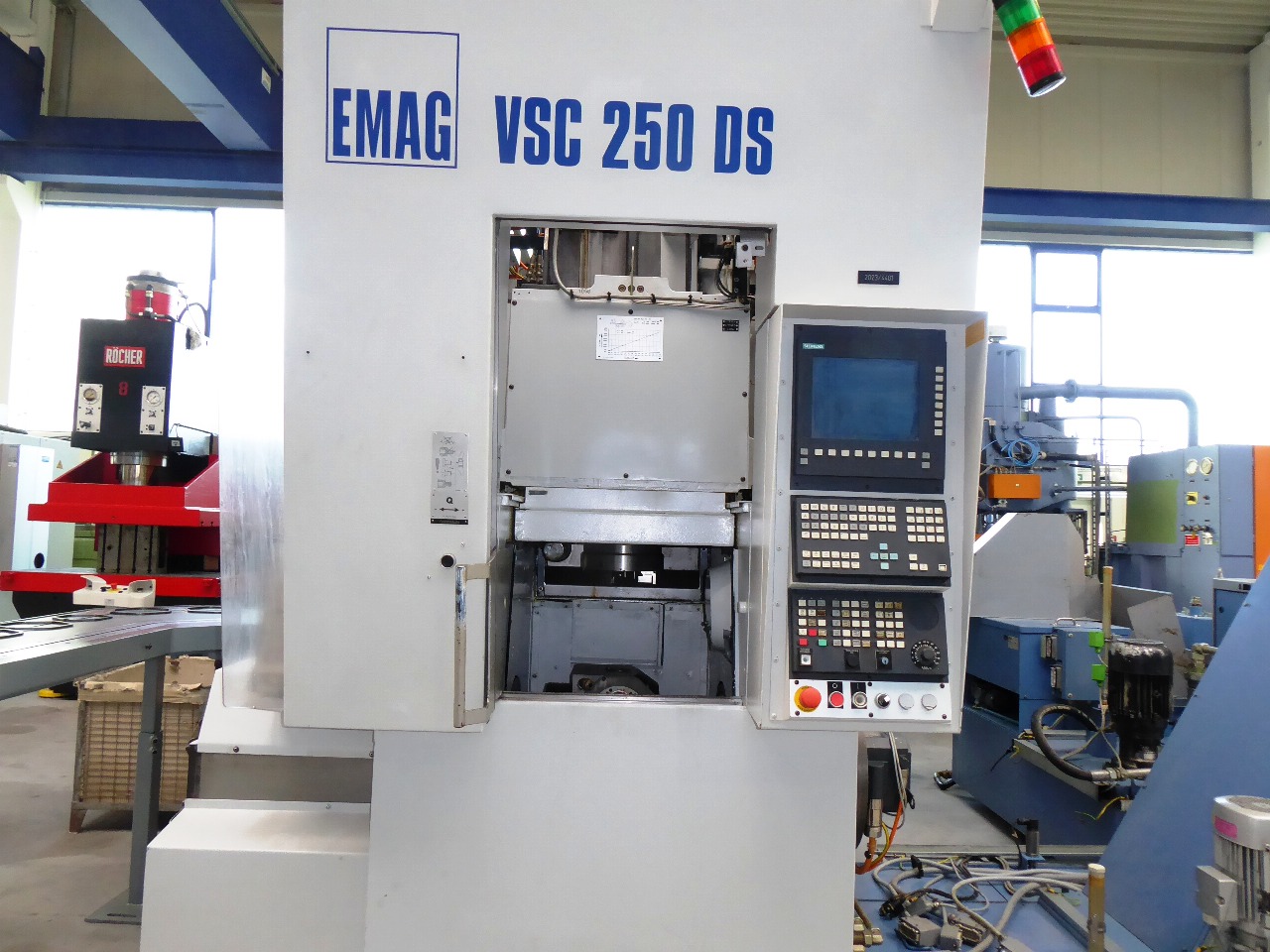

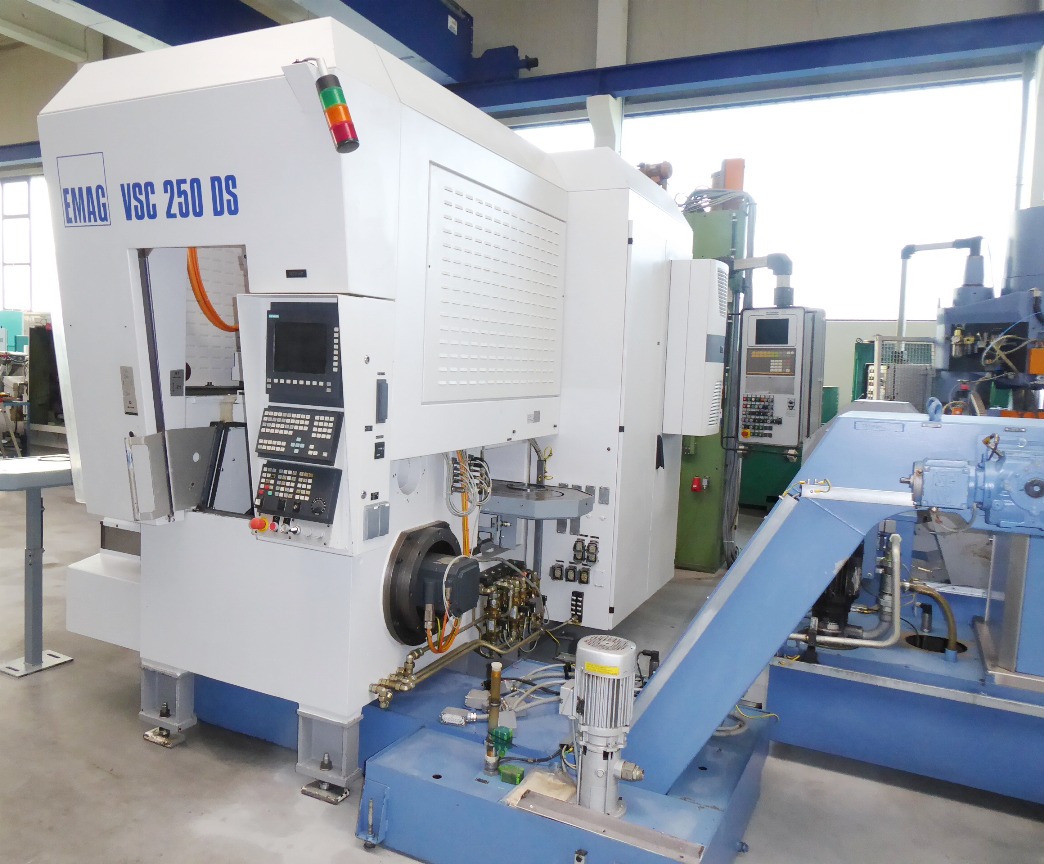

Vertical CNC Controlled Hard Turning and Grinding machine

with tool turret and workpiece handling System

Model  VSC 250 DS                  Year 2004                  # M7 28.69324

_______________________________________________________



Turning Ø, max.                                                                                                            250                                                                                                           mm

Turning length internal / external                                                                                                            100                                                                                                           mm

Workpiece length min./max.                                                                 29 – 100                                                                                                      mm



6-positon tool turret Ø / swing-Ø                                                                                                     480/790                                                                                                           mm



Workpiece spindle Slide travel, X / Z / stroke                                680 / 400 / 200                                                                                                      mm

Feed rate / Quick feed X/Z                                                                                                         45/30                                                                                                       m/min.

Feed force X/Z                                                                                                        5,5/11                                                                                                             kN

Spindle speed                                                                                  4.300 / 6.000                                                                                                   rpm



Spindle drive  28 kW     Total electrical load, approx.          35 kW  -  400 V  -  50                                                                                                         Hz

Weight, approx.                                                                                                         7,500                                                                                                              kg



Accessories / Special Features:



*       CNC – Continuous Path Control SIEMENS Model 840 D, with colour monitor, graphics, menu-

supervised dialogue programming, and all the usual options, cycles and subprograms, etc.

*       Hexagon Tool turret head with 6 tool positions (Ø 40 mm) without motorized tools posts, two

positions T 3 u. T 6 equipped with grinding spindles with 42.000 rpm and with 18.000 rpm,

using CBN discs resp. regular grinding tools

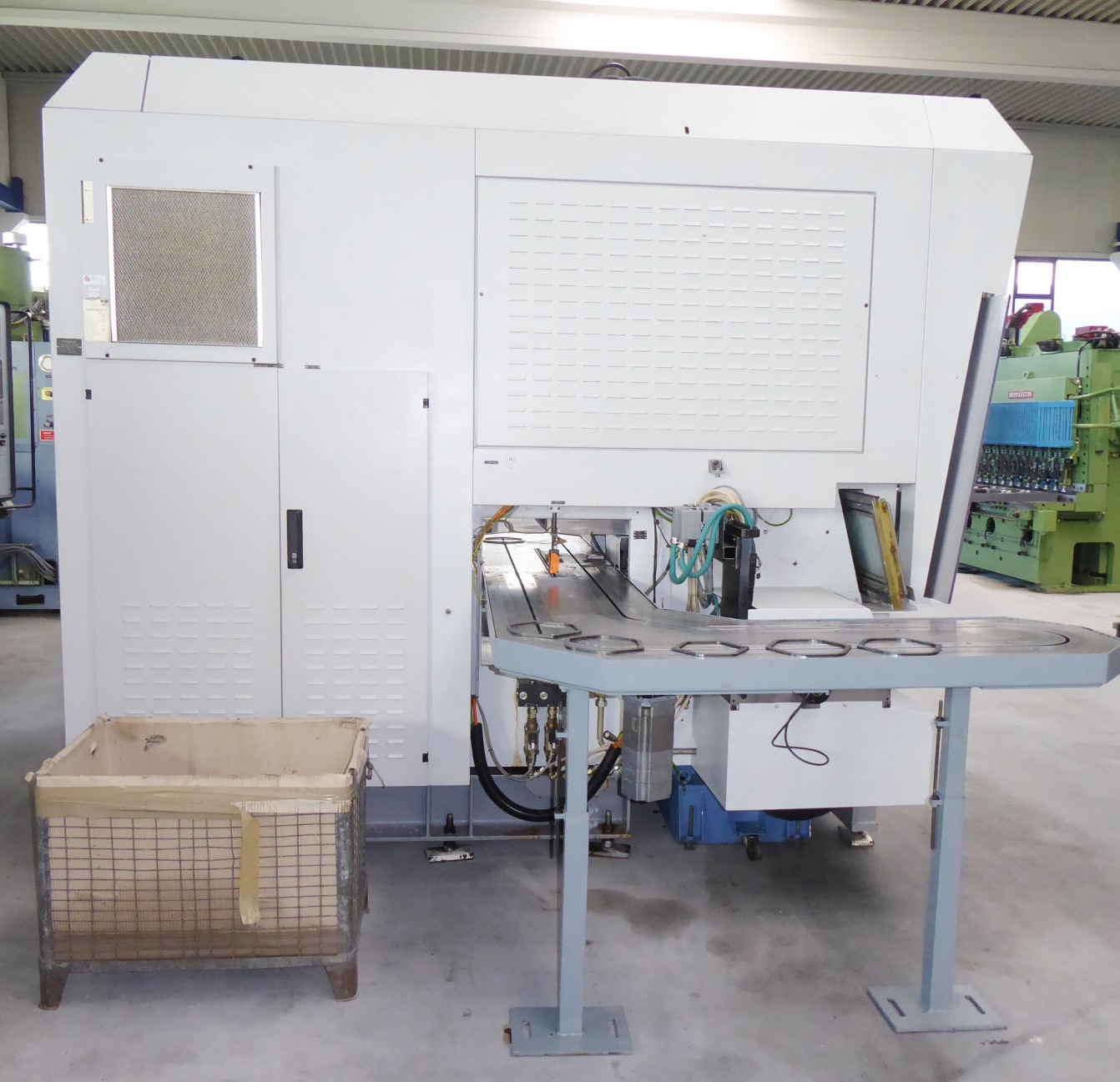

*       Workpiece handling device with WP transportation frames and circulation system and pick-up

and unloading of finished parts directly through the motor spindle which is equipped with a

hydraulic 3 jaws chuck make SMW Autobloc with membrane clamping and clamping control system.

*       MARPOSS  MIDA  Measuring Probe for measuring blank parts a. the finished parts

*       NORGREN air measuring system, hydraulic weight compensation of spindle,

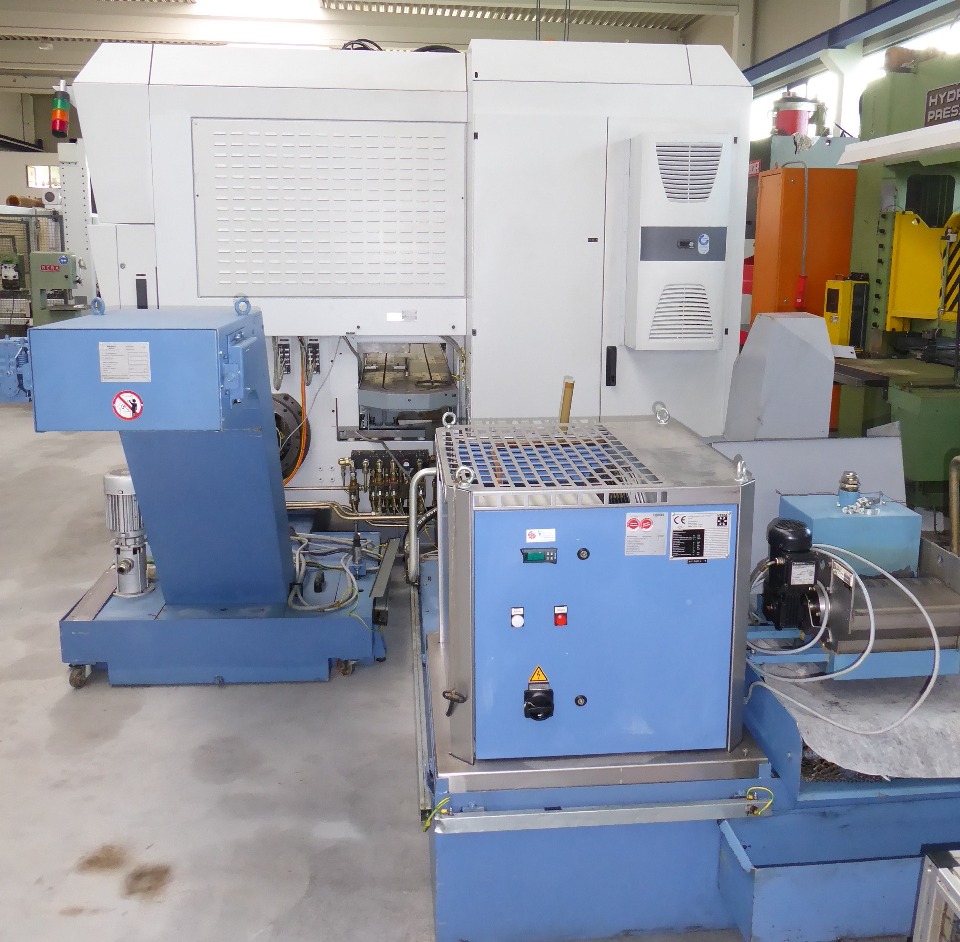

*       Main elements of machine are temperature stabilized by a coolant system made by HYFRA

*       Recooler for the grinding coolant sitting on a large Coolant device consisting of SEITZ Paper Band filter

*       and a mobile Chipconveyor, Magnetic separator, Centrallubrication, etc.





Vertical CNC lathes offer a thermo-resistant construction (chips do not fall onto the machine bed),

fast workpiece change times (pick-up system through the main spindle) and a ridged tool arrangement,

which also allows unrelated machining work,  like hard turning or grinding process on the same machine.



Condition  :  Good.  Machine can soon be inspected under power.

Delivery    :   Ex stock, as inspected.

Payment   :   Net, after conclusion of contract.



Thank you for your interest.

We have other conventional and CNC lathes available.  Please let us know your requirements.
