Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data :



D I S K U S     (Germany)

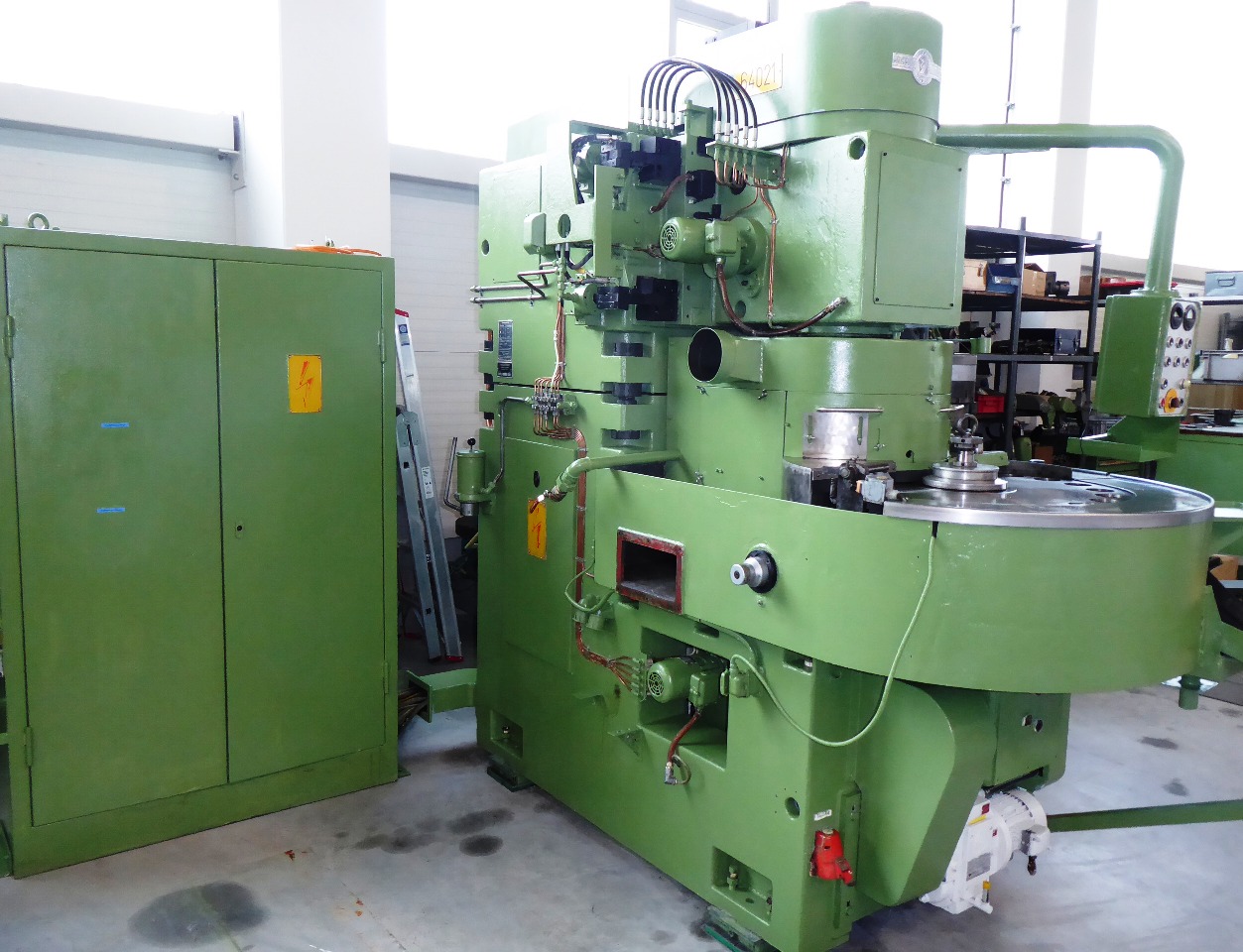

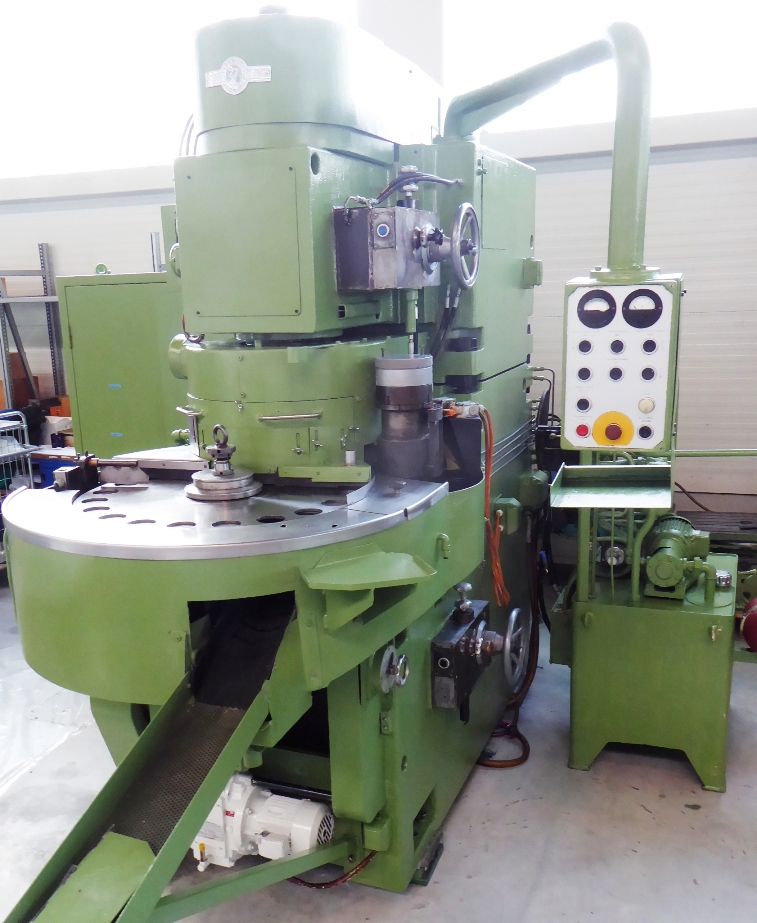

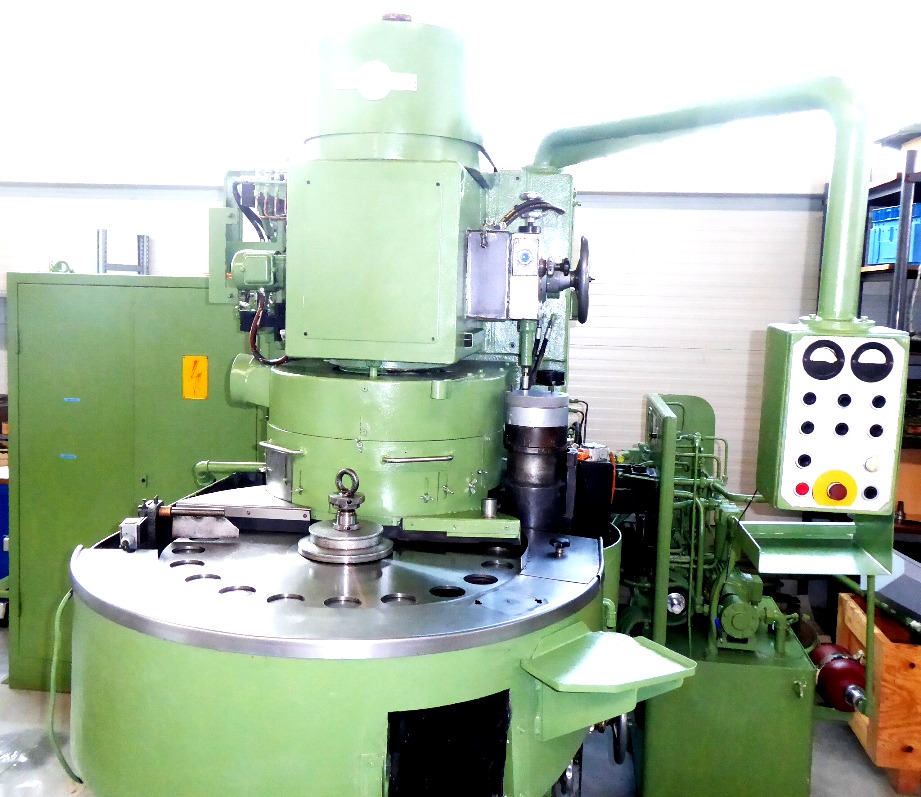

Double Side Vertical Spindle Surface Grinder, C-Frame Design, with

Rotary Workpiece Feeding System and Automatic Dressing Device

Model   DDS 600 CR-A

Year 1969                                                                       Serial-No.  6672

______________________________________________________________________________



Grinding wheels Ø x bore, each                                                                                                           600                                                                                                          mm

Grinding wheels height x width, approx.                                                                                                             60                                                                                                            mm



Workpiece dimensions:

Grinding height x grinding width, approx.                                         60 x 120                                                                                                     mm

Vertical adjustment of each grinding head                                                                                                           150                                                                                                           mm

External Ø of workpiece carrier disk, approx.                                                                                                           810                                                                                                           mm

Feeds of rotary workpiece feed system                                           14 – 145                                                                                              mm/sec



Grinding wheel speeds, each, infinitely variable                                                                                                           765                                                                                           rpm  (24 m/s)



Grinding spindle drive, each                                                                                                             22                                                                                                            kW

Total electrical load, approx.                                          50 kW  -  380 V  -  50                                                                                                     Hz

Total weight, approx.                                                                                                        7,000                                                                                                             kg



Accessories / Special Features:



*       Rotary workpiece feed system with infinitely variable speed adjustment prepared with

workpiece carrier disk approx. dia. 800 mm with relevant workpiece shaped pockets and

after the grinding the parts will be automatically sorted out and collected in a collector box.

*       IONIC – Size Control Unit Model Nr. 9 So with measuring probe for the ground workpieces

and with signal for the hydraulic infeed of the grinding wheel when size is not in order.

*       Automatic Dressing Device for the grinding wheels, hydraulically operated and with the automatic return of the grinding wheels after dressing cycle to the previously adjusted position and to continue the working cycle. Dressing cycle can be presetted  by a timer or a manual release.

*       Manually operated infeed device of the Spindle slide to optimal workpiece thickness.

*       Spindle drives controlled by Ampere-Meters.

*       Separate switch cabinet.   * Separate hydraulic unit.   * Various carrier disks, etc.

*       Safety covers.     *   Central lubrication.

*       Large Coolant device with paperbandfilter





This machine is ideal for double-sided simultaneous grinding of parallel workpiece surfaces by continuous method, for maximum output and accuracy in mass production (e.g. Piston rings, washers, hydraulic parts, and other punched parts.)



Condition  :    Good .  Machine can be inspected under power.

Delivery     :    Ex stock, as inspected.

Payment    :    Net, after conclusion of contract.



We have a selection of double-sided grinders available.  Please let us know your requirements
