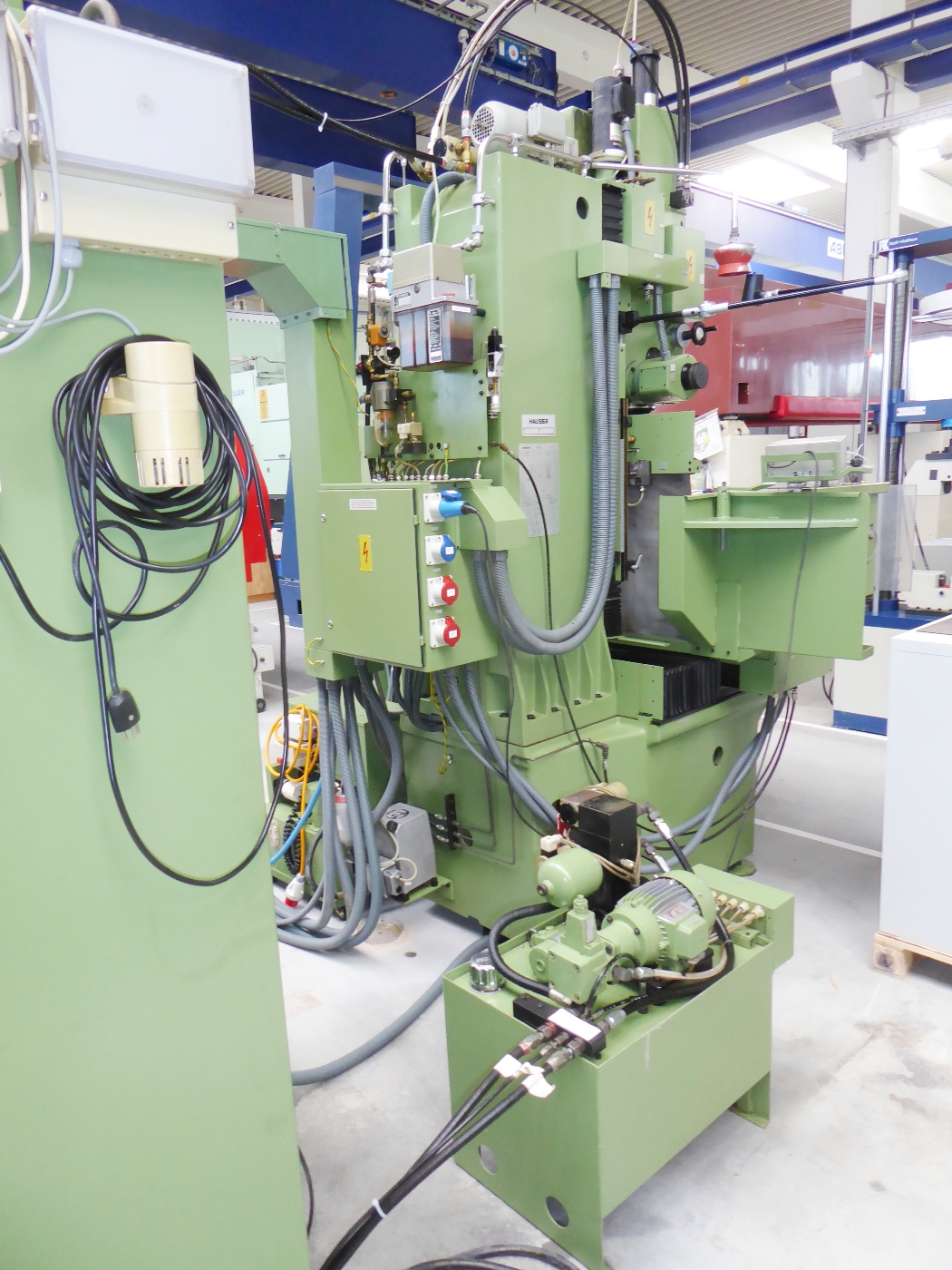

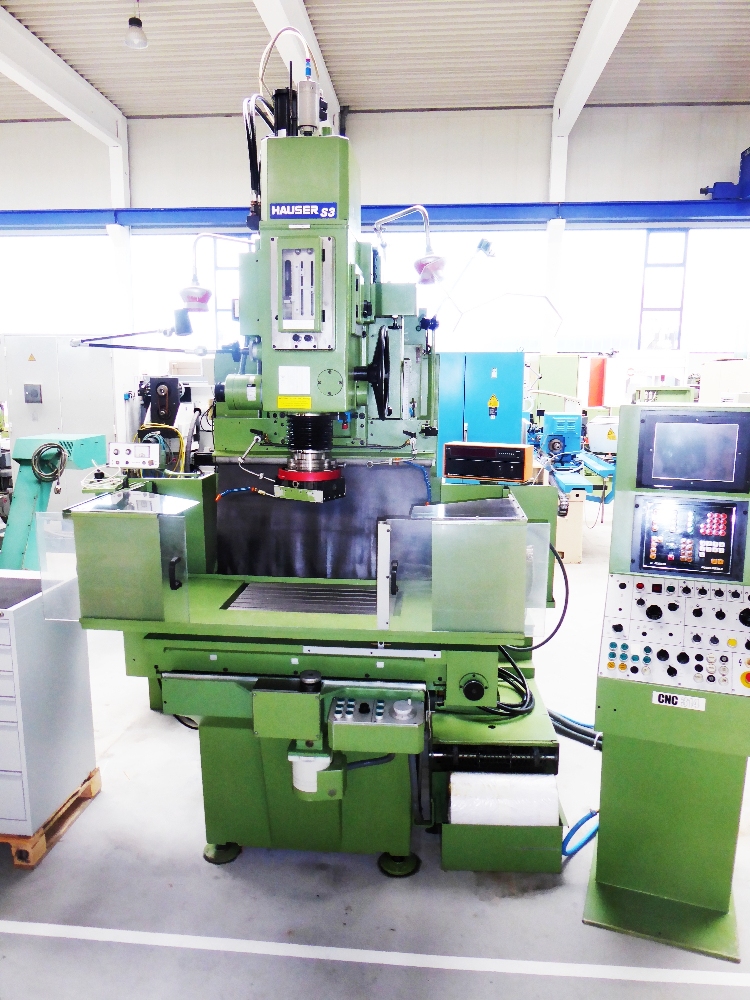

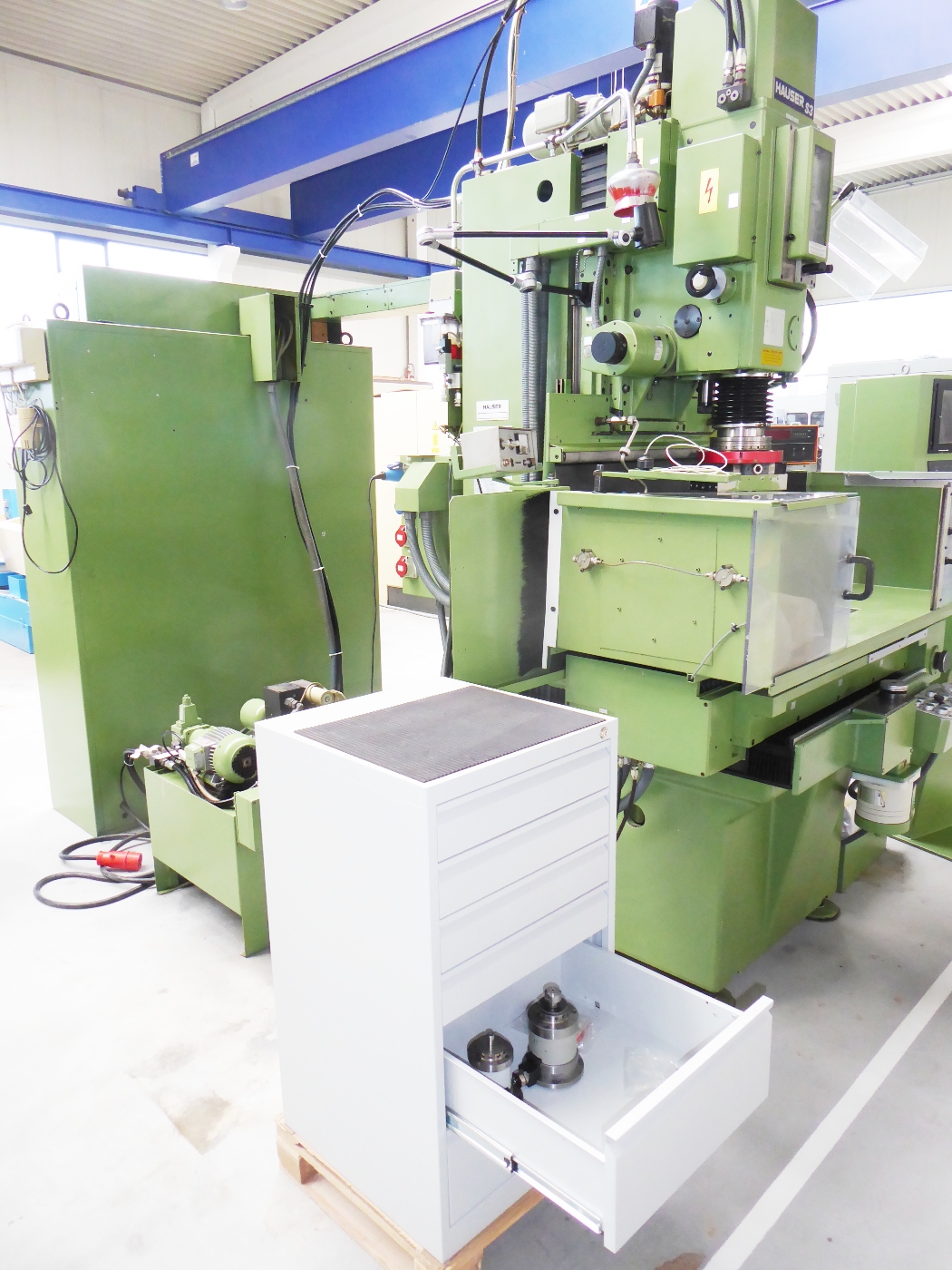

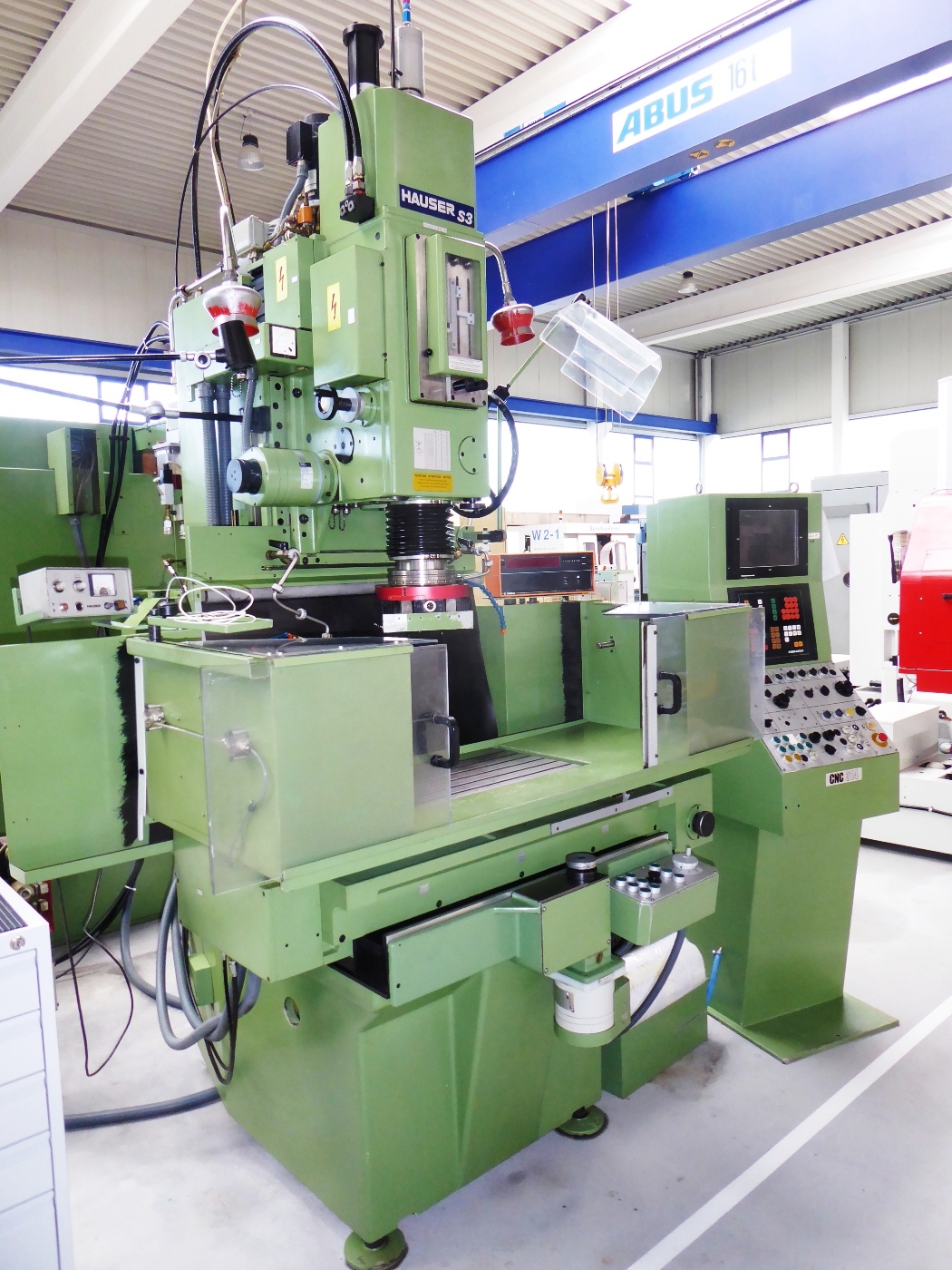

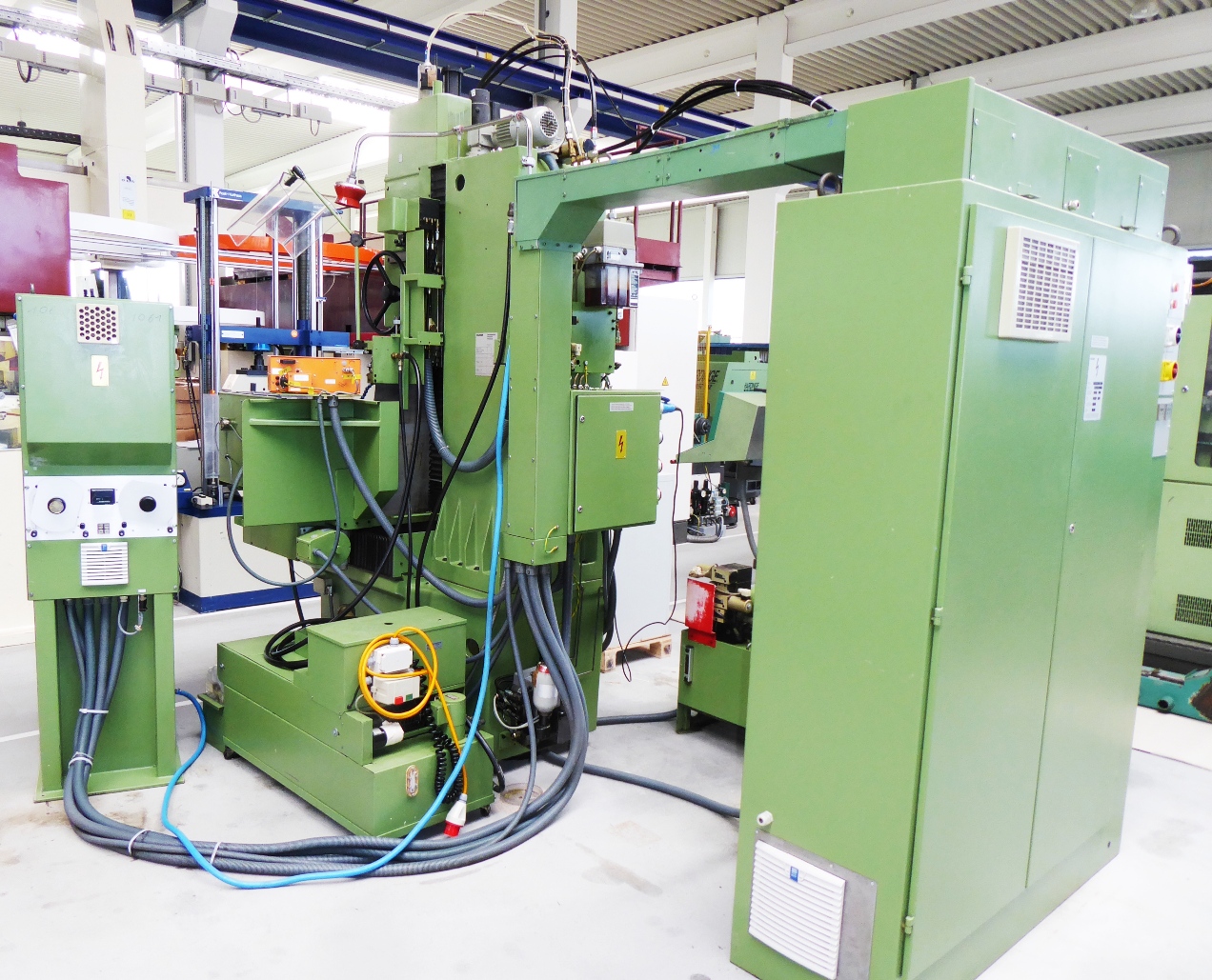

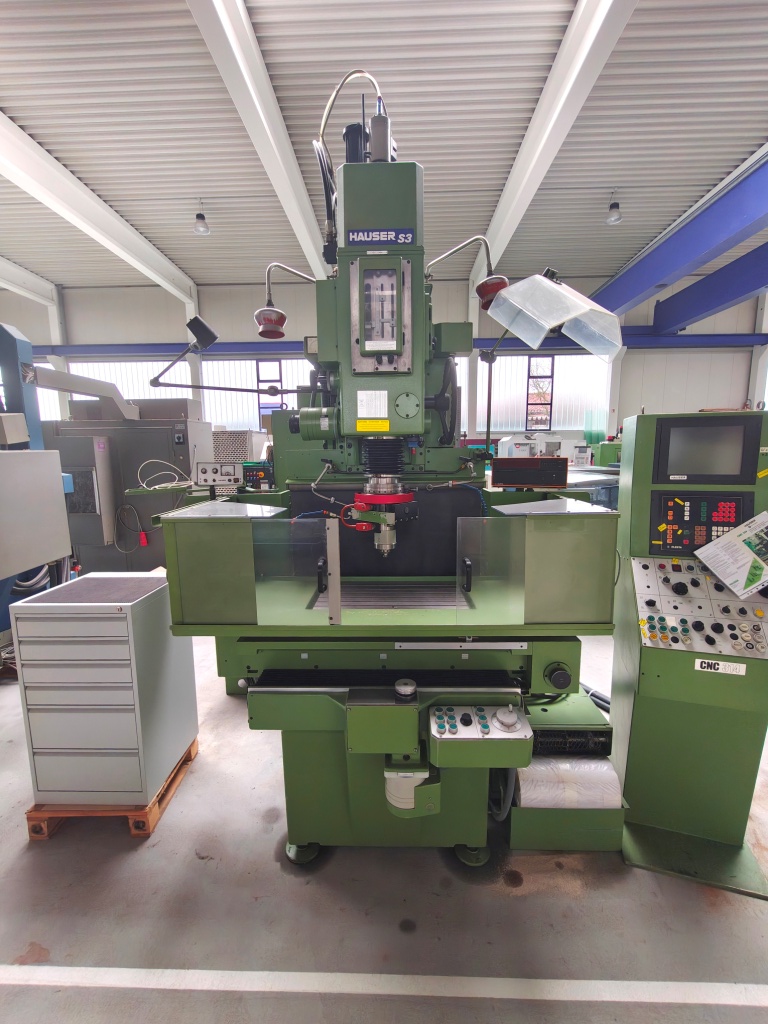

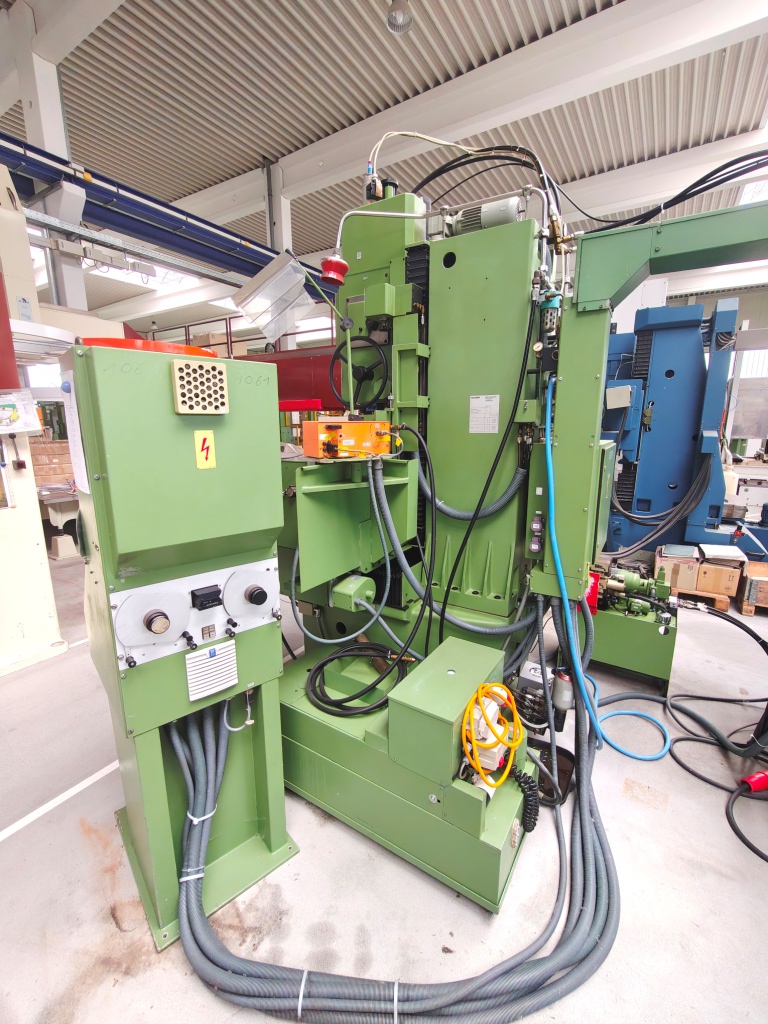

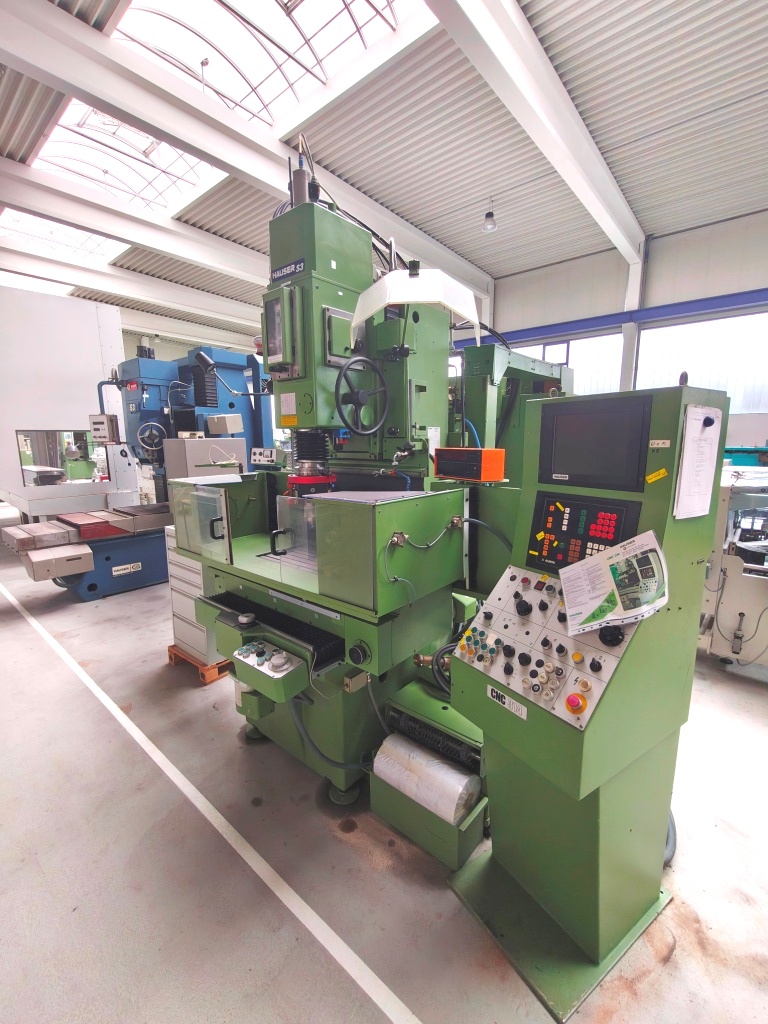

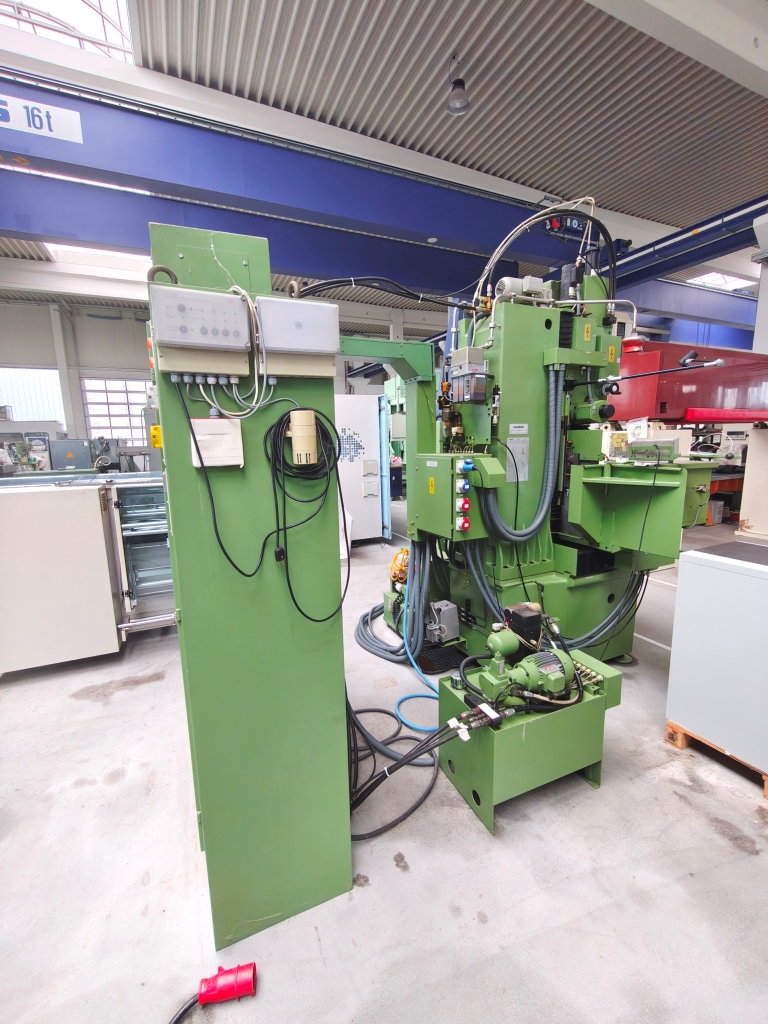

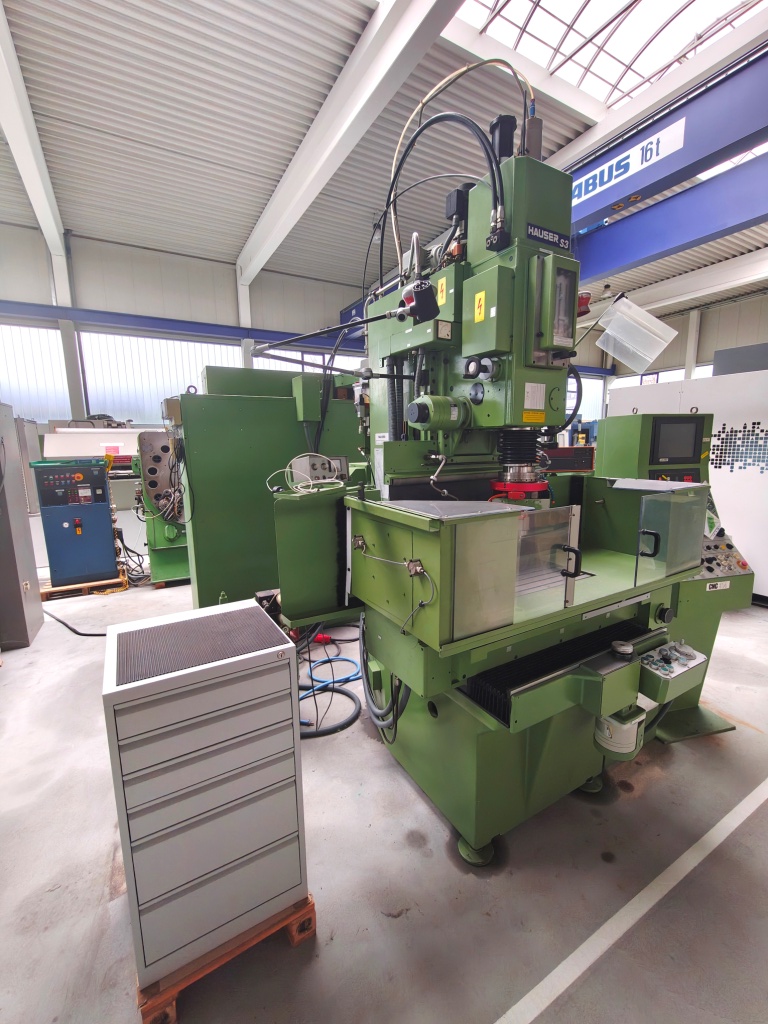

CNC - Controlled Vertical Precision Coordinate Grinding Machine

Model  S 3 – CNC 314

Year 1987   /   1998 partially reconditioned by Swiss-HTT           #  0463

____________________________________________________________



Table size, approx.                                                                       600 x 380   mm

Max. load on table, approx.                                                                    300   kg



Table travel, longitudinal, max.                      (X Axis)                              400   mm

Table travel, cross, max.                                (Y Axis)                              250   mm

Vertical adjustment of grinding head max.     (W Axis)                             450   mm

Stroke of grinding spindle, max.                     (Z Axis)                              120   mm

Table Longitudinal and cross feeds (X/Y-Axis)                                 0 – 1.500                                                                                                      mm/min



Speed of  grinding head stroke                                                     15 – 7.500                                                                                                      mm/min



Vertical distance between table and grinding spindle, max.                 0 – 485   mm

Distance between grinding spindle and column                                        350   mm

Conical grinding, up to max.                                                                     16   °

Grinding Ø bore approx.                                                                         230   mm



18 Spindle speeds, depending on spindle motor                      4,500 – 80,000   rpm



Planetary speeds (C-Axis)                                                                5 – 250   rpm

U Axis, radial infeed                                                                                   6   mm

Total electrical load, approx.                                         10 kW  -  380 V  -  50   Hz

Weight, approx.                                                                                  4.000   kg



Accessories / Special Features:

*        CNC Continuous Path Control, Model CNC 314, (ELESTA-POLESTA II) with monitor,

for 4 axes (XYC+U) in 2 1/2 dimension (XYC) Interpolation with a free programming,

the U-Axis is not interpolating it is just an infeed axis. There is also a handwheel control

device for setting – up purposes. Digital Read-out for the Z-Axis

      W Axis for vertical positioning of grinding head,

      Z Axis as high speed stroke axis, also for blind-hole grinding and surface grinding.

      U Axis for the infeed cycles during bore grinding.  C Axis Feed for the of the Planetary Head.

*        Alltogether 2 grinding turbines 22.500 to 80.000 rpm, with some collets

*        Built-on Acoustic Grinding Contact Display Device Model KSV 5.

*        Separate coolant unit with band filter. *   Built-on fire extinguishing system.     *

Separate switch and control cabinet. Covered working area. * Separate hydraulic unit

*     Central lubrication, service tools.





Condition :       Very good  -  Machine can be inspected under power.

Delivery :         Ex stock - as inspected under power.

Payment :        Net, after conclusion of contract
