Q U O T A T I O N



We are pleased to offer you, ex stock, subject to prior sale and error in technical data :

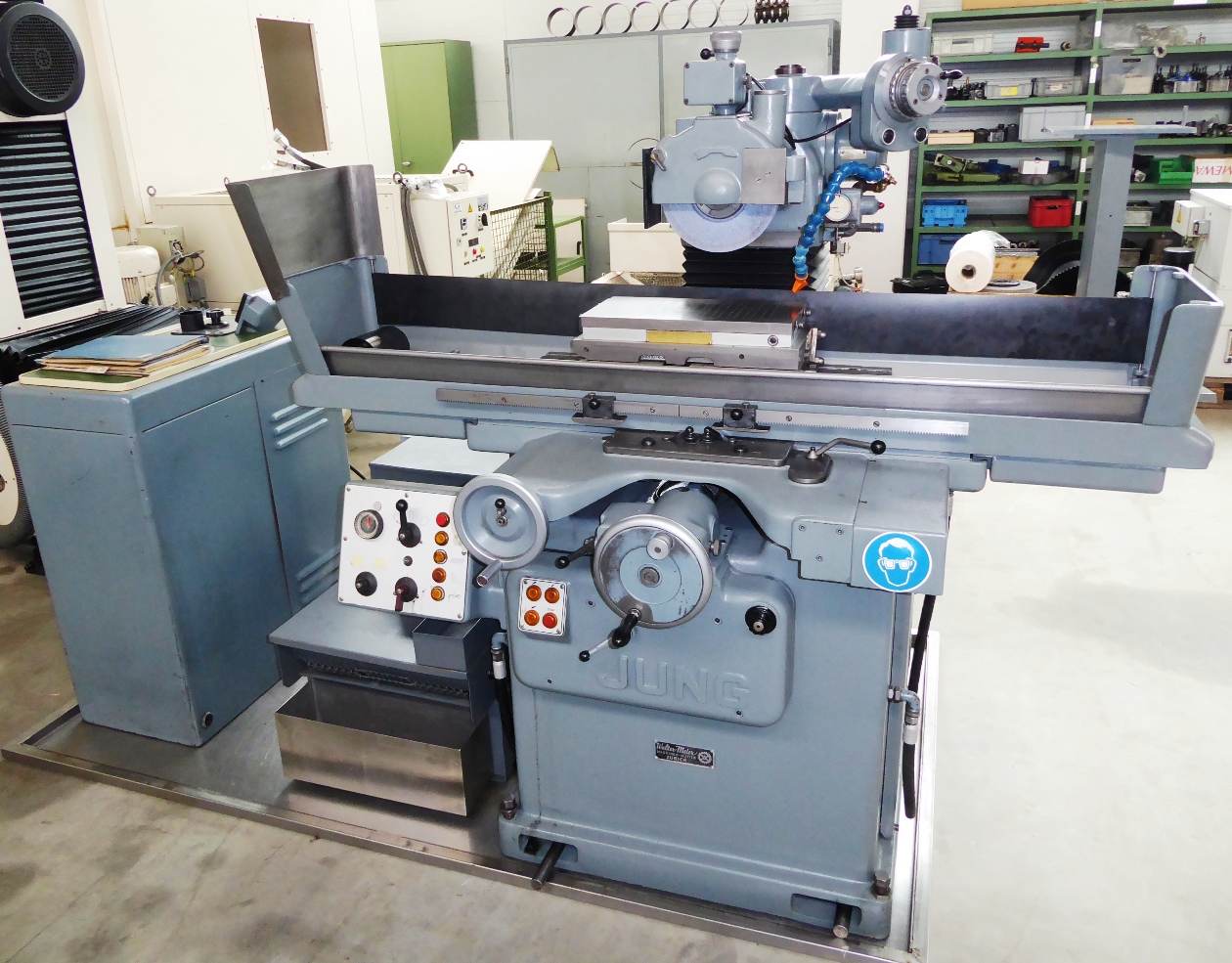

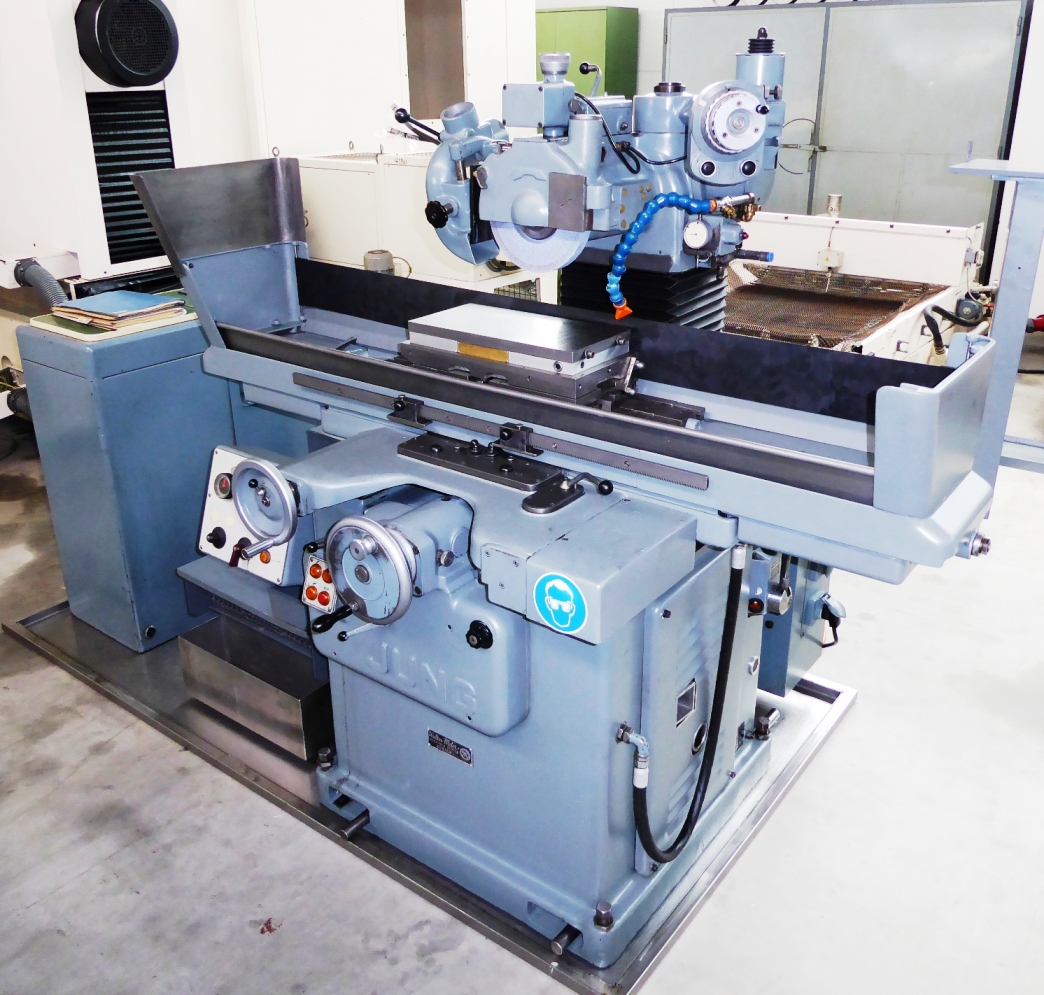

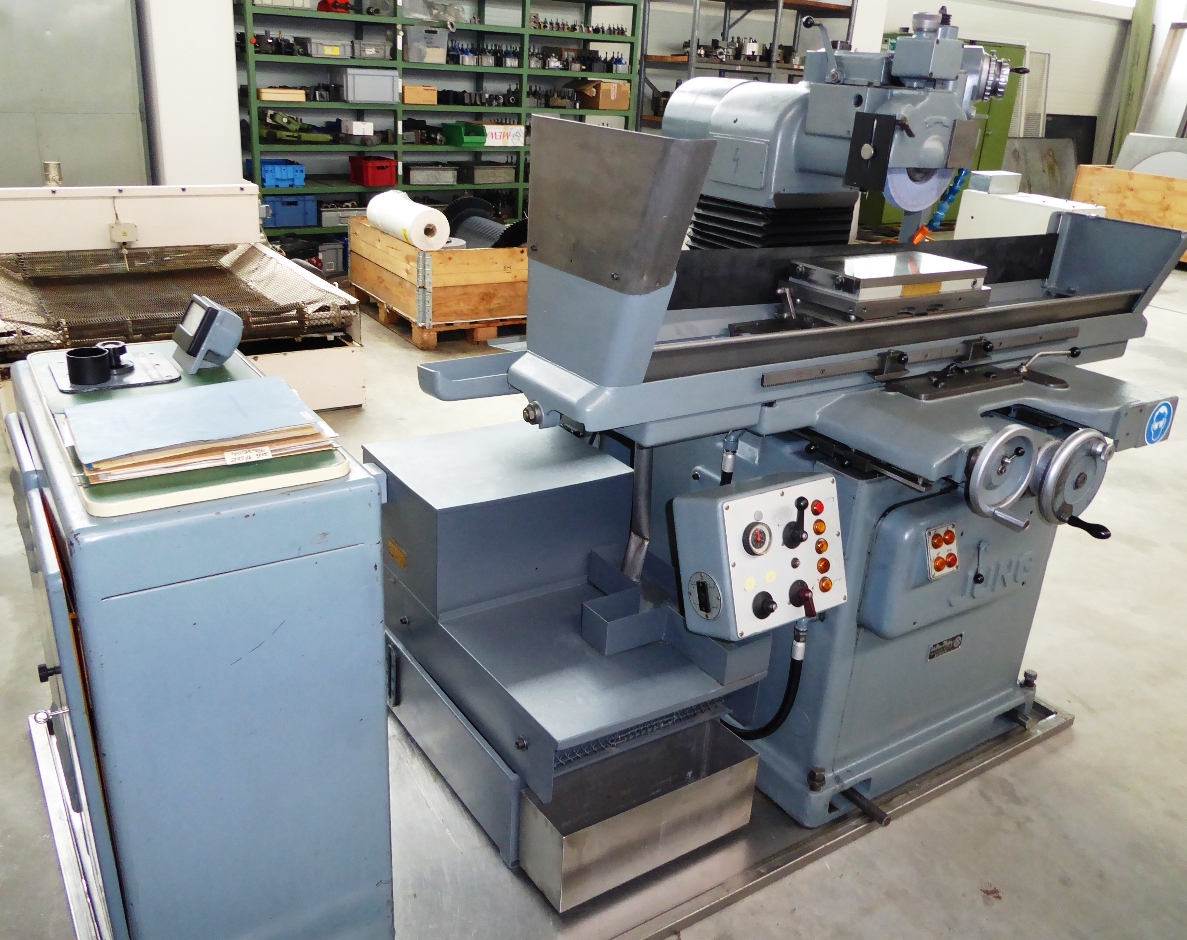

J U N G

Horizontal High Precision Surface- and Profile Grinding Machine

Model      HF  50     RD

Year        1969, partially reconditioned in 2021         Serial-no.  4082

_________________________________________________



Grinding length max.                                                                      500                                                                                                        mm

Grinding width max.                                                                        200                                                                                                        mm

Table size                                                                             600 x 200                                                                                                        mm

Grinding height under grinding wheel approx.                               250                                                                                                        mm



Table cross travel approx..                                                             230                                                                                                        mm

Table slide cross stroke                                                             0,2 - 8                                                                                    mm/table stroke

Table longitudinal travel max..                                                       550                                                                                                        mm

Table speed longitudinal                                                            1 – 20                                                                                                   m/min.



Measurement of grinding wheel                                     225 x 25 x 51                                                                                                        mm

Grinding wheel speed infinitely adjustable                     1.000 - 4.500                                                                                                        rpm

Vertical feed                                                                      0.001 - 0.01                                                                                             mm/stroke

Grinding spindle drive infinitely variable load                        0,4 – 1,5                                                                                                         kW



Total electrical load                                              5,5 kW - 380 V – 50                                                                                                    cycles

Weight approx.                                                                            2.500          kg



Accessories/Special Features:



·        Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc.

·        Set up switches for plunge-in or normal pendular-grinding with automatic infeed

·        Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)

with automatic stop of infeed by contact-Gauge.

·        motorized rapid feed of grinding head up/down

·        Manual straight grinding wheel-dressing device mounted above the grinding wheel

·        Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm

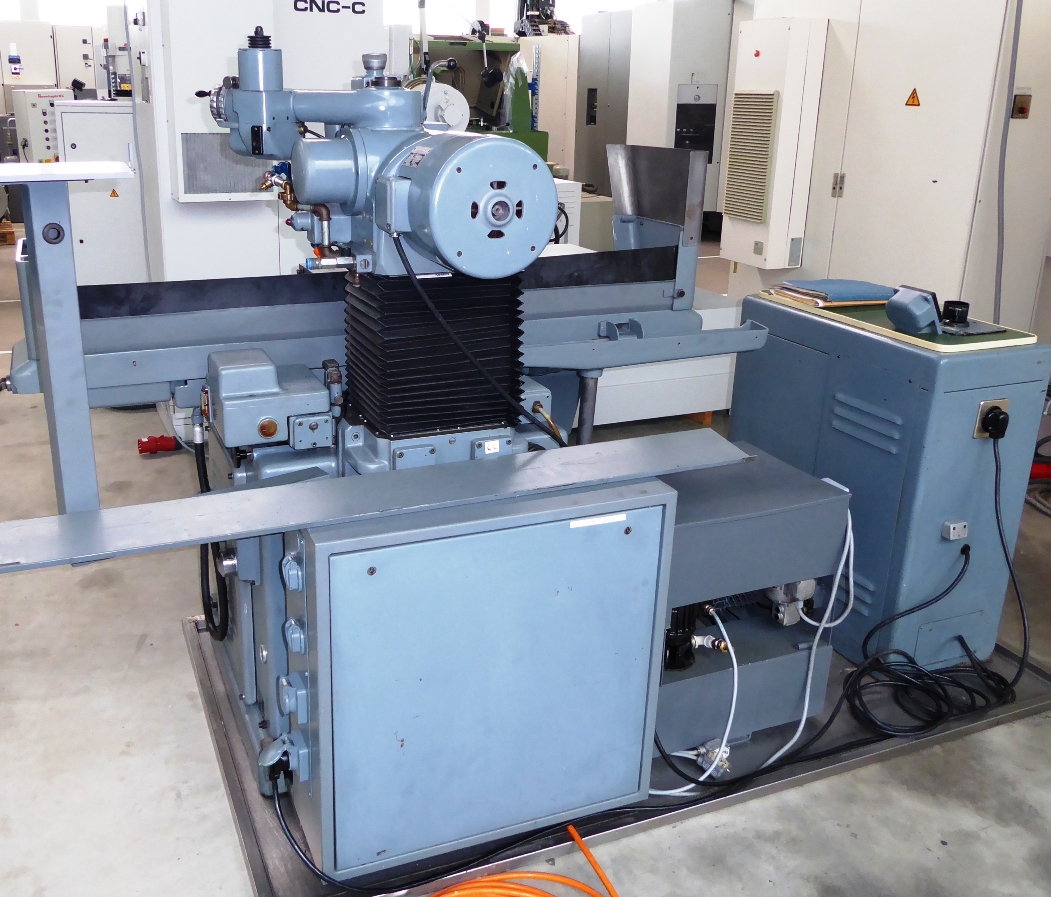

·        separate converter cabinet for infinitely variable speed regulation and with

respective display of cutting speed in m/sec.

·        Wet grinding facility including coolant tank and bandfilter cleaning device, separate standing,

·        Including 3 separate flanges, some grinding wheels, service tools, etc.





Condition   :    good – can be inspected here under power, partially reconditioned by a JUNG Specialist

                                                           (table pistons, lubrication, infeed system, Dresser, covers, etc.)

Delivery      :    ex stock – as inspected

Payment     :    net– after completion of contract



We would appreciate your order.

Approx. 20 further surface grinders in all sizes always on stock

Please do not hesitate to inquiry
