Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale and error in technical data:



T E C H N I C A     (Switzerland)

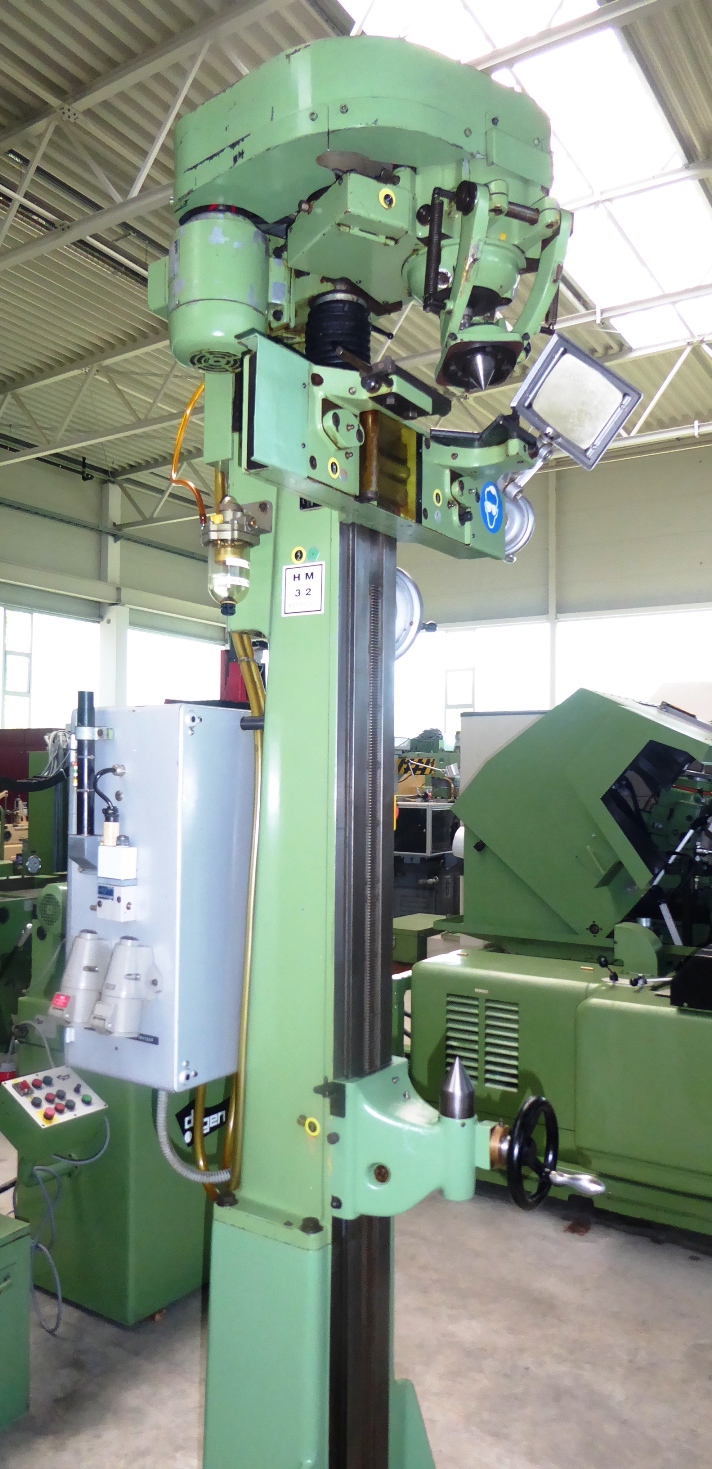

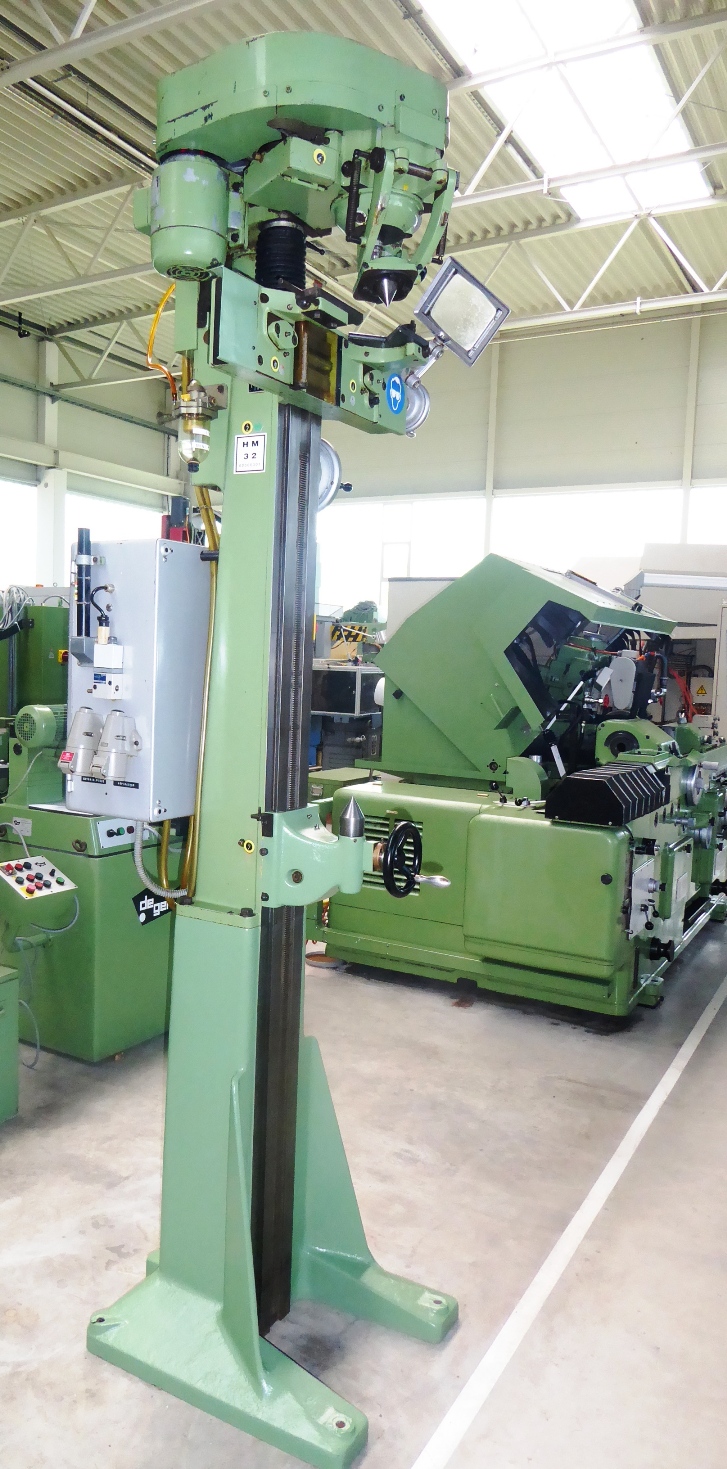

Centre  Hole  Grinding  Machine

Model   ZSM  5100 – 2.000

Year     approx.. 1975                                   S/N 66 32 7872 – J 3278

_______________________________________________________



Distance between centres                                                       50 – 2.000   mm

Height of centres approx.                                                                   125   mm

Workpiece Ø in clamping Vice                                                     8 – 125   mm

Swing of workpiece over tailstockguide                                             290   mm

Swing of Workpiece max. over grinding head pillar                           300   mm

Max.weight of workpiece                                                                    250   kg



Max. centre hole taper Ø                                                                2 – 50   mm

Max. centre hole taper angle                                                                60   °



Clamping range of vice approx.                                                   5 – 160   mm



Grinding head adjustable in vertical axis                                           160   mm

Stroke of grinding tool on workpiece                                           0.75 – 5   mm



Grinding tool Ø                                                                             15 – 60   mm

Grinding spindle speeds                                                 13,000 – 45,000   rpm



Total electrical load, approx.                                    1 kW  -  380 V  -  50   Hz

Weight, approx.                                                                               1.000   kg



Accessories / Special Features

Machine is suitable for workpiece length up to 2.000 mm with a basement extension

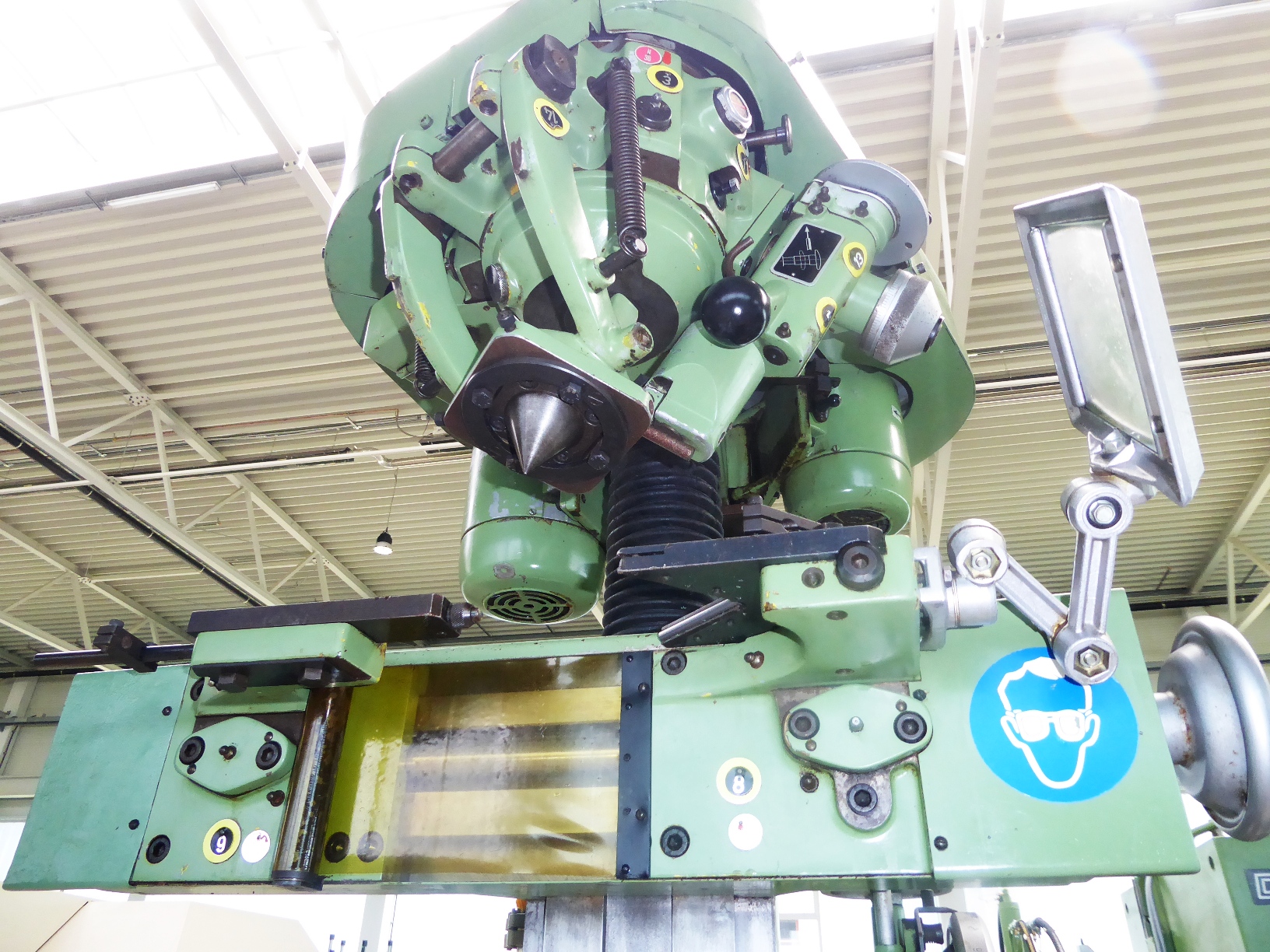

*       A cone shaped grinding wheel is employed, but it is only in line contact with the

centrehole surface, in addition it is reciprocating simultaneously along this line.

The workpiece remains stationary, enabling the generation of perfect centre holes.

*       To clamp cylindrical Workpieces one uses a height adjustable 2 jaw vice which gives three point contact and always coincides with the center of the grinding spindle.

*       Height-adjustable workpiece centering vice with carbide inserts.  Manual adjustment of appropriate workpiece diameter with clamping screw.

*       Dressing device, mounted on the side of the grinding spindle, stroke approx. 40 mm, for producing a geometrically exact conical form and with oscillation of diamond tool.

*       Pre-centering device for Workpiece adjustment between centers.

*       Pneumatic Oil Lubrification of grinding spindle by oil-mist.

*       Manually adjustable Tailstock with handwheel but without motorized drive.





Condition :  Good to very good.  Machine can be inspected under power.

Delivery    :  Ex stock, as inspected           Payment   :  Net, after conclusion of contract



Thank you for your interest.  We have more centre hole grinders available.  Please let

us know what you need.
