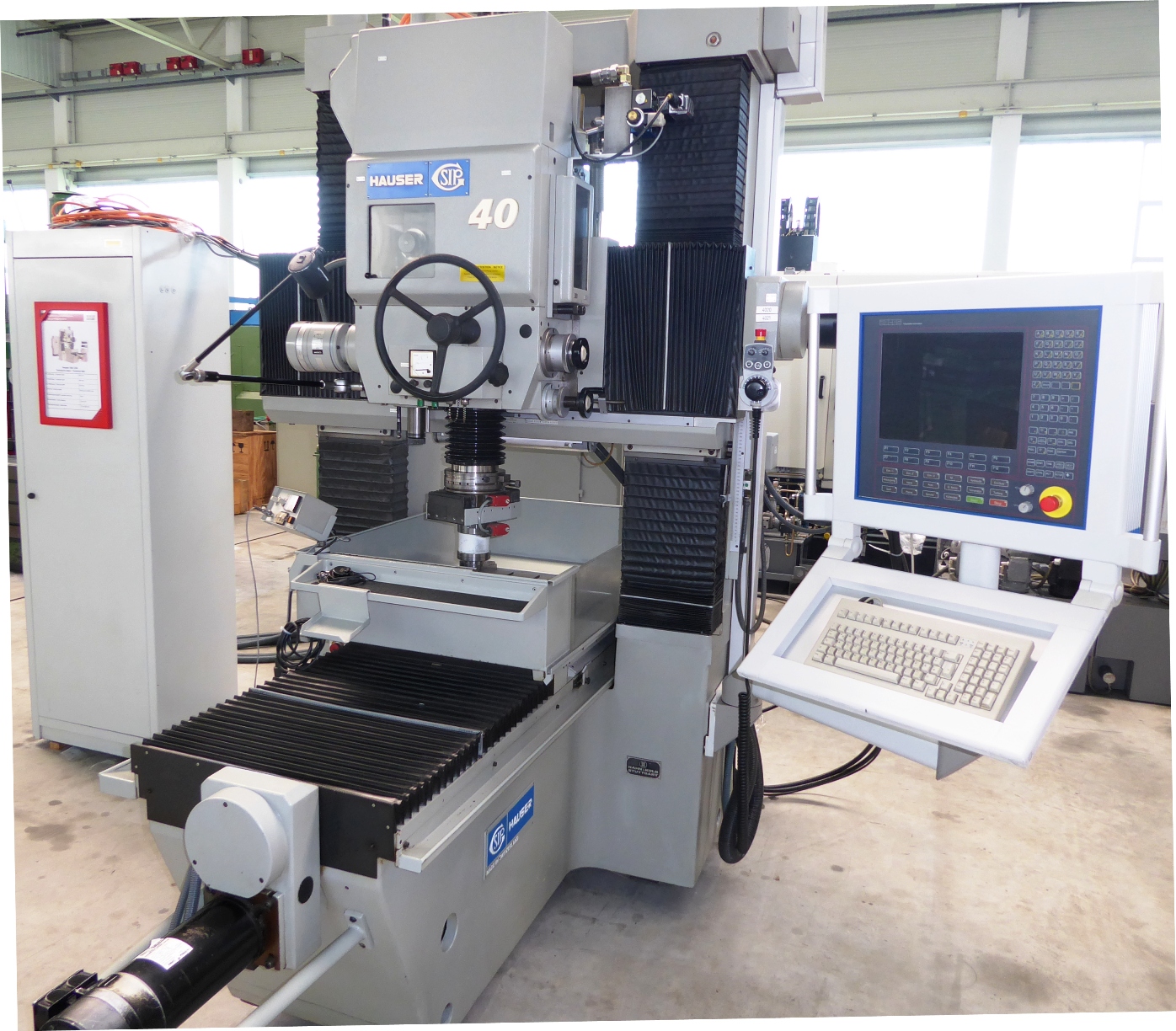

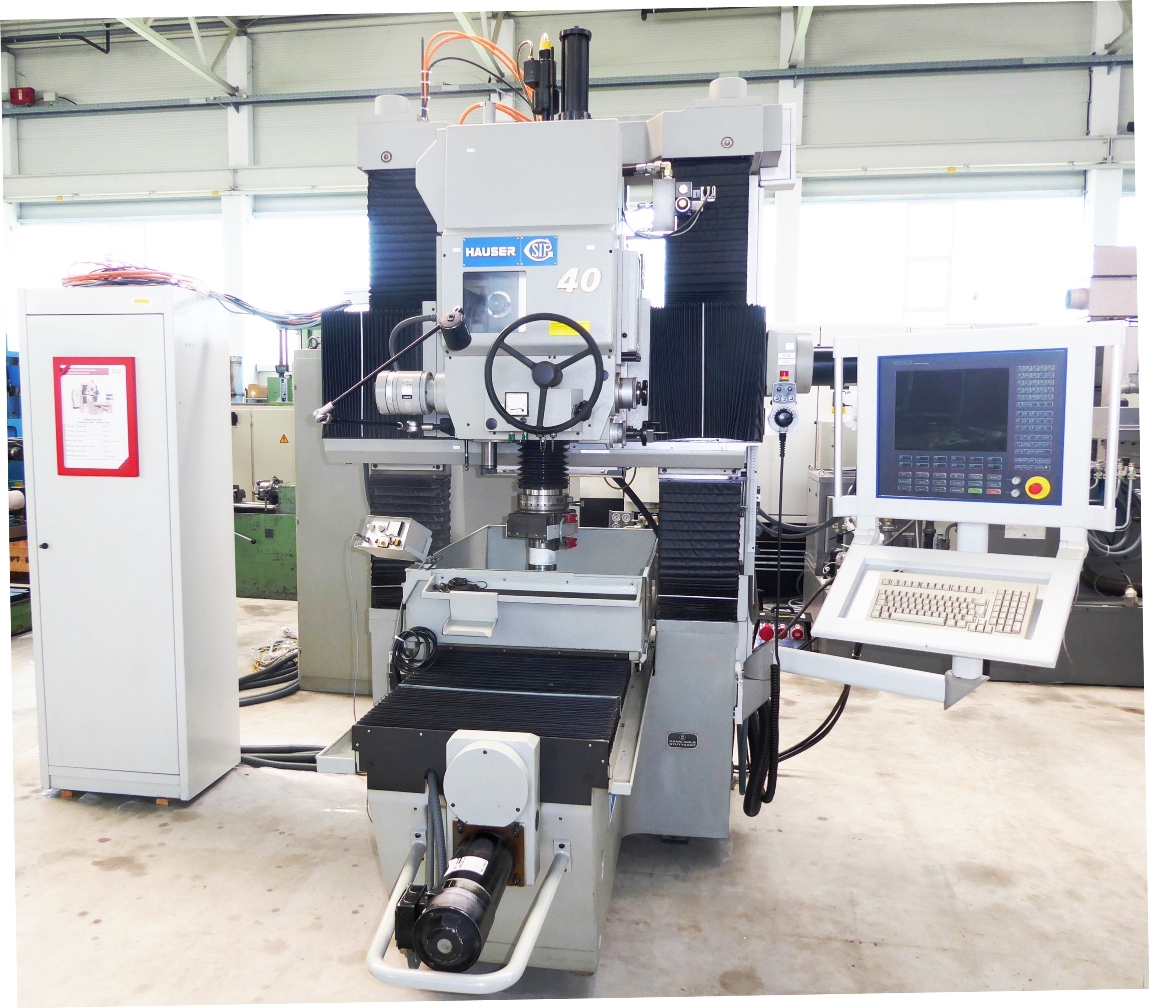

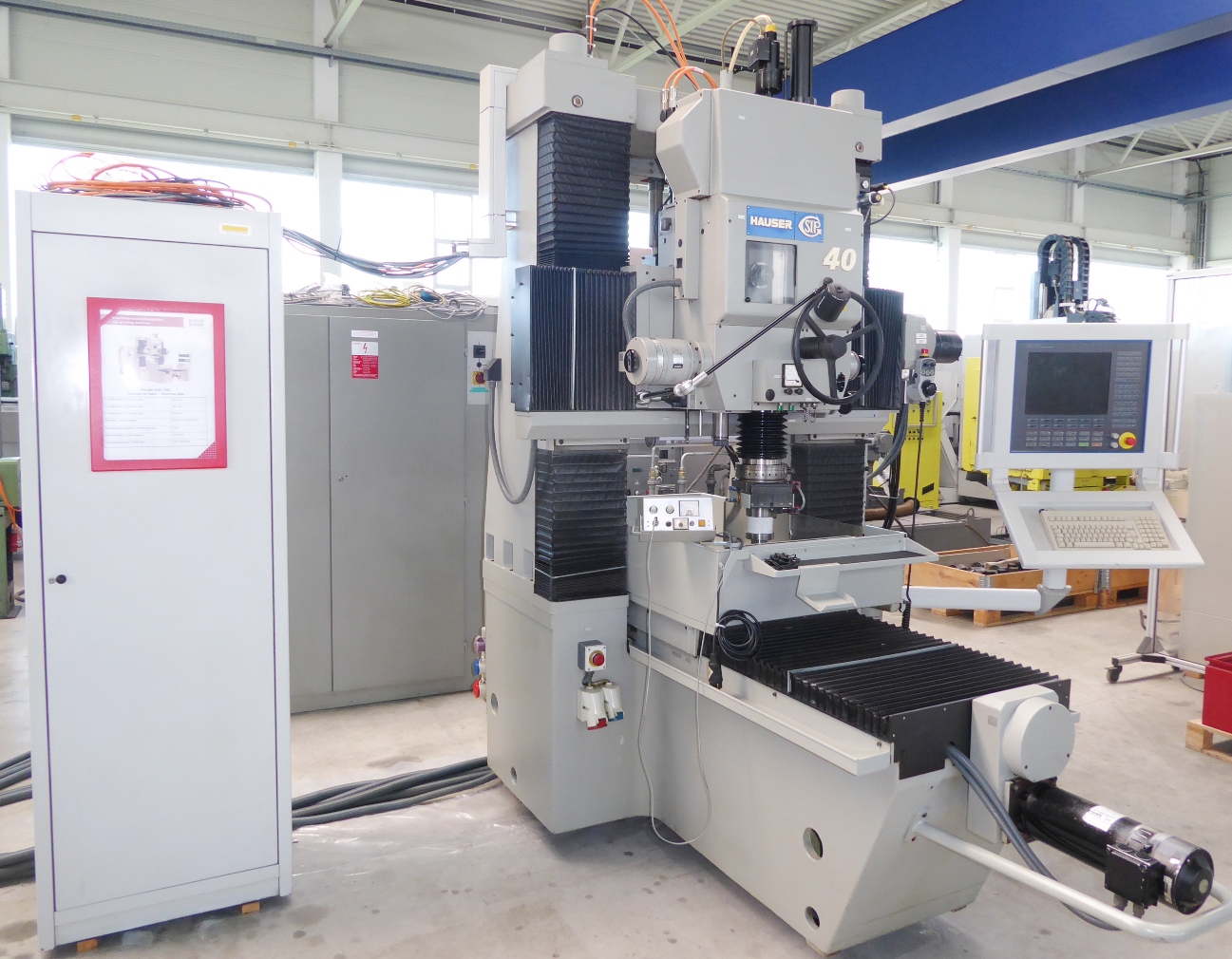

CNC Controlled Hi Precision Double Column Jig Grinder

Model     S 40 – CNC 311 / ADCOS 400 CNC

Year        1981 / CNC modernized in 2008                        # 0126

_____________________________________________________________________



Table size approx.                                                                      630 x 770                          mm

Table load capacity approx.                                                                500                          kg



Table travel longitudinal max.                             (X)                          650                          mm

Grinding head slide cross max.                          (Y)                          450                          mm



Vertical adjustment of cross rail max.                (W)                         500                          mm

Grinding spindle stroke max.                               (Z)                           140                          mm

Stroke number of grinding head  (4cycles)                                   0,5-12                          m/min.



Vertical distance between

Table/grinding spindle                                                                      0-585                          mm

Distance between columns                                                                 750                                                                                                                mm

Conical grinding max.                                                                            16    °

Grinding-Ø bore approx.                                                              230/360                                                                                                                mm



18 spindle speeds depending on spindle motor infinitely variable 4.500-80.000 rpm



Fine feeds in X and Y-axis and W-axis                    0,5-1.500/3.000/800                                                                                                       mm/min.

Planetary speed (C)                                                                           5-250                                                                                                             rpm

U-axis, radial feed                                                                                     6                                                                                                                mm

Total electrical load approx.                                      15 kW - 400 V – 50                                                                                                           cycles

Weight approx.                                                                                   4.500      kg



Accessories/ Special Features:

·        CNC Pathcontrol replaced and modernized into a ADCOS Control Model CNC 400,

(German Manufacturer) including large monitor and relevant software, electronic handwheel, for following axis:

X=Table length, Y= spindlehead carriage cross, Z= Quill vertical/stroke, C=Quill-Rotation,

U=Circular Infeed, w=Vertical adjustment of cross rail.

·        Z-axis as rapid stroke for shorter processing times, plunge-cut grinding, face grinding,

Pre-selection of reversing stops (start movement + teach-in) and of stroke speed (infinitely variable),

·        U-axis as manual and controlled feed-axis radial, mounted on grinding head, with electr.display of feeding size

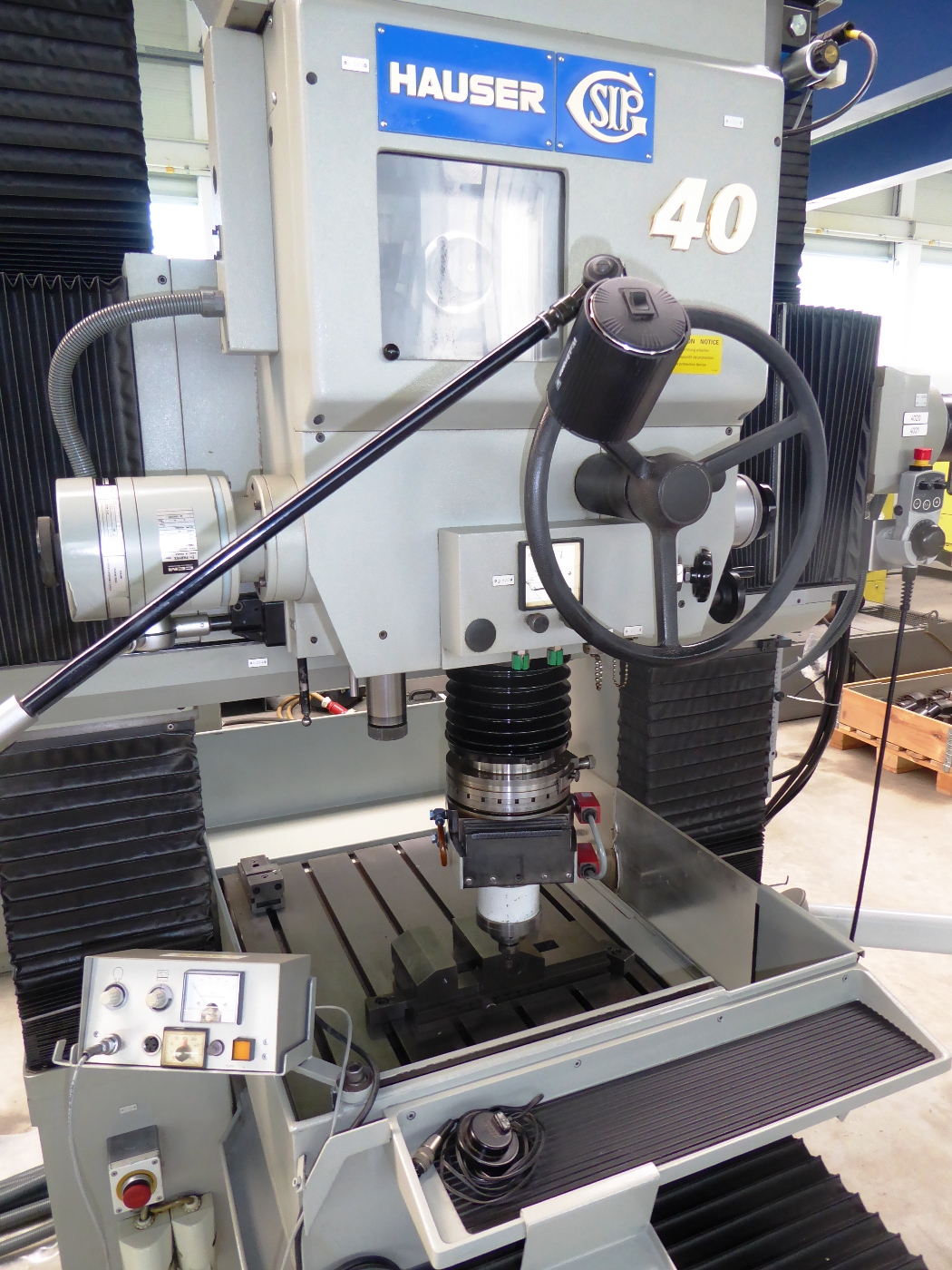

·         1 Grinding motor mounted on spindle, maybe up to a spindle speed of 30.000 rpm,

·         Mounted accustic grinding contact-display device KSV 5

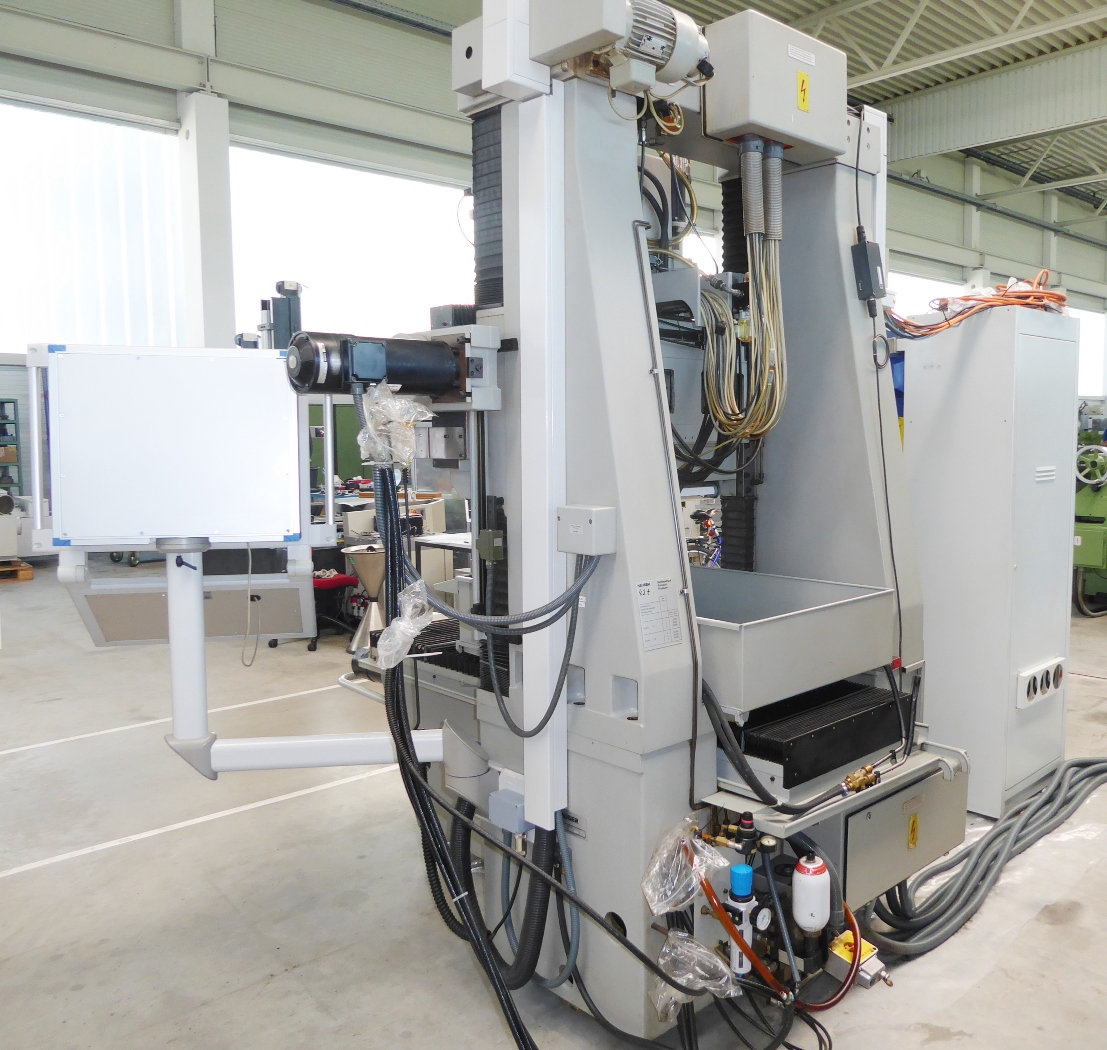

·        Separate standing coolant facility, switching- and control cabinet, separate hydraulic system, central lubrication system, dust suction, etc





Condition  :    very good / can be inspected under power

Delivery     :    ex stock – as inspected        Payment               :      net – after completion of contract



We would appreciate your order. Further HAUSER – machines always on stock - please do not hesitate to inquire by phone, fax or email at any time.
