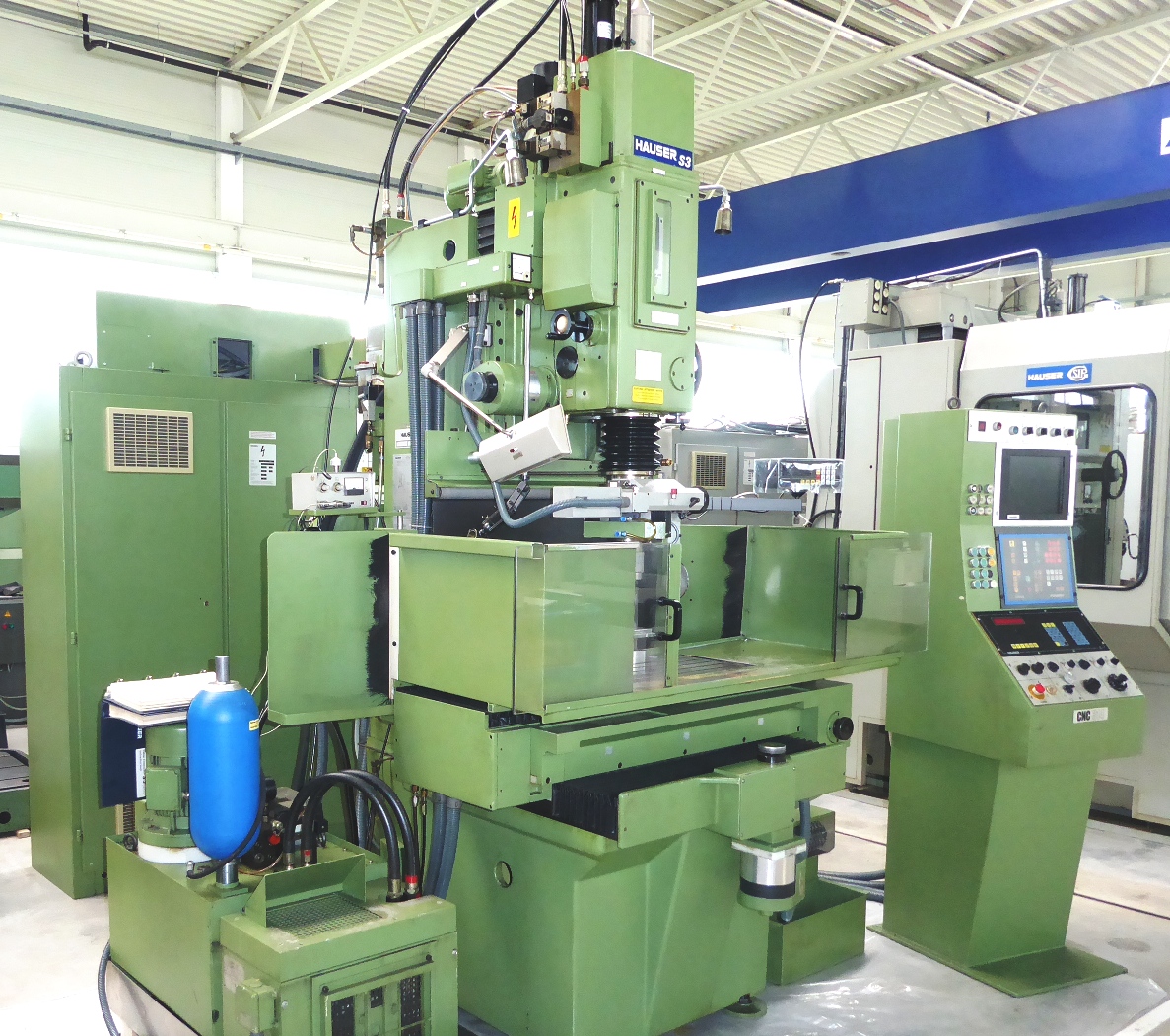

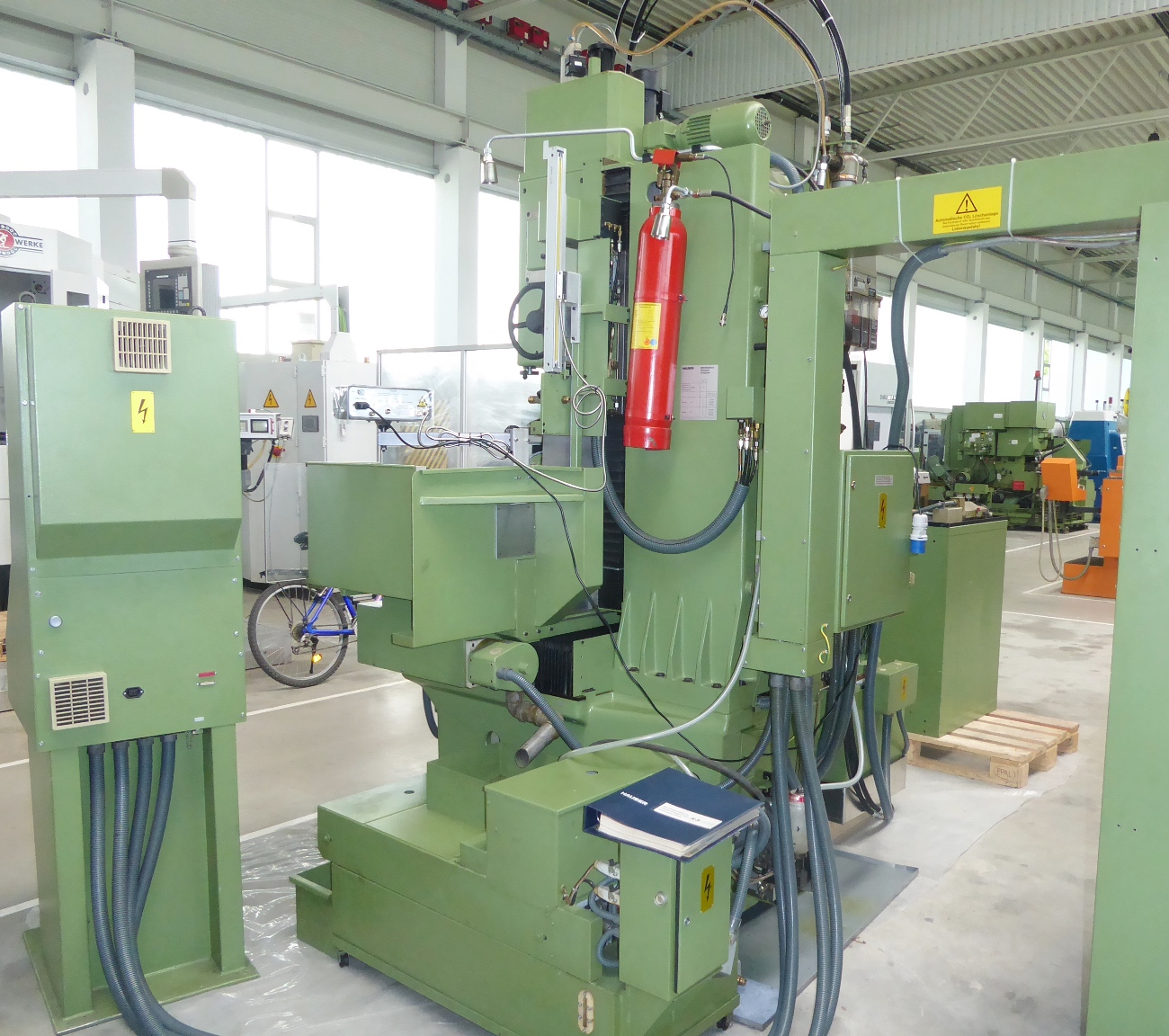

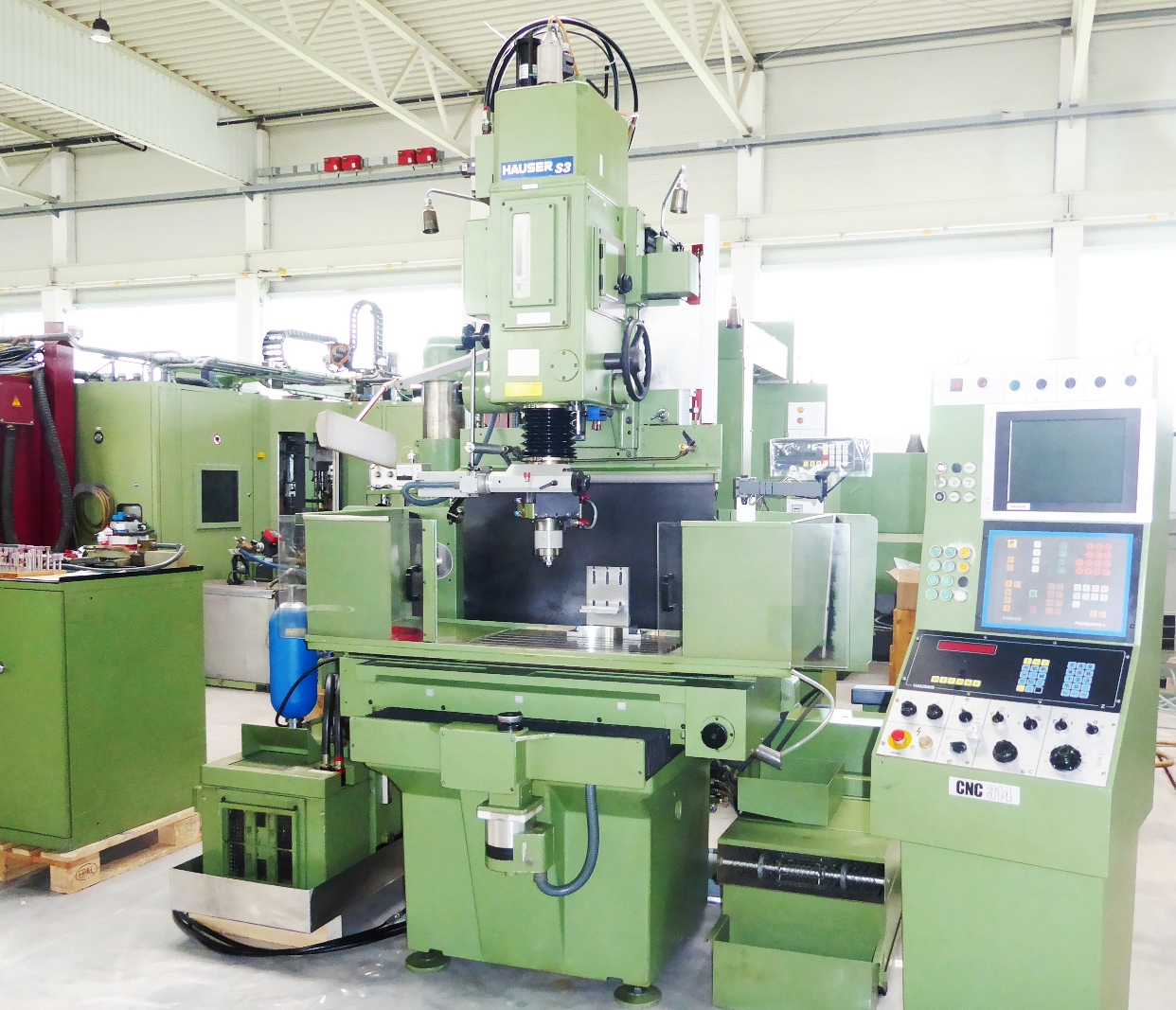

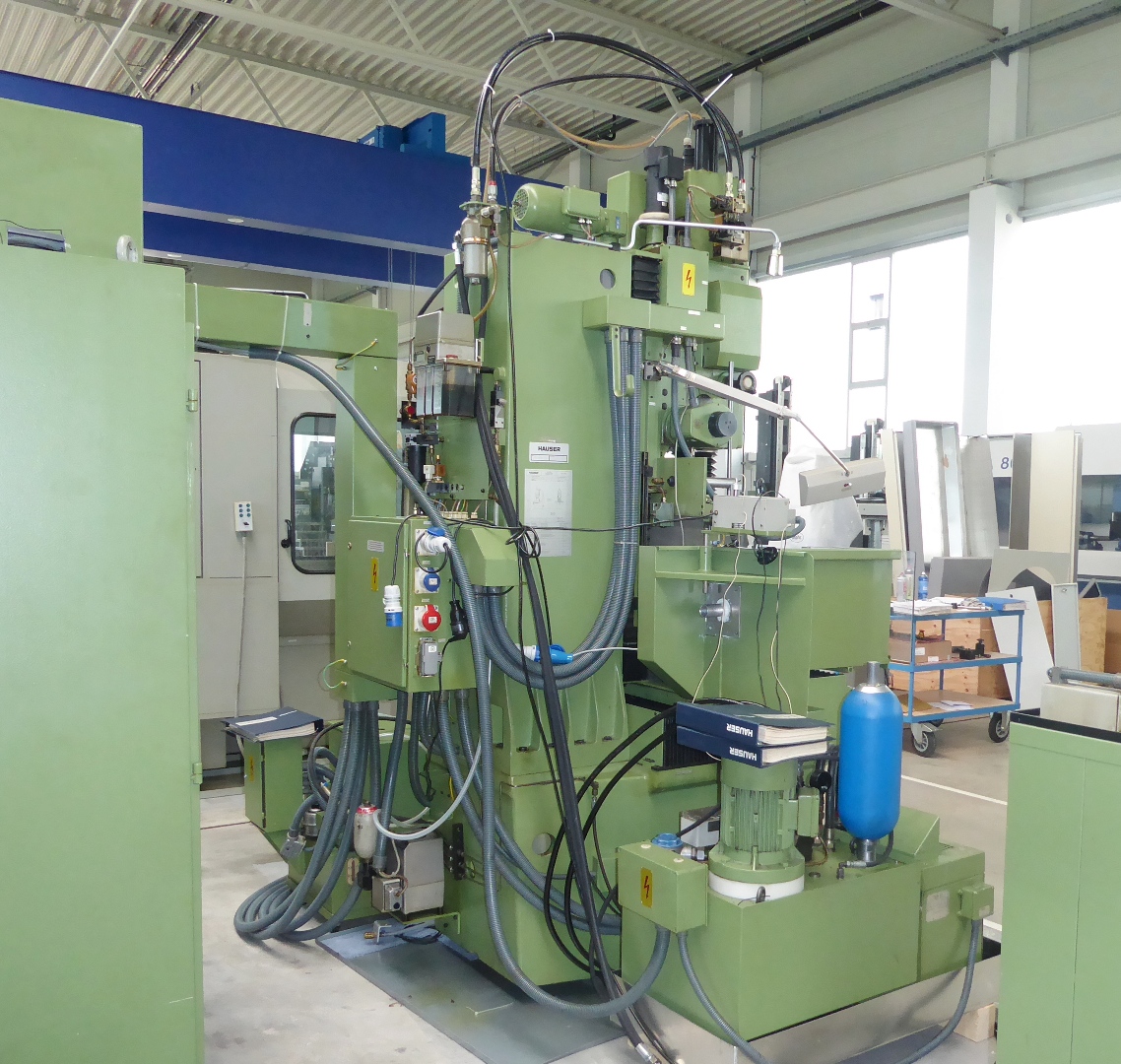

CNC - Controlled High Precision Jig Grinding Machine

Model  S 3 – CNC 314

Year approx.. 1990                                                  S/N  32086

____________________________________________________________



Table size, approx.                                                                       600 x 380   mm

Max. load on table, approx.                                                                    300   kg



Table travel, longitudinal, max.                      (X Axis)                              400   mm

Table travel, cross, max.                                (Y Axis)                              250   mm

Vertical adjustment of grinding head max.     (W Axis)                             450   mm

Stroke of grinding spindle, max.                     (Z Axis)                              120   mm

Table Longitudinal and cross feeds (X/Y-Axis)                                 0 – 1.500                                                                                                      mm/min



Speed of  grinding head stroke                                                   15 – 12.000                                                                                                      mm/min



Vertical distance between table and grinding spindle, max.                 0 – 485   mm

Distance between grinding spindle and column                                        350   mm

Conical grinding, up to max.                                                                     16   °

Grinding Ø bore approx.                                                                         230   mm



Planetary speeds (C-Axis)                                                                5 – 250   rpm

U Axis, radial infeed                                                                                   6   mm

Total electrical load, approx.                                         15 kW  -  400 V  -  50   Hz

Weight/Total weight approx.                                                       4.000/5.500   kg



Accessories / Special Features:

·          CNC Continuous Path Control, Model CNC 314, (ELESTA-POLESTA II) with new monitor,

for 4 axes (XYC+U) in 2 1/2 dimension (XY+C) Interpolation with a free and easy programming

for Linear and circle interpolation. Direct Input of data on keyboard, also loading data on RS 232

connection. There is also a handwheel control device for setting – up purposes. Manual feed

correction during the working cycle possible.

·          Digital Read-out for the Z-Axis, Z-Axis as high speed stroke, also good for blind holes.

·          W Axis for vertical positioning of grinding head slide,

·          U Axis for the infeed cycles during bore grinding, grinds different bore-Ø automatically.

·          C Axis Feed for the of the Planetary Head, grinds radii and contours

·          2 grinding motors HAUSER approx.. 22.500 to 60.000 rpm, with some collets and arbors

·          Built-on Acoustic Grinding Contact Display Device Model KSV 5.

·          Separate coolant unit with band filter. *   Built-on fire extinguishing system.     *

·          Separate switch cabinet and control unit, Separate hydraulic unit with oilchiller,

·          Central lubrication, service tools, collets and grinding arbors/tools.





Condition :       Very good  -  Machine can be inspected under power commissioned by a Specialist.

Delivery :         Ex stock - as inspected under power.

Payment :        Net, after conclusion of contract
