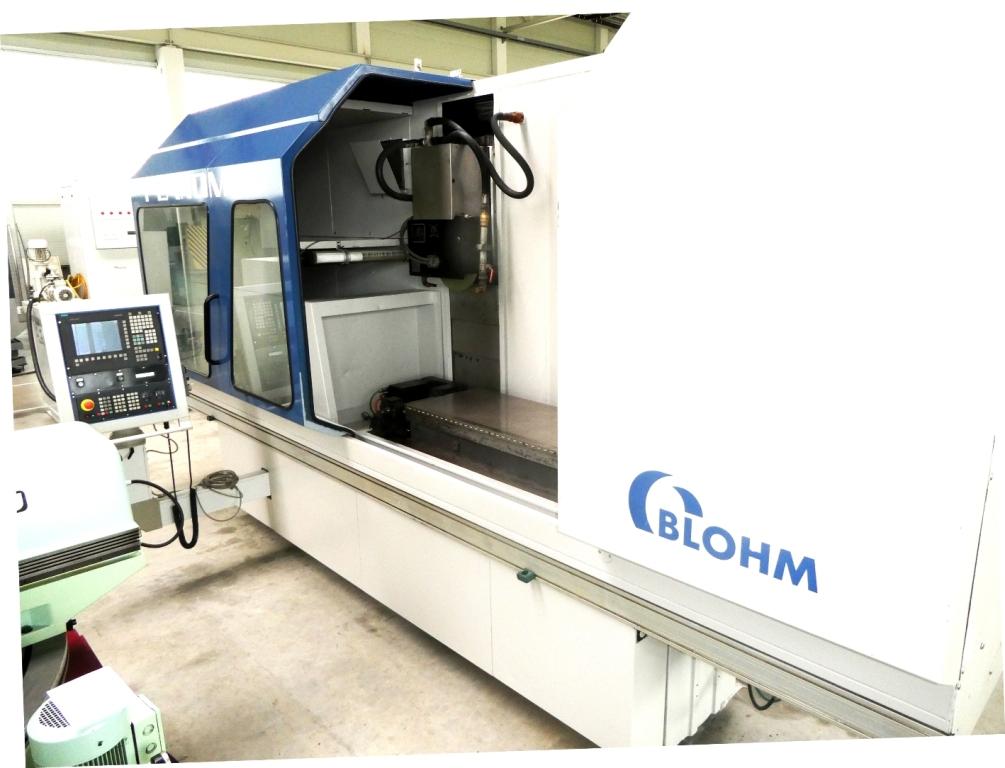

CNC horizontal surface & profile grinding machine

model       PLANOMAT 616 / SIEMENS 840 D

year         2000                                              Serial no 14 617x _____________________________________________________________



Grinding length max. (table movement 1.700 mm)                   1.600     mm

Grinding width max. (cross movement 560 mm)                          600     mm

Mounting height under new grinding wheel                                  500     mm

Distance table – center of spindle min / max                     150 – 700     mm



size of table                                                                      600 x 2.000     mm

size of magnetic plate                                                      500 x 1.500     mm

Max. table load                                                                              800     kg

Table speed                                                                     30 – 30.000     mm/min

Cross-/Vertical quick feed                                                    4 – 6.000     mm/min



Grinding wheel measurements                                 400 x 100 x 127     mm

Grinding spindle speeds (stepless)                                 300 – 1.250     rpm

Grinding spindle-drive approx.                                                     24,5     kW



Total electrical load approx.                                 50 kW - 400 V - 50     cycles

Weight approx.                                                                         10.000     kg



Accessories / Special Features:

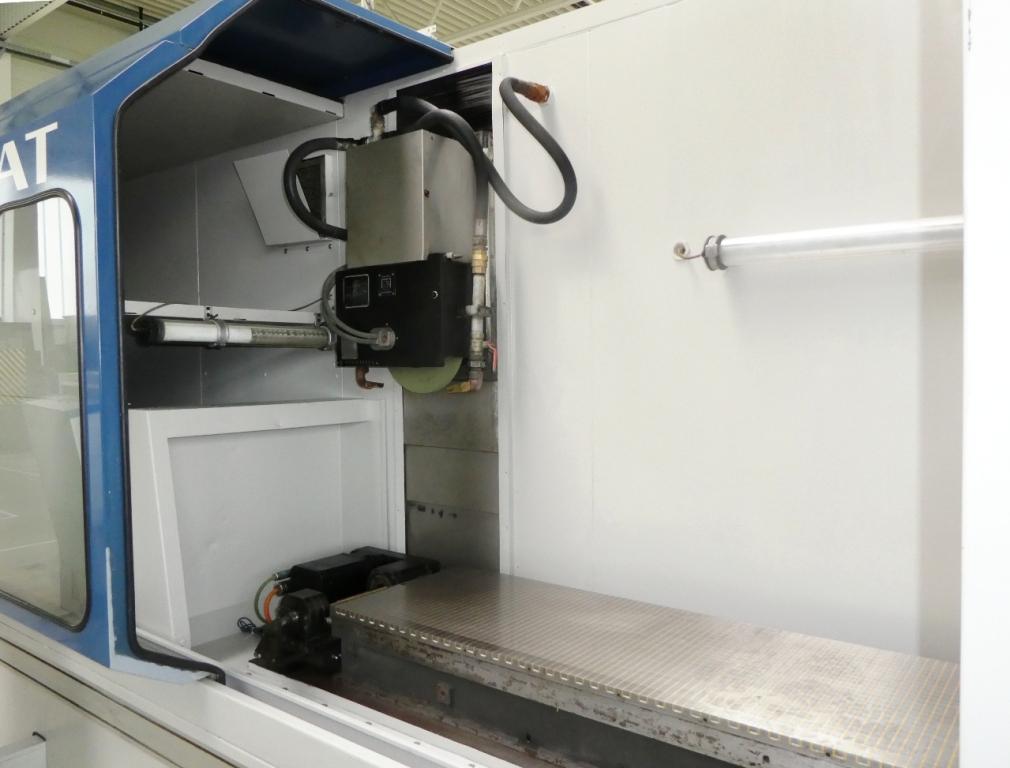

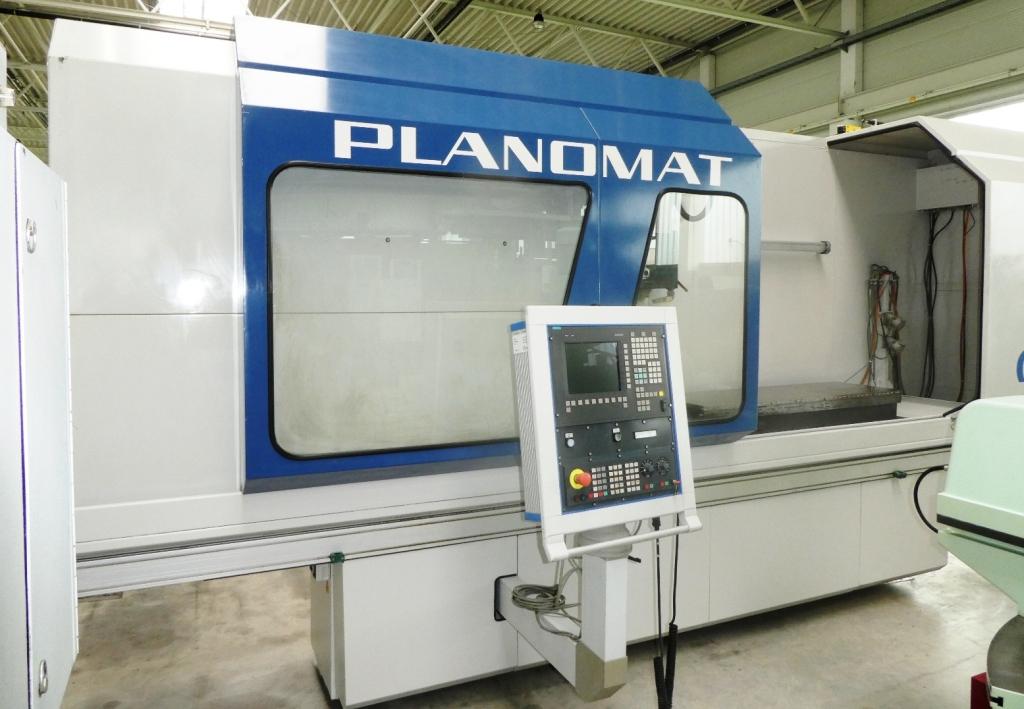

·    Machine is equipped with a simple to use but freely programmable SIEMENS CNC control model 840 D (MMC103/PCU50) with additional BLOHM grinding software. User friendly interface, supported by dialog and graphics, simple programming, also of complex grinding wheel profiling and all usual grinding cycles.

·    electronic handwheel for 3 axis.

·    All axis are effected by ball screw drive with incremental glass scale.

·    steplessly regulated grinding spindle speeds

·    driven diamond roll dressing device model PEA mounted on the left side of the table with automatic dressing cycle, including compensation.

·    Mounted WAGNER magnetic plate 500 x 1.500 mm with demagnetizing

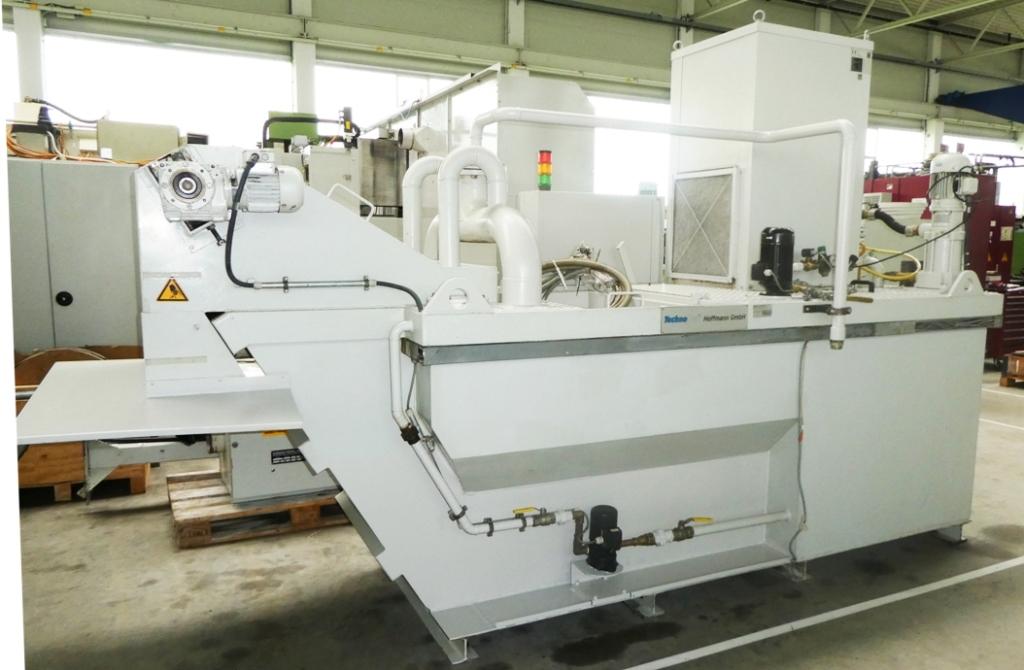

·    Large, sophisticated HOFMANN coolant filtration unit TECHNOPUR S 300 with chiller

·    Oil mist extraction unit

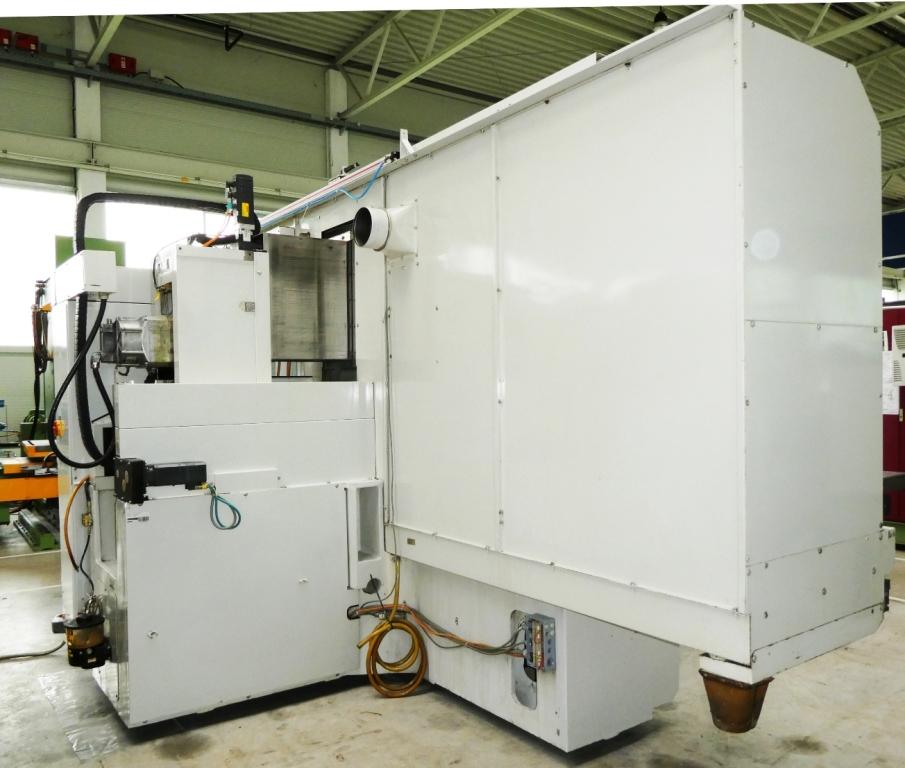

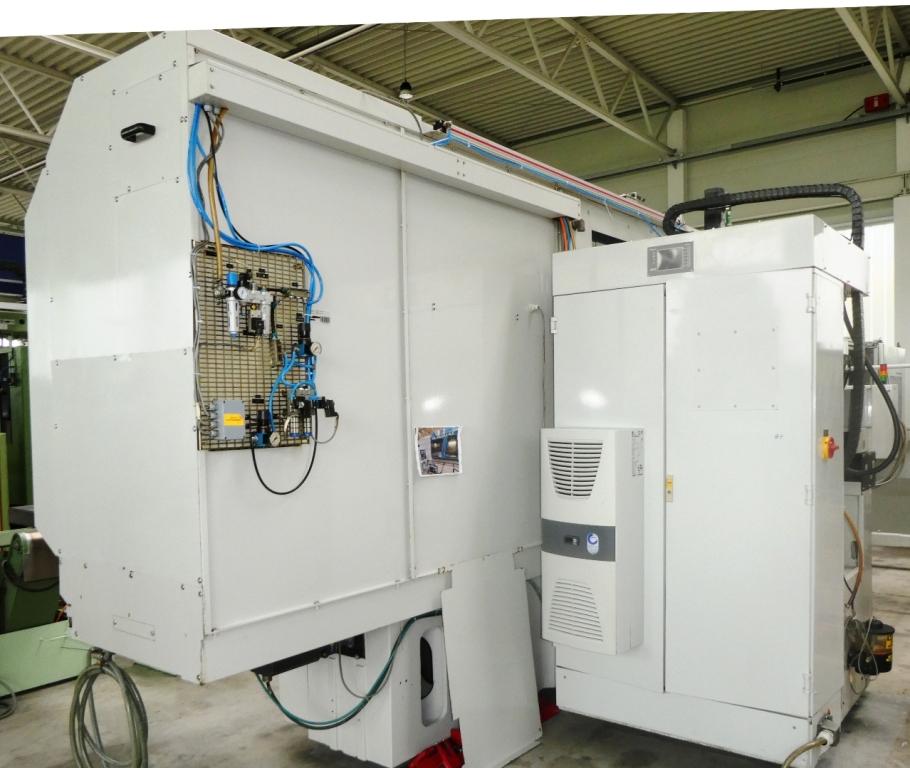

·    Complete enclosure of the working area with electronically safeguarded sliding doors, separate switch cabinet, lamp for working area, various accessories, manuals, etc.





Condition :  Very good – Very sturdy machine !

                     Please click here to view soon a video of the machine running :
                     https://www.geiger-germany.com/images/videos/BLOHM-PLANOMAT616/vid1.mp4

                     https://www.geiger-germany.com/images/videos/BLOHM-PLANOMAT616/vid2.mp4

Delivery    :  immediately available, FCA Metzingen

Payment   :  100 % Net, after conclusion of contract, before loading



We always have a large selection of surface grinders – CNC or conventional - available.  Please let us know your requirements.
