We are pleased to offer you ex our stock, subject to prior sale and error in technical data:



R E M     ( SWISS )

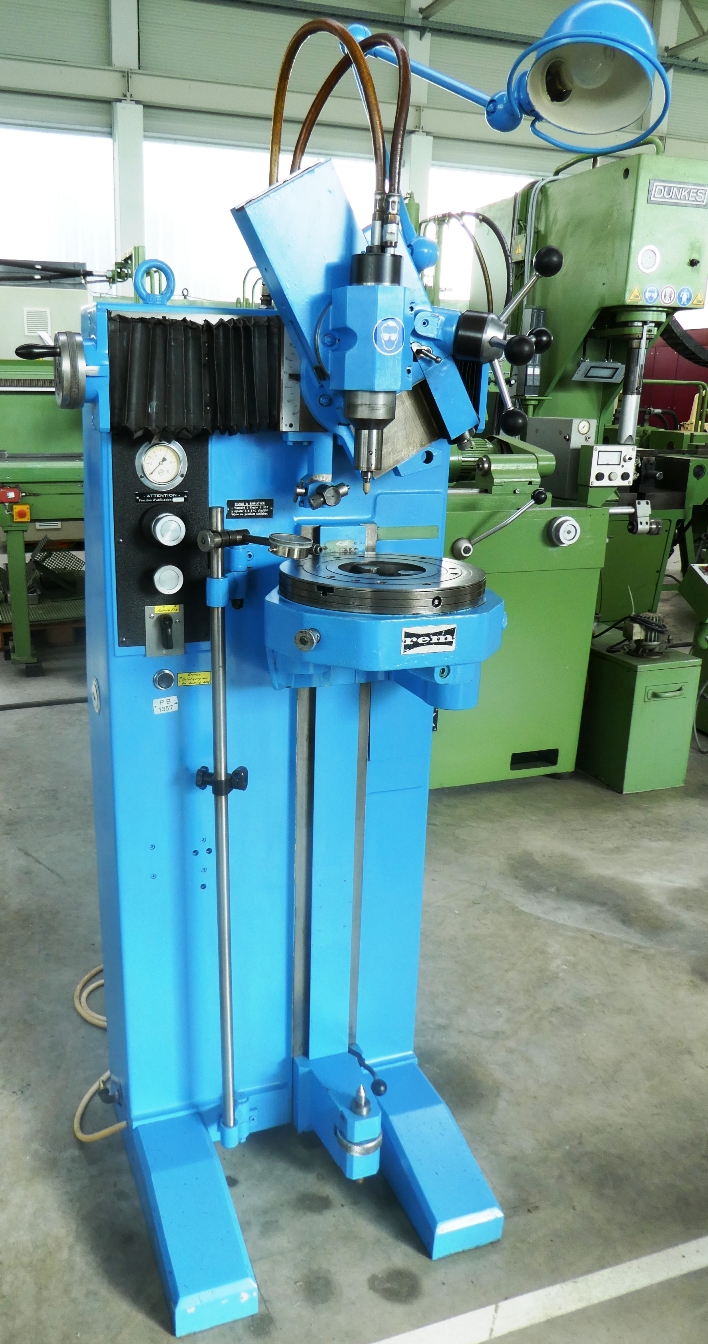

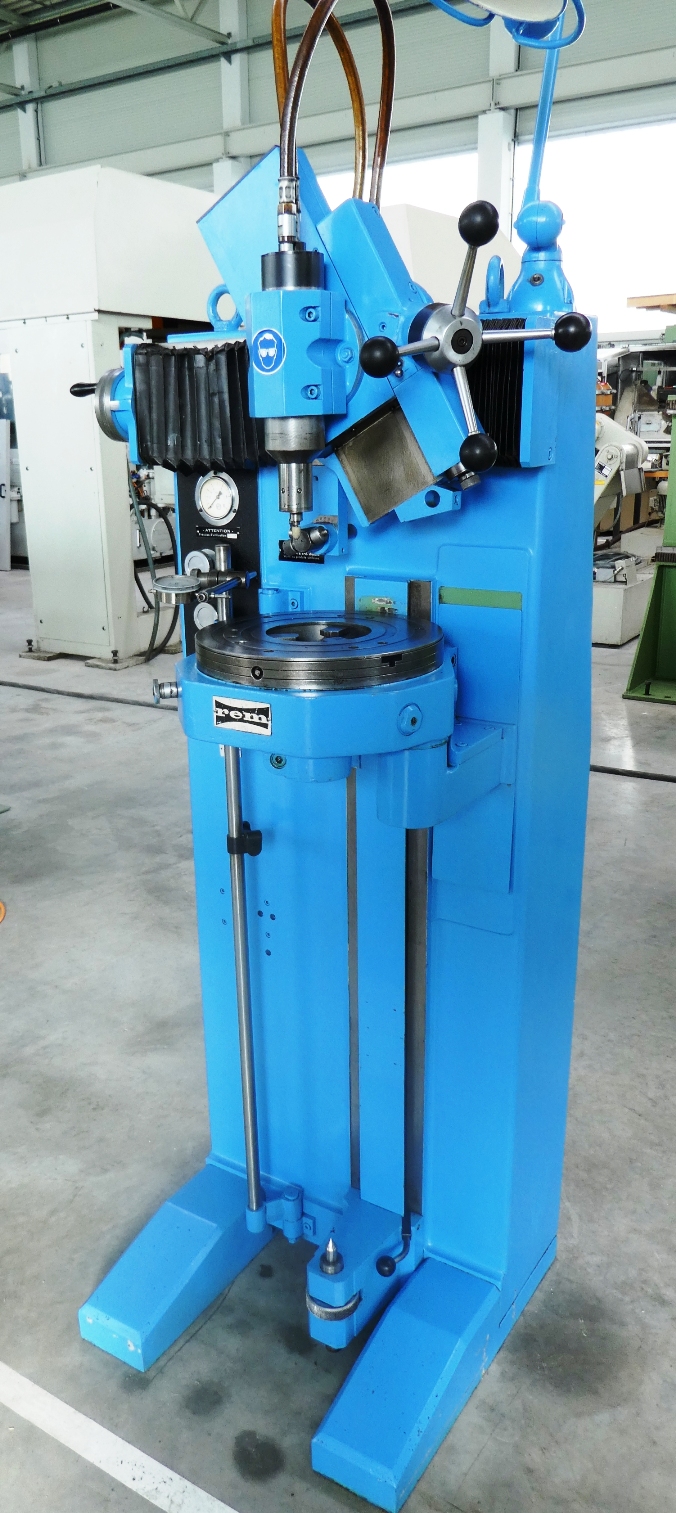

Vertical Centre Hole Grinding Machine

Model   TRI   (?)                              Year 1978

________________________________________________________



Distance between centres                                                1,000   mm

Height of centres  approx.                                                   150   mm



Max. workpiece swing Ø -outside-                                       300   mm

3-Jaw-Chuck-Ø – outside-                                                   300   mm

Bore  Ø of chuck approx.                                                     125   mm

Workpiece Ø to be clamped inside chuck approx.           0 – 100   mm



Max. Ø of centre hole                                                      1 – 50   mm

Max. taper angle of centre hole                                    45 – 100   °

Inclination of Grinding spindle                                          0 – 60   °



Stroke of grinding spindle                                                      50   mm

Stroke of dressing spindle                                                     75   mm

Cross Travel of spindle head                                               250   mm

Grinding Pin – Ø up to                                                          30   mm



Grinding spindle speeds approx.                       10,000 – 20,000   rpm

Speed of workpiece chuck                                                      ?   rpm



Total electrical load, approx.                         1 kW  -  380 V – 50   Hz

Weight, approx.                                                                  400   kg



Accessories / Special Features:

Easy to handle Centerhole Grinder with pneumatic drive of grinding spindle, the

Spindle speeds can be adjusted by a pneumatic valve.

*       Manual movement/stroke of grinding pin vertically by handwheel

*       The whole grinding head can by adjusted crosswise up to 250 mm according

to the centerhole of the workpiece.

*       Swivelling grinding spindle head 0 – 60 degree.

*       Built-on heavy duty workpiece chuck for centering the workpiece by three jaws

adjustable by a square shaped key.

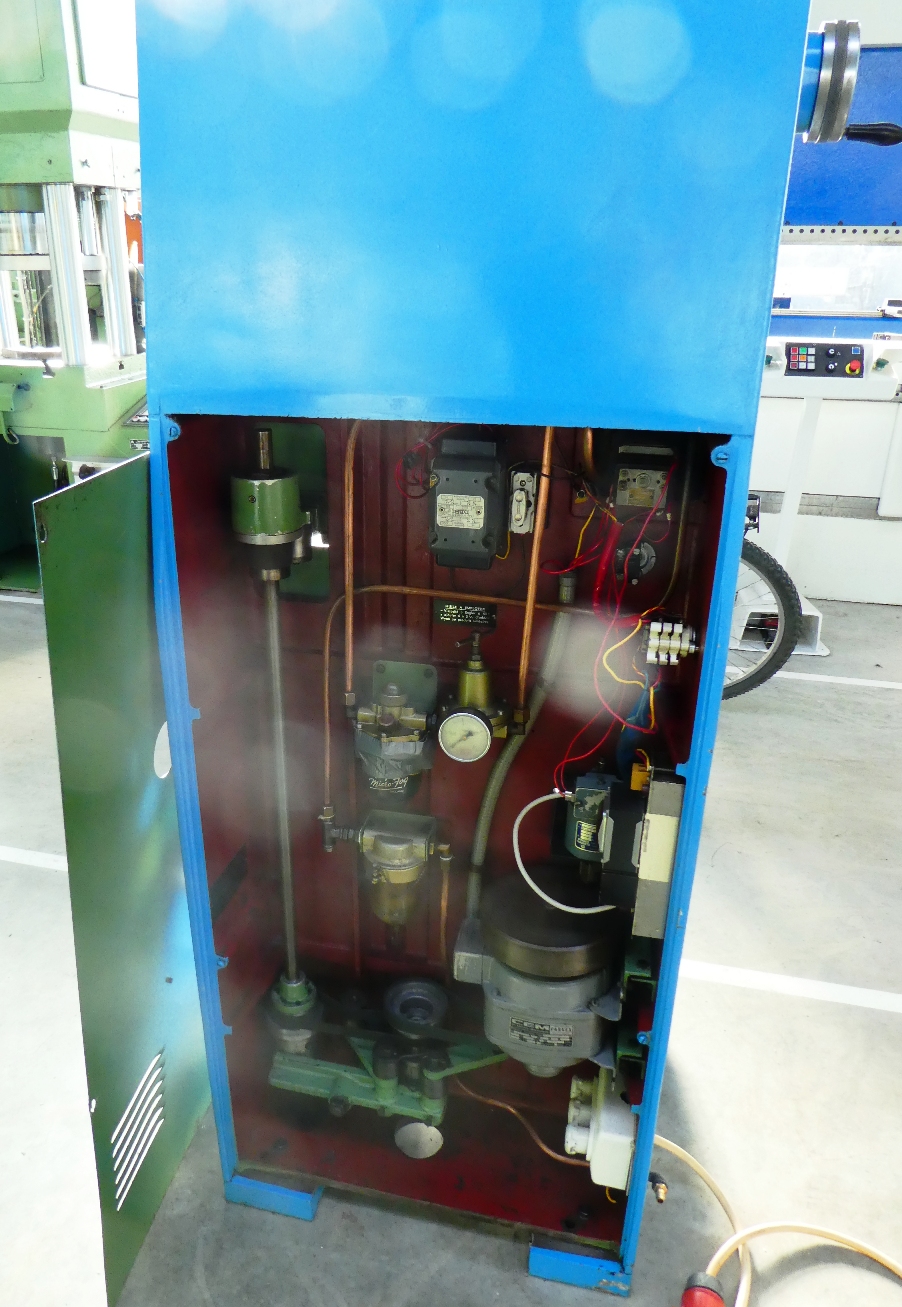

*       Motorized belt drive of the chuck, two or three speeds possible

*       Manually operated dressing device for the grinding pin mounted on the side of

of the grinding head, swivable up to 60 °

*       Holding device for the run-out gauge height adjustable

*       Height adjustable tailstock with fine adjustment, Machinery lamp, pressure gauge.





Condition  :    Good to very good.  Machine can be inspected under power.

Delivery     :    Ex stock, as inspected.                Payment    :    Net, after conclusion of contract.



Thank you for your interest. We have more Centre hole Grinder in stock !
