Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



GEIBEL & HOTZ

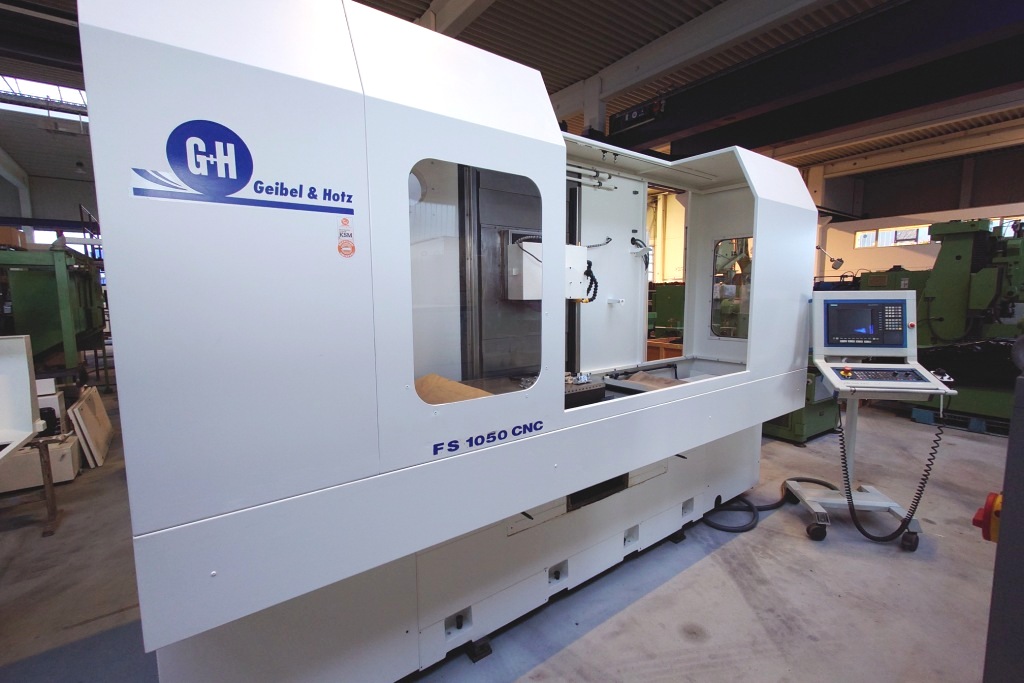

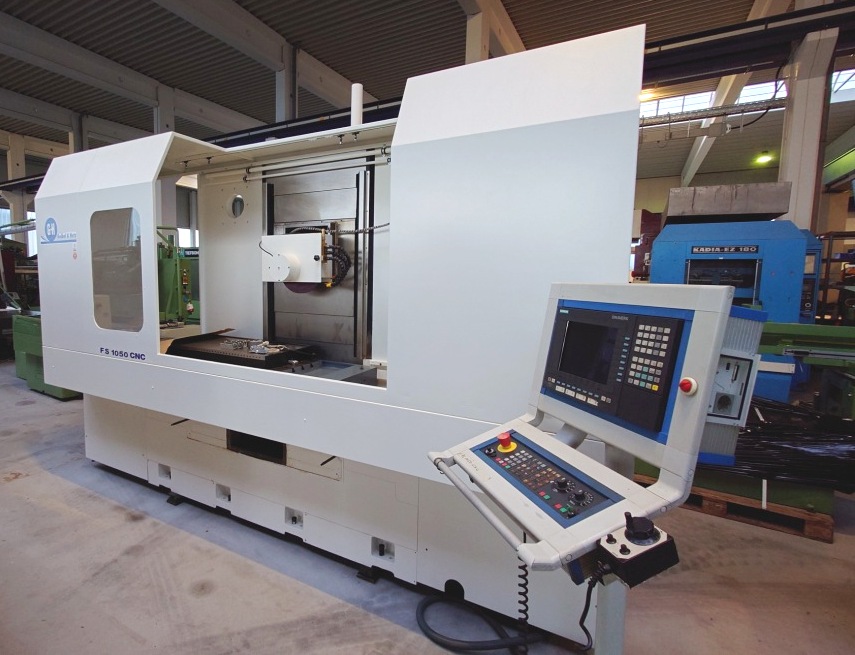

CNC horizontal surface & profile grinding machine

model       FS 1050 GT CNC

year         2000                                    Serial no 101831 0900 _____________________________________________________________



Grinding length max. (table movement 1050 mm)                    1.000     mm

Grinding width max. (cross movement 500 mm)                          500     mm

Mounting height under new grinding wheel ca.                            425     mm



Size of magnetic plate                                                      1.000 x 500     mm

Max. table load                                                                           1.380     kg

Table speed                                                                              0 – 35     m/min



Cross feed, stepless                                                                 0 – 35     m/min

Cross feed intermittently                                                             3 -60     mm/stroke



Grinding wheel measurements                                 400 x 100 x 127     mm

Grinding spindle speeds

Grinding spindle-drive approx.                                                        15     kW



Total electrical load approx.                                 50 kW - 400 V - 50     cycles

Weight approx.                                                                           4.500     kg



Accessories / Special Features:



·    Machine is equipped with a simple to use but freely programmable SIEMENS CNC control model 840 D additional GEIBEL&HOTZ grinding software. User friendly interface, supported by dialog and graphics, simple programming, also of complex grinding wheel profiling and easy connecting of all the usual grinding cycles.

·    electronic handwheel for 3 axis, X, Y and Z, feed rate adjustable 0,01 / 0,1 / 1 mm/rev.

·    table movement (X) is effected by a rolling ring thread drive (GT), which allows both very high and very low table speeds with constant torque and very high efficiency.

·    Cross feed (Z) and infeed (Y) effected by ball screw drive with incremental glass scale.

·    Diamond dressing device mounted on the left side of the table (also for profile dressing) with automatic dressing cycle, including aut. compensation.

·    MPM aut. balancing device (with installed rpm & vibration sensor)

·    Mounted electro magnetic plate 1.000 x 500 mm

·    Wet grinding facilty with band filter coolant filtration unit

·    Complete enclosure of the working area with electronically safeguarded sliding doors,

·    Sep. switch cabinet, sep. mobile operating panel, various accessories, manuals, etc.





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/GEIBEL-HOTZ-FS1050GTCNCRh/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of surface grinders – CNC or conventional - available.  Please let us know your requirements.
