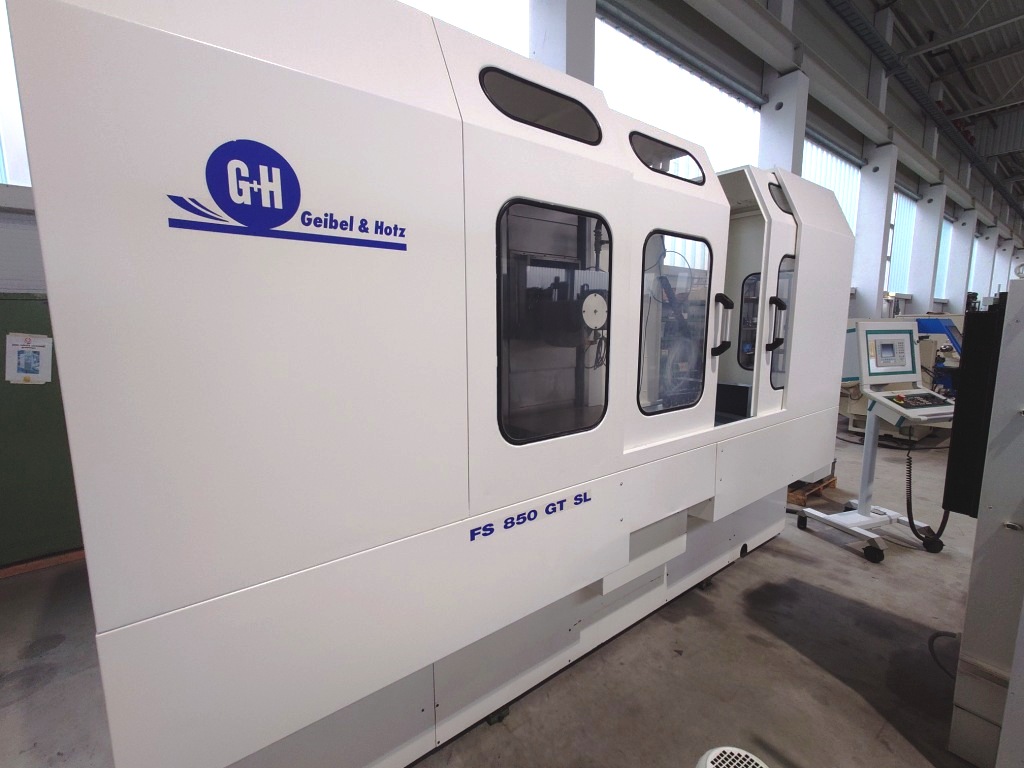

CNC Cycle Controlled Precision Surface Grinding Machine

model       FS 850 GT SL

year         1998                                              Serial no 1012580698 _____________________________________________________________



Grinding length max. (table movement 900 mm)                        800     mm

Grinding width max. (cross movement 500 mm)                         500     mm

Mounting height under new grinding wheel                                  425     mm



size of magnetic plate                                                         800 x 500     mm

Max. table load                                                                           1.100     kg

Table speed                                                                              2 – 28     m/min

Cross feed intermittend                                                             3 – 60     mm/stroke

Cross-/Vertical quick feed                                                          4.000     mm/min



Grinding wheel measurements                                 400 x 100 x 127     mm

Grinding spindle-drive approx.                                                          9     kW



Total electrical load approx.                                 22 kW - 400 V - 50     Hz

Weight approx.                                                                           4.500     kg



Accessories / Special Features:

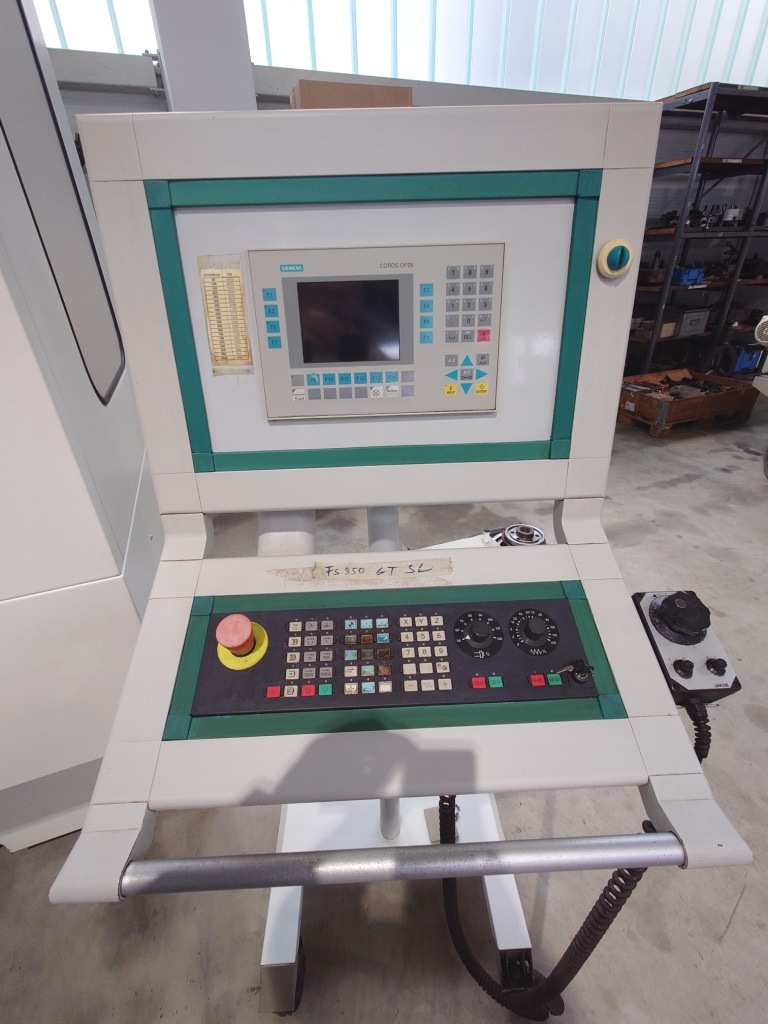

·    Dialog-guided GEIBEL & HOTZ automatic CNC cycle control model SL for 3 axes. Graphically supported data input in absolute dimensions or via teach-in procedures for preprogrammed grinding and dressing cycles. SIEMENS LCD display with softkeys for setting all parameters and easy monitoring axis movements and work progress.

·    Electronic handwheel for 3 axes X, Y, and Z, feed rate switchable from 0.01 / 0.1 / 1 mm/rev.

·    table movement is effected by a rolling ring thread drive (GT), which allows both very high and very low table speeds with constant torque and very high efficiency.

·    cross and vertical movements are effected by a ball screw drive with incremental glass scale.

·    Single-point diamond dresser mounted on the table for aut. dressing cycle and aut. compensation

·    MPM automatic grinding wheel balancing device.

·    Mounted electromagnet plate 800 x 500 mm with adjustable holding force

·    Wet grinding facility with universal fleece belt filtration unit

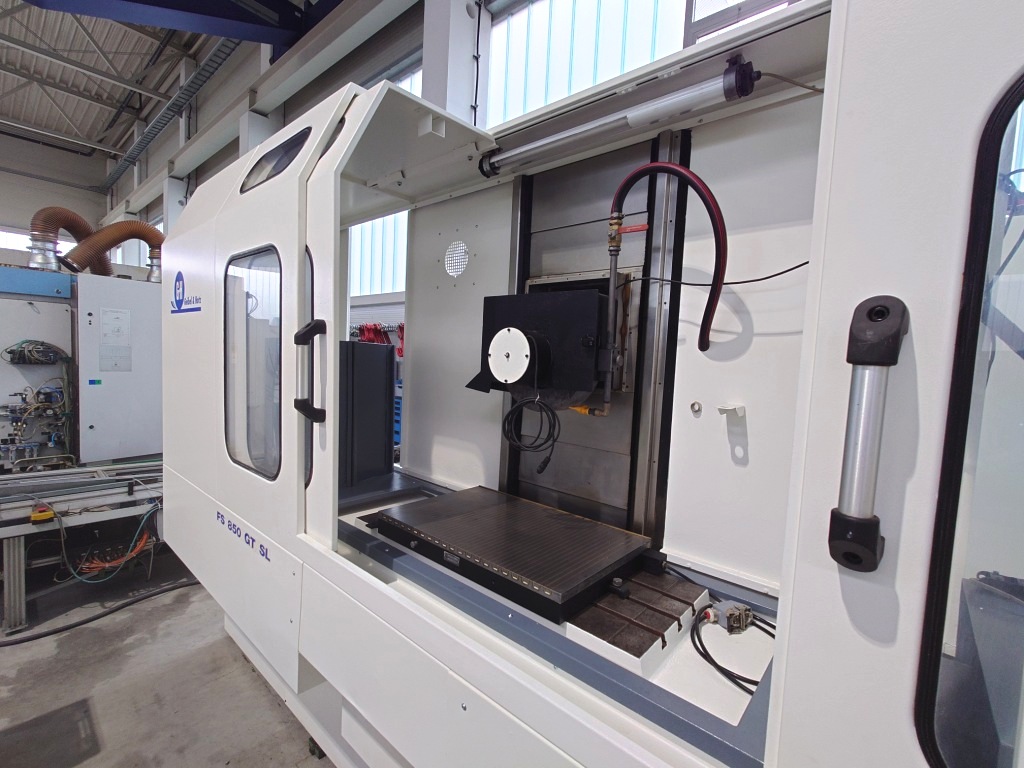

·    Complete enclosure of the working area with electronically safeguarded sliding doors

·    sep. switch cabinet, sep. mobile control panel, various accessories, manuals , etc.





Condition :     very good, universal machine for all sorts of grinding tasks !
