Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :



LODI

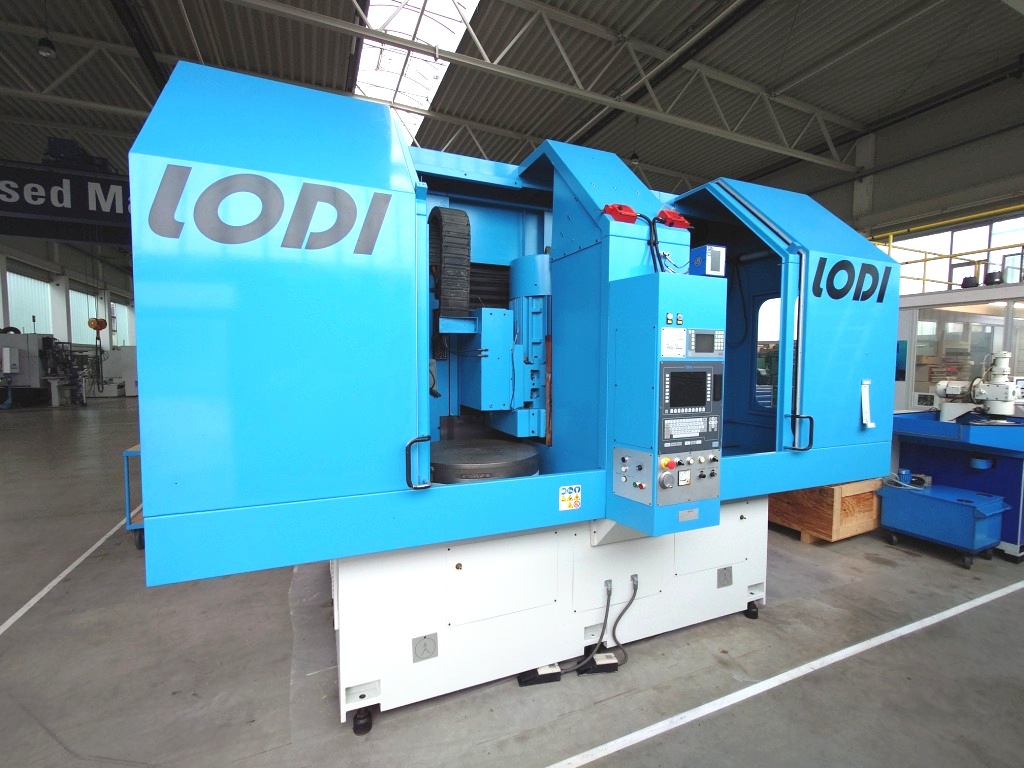

CNC vertical double rotary surface grinding machine

model       RVP 800 2TG CNC

year         2006                                              Serial no 2093

_____________________________________________________________



Grinding – Ø                                                                             800    mm

Magnetic rotary table - Æ each                                                 800    mm

Table speeds                                                                        3 – 50    U/min

Working height below grinding wheel max.                             400    mm

Max. table load approx..                                                                     kg



Segment-Grinding head Ø                                                       640    mm

Segment-Dimensions                                               80 x 25 x 150    mm

Spindle speeds                                                                                   U/mm

Main spindle drive                                                                      36    kW



Total drive approx..                                         60 kW - 380 V – 50    Hz

Weight approx..                                                                   17.000    kg



Accessories / Special Features:

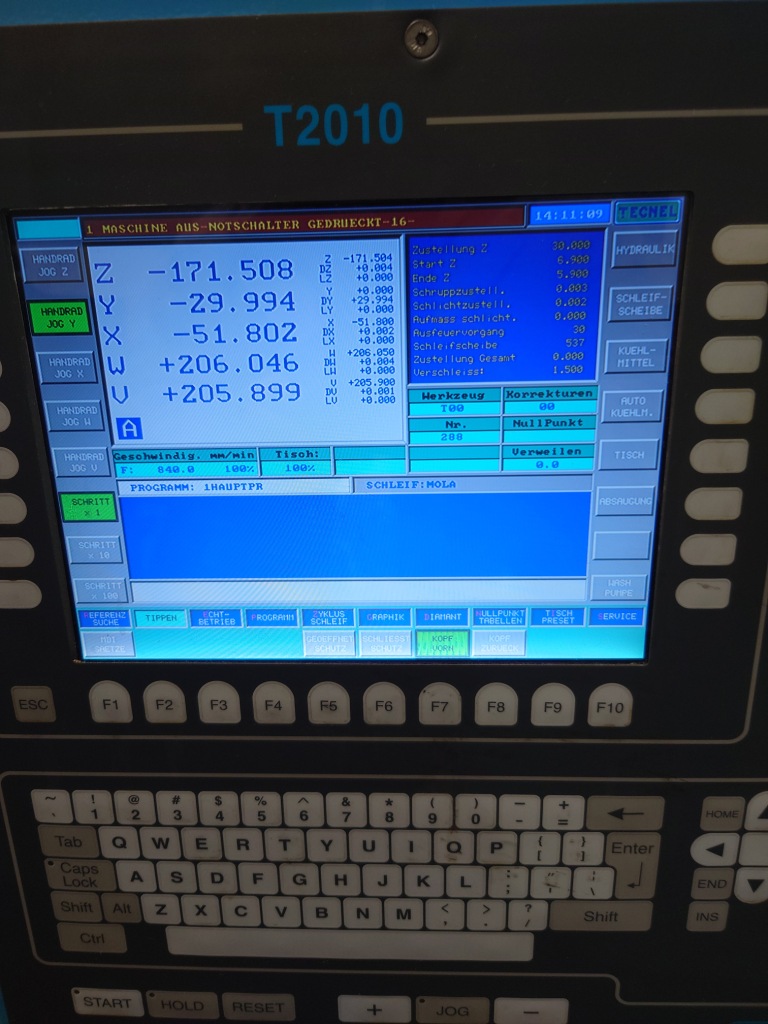

·      LODI CNC control T 2010 for (Z) grinding head infeed, (Y) grinding head position change left - right, (X) dressing amount and speed, (W,V) positioning of gauge control, (A,B) spindle rotation of each rotary table.

With simple input of all important cycle parameters, pre-programmed automatic cycles, additional programming-editor, programms management, tool management, jog mode, etc.

·      with integrated electronic handwheel.

·      MARPOSS gauge control P7ME for continuous measuring of the workpiece height during grinding process and automatic switch-off when the final amount is reached. The position of the measuring sensor can be set separately for both rotary tables via the CNC control.

·      MARPOSS structure-borne sound grinding gap control unit to avoid "air loops". (The structure-borne sound is transmitted via the respective rotary table by a water jet).

•    CNC-controlled grinding wheel dressing unit mounted under the segment head, with automatic compensation of the dressing amount. Simple input of parameters via the CNC control in pre-programmed dressing cycle.

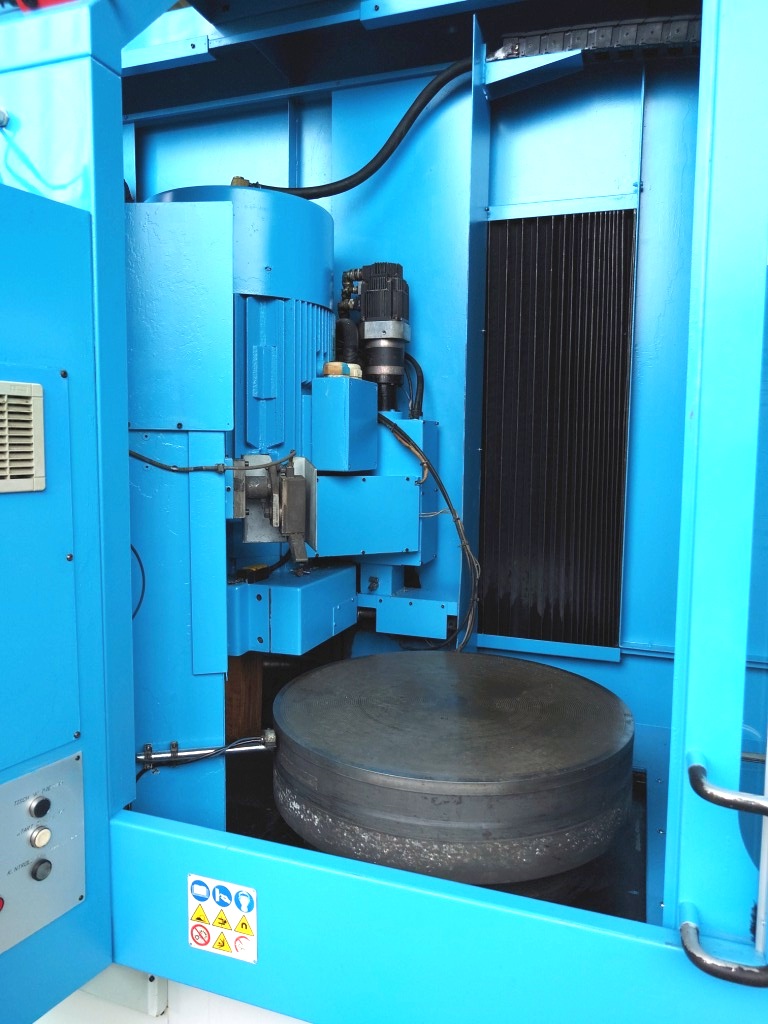

•    2 x round magnetic plate Dia. 800 mm with fine ring pole pitch and variable electrical holding force

•    Hydraulic counter balance for the grinding head.

•    Separate switch and control cabinet, complete enclosure of the work area with oil mist extraction unit

•    Sophisticated coolant filtration system with band filter, magnetic separator and coolant chilling unit.





Condition :     very good, machine was only used in high precision machine builder

                        Please click here to view a video oft he machine running :
                        https://www.geiger-germany.com/images/videos/LODI-RVP8002TGCNC/video.mp4!

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of grinding machines available.  Please let us know your requirements.
