SCHAUDT

CNC horizontal surface & profile grinding machine

model       A 501 N 1000

year         1973                                              Serial no 116 766 _____________________________________________________________



Grinding Ø                                                                                     0 - 350   mm

Height of centres                                                                                180   mm



Grinding length                                                                                   930   mm

Distance between centres                                                                  980   mm

Table speeds                                                                               0.01 – 5   m/min

Table adjustment, left/right, max.                                                   +6 / -9   °

weight of workpiece, max approx.                                                      260   kg



Grinding wheel Ø                                                                                500   mm

Grinding wheel bore x width                                                  203,2 x 200   mm

Grinding spindle speeds, approx.                                                   3,000   rpm

Grinding slide infeed                                                          0,0005 – 0,05   mm/stroke

Grinding slide swivelling                                                             +45 / -30   °



Workspindle head                                                                           Morse   5

Workspindle head speeds, infinitely variable                             22 – 500   rpm

Workspindle head swivelling                                                           0 - 90   °

Table adjustment, left/right, max.                                                    +/- 90   °



Spindle drive                                        7.5     kW

Total electrical load                               20     kW  -  380 V  -  50 Hz

Weight, approx.                                4.600     kg



Accessories / Special Features:



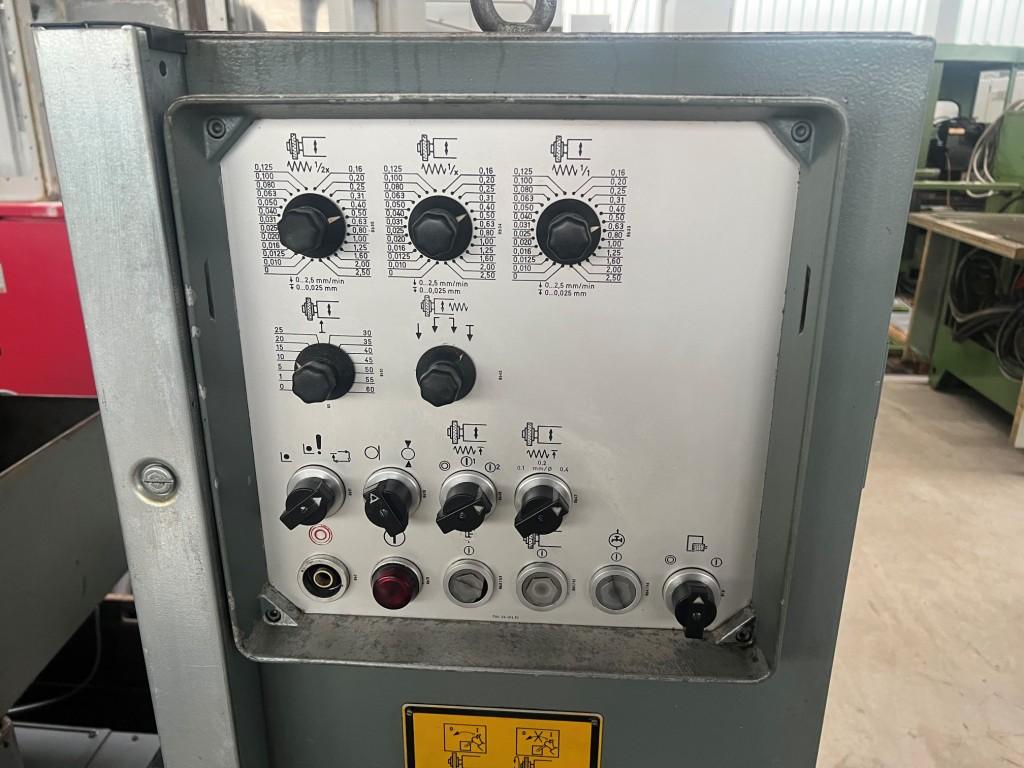

·      Automatic work-cycles for all common cylindrical grinding methods, including roughing, finishing, spark-out, and grinding head return.

·      Very sturdy construction of the machine bed, workpiece headstock, and tailstock with a large grinding wheel (Ø 500 mm).

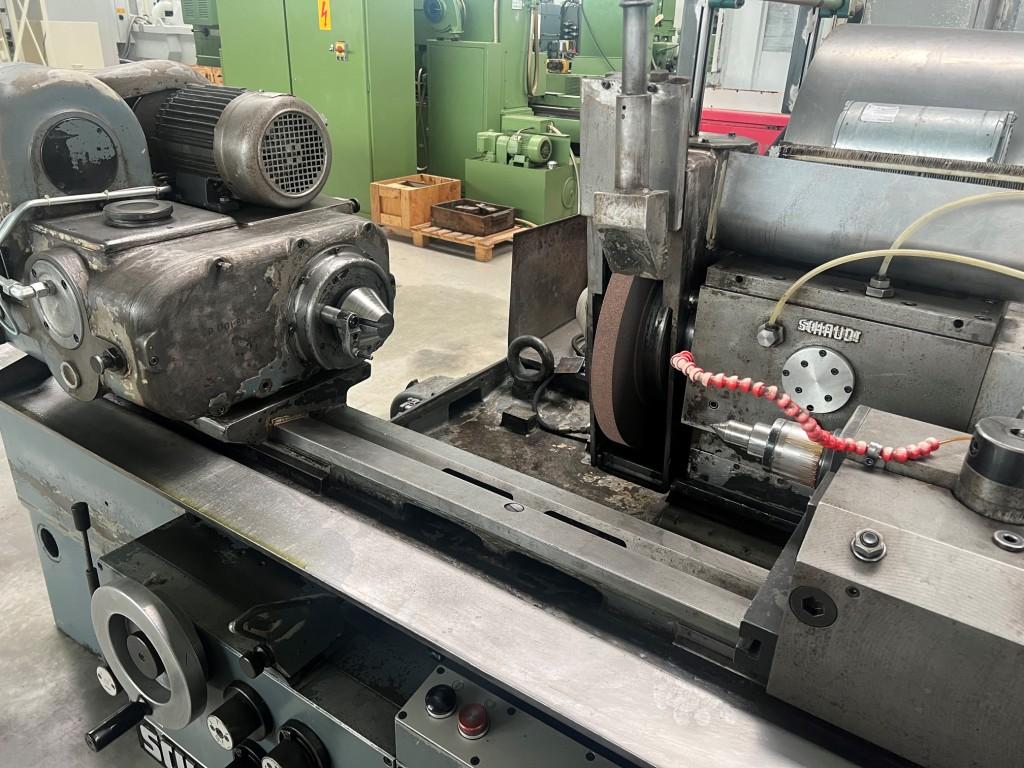

·      Straight dressing device unit mounted on the tailstock and a separate dresser for table mounting.

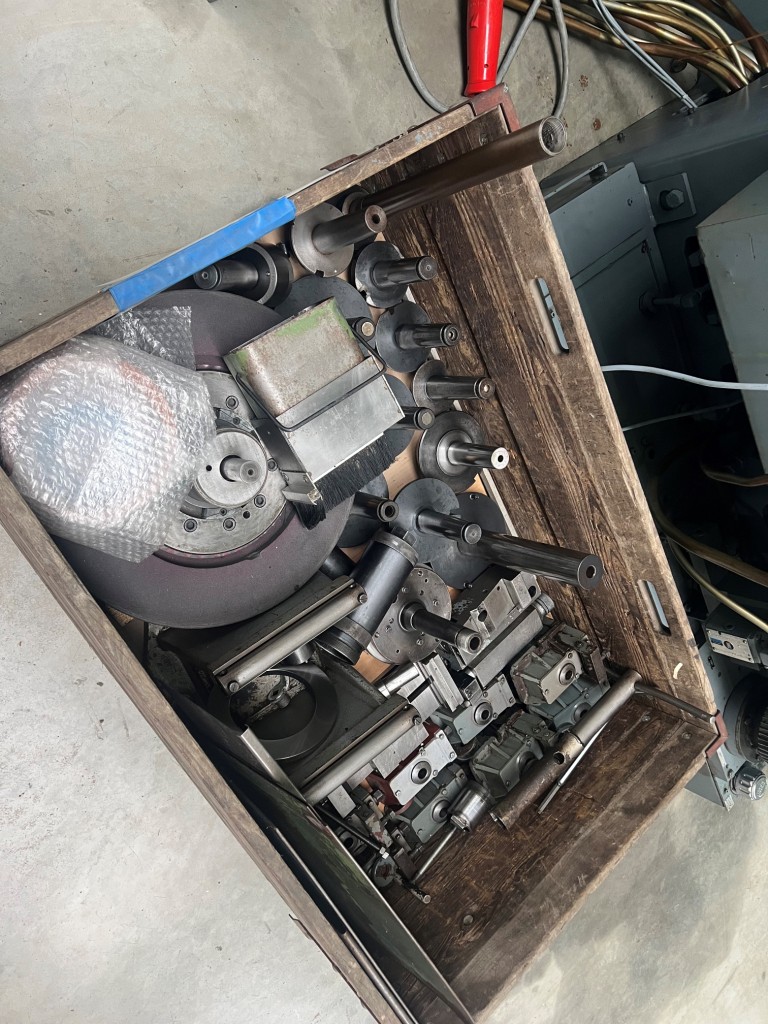

·      Comprehensive accessories including centers, balancing mandrel, tool holders, grinding wheel flange, machine feet, and operating instructions.

·      (Unfortunately, as yet, there is no coolant filtration unit with the machine).

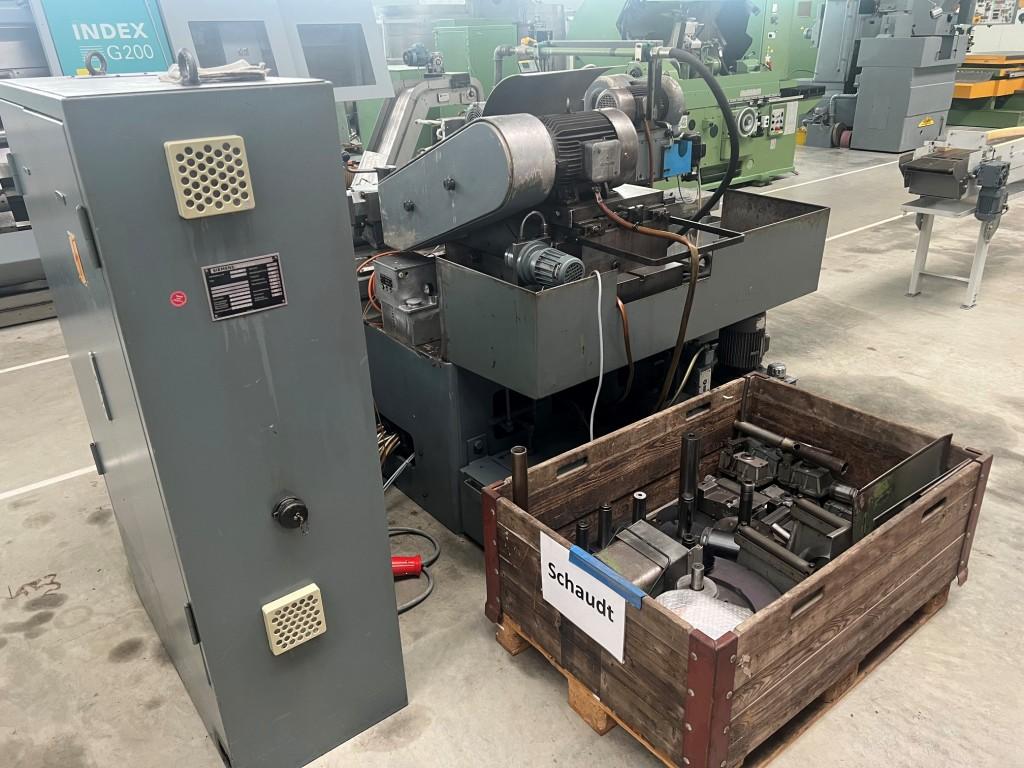

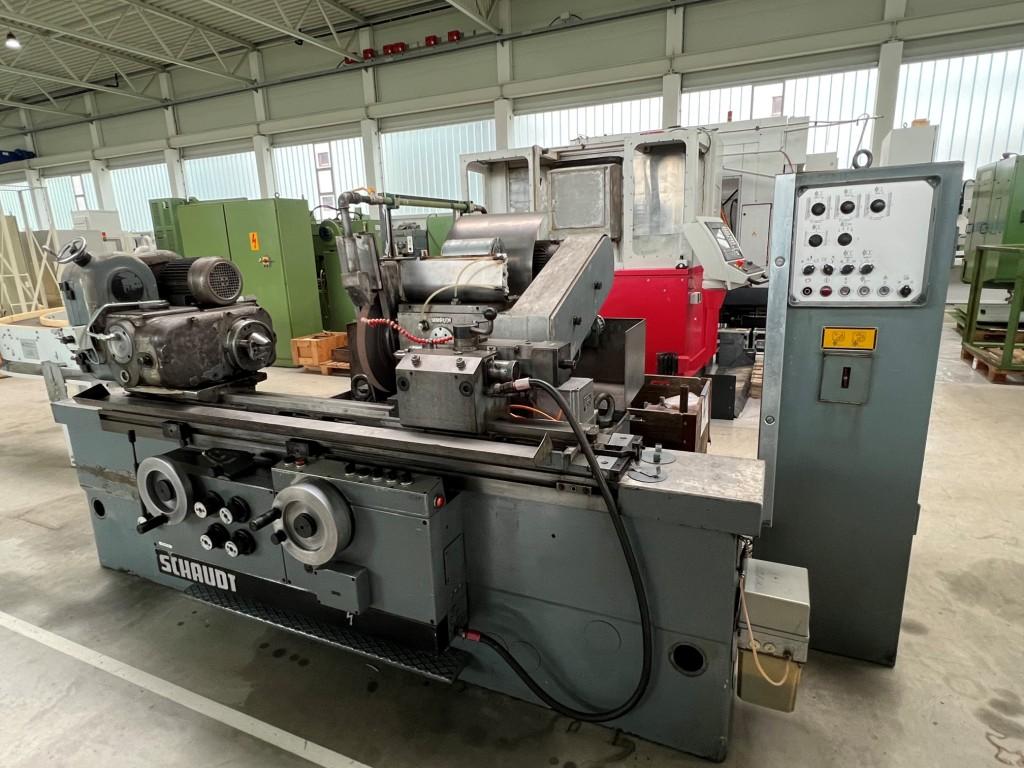

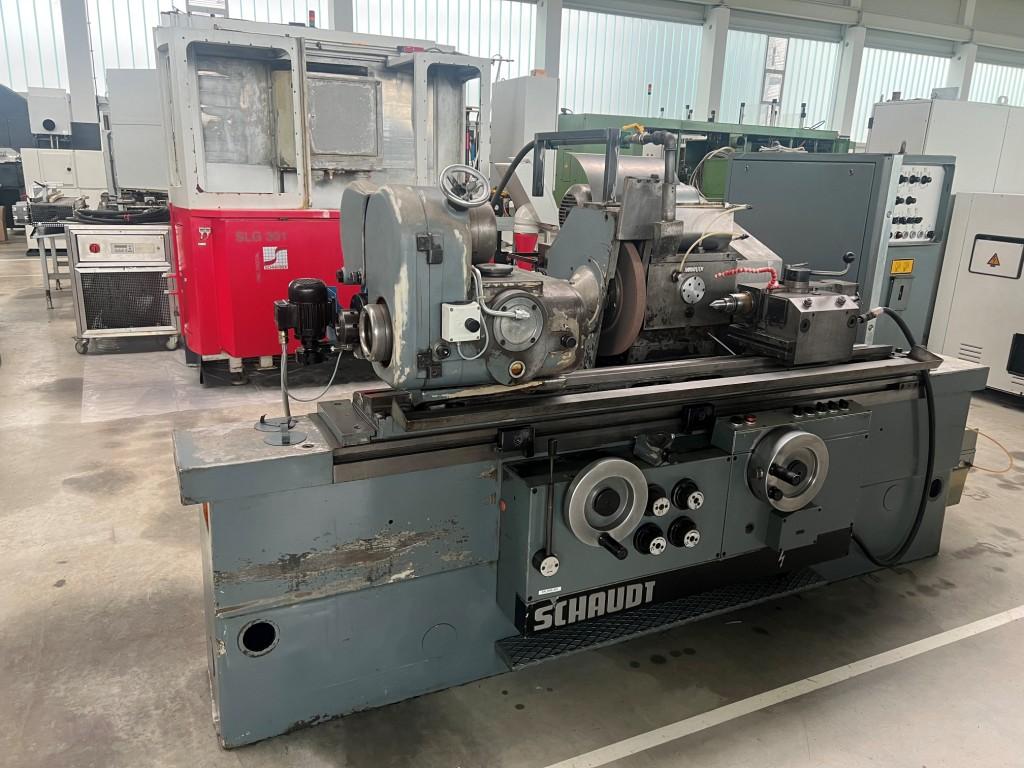

Condition :     very good, universal machine for all sorts of grinding tasks !
