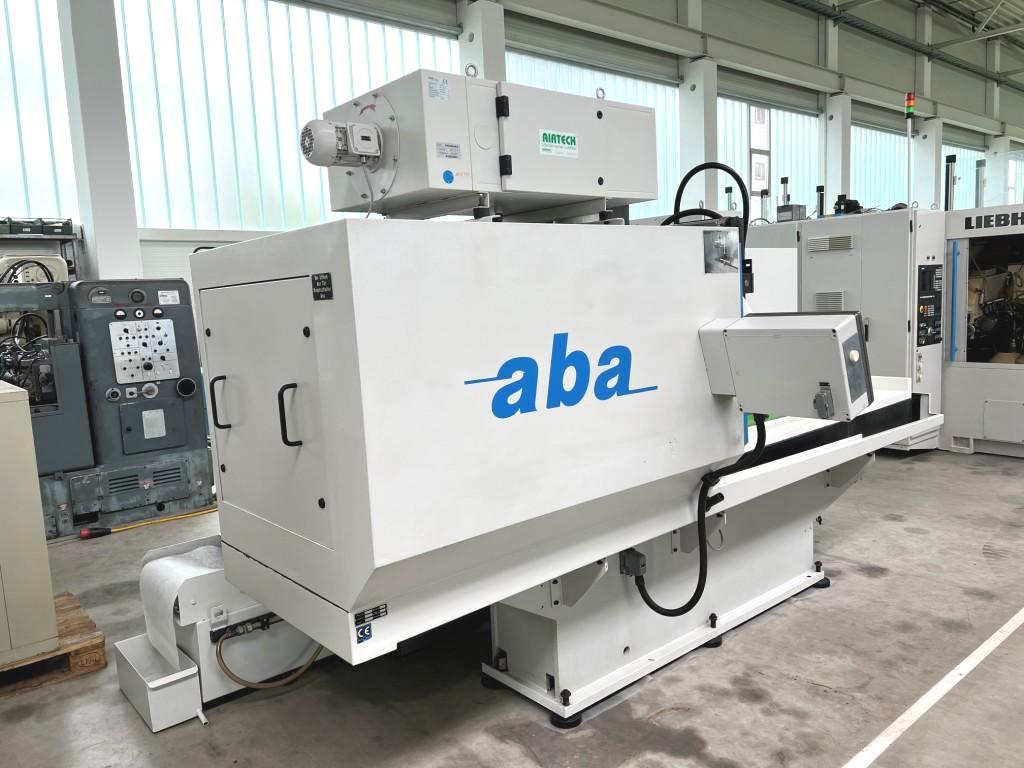

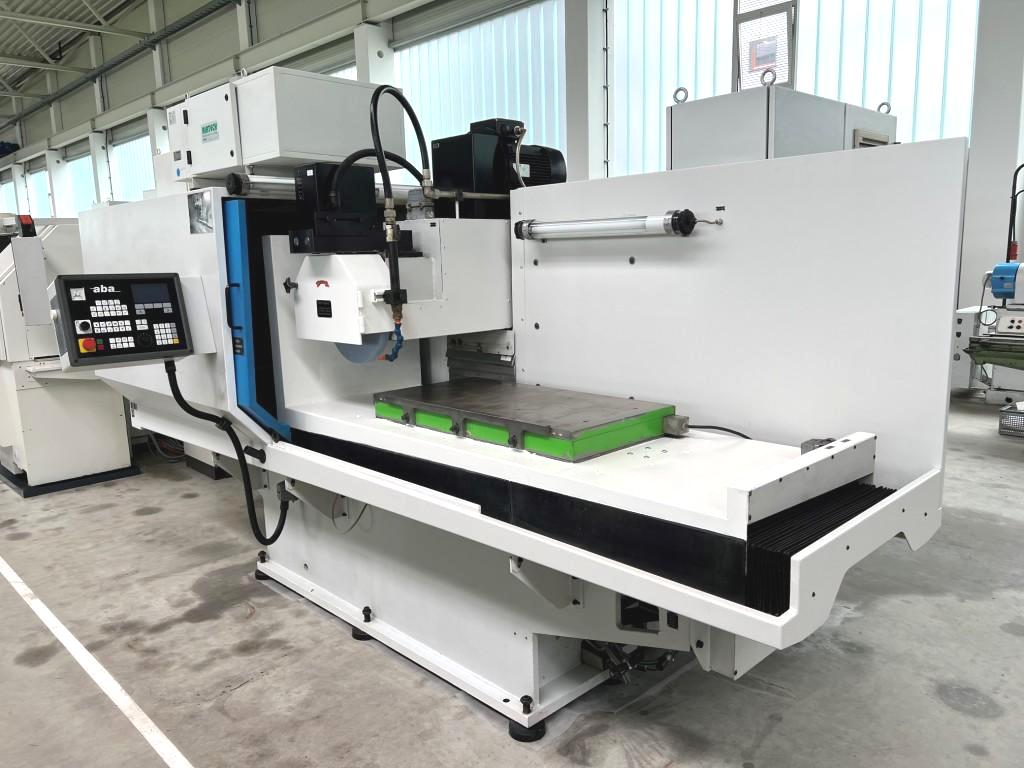

CNC horizontal precision surface grinding machine

model       ECOLINE 1006

year         2001                                    Serial no 20888x _____________________________________________________________



Grinding length max. (table movement 1050 mm)                    1.000     mm

Grinding width max. (cross movement 600 mm)                          600     mm

Mounting height under new grinding wheel                                  500     mm

Distance table – center of spindle min / max                     170 – 700     mm



magnetic plate                                                                  1.000 x 500     mm

Max. table load                                                                           1.300     kg

Table speed                                                                       0 – 35.000     mm/min



Cross-feed continuous                                                         5 – 5.000     mm/min

Cross-feed intermittently                                                           1 – 95     mm/stroke

Vertical-feed                                                                         1 – 3.000     mm/min

Min programmable Resolution                                                   0,001     mm



Grinding wheel measurements                                 400 x 100 x 127     mm

Grinding spindle speeds                                               1.000 – 2.600     rpm

Grinding spindle-drive approx.                                                        11     kW



Total electrical load approx.                                 20 kW - 400 V - 50     cycles

Weight approx.                                                                           6.000     kg



Accessories / Special Features:

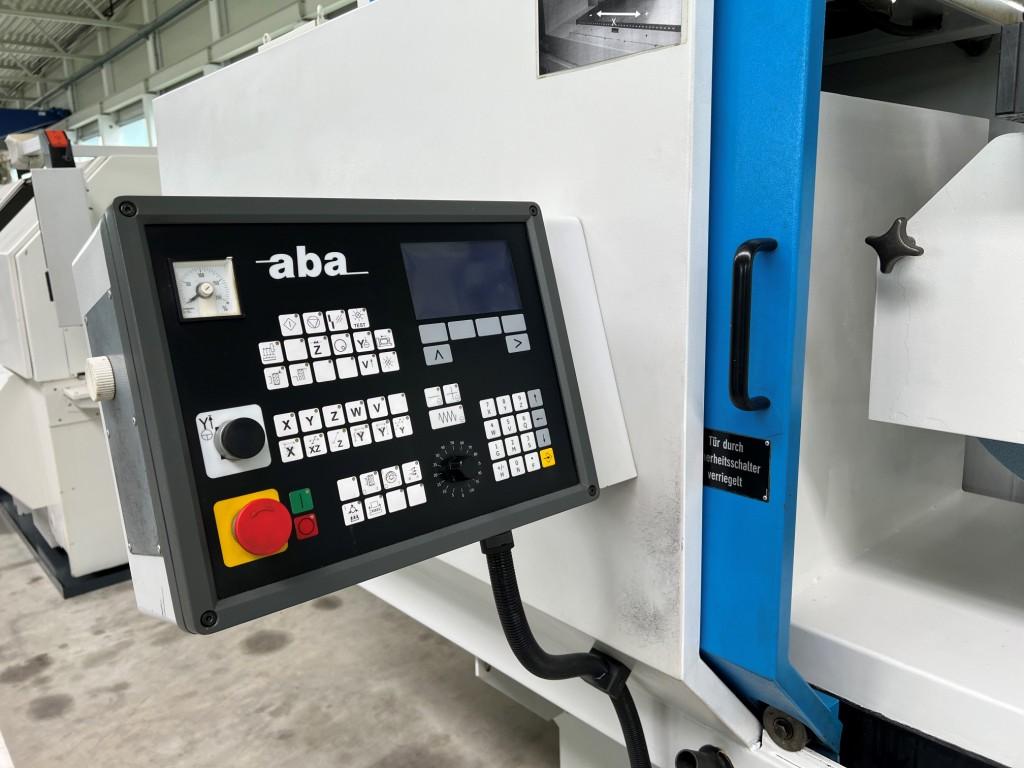

·    Machine is equipped with a simple to use CNC cycle control ABAMATIC 1 N.D. with digital LCD display of position of all axis, which allows simple manual grinding work as well as using automatic grinding cycles.

·    Graphic supported input of all data for the various automatic grinding and dressing cycles.

·    electronic handwheel for 3 axis (can be used also in automatic mode).

·    Aut. dressing device mounted above the grinding spindle with digital feed and aut. Compensation

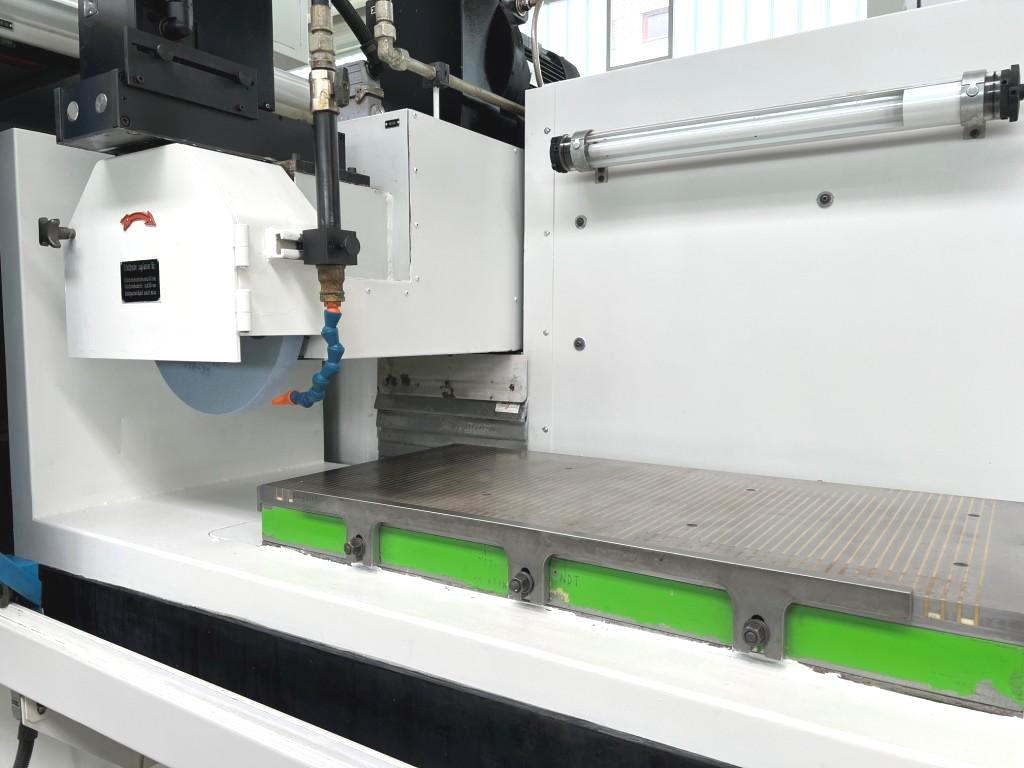

·    Electromagnetic plate 1.000 x 500 mm with adjustable holding force

·    All 3 axis, table feed (X) Cross feed (Z) and infeed (Y) ate effected by ball screw drive.

·    Grinding spindle speeds steplessly variable (possibly also contant cutting speed can be set)

·    Pneumatically prepared for “airlift off the magnetic plate” and folding dresser mounted on table, but currently not installed.

·    Partially enclosed working area with sliding door and AIRTECH oilmist exhaustion

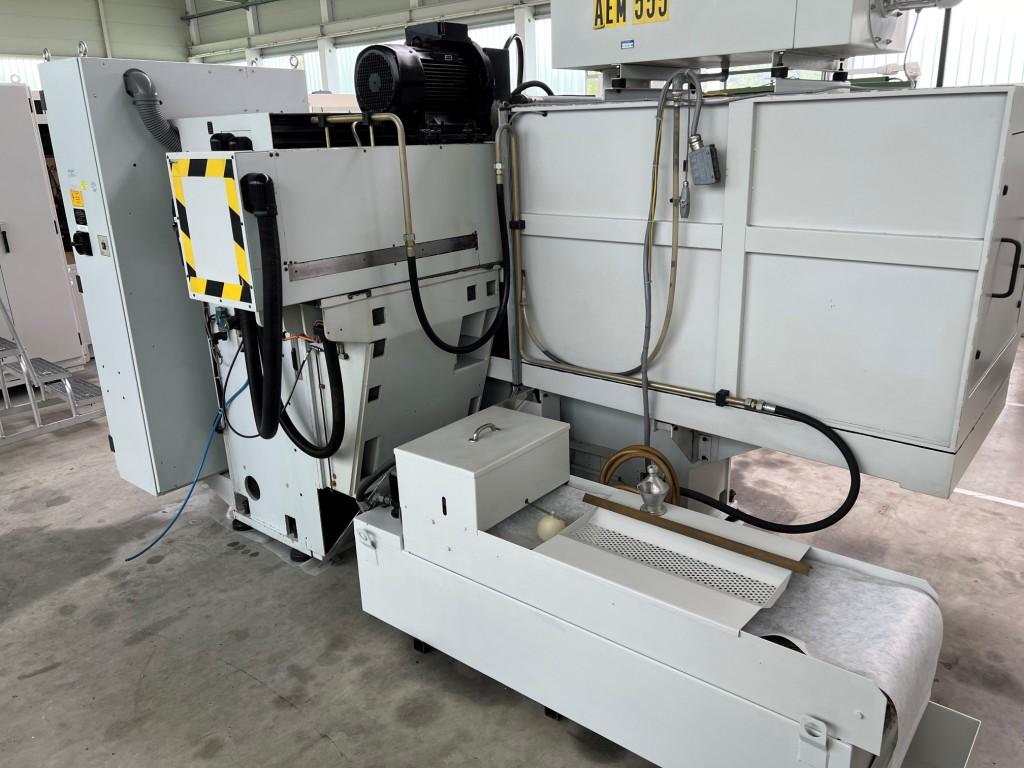

·    Wet grinding facility with driven belt coolant filtration unit.

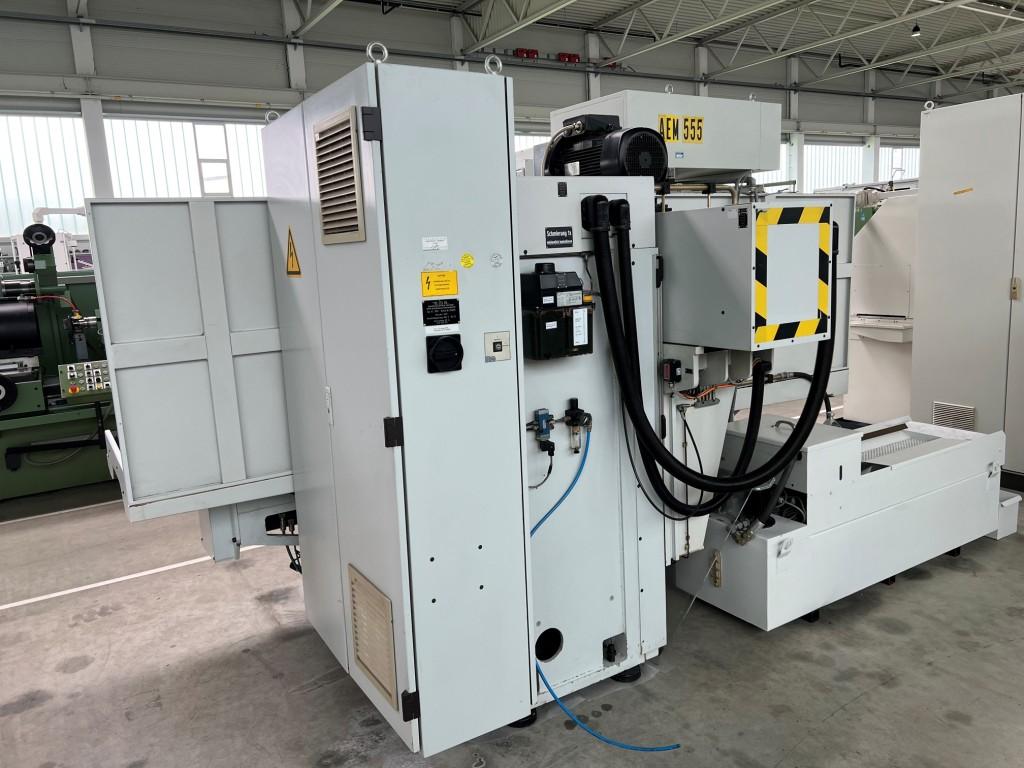

·    Switch cabinet mounted on machine, aut. Central lubrication, manuals





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/ABA-EL1006/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading
