Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



LAPMASTER

Single wheel 4 station flat lapping machine

model       84

year         ca. 1973 / 2010                              Serial no B085070 _____________________________________________________________



Lapping wheel Ø, internal/external                                     457,2 / 2.434   mm (18 / 84 inch)

Lapping wheel Ø mounted internal/external                       457,2 / 2.159   mm

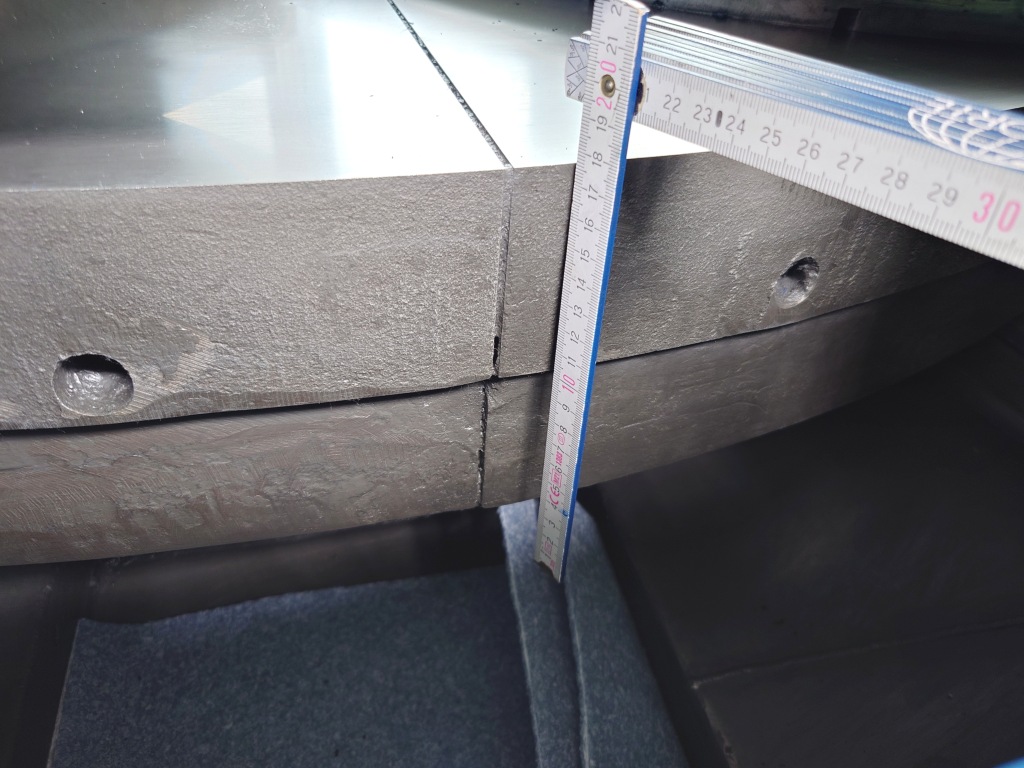

Lapping plate height nominally / actual                                       100 / 75   mm

Conditioning ring Ø, internal/externa nominally                        813 / 889   mm (32 / 35 inch)

Conditioning ring Ø on machine                                                870 / 905   mm

Nominal height of rings                                                                         89   mm



Lapping wheel speed, adjustable                                                           ?   rpm

Table drive, approx.                                                                             5,5   kW

Total electrical load, approx.                                 7,5 kW  -  400 V  -  50   Hz

Weight                                                                                            10.000   kg

Dimension length x width x height                        4.000 x 2.600 x 2.150   mm



Accessories / Special Features:

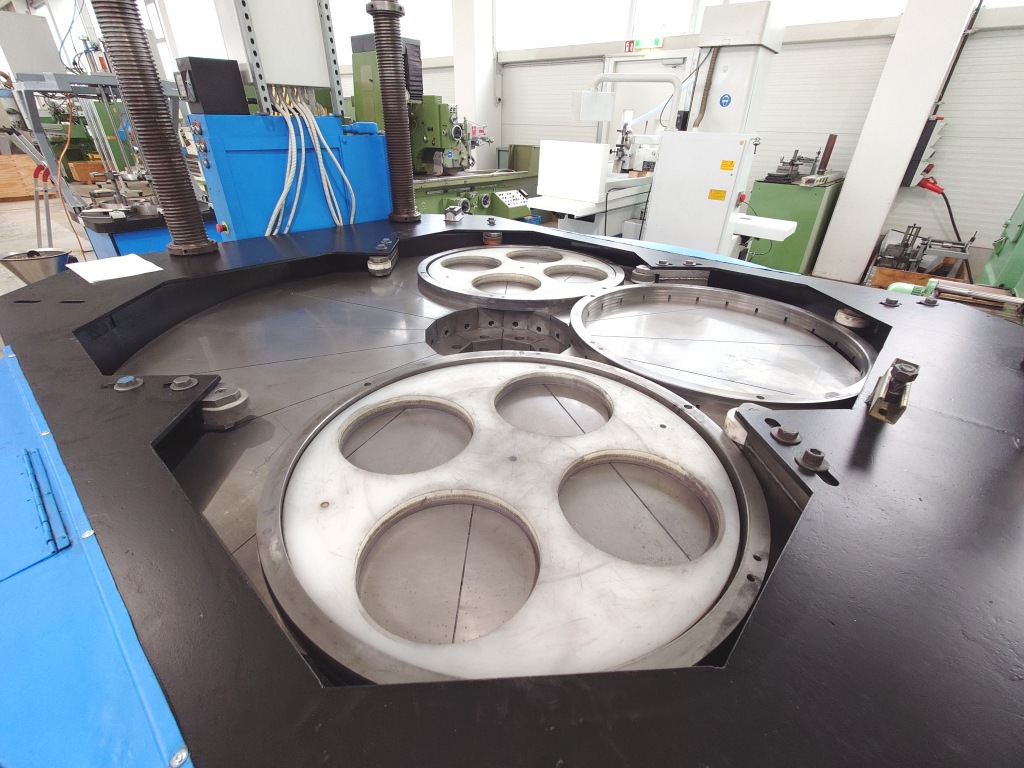

·      4 Lapping stations with conditioning height adjustable ring holders

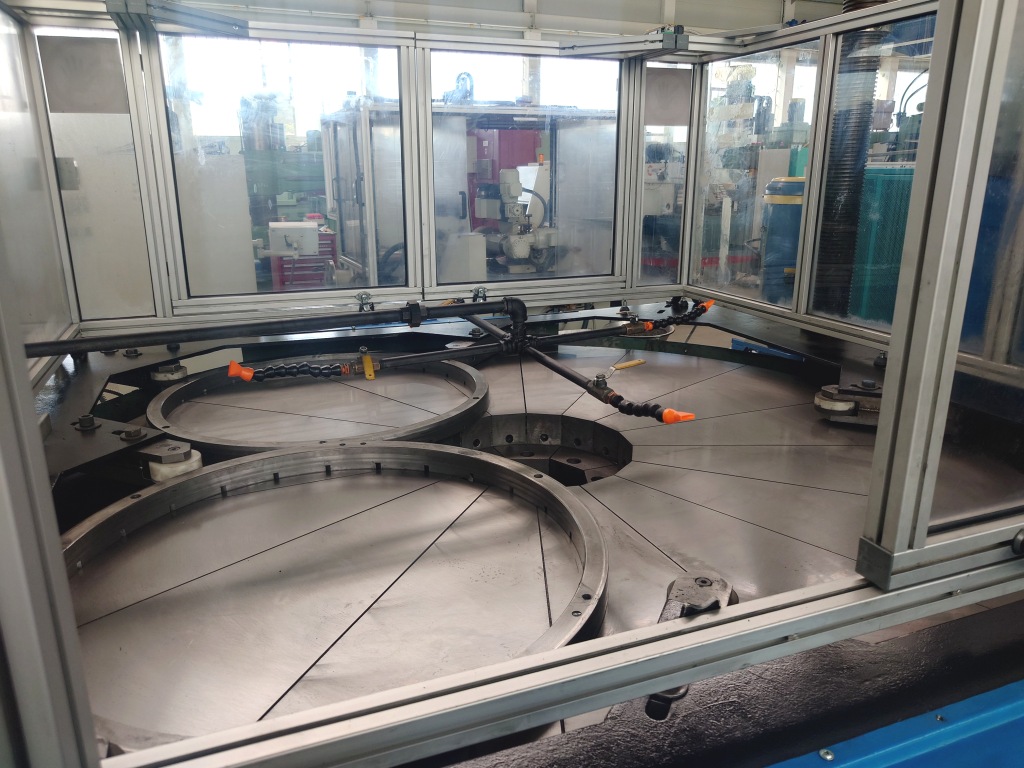

·      Specially cast lapping wheel with approx. 16 radial slots / sectors

·      4 conditioning rings with internal dia. of 870 mm available

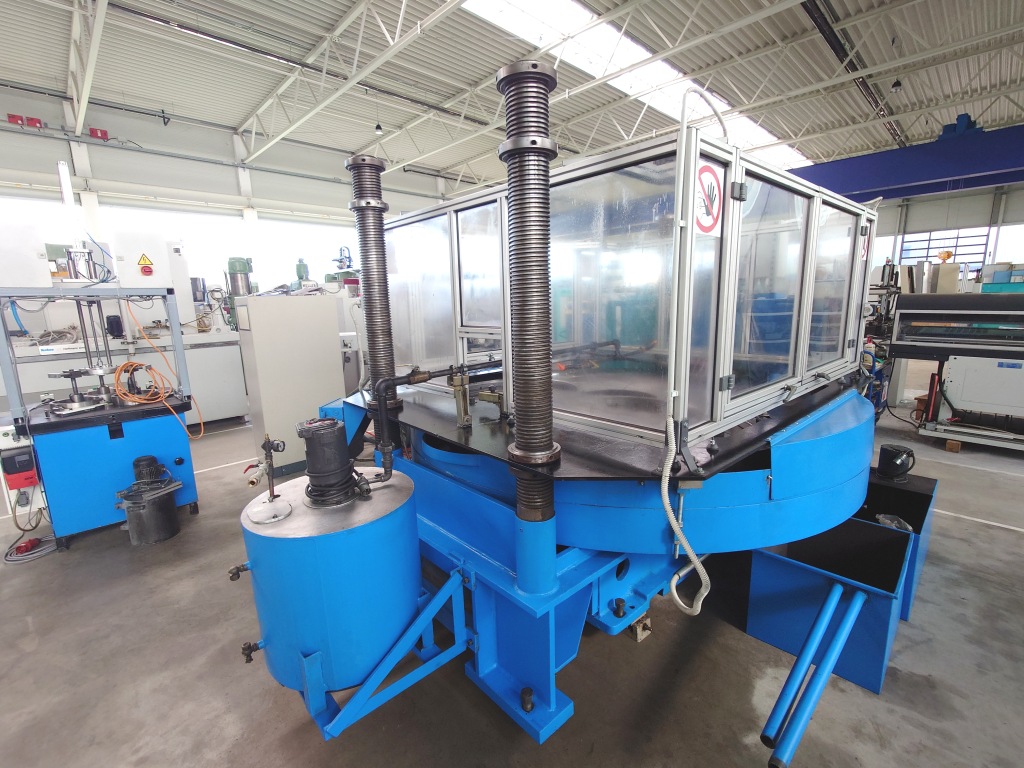

·      Pump and tank for the Lapping Agent supply and dosing

·      Timer to preadjust lapping time with an automatic Stop of machine

·      Steplessly adjustable table speed by potentiometer with speed display

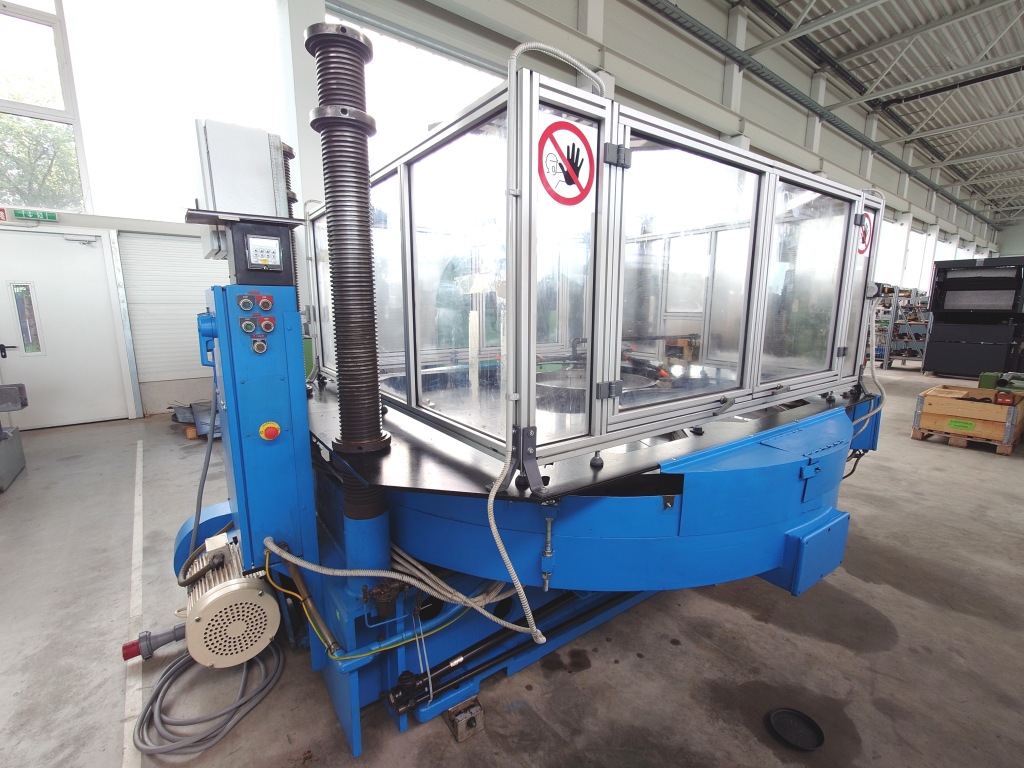

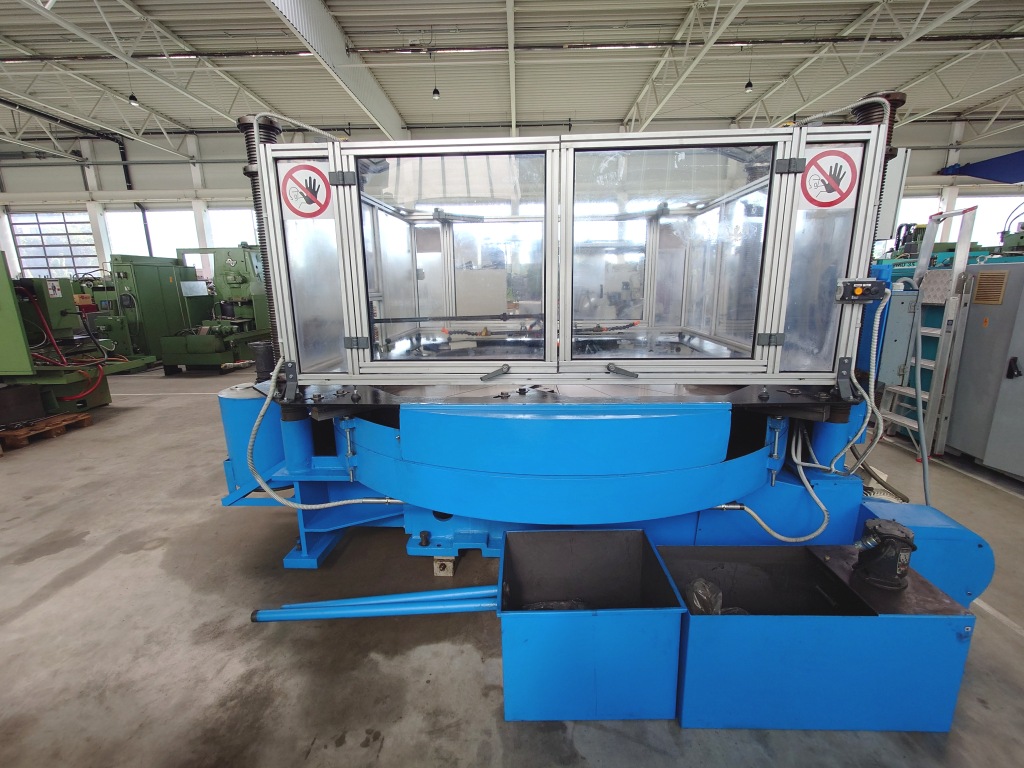

·      2010 electric and mechanicof machine redonditioned and retrofit with a safety-plexiglas-enclosure, to fulfil US safety standards.

·      Lapping machines in this size are very rare on the used market !





Condition :     good to very good, despite its age ! Can be inspected under power !

                        Please click here soon to view a video oft he machine running :
                        https://www.geiger-germany.com/images/videos/LAPMASTER-84/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We have always a large selection of lapping machine single wheel or double wheel in various sizes available !
