Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



TSCHUDIN   (CH)

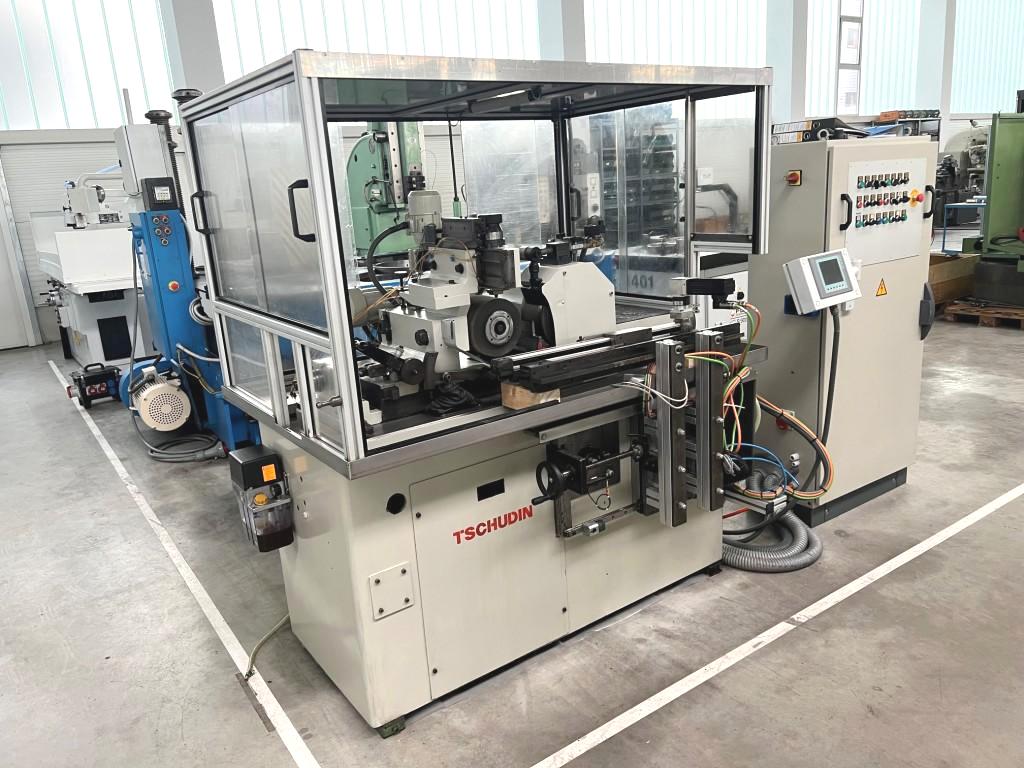

Automatic precision centerless grinding machine

model       TC-300

year         2001                                    Serial no 01.T.300.030 _____________________________________________________________



Grinding range - Æ                                                  0,5 – 25      mm   (30)

Max. workpiece length for plunge grinding                      125      mm  (140)

Max. workpiece length for through-feed grinding             300      mm



Grinding wheel dimensions: Æ x width             Æ  300 x 125      mm   (140)

Regulating wheel dimensions: Æ x width          Æ  225 x 125      mm   (140)



Grinding wheel peripheral speed                                       35      m/sec

Grinding wheel infeed                                                           3      mm

Regulating wheel speeds, stepless                           0 – 444      rpm

Regulating wheel inclination                                        +7 / -7      Degree



Grinding wheel drive approx.                                            7,5      kW

Total power approx.                                                            13      kW - 380 V - 50 Hz

Weight                                                                            2.500      kg



Accessories / Special Features:



·      The machine operates with a fixed workpiece position, allowing both the grinding spindle and the regulating spindle unit to be adjusted. This simplifies machine setup and automatic workpiece loading and unloading.

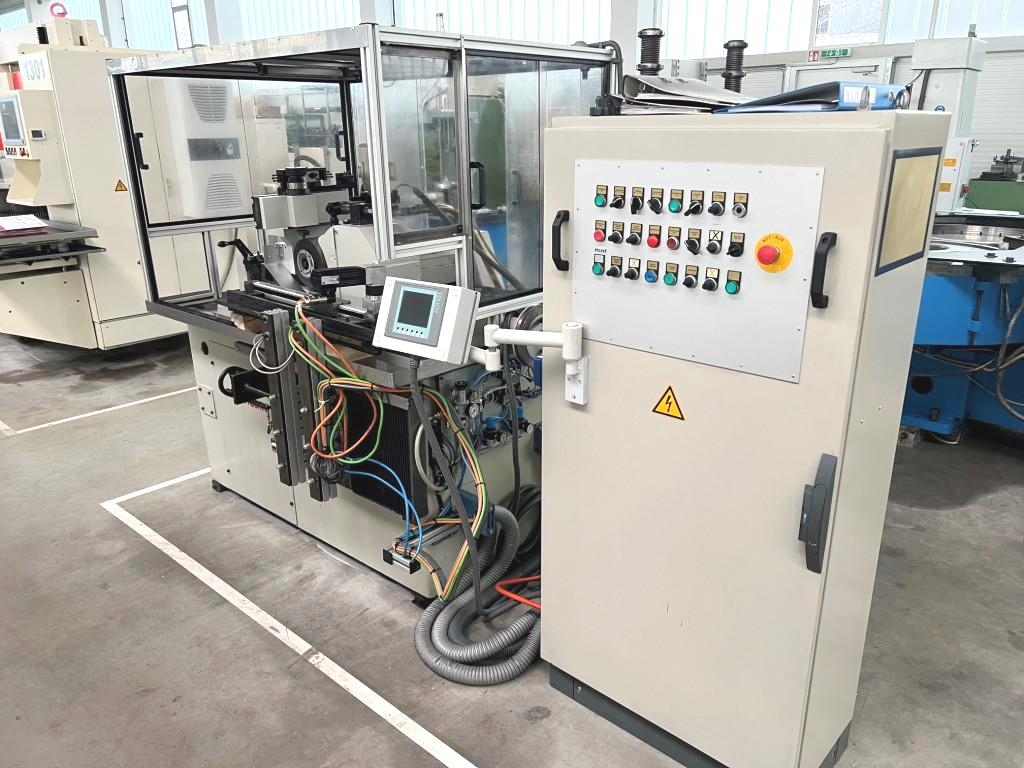

·      SIEMENS PLC control for automated workcycles with a SIEMENS touchscreen. The entire electrical system and PLC control system were newly installed in 2016!

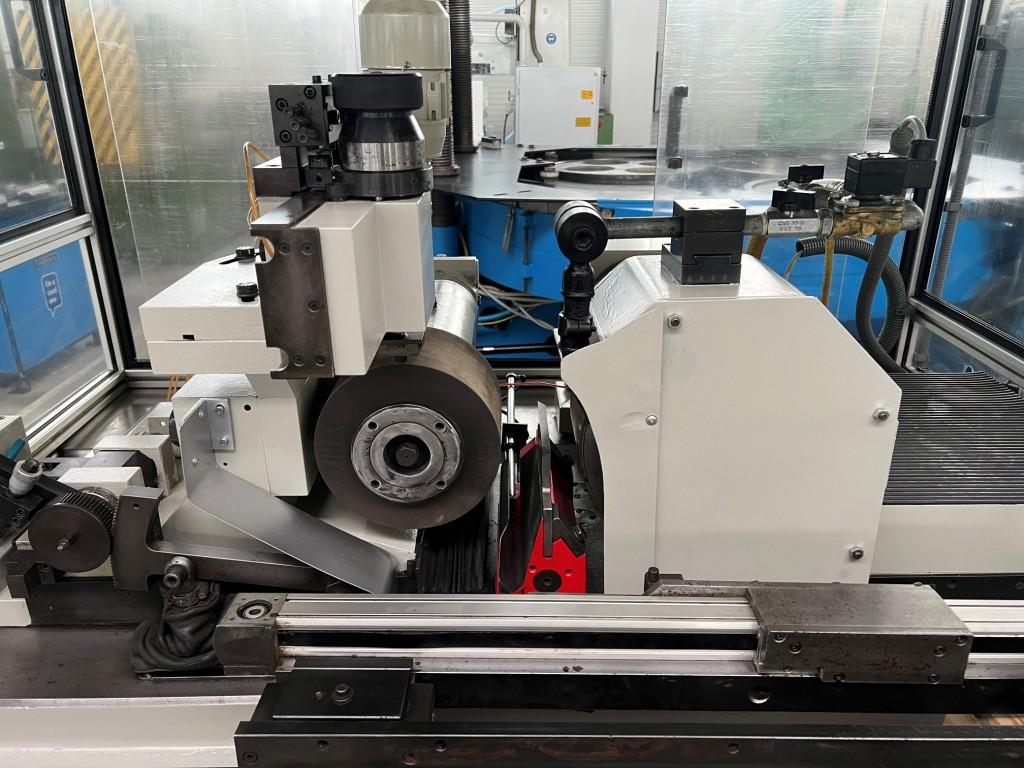

·      Electromechanical copy dressing device for the regulating wheel

·      Regulating wheel and grinding wheel speeds are steplessly adjustable.

·      Mounted adjustable workpiece plunge-cutting guide bridge with mounted plunge-cutting workpiece support.

·      Electromechanically controlled workpiece pusher and aut. pneumatic workpiece ejector

·      Additional extension cylinder for automatic workpiece Doping after plunge-cutting grinding (adjustable from 4 to 30 mm).

·      The machine is prepared for use with a HELP-TEC MSHL08/400P lift workpiece loader, but this is not currently available.

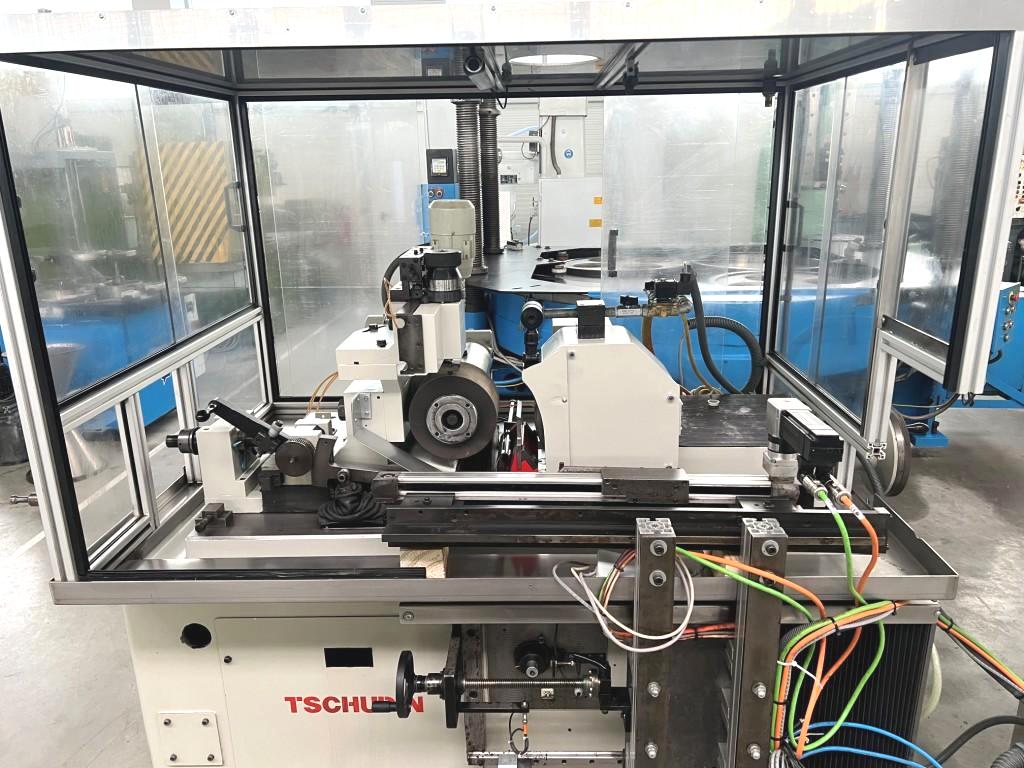

·      Complete enclosure of the work area with monitoring

·      Separate control cabinet, operating manuals, and electrical plans documting the retrofit.





Condition :     very good and rare machine !  New electronics in 2016 !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/TSCHUDIN-TC300/vid.mp4

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of grinders – CNC or conventional - available.  Please let us know your requirements.
