Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



ZIERSCH & BALTRUSCH

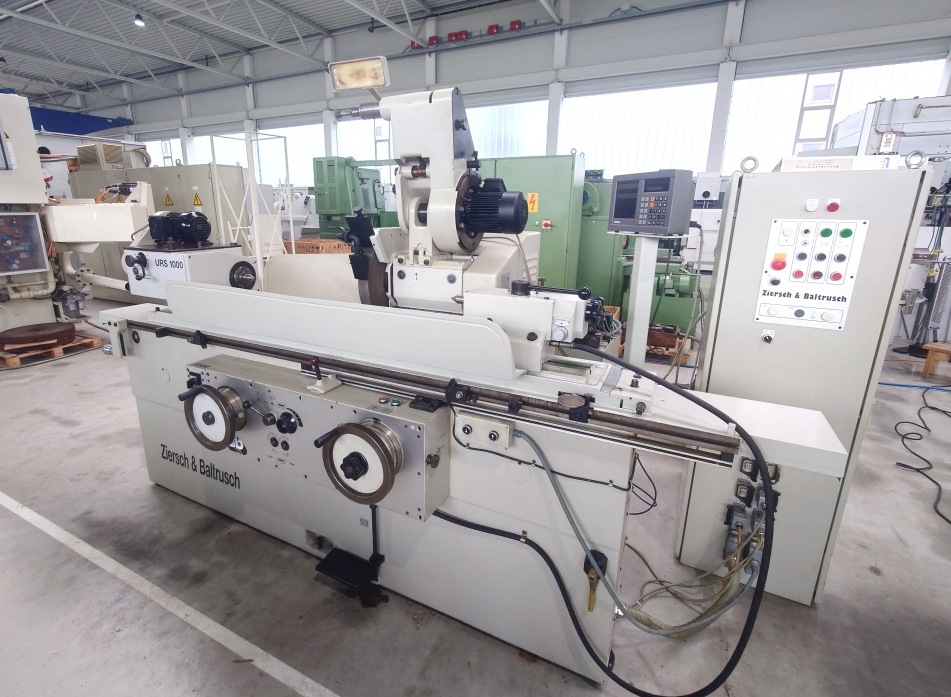

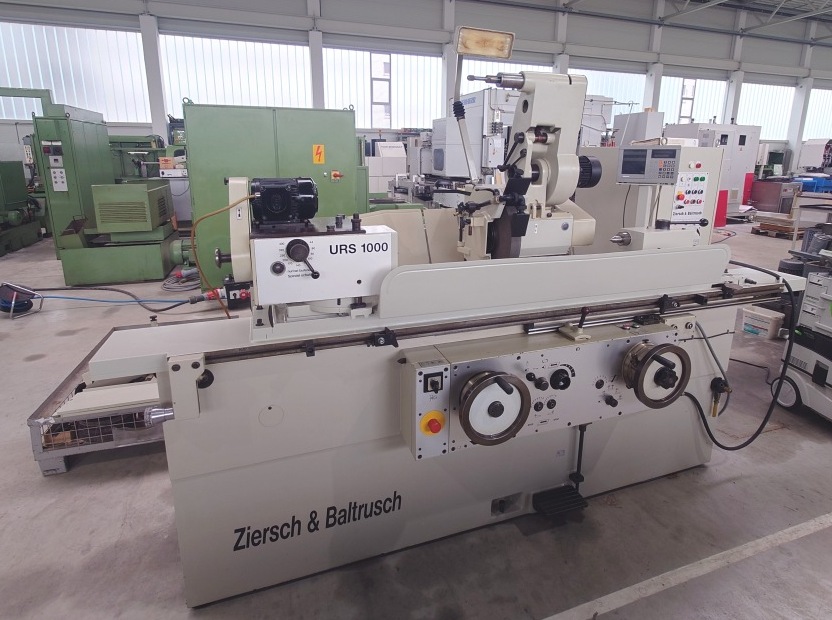

Universal Cylindrical & Internal Grinding Machine with Digital Read-Out

model       URS 1000

year         1998                                                        Serial no 203 _____________________________________________________________



Center height / Grinding-Ø                                                     115 / 300     mm

Center distance / Grinding Length                                                1.000     mm

Grindable Internal-Ø                                                               15 – 150     mm



Feed rate with oscillating table                                           0,001 – 0,04     mm

Feed rate with plunge grinding                                                0,05 – 10     mm/min

Rapid traverse way                                                                          40     mm

Grinding head swivels                                                               + / - 30     °



Table speeds hydraulic, stepless                                              0,05 – 5     m/min

Dwell time at reversal                                                                   0 – 4     s

Table swivable                                                                           + / -  9     Grad



Grinding Wheel - Æ x Width x Bore                                 400 x 63 x 127     mm

Peripheral Speed                                                                             33     m/s

Grinding spindle speeds                                          1.580 / 1750 / 1970     rpm



Workpiece spindle head, speeds, stepless                               44 – 400     U/min

Workpiece spindle head - Taper                                                   MK 4

Workpiece weight between centers, max                                         120     kg



Total Power appro.                                                      13 kW - 400 V - 50      Hz

Weight approx.                                                                                3.000      kg



Accessories / Special Features:



·    Simple, high-quality and easy to handle universal cylindrical grinding machine with all feed options when grinding with oscillating table or when plunge grinding

·    Automatic grinding cycles with rapid traverse, feed and spark-out, followed by automatic resetting of the grinding head

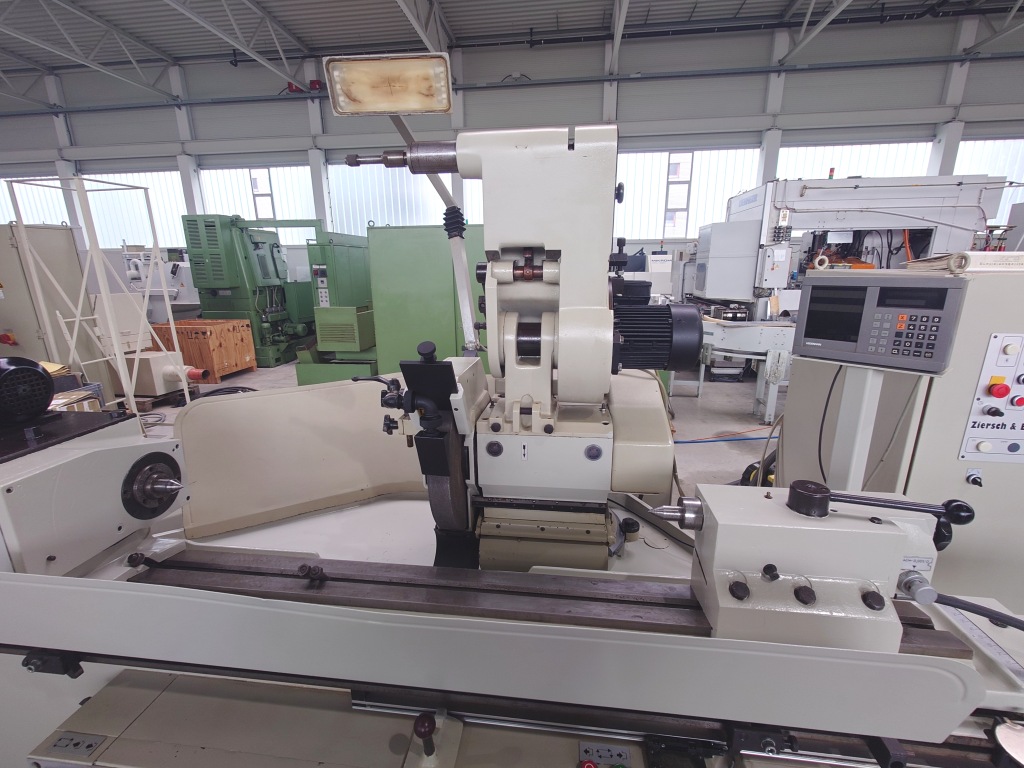

·    HEIDENHAIN digital read-out for X and Z axes !

·    Swivel-in internal grinding attachment, grindable diameters from 15 to 150 mm.

·    Dressing device mounted on the tailstock, separate side dresser.

·    Micrometer stop for precise table position adjustment. (Plunge grinding)

·    Tailstock with preloaded quill, 28 mm travel and fine adjustment

·    Workpiece head collet chuck device with a large number of collets

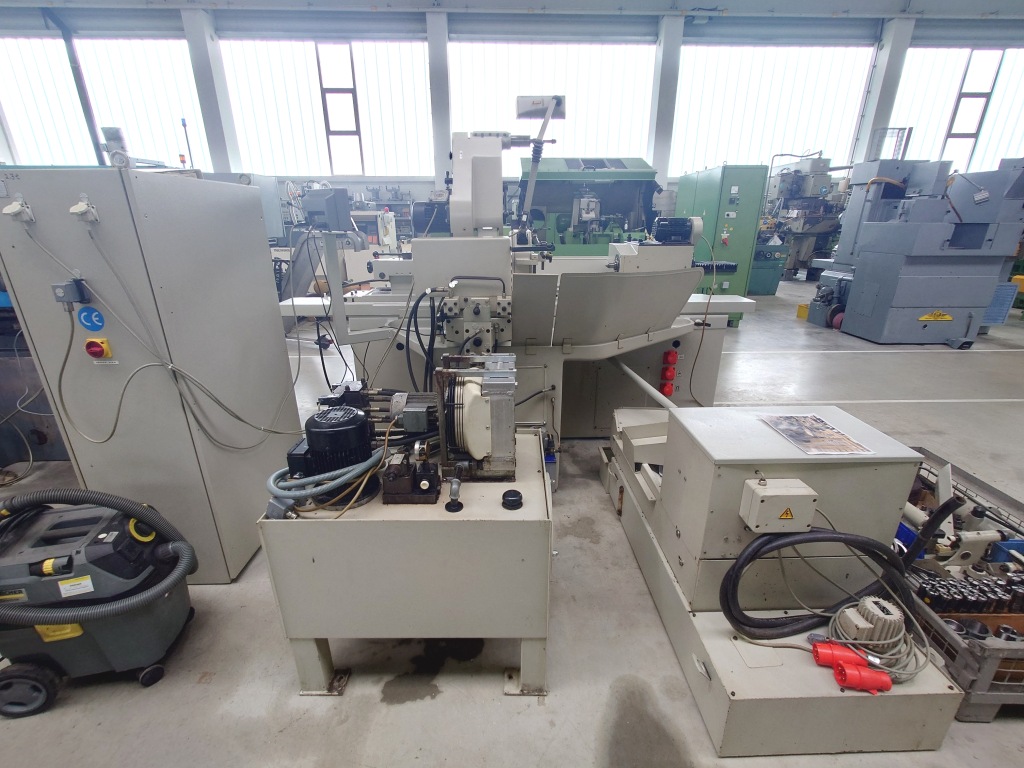

·    Belt filter coolant filtration unit, sep. control cabinet, sep. hydraulic unit

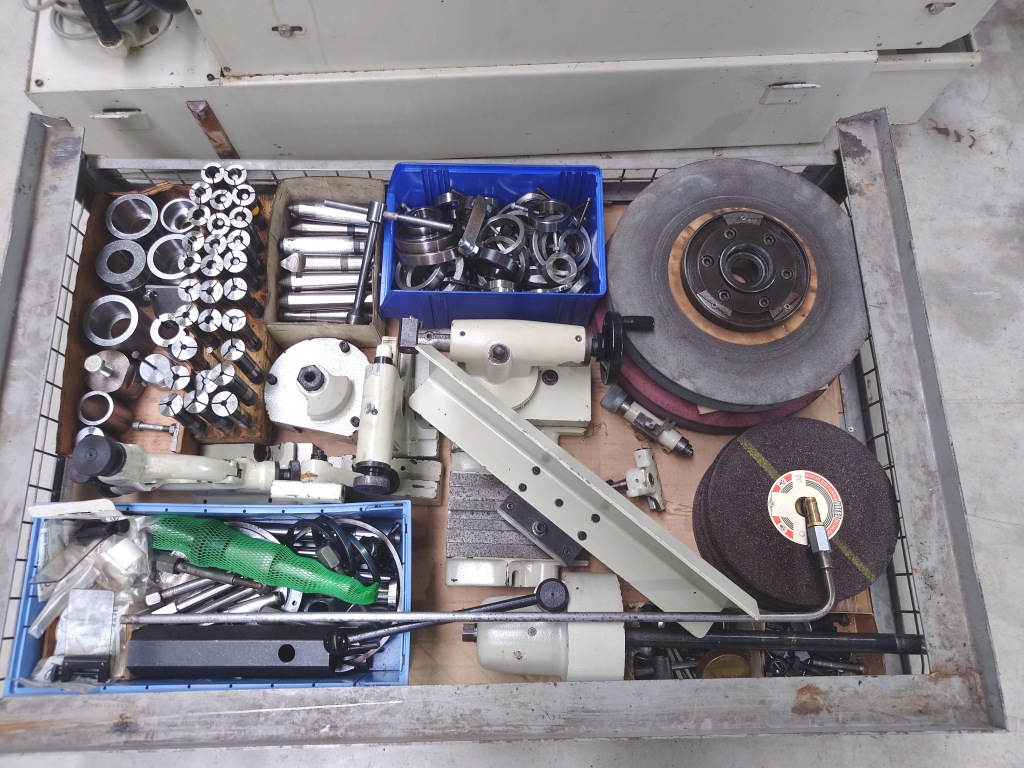

·    Extensive accessories such as grinding wheel flanges, balancing mandrel, 1 open steady, 1 closed steady, various centers, various holders, various drivers, other accessories and operating tools, operating instructions





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/ZIERSCHuBALTRUSCH-URS1000/vid.mp4

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of surface grinders – CNC or conventional - available.  Please let us know your requirements.
