Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



GEIBEL & HOTZ

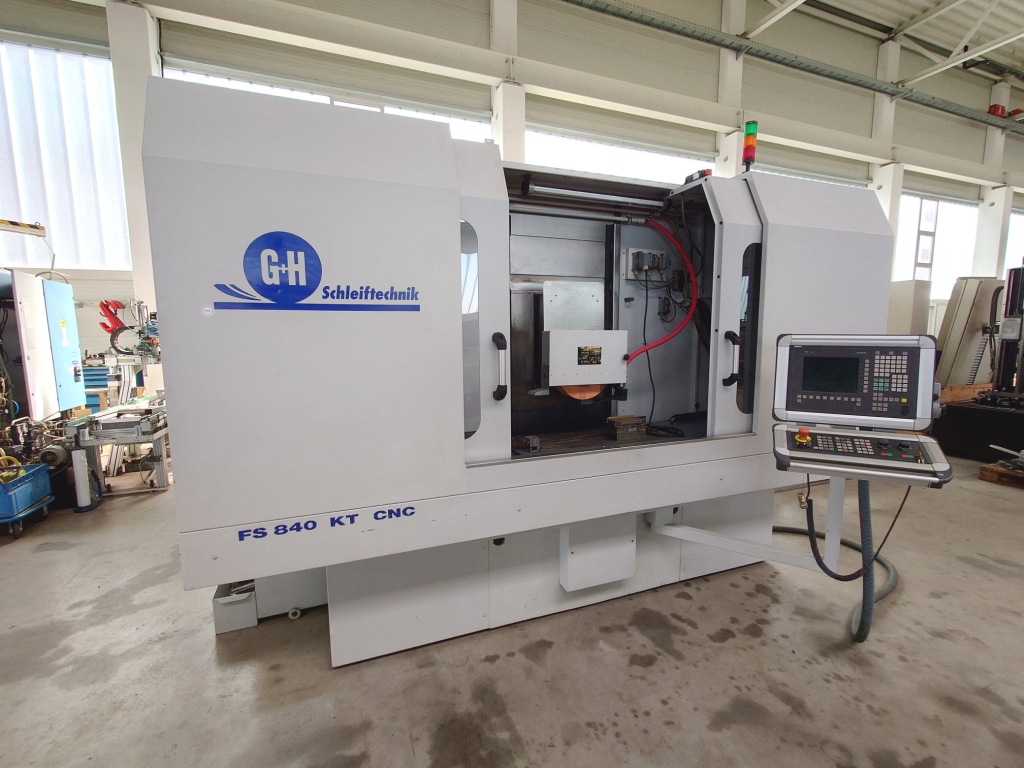

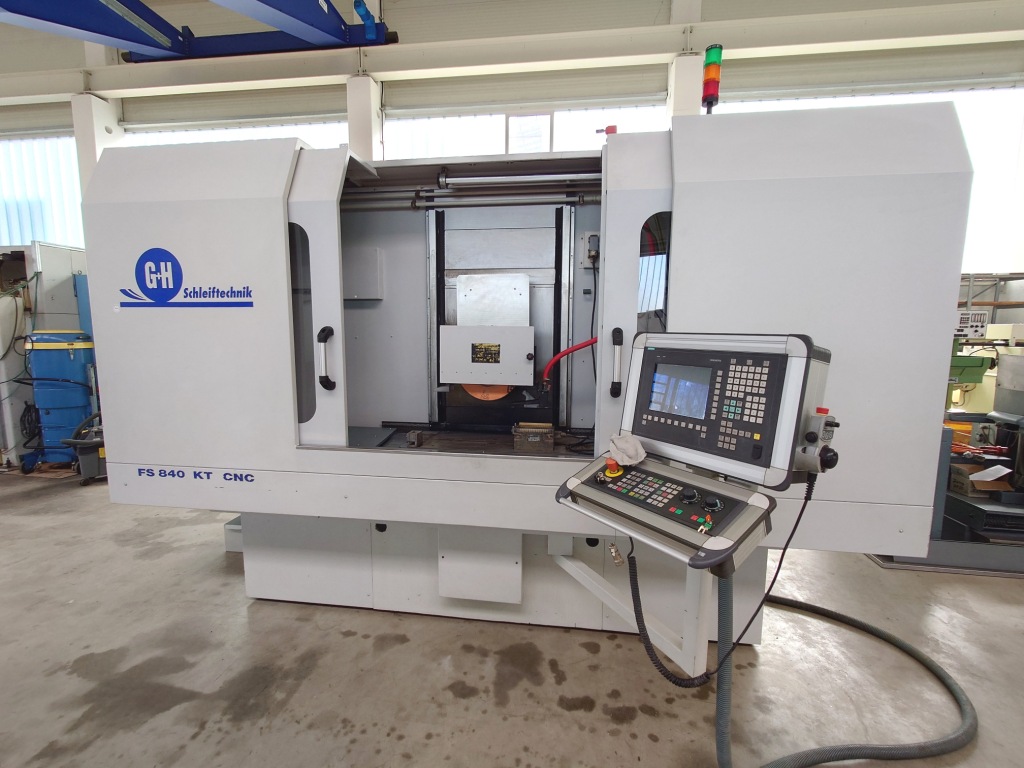

CNC horizontal surface & profile grinding machine

model       FS 840 KT CNC

year         2013                                    Serial no 38040513 _____________________________________________________________



Grinding length max. (table movement 850mm)                          800     mm

Grinding width max. (cross movement 400mm)                           450     mm

Mounting height under new grinding wheel                                  375     mm

Distance table – center of spindle min / max                     140 – 525     mm



Standard size of magnetic plate                                         800 x 400     mm

Max. table load                                                                              700     kg

Table speed                                                                       5 – 35.000     mm/min

Cross-/Vertical quick feed                                                    5 – 4.000     mm/min



Grinding wheel measurements                                  300 x 50 x 76,2     mm (350 x 100 x 76,2)

Cutting spped max.                                                                         45     m/s

Grinding spindle-drive approx.                                                          9     kW



Total electrical load approx.                                 18 kW - 400 V - 50     cycles

Weight approx.                                                                           2.600     kg



Accessories / Special Features:



·    Machine is equipped with a simple to use but freely programmable SIEMENS CNC control model 840 D SolutionLine with additional GEIBEL&HOTZ grinding software. User friendly interface, supported by dialog and graphics, simple programming, also of complex grinding wheel profiling and easy connecting of all the usual grinding cycles.

·    electronic handwheel for 3 axis.

·    Table movement is actuated by ball screw drive (KT), which allows both very high and very low table speeds and is also ideal for profile grinding.

·    Cross feed (Z) and infeed (Y) effected by ball screw drive with incremental glass scale.

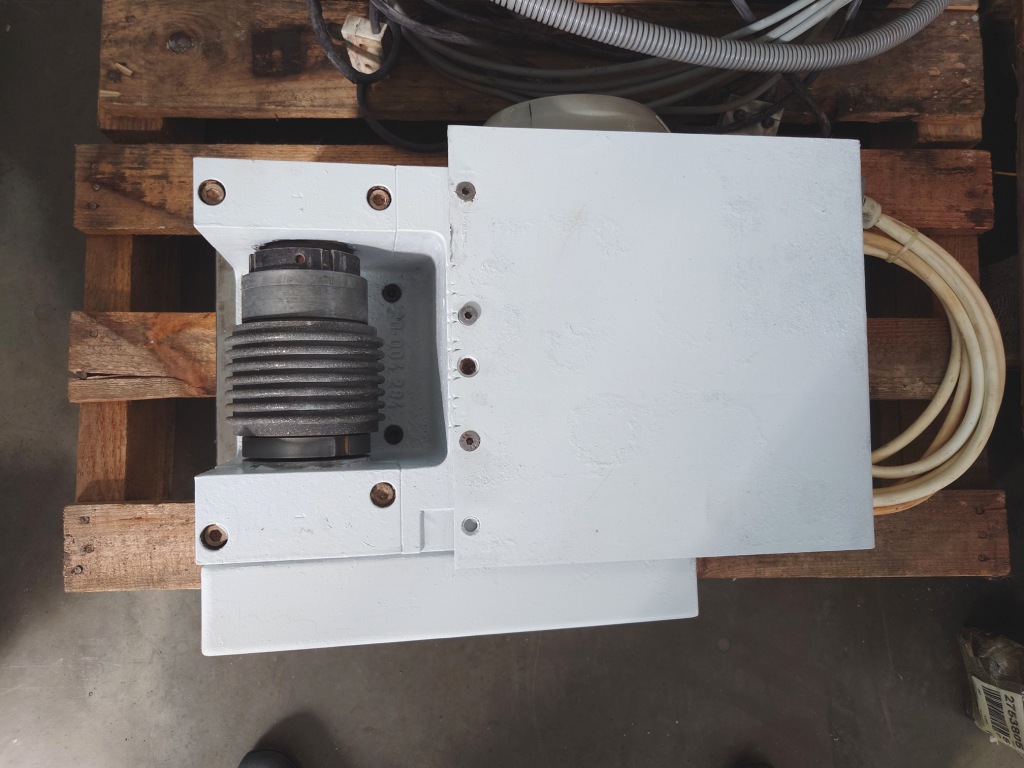

·    Diamond dressing device mounted on the left side of the table (also for profile dressing); additional driven diamond roller dressing device (table-mountable) with automatic dressing cycle, including compensation.

·    HOFMANN balancing device EasyBalancer EB3100 (with installed rpm & vibration sensor)

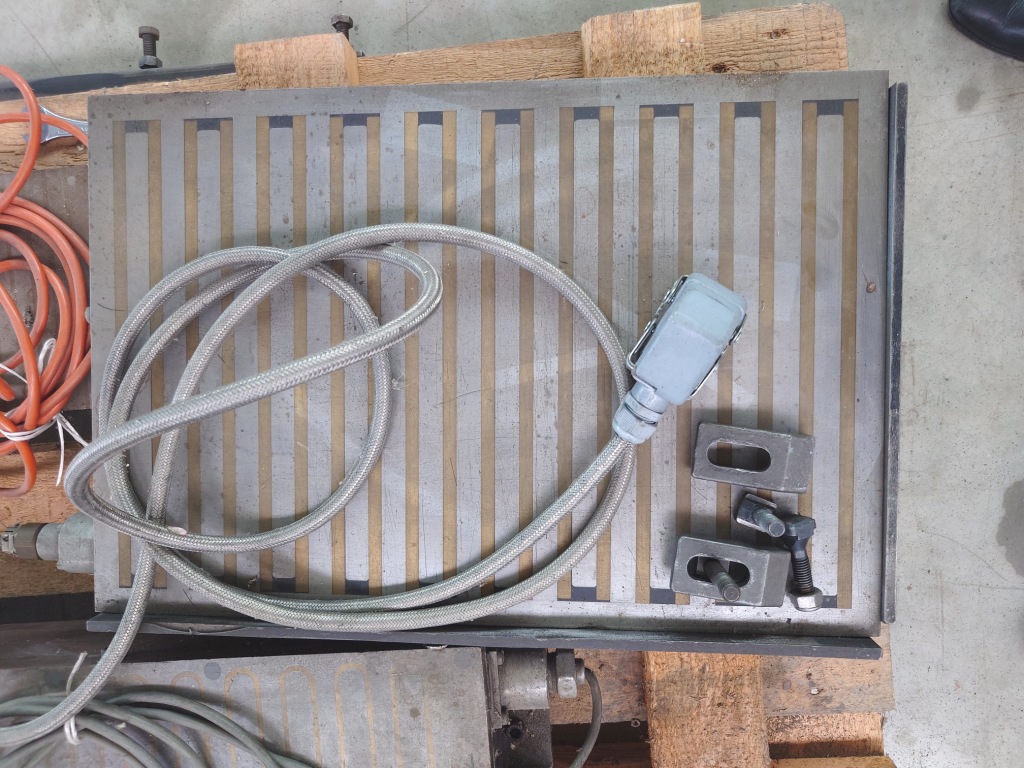

·    Unfortunately currently only a small magnet 110 x 200 mm available.

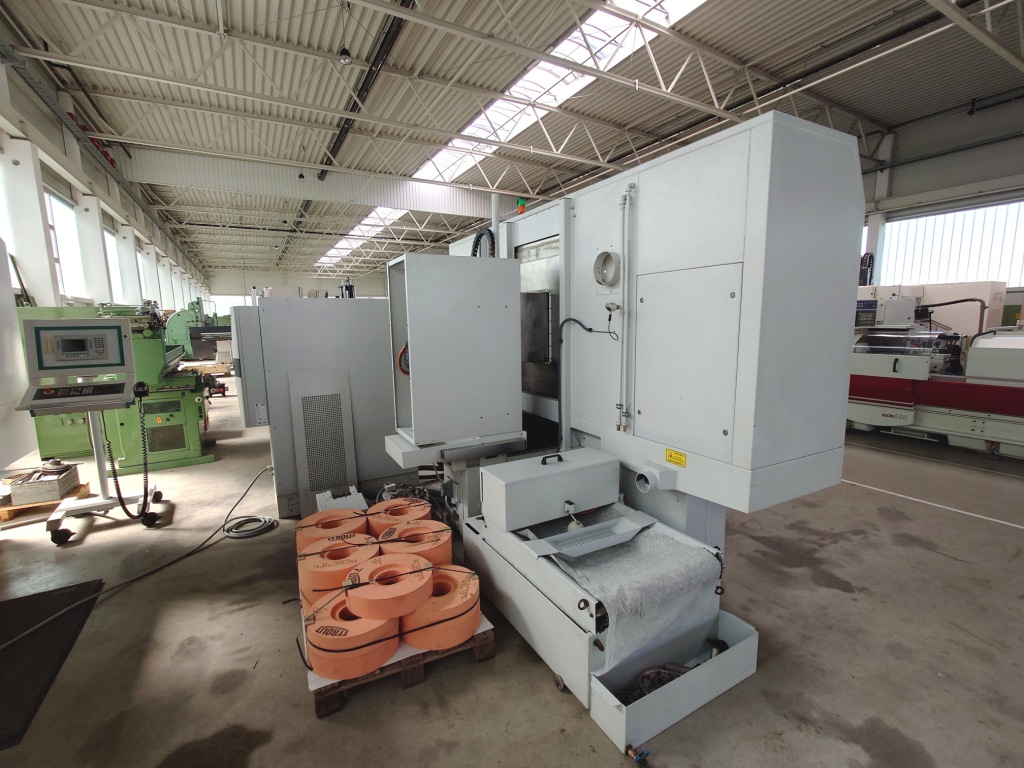

·    Separate band filter coolant filtration unit

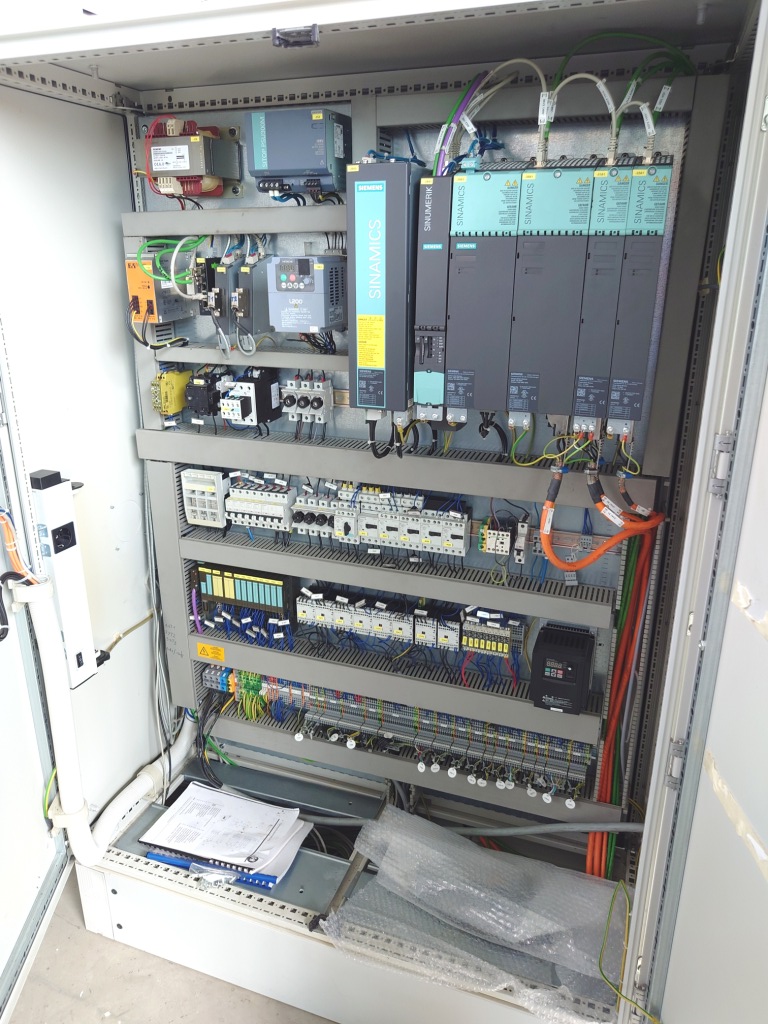

·    Complete enclosure of the working area with electronically safeguarded sliding doors, separate switch cabinet, lamp for working area, various accessories, manuals, etc.





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/GEIBEL-HOTZ-FS840KTCNC/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of surface grinders – CNC or conventional - available.  Please let us know your requirements.
