Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical :



GEIBEL & HOTZ

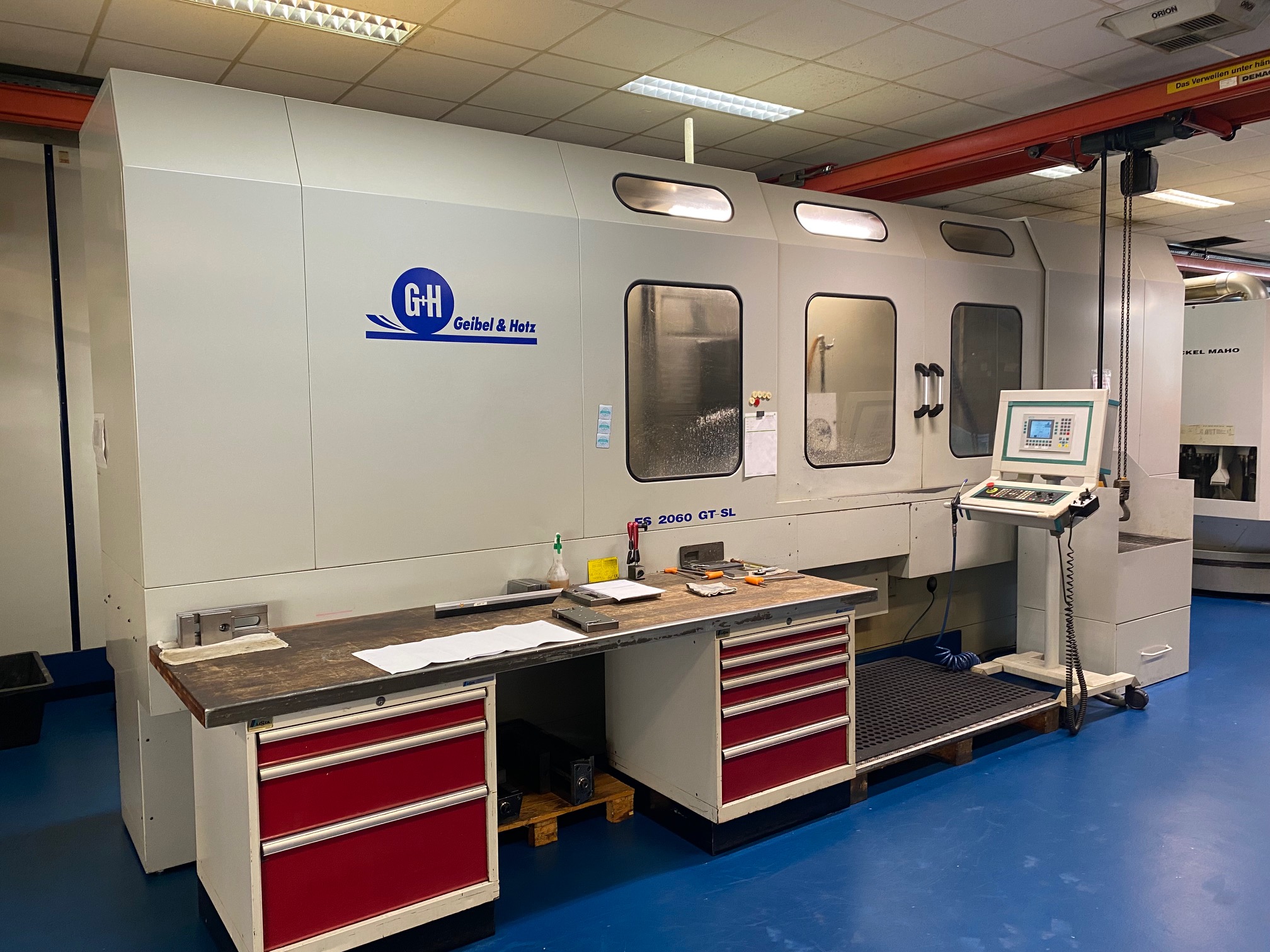

CNC Cycle Controlled Surface- & Profile Grinding Machine

model       FS 2060 – GT SL

year         1998                                              Serial no 1013220998 _____________________________________________________________



Grinding length max. (table movement 2.050 mm)                  2.000     mm

Grinding width max. (cross movement 600 mm)                         600     mm

Mounting height under new grinding wheel                                  600     mm

Distance table – Spindle center min. / max.                       180 – 800     mm



Table size                                                                         2.300 x 550     mm

size of magnetic plate                                                      2.000 x 600     mm

Max. table load                                                                           3.110     kg

Table speed                                                                              0 – 35     m/min

Cross feed intermittend                                                          0,5 – 60     mm/stroke

Cross-/Vertical quick feed                                                100 – 4.000     mm/min



Grinding wheel measurements                                 400 x 100 x 127     mm

Grinding spindle-drive approx.                                                        11     kW



Total electrical load approx.                                 25 kW - 400 V - 50     Hz

Weight approx.                                                                           9.500     kg



Accessories / Special Features:

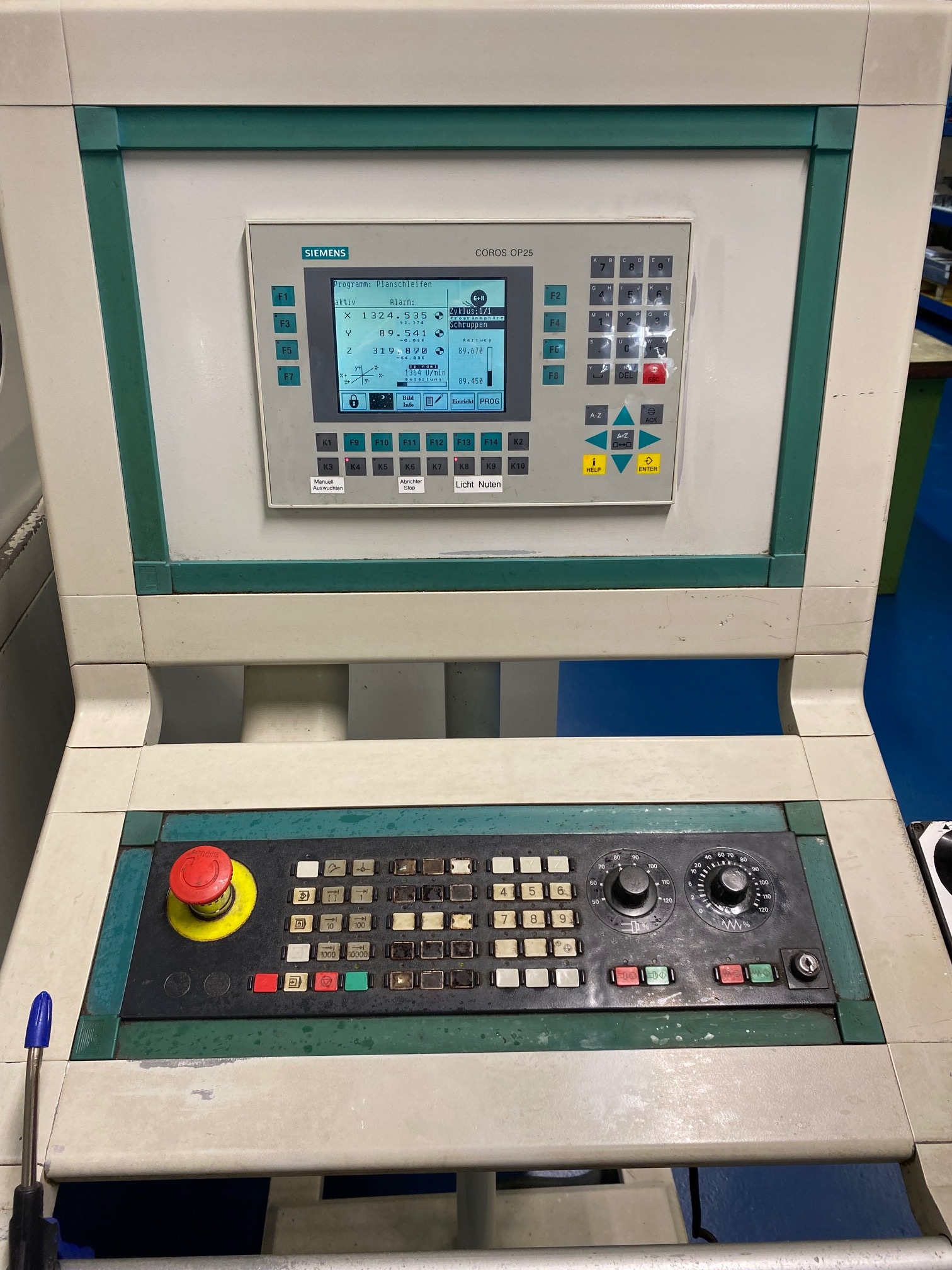

·    Dialog-guided GEIBEL & HOTZ automatic grinding cycle control model SL for 3 axes. Graphically supported data input in absolute dimensions or via teach-in procedures for preprogrammed grinding and dressing cycles. SIEMENS LCD display with softkeys for setting all parameters and easy monitoring axis movements and work progress.

·    Electronic handwheel for 3 axes X, Y, and Z, feed rate switchable from 0.01 / 0.1 / 1 mm/rev.

·    table movement is effected by a rolling ring thread drive (GT), which allows both very high and very low table speeds with constant torque and very high efficiency.

·    cross and vertical movements are effected by a ball screw drive with incremental glass scale.

·    Single-point diamond dresser mounted on the table. (The machine was previously equipped with an EGA 100 electric straight-line dresser, which is dismounted.)

·    MPM fully automatic balancing device AB 100 (the flange mounted sensor is currently missing).

·    Mounted, fine-pole electromagnet plate 2,000 x 600 mm with adjustable holding force

·    Wet grinding facility with universal paper belt filter UPF 100 and magnetic separator

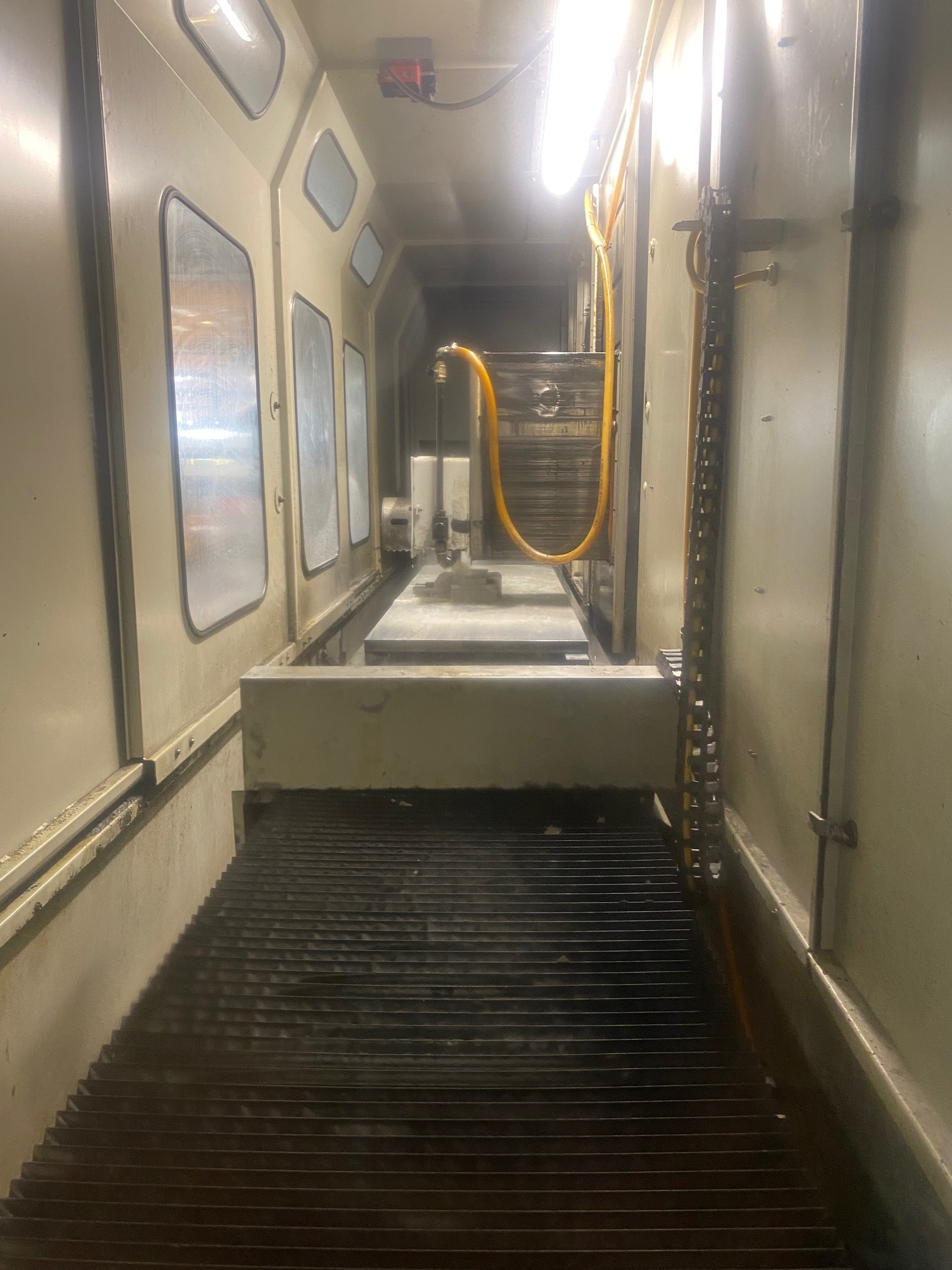

·    Complete enclosure of the working area with electronically safeguarded sliding doors

·    sep. switch cabinet, sep. mobile control panel, various accessories, manuals , etc.





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view soon a video of the machine running :
                        https://www.geiger-germany.com/images/videos/GEIBEL-HOTZ-FS2060GTSL/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading
