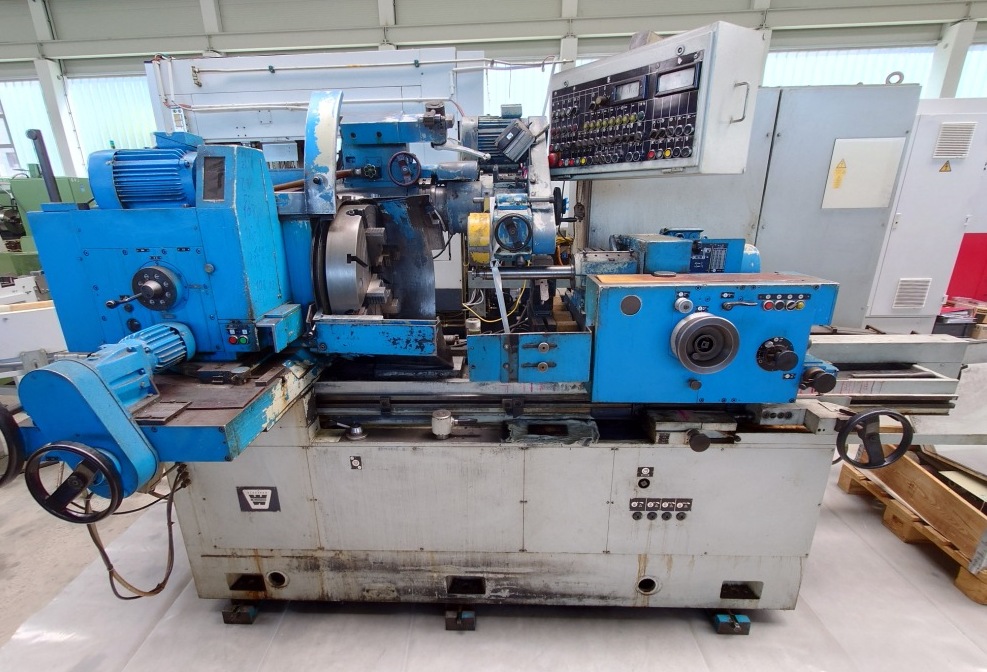

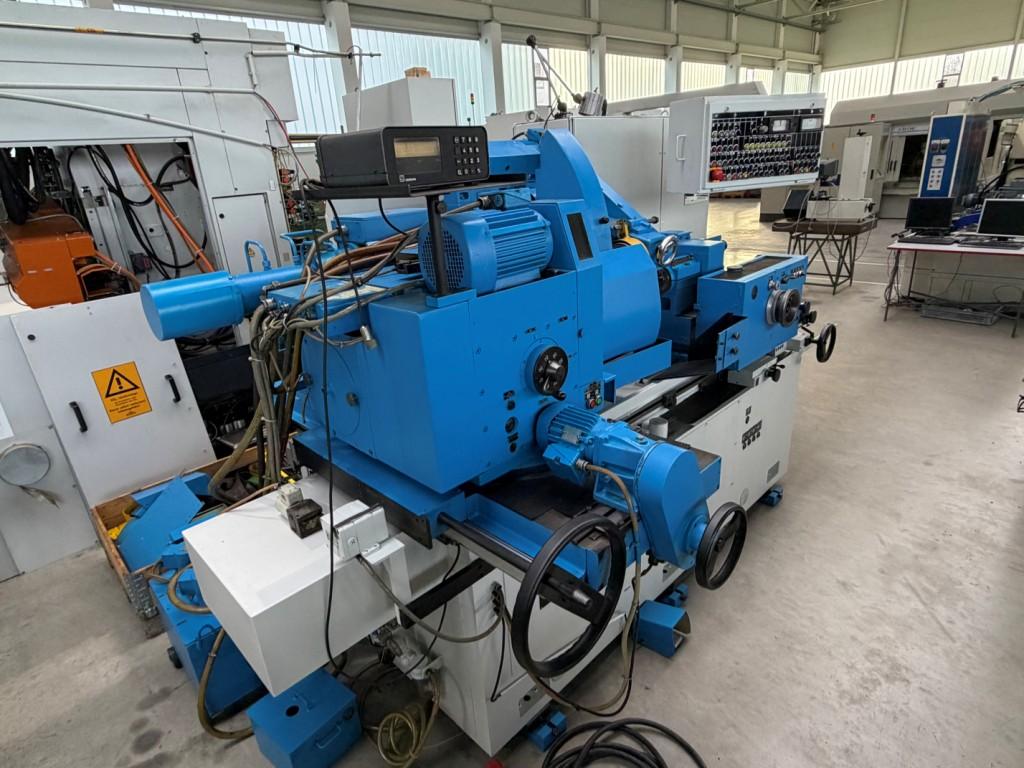

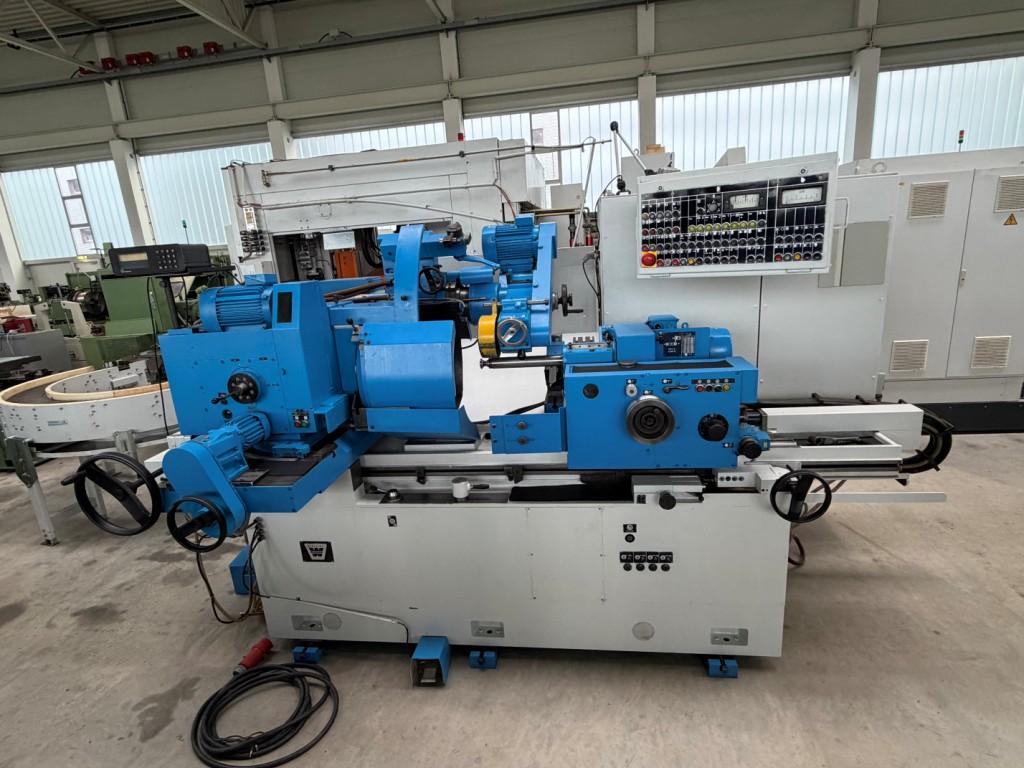

Hydraulic Internal Grinding Machine with Face Grinding Device

model       SI 6/1 AS-N x 315

year         1991                                              Serial no 611024 _____________________________________________________________



Internal grinding diameter                                                                40 - 400   mm

Internal Grinding depth, max.                                                                  315   mm

Max. grindable External dia.                                                                   400   mm

Weight of workpiece without steady, max.                                               630   kg



Workpiece Swing Ø, with / without safety hood, max.                       500 / 600   mm

Height of centre above table                                                                   360   mm

16 step workpiece spindle speeds                                                   40 – 400   rpm

Workpiece spindle bore, approx.                                                               53   mm

Workpiece headstock swivelling max.                                                       30   °

Adjustment of workpiece headstock position crosswise, max.                   400   mm



Automatic cross traverse of grinding head                                                 70   mm

Adjustment of grinding head position on slide crosswise, approx.              100   mm

Feed of grinding head, intemittendly                                         0.001 – 0.025   mm/stroke

Feed of grinding head, continually                                                      0,1 – 1   mm/min



Table stroke, max.                                                                                 630   mm

Table speeds infinitely variable                                                          0,1 – 8   m/min    (10 m/min)

Distance workpiece headstock and grinding slide, max.                         1,250   mm

Adjustment of Grinding spindel stock on table                                          520   mm



Spindle drive, approx.                                                                             7.5   kW

Total electrical load, approx.                                         17 kW  -  380 V  -  50   Hz

Weight, approx.                                                                                  6,000   kg



Accessories / Special Features:



·      Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces.

·      Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously

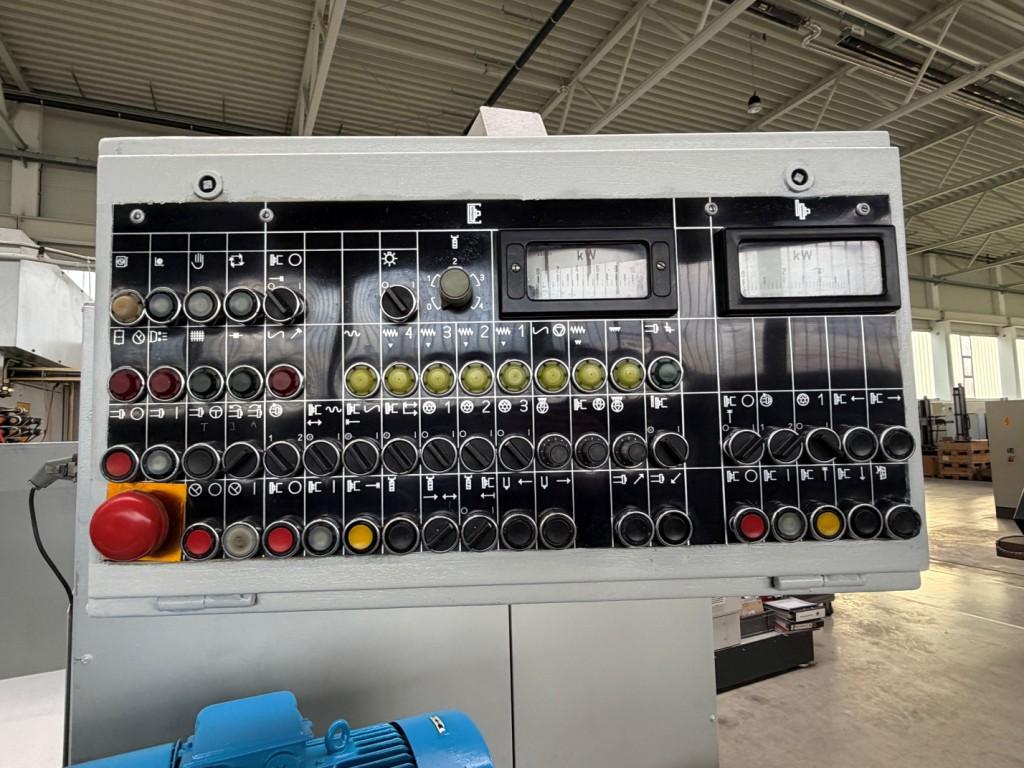

·      Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle

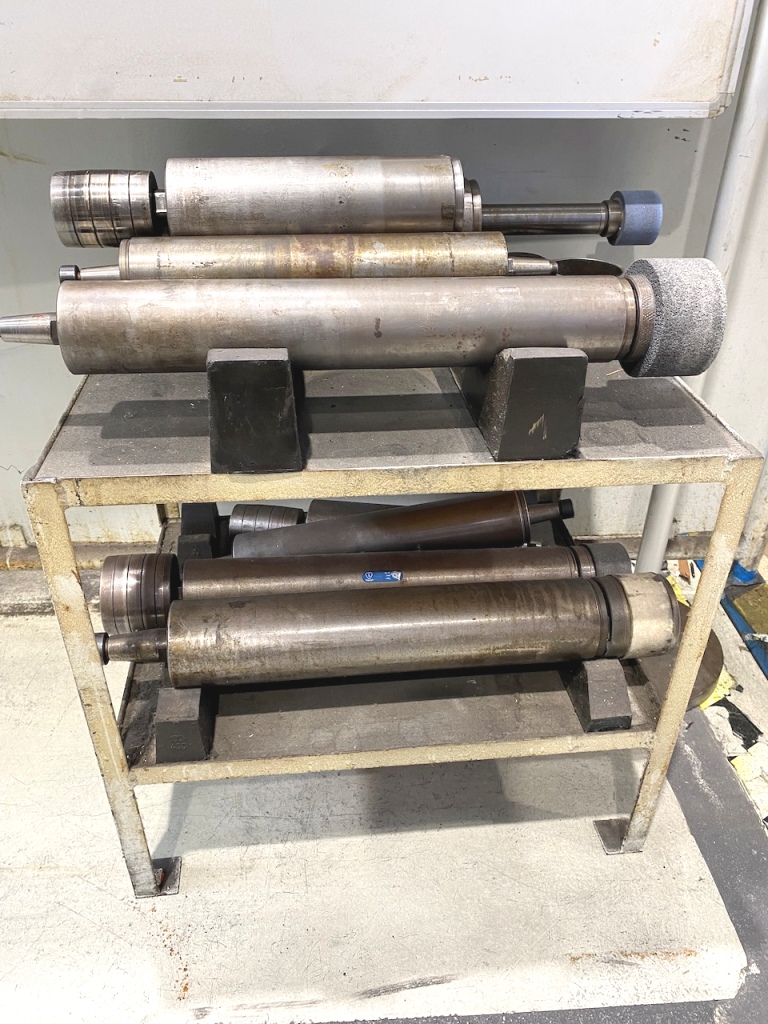

·      Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters.

·      Dressing device for both grinding spindles

·      HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock

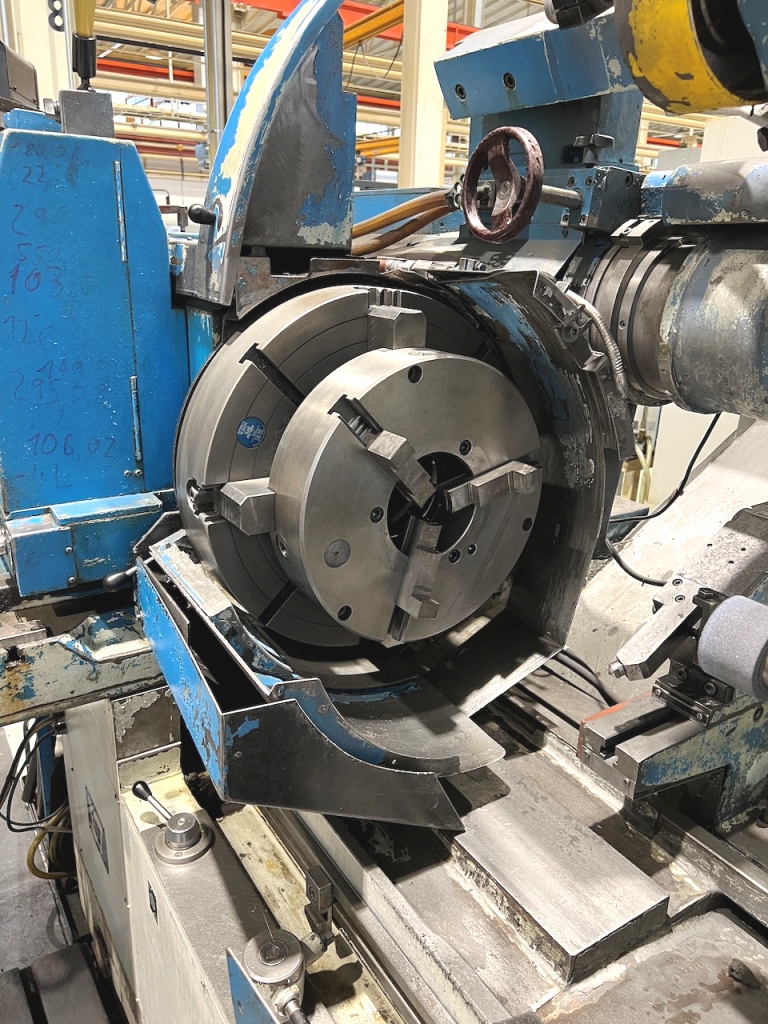

·      A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch,

·      Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator.





Condition  :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view a video of the machine running :
                        https://www.geiger-germany.com/images/videos/WMW-GLAUCHAU-SI6/vid.mp4 !

Delivery     :     immediately available, FCA Metzingen

Payment    :     100 % Net, after conclusion of contract, before loading
