Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :



KIRNER

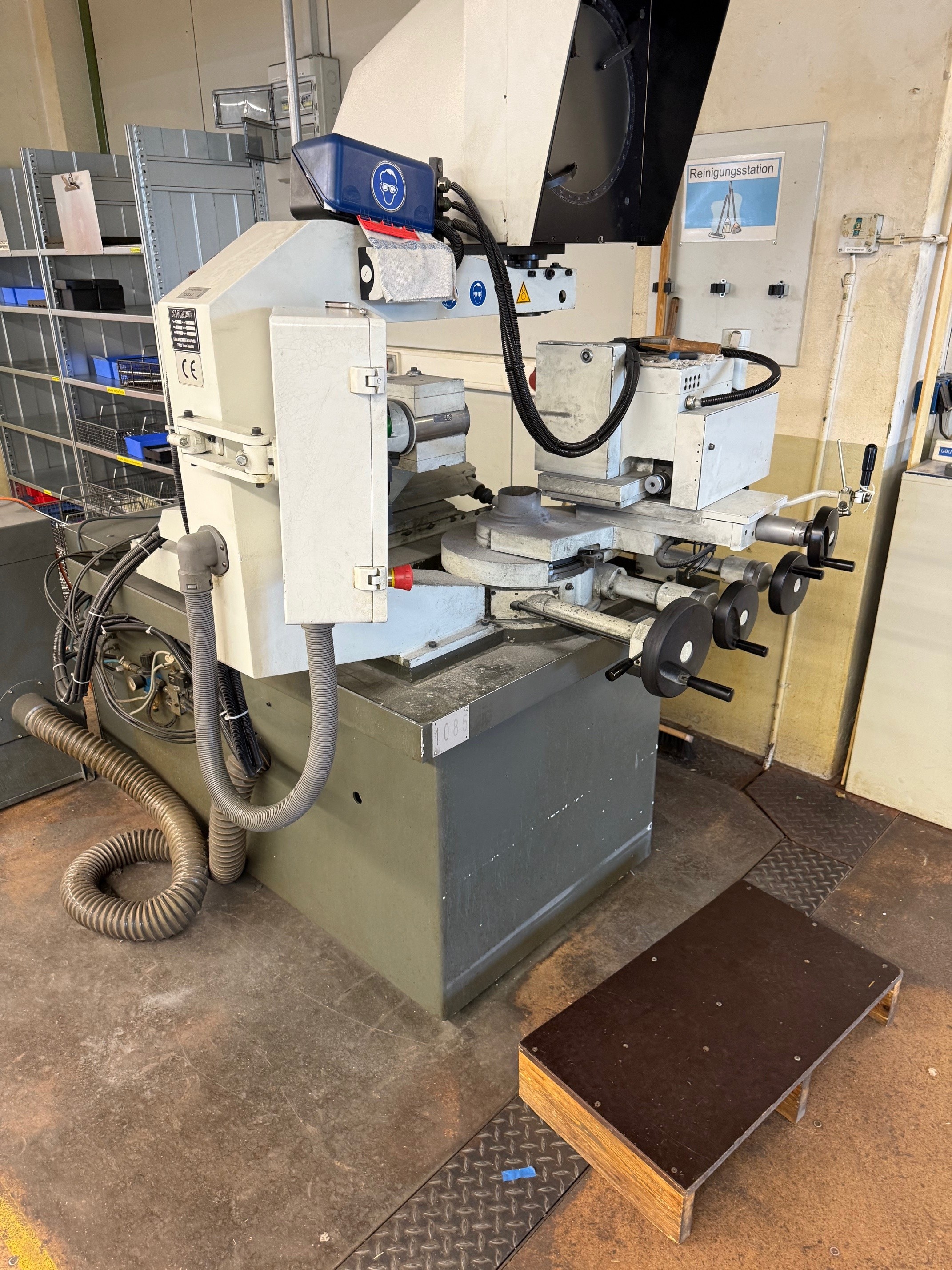

Diamant- / CBN-Wheel Truing- and Dressing-Machine with Camera System

model                   K 45

year                      2004

________________________________________________________



Diamon-/CBN-wheel diameter min. / max.                                        500     mm

Diamon-/CBN-wheel width max.                                                         40     mm

Spindle speeds                                                                       160 - 2000     rpm



X-axis stroke                                                                                      175     mm

Y-axis stroke                                                                                      110     mm



Oszillation stroke Z-axis                                                                 0 - 70     mm

Oszillation frequency                                         7 – 0.7 s/Double Stroke                                                                                                           /min



Dressing wheel Width                                                                          25     mm

Dressing wheel spindle speeds                                                                    rpm

Dressing spindle power                                                                                kW



Machine dimensions approx.                                                                       mm

Weight approx.                                                                                1.800     kg



Accessories / Special Features:

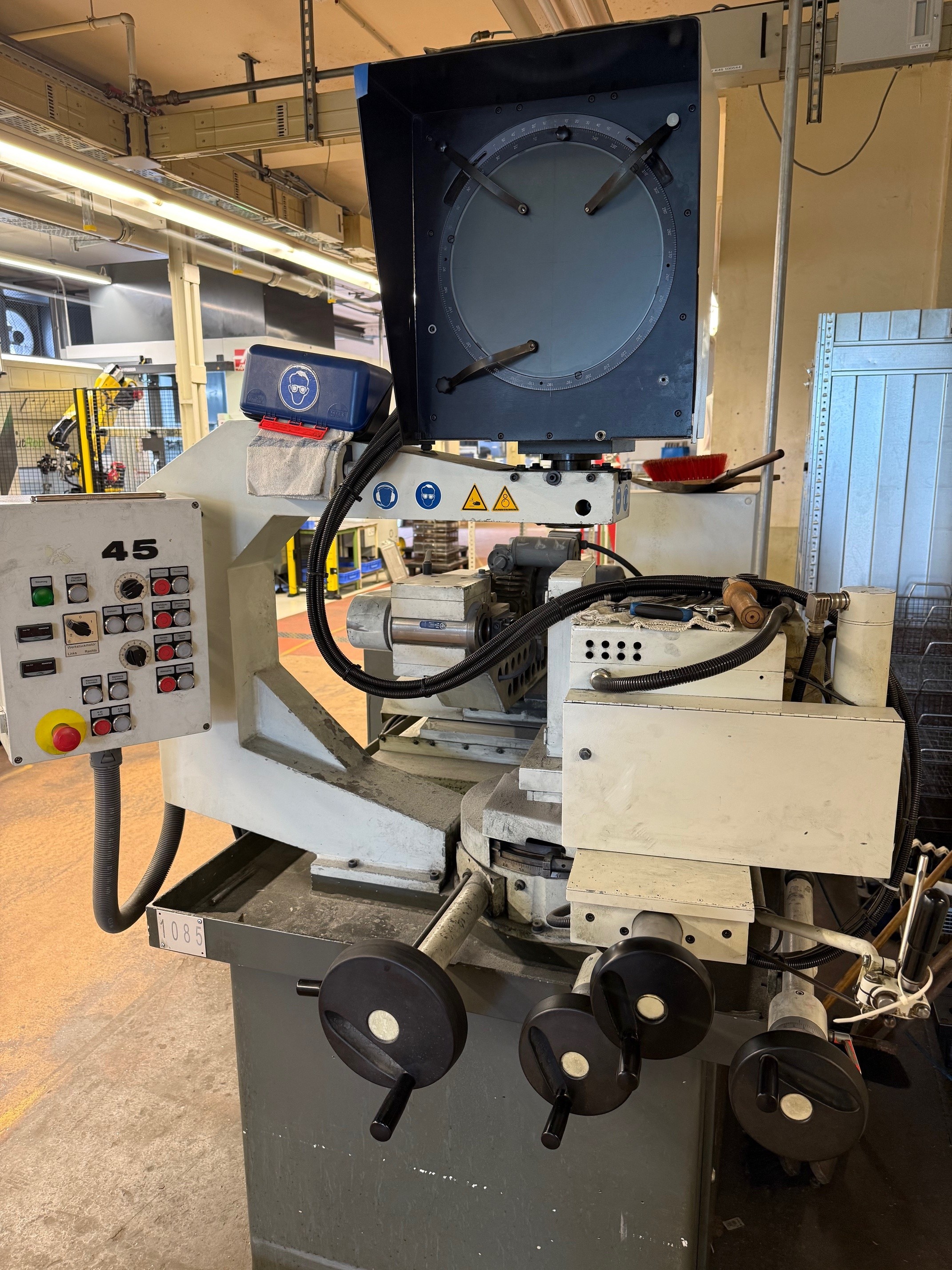

• Profile control optics with projector featuring 10x magnification for positioning,

  monitoring, and measuring.

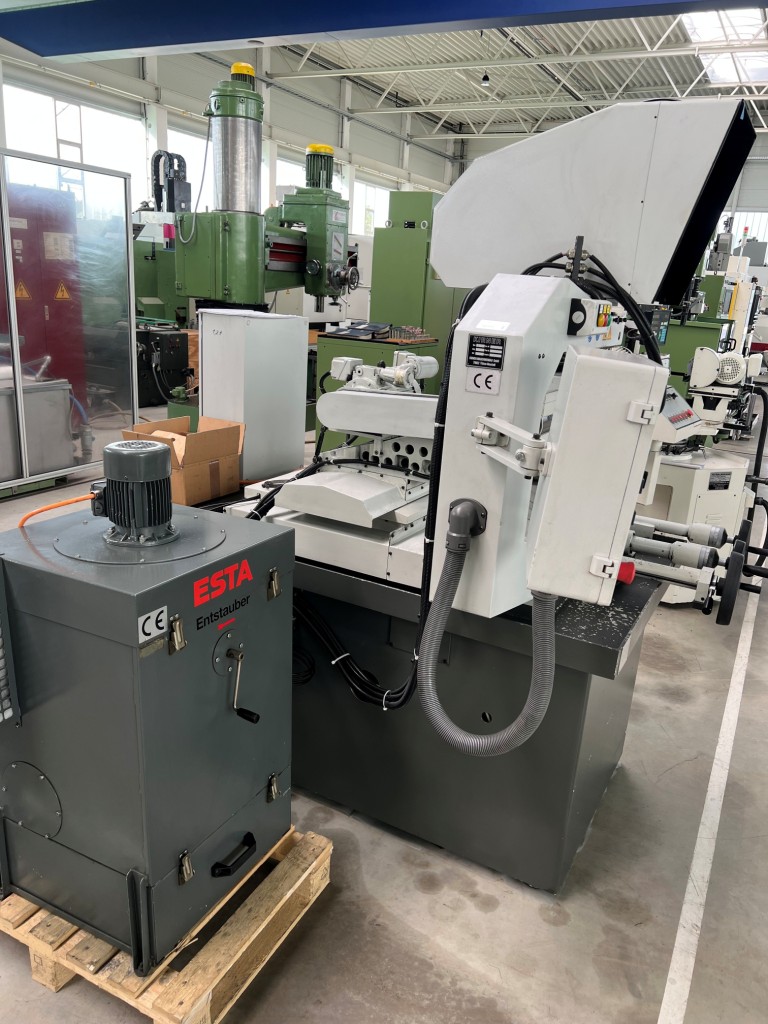

• Dust extraction system with filtration and storage.

• Workpiece spindle and dressing spindle equipped with continuously variable speeds.

• Unfortunately, no additional accessories are available at the moment.







Condition :     good to very good, can be inspected under power !

                        Please click here to view a video of the machine running :
                        https://www.geiger-germany.com/images/videos/KIRNER-K45/vid.mp4!

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading
