Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :

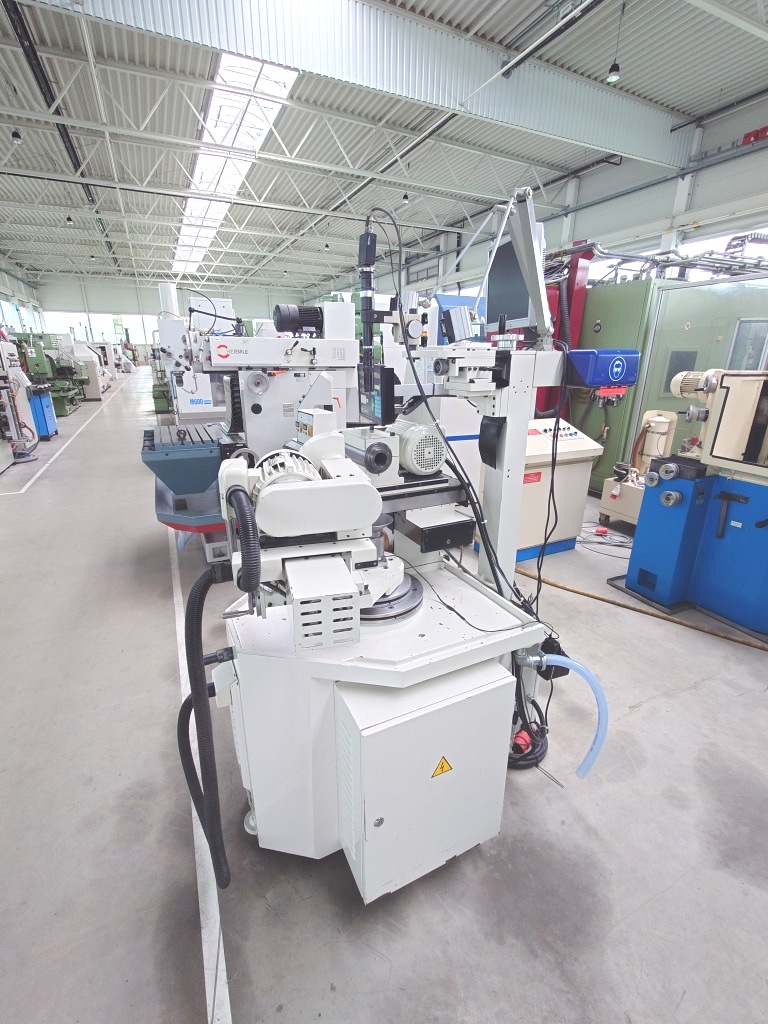

FARMAN

Diamant- / CBN-Wheel Truing- and Dressing-Machine

model                   FC-250 W

year                      2005

________________________________________________________



Diamon-/CBN-wheel diameter min. / max.                                 50 / 250     mm

Diamon-/CBN-wheel width max.                                                         70     mm

Spindle speeds                                                                        100 -1000     rpm

Dressing radius range                                                                0,1 – 60     mm

Spindle power                                                                                     1,5     kW



X-axis stroke                                                                                      160     mm

Y-axis stroke                                                                                      130     mm



Oszillation stroke Z-axis                                                                 0 - 70     mm

Oszillation frequency                                                                    30 - 60                                                                                                           /min



Dressing wheel bore x width x diameter                       31,75 x 13 x 180     mm

Dressing wheel spindle speeds                                              200 - 2000     rpm

Dressing spindle power                                                                    0,75    kW



Machine dimensions approx.                                   2500 x 1500 x 2100     mm

Weight approx.                                                                                1.000     kg



Zubehör / Sonderausstattung:



·        WANHAO digital readout WE68003 for the X- & Y-axis as well as for the oszillation travel

·        Camera-System with zoom up to 4,5x with Monitor for positioning, monitoring and measuring.

·        Purging/Sealing airflow for keeping the Camera lenses clean from dust.

·        Prepared for working with a dust extraction (but currently without the actual vacuum suction and filtration system)

·        Unfortunately no further accessories with the machine.

·        Working area lamps, compact design, easy to operate





Condition :     good to very good, can be inspected under power !

                        Please click here to view a video of the machine running :
                        https://www.geiger-germany.com/images/videos/FARMAN-FC250W/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading
