Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :



GEIBEL & HOTZ

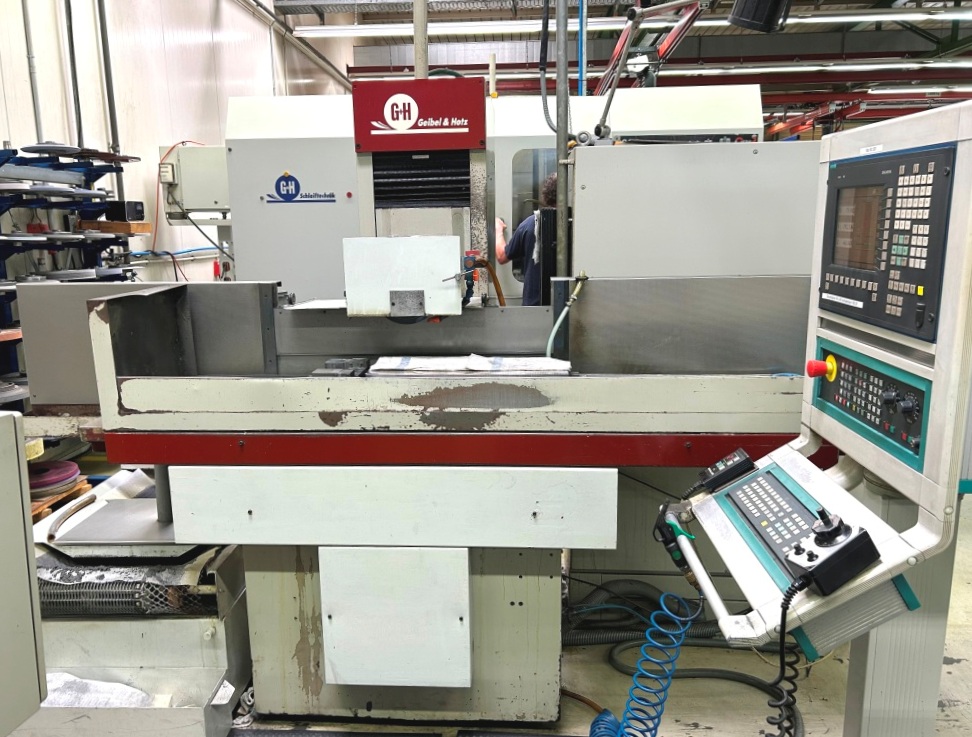

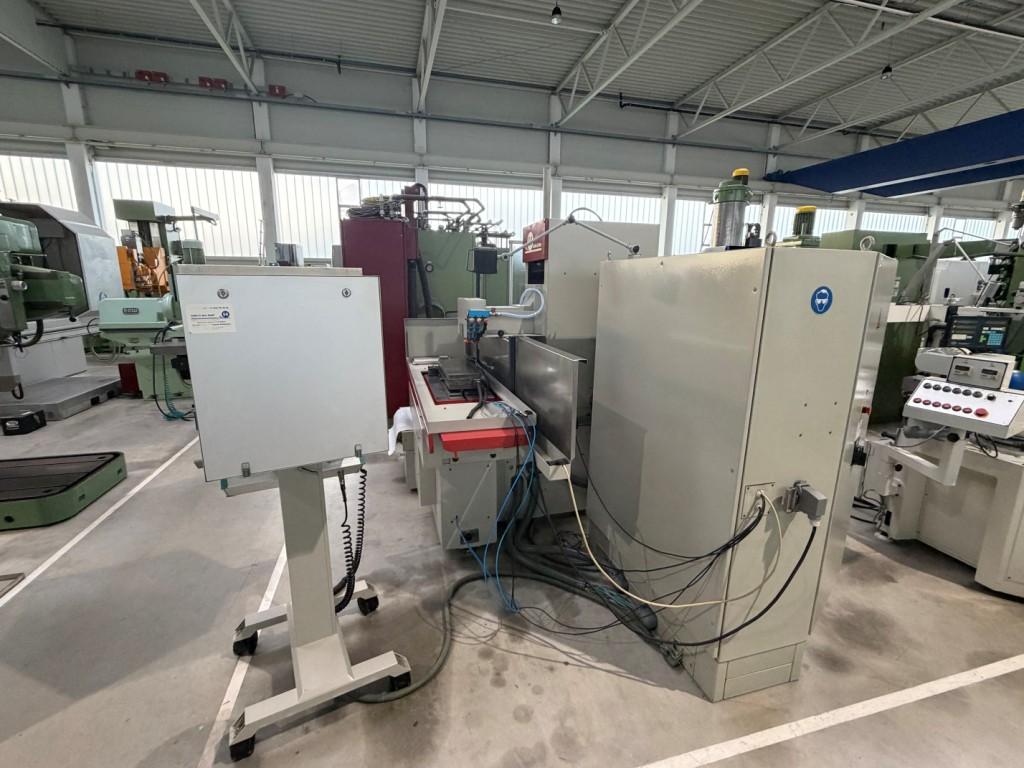

CNC horizontal surface & profile grinding machine

model       FS 635 - Z CNC

year         1996                                    Serial no 9710396 _____________________________________________________________



Grinding length max. (table movement 660 mm)                         600     mm

Grinding width max. (cross movement 360 mm)                          350     mm

Mounting height under new grinding wheel                                  375     mm

Distance table – center of spindle min / max                     140 – 525     mm



Standard size of magnetic plate                                         600 x 350     mm

Table size                                                                            820 x 350     mm

Max. table load                                                                              400     kg

Table speed                                                                       5 – 35.000     mm/min

Cross movement, intermittently                                                3 – 40     mm

Cross-/Vertical quick feed                                                                 5     m/min



Grinding wheel measurements                                  300 x 50 x 76,2     mm

Grinding spindle speeds, variable                                1.000 – 3.000     rpm

Grinding spindle-drive approx.                                                       7,5     kW



Total electrical load approx.                                 15 kW - 400 V - 50     Hz

Weight approx.                                                                           2.600     kg



Accessories / Special Features:

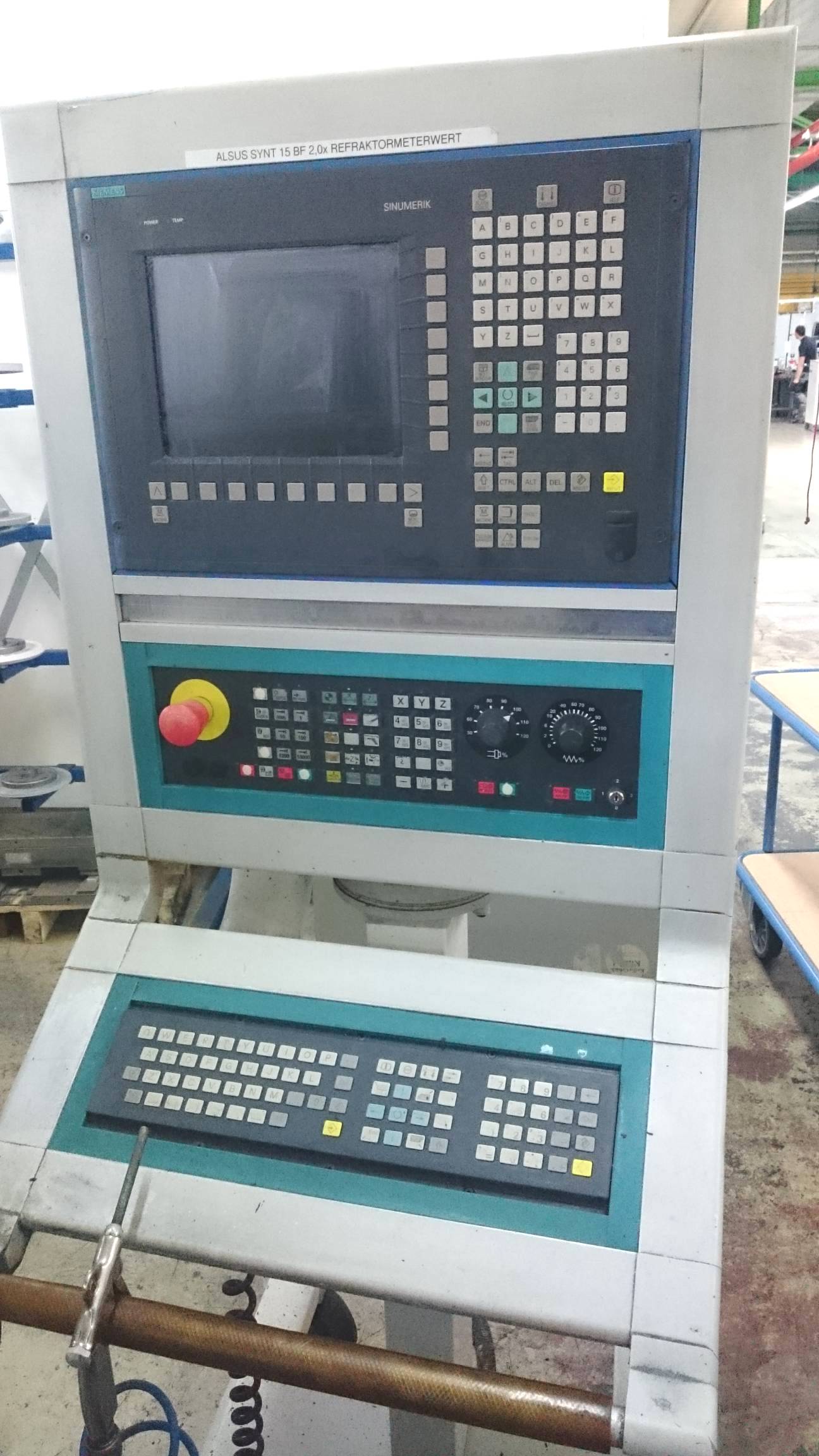

·    SIEMENS CNC control model 840 D with comprehensivel GEIBEL&HOTZ grinding software. User friendly interface, supported by dialog and graphics, simple programming also of complex grinding wheel profiling and easy linking of grinding cycles.

·    All standard grinding-programms and cycles as surface and multiple surfaces grinding with roughing-finishing-sparkout- return, plunge in grinding, automatic dressing cycle with compensation, etc.

·    electronic handwheel for 3 axis; cross feed (Z) and infeed (Y) effected by ball screw drive.

·    Table movement is actuated by belt drive (Z), which allows both very high and very low table speeds and is also ideal for profile grinding.

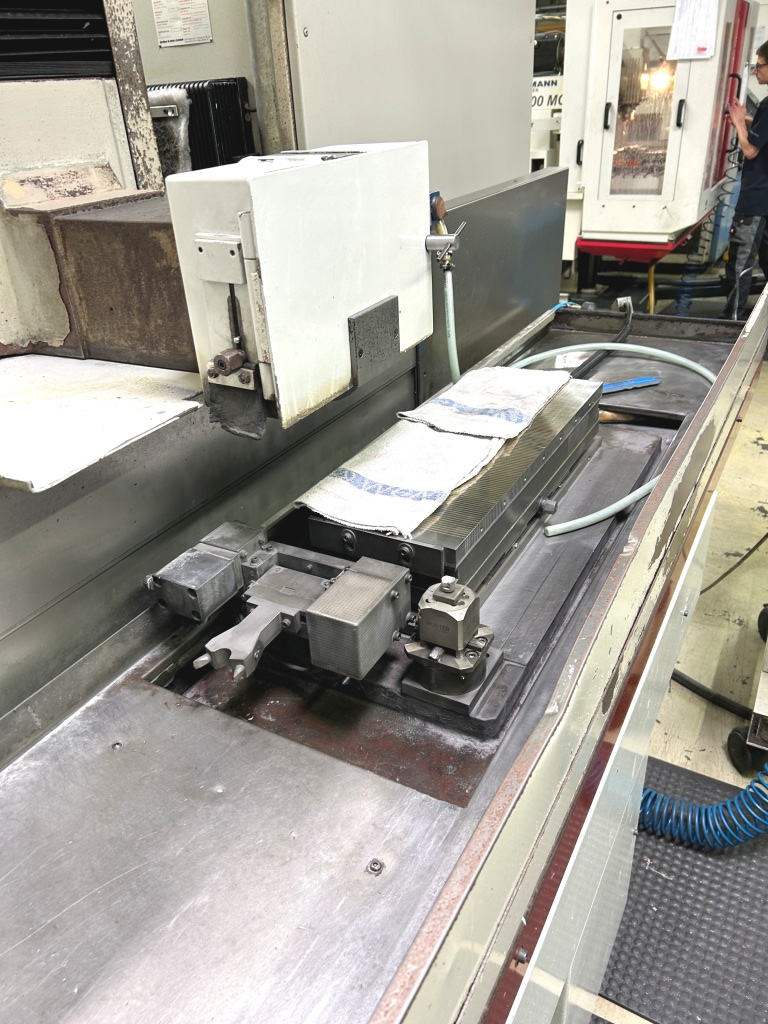

·    Hydraulically upwarding diamond dressing device mounted on the left side of the table (also for profile dressing); additional fixed dresser with automatic dressing cycle, including compensation.

·    Mounted sinus tilting magnetic plate 600 x 200 mm, fine pole division.

·    Separate paper band coolant filtration unit, separate switch cabinet, lamp for working area, various accessories, manuals, etc.





Condition :     very good, universal machine for all sorts of grinding tasks !

                        Please click here to view a video of the machine running :
                        https://www.geiger-germany.com/images/videos/GEIBEL-HOTZ-FS635ZCNC/vid.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



We always have a large selection of surface grinders – CNC or conventional - available.  Please let us know your requirements.
