Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :



ELB

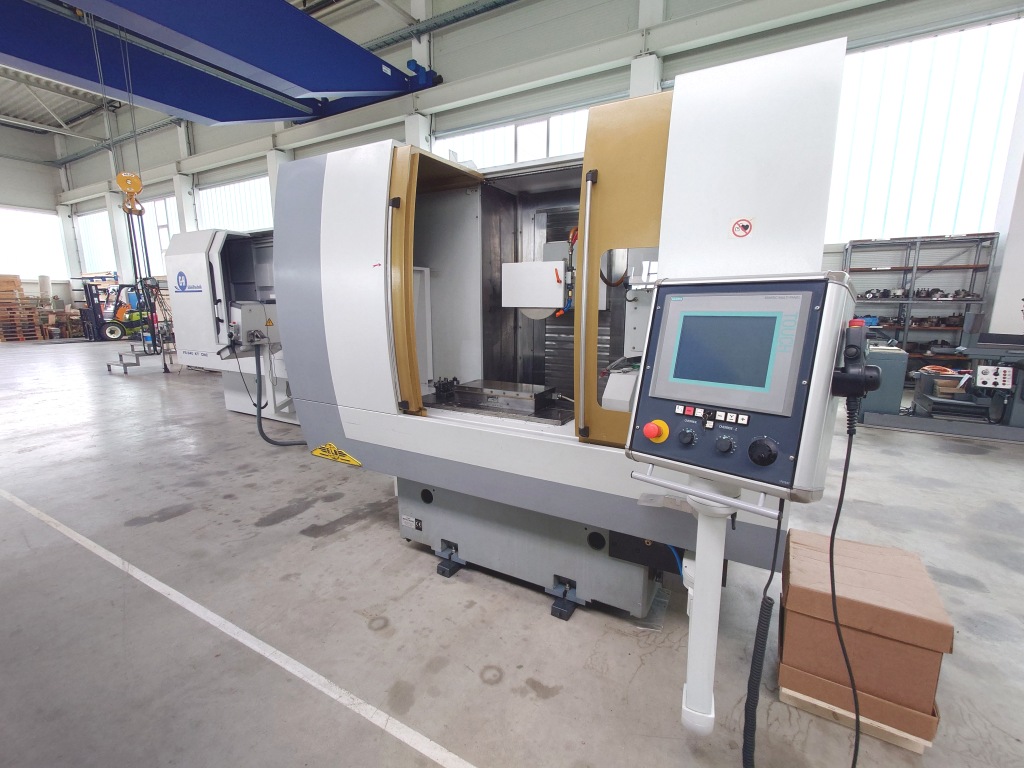

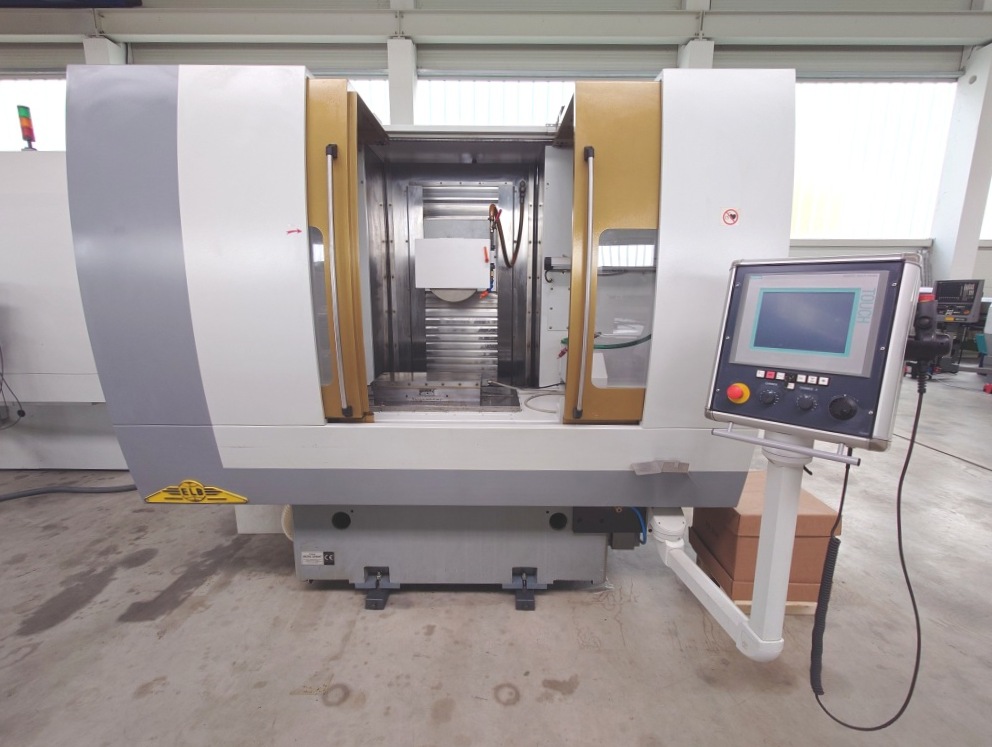

CNC horizontal surface & profile grinding machine

model       smartLine N6 ZRT STC

year         2011                                                        # 522323 _____________________________________________________________



Grinding length max. (table movement 790 mm)                         600     mm

Grinding width max. (cross movement 400 mm)                          400     mm

Mounting height under new grinding wheel                                  500     mm

Distance table – center of spindle min / max                     150 – 650     mm



Standard size of magnetic plate                                         600 x 400     mm

Table clamping surface                                                       960 x 400     mm

Max. table load                                                                              600     kg

Table speed                                                                              2 – 60     m/min

Cross-/Vertical quick feed                                              1.600 / 2.000     mm/min



Grinding wheel measurements                                  300 x 50 x 76,2     mm (400 x 100 x 76,2)

Grinding Spindle speed max., variable                                      5.500     rpm

Grinding spindle drive approx.                                                       5,5     kW



Total electrical load approx.                                 26 kW - 400 V - 50     cycles

Weight approx.                                                                           5.000     kg



Zubehör / Sonderausstattung

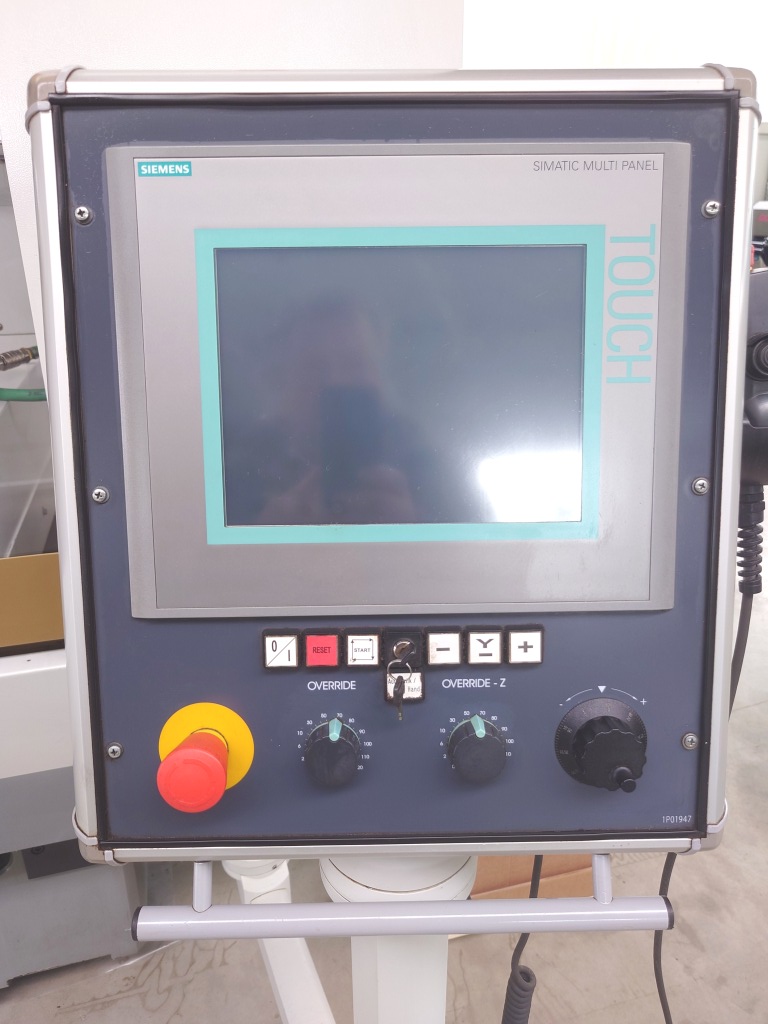

·    SIEMENS CNC control with touch panel. ELB workshop-oriented grinding software STC for manual and automatic surface and profile grinding.

·    Graphic-supported input and teach-in procedure, settings can be adjusted in automatic mode, manual feed via digital handwheel in all axes.

·    Automatic program sequence: roughing, finishing, and spark-out, return stroke , multiple plunge grinding, automatic dressing with compensation, ECO grinding (combined plunge and surface grinding), special program for groove and face grinding (including back-dressing of the grinding wheel), special grinding program for step grinding, sophisticated grinding wheel management.

·    Table movement is via ZRT toothed belt drive; the rapid stroke technology allows high material removal rates without thermal damage.

·    Cross feed (Z) and Downfeed (Y) by ball screw drive with variable-speed AC motor and absolute linear scales, resolution of 0.0001 mm.

·    Single-diamond straight dressing block, additional multi-diamond profile dressing block, both table-mounted

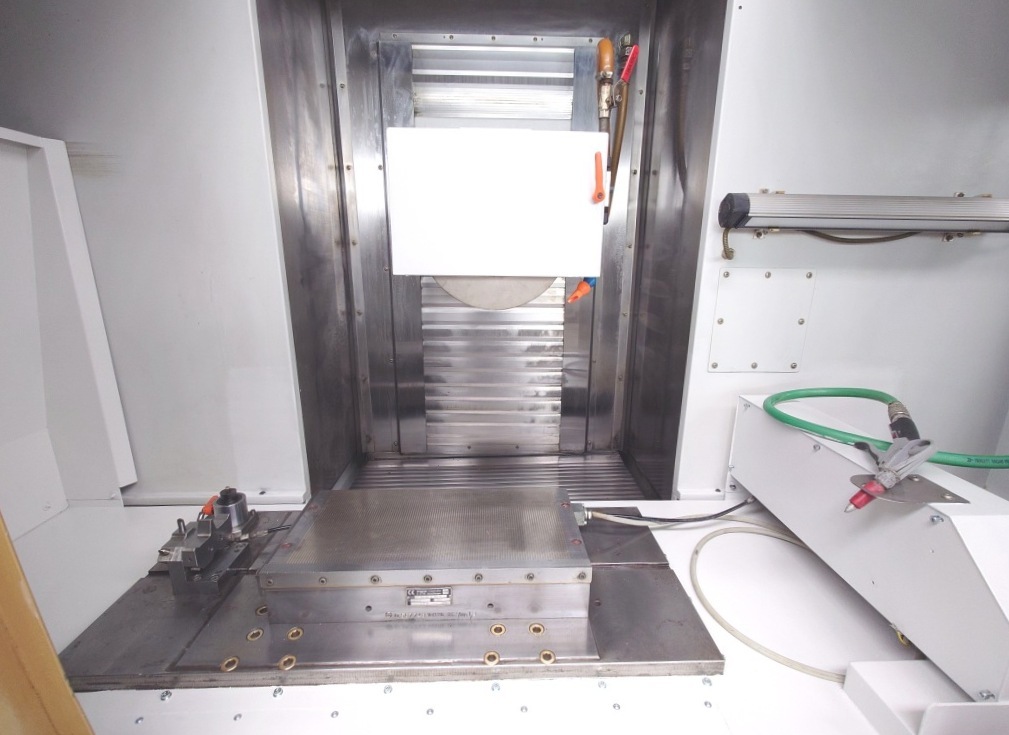

·    Currently mounted magnetic plate 400 x 150 mm

·    Microgranite machine bed with excellent damping and thermal properties

·    Wet grinding device with separate paper belt coolant filter

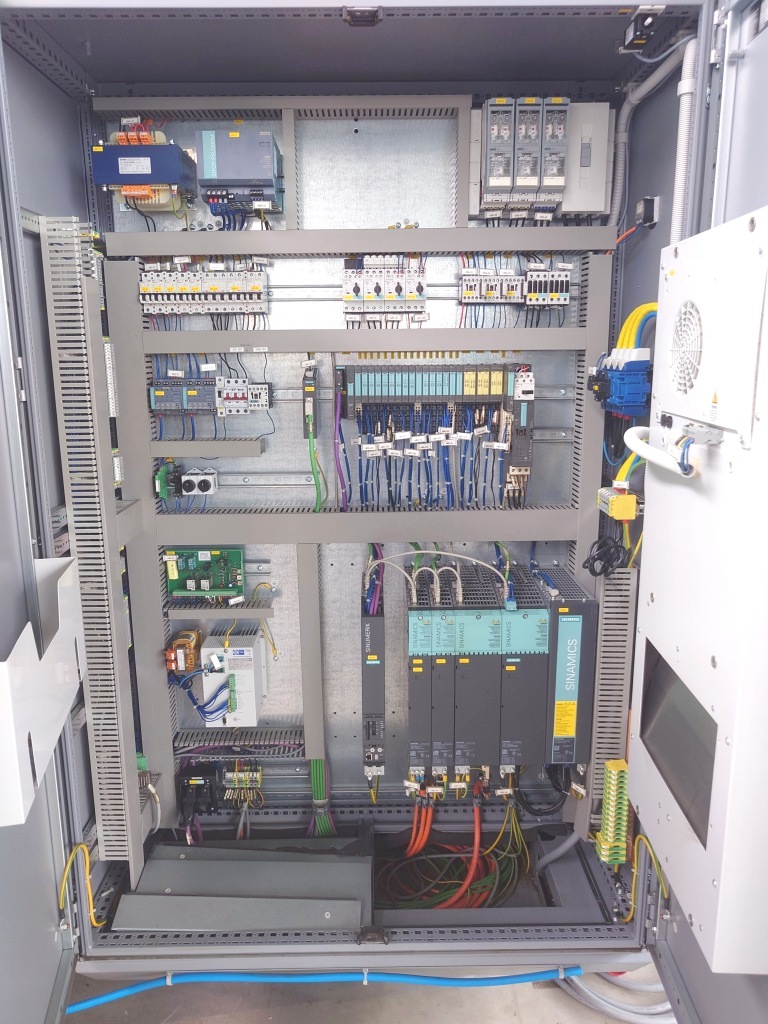

·    Complete enclosure of the work area with safety sliding doors, oil mist extraction, separate control cabinet, work light, various accessories, and operating instructions





Condition  :     very good, universal machine! Please click here to view a video of the machine running :

                        https://www.geiger-germany.com/images/videos/ELB-smartLineN6ZRTSTC/vid.mp4 !

Delivery     :     immediately available, FCA Metzingen

Payment    :     100 % Net, after conclusion of contract, before loading
