Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :



STÄHLI      (CH)

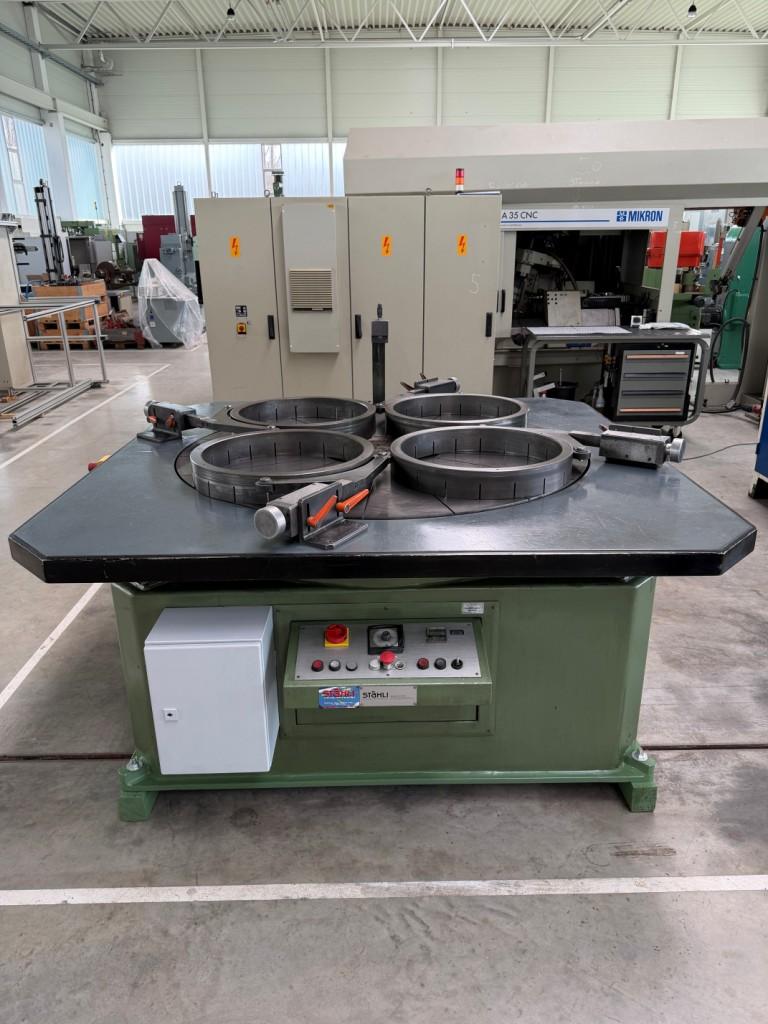

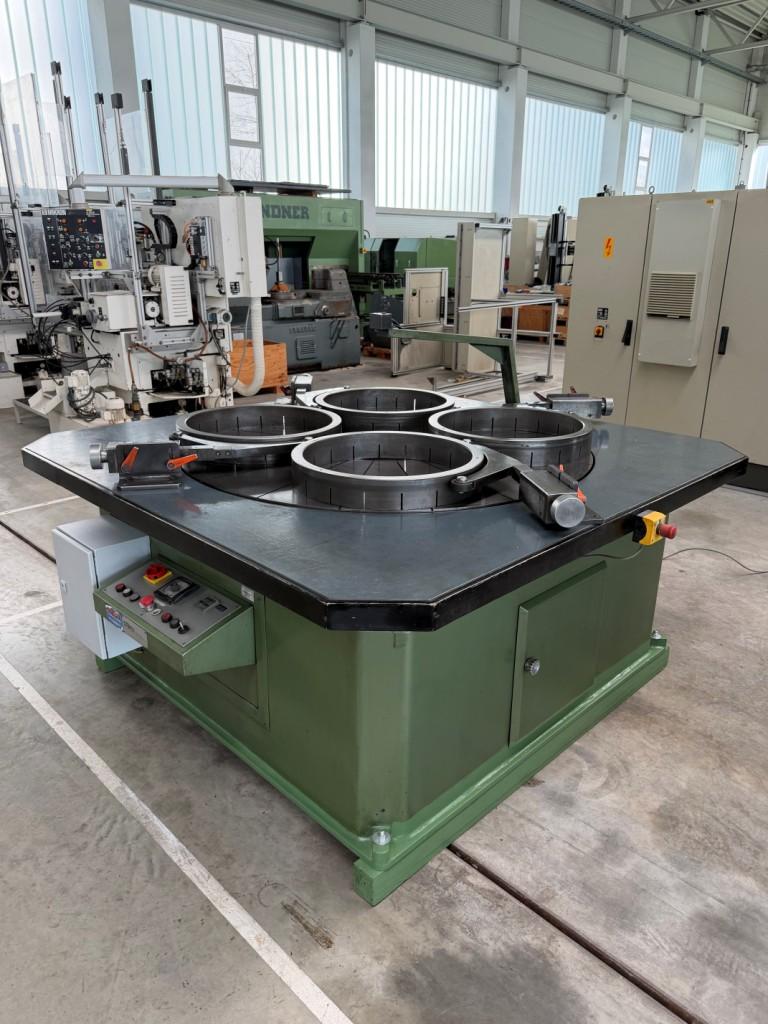

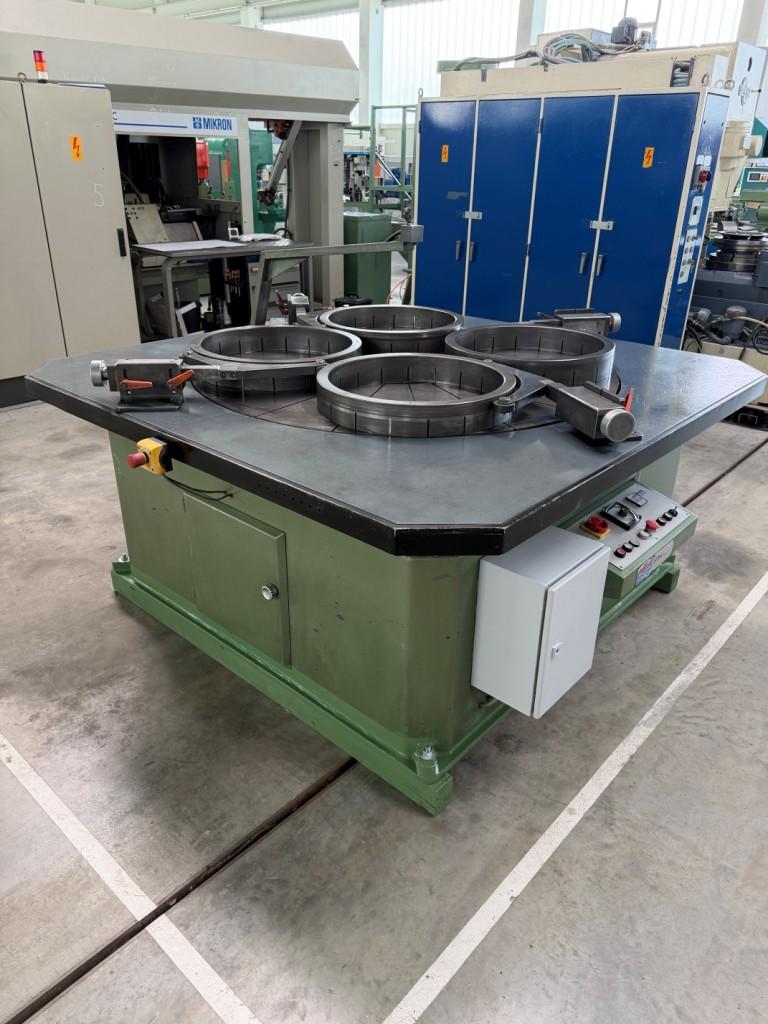

Universal 4 Station surface lapping machine

model       ML 1500-4

year         1976 / 2002 reconditioned                      # 1500.0004 _____________________________________________________________



Lapping disc Ø internal/external                               450 / 1.500   mm

Lapping ring width                                                              525   mm

Conditioning ring Ø  external/internal                           600 / 530   mm



Lapping disc speeds, infinitely variable                                         rpm



Table drive, approx.                                                             4,5   kW

Total electrical load, approx.                                                 4,5   kW – 380 V – 50 Hz

Weight                                                                            3.400   kg



Accessories / Special Features:



·     4 piece dressing rings with internal dia. of 530 mm with adjustable holder arms

·     steplessly variable table speed by potentiometer

·     timer to preadjust lapping time with an automatic Stop of machine

·     pump and tank for the Lapping Agent supply separately standing

·     emergency safety stop on all 4 sides of the machine









Condition :     very good ! Please click here to view a video of the machine running :
                        https://www.geiger-germany.com/images/videos/STAEHLI-ML1500/vid1.mp4 !

Delivery    :     immediately available, FCA Metzingen

Payment   :     100 % Net, after conclusion of contract, before loading



Thank you for your interest.

We have other lapping and fine grinding machines available on stock.

Please let us know your requirements.
