Q U O T A T I O N



We are pleased to offer you ex our stock, subject to prior sale, and error in technical data :

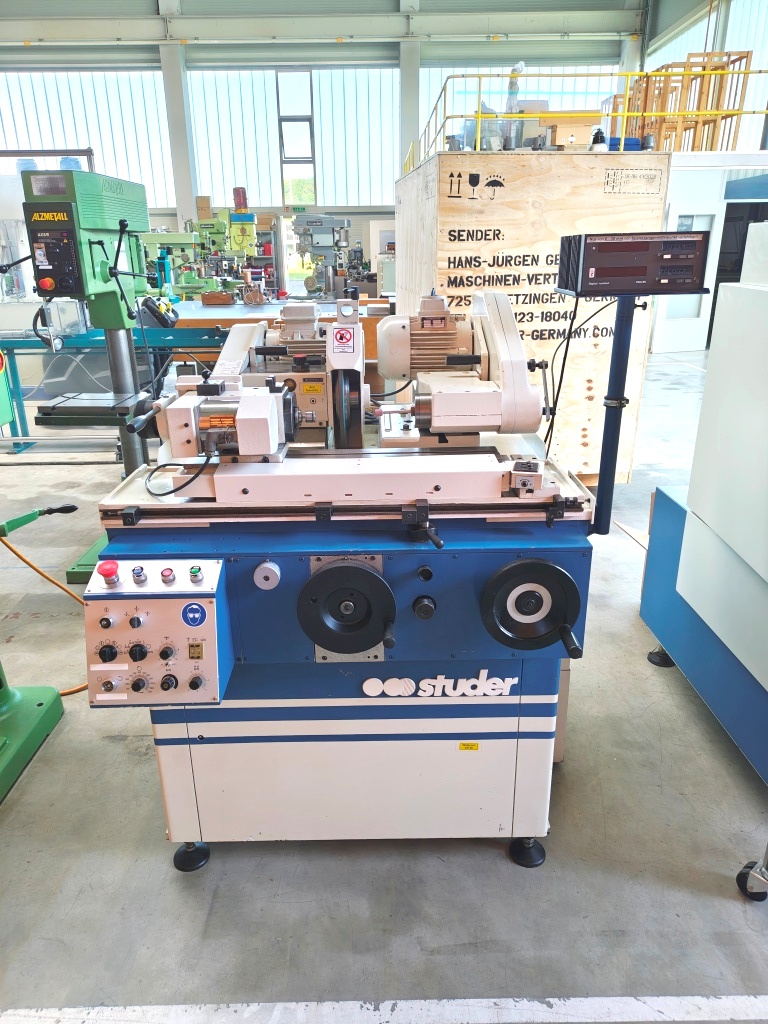

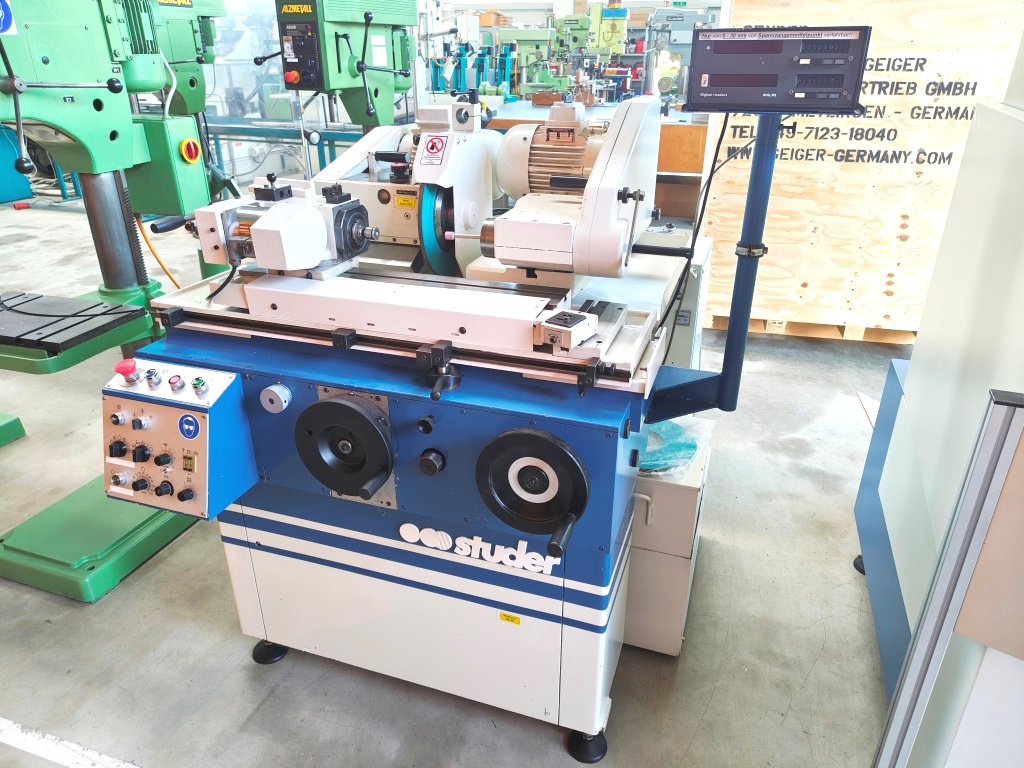

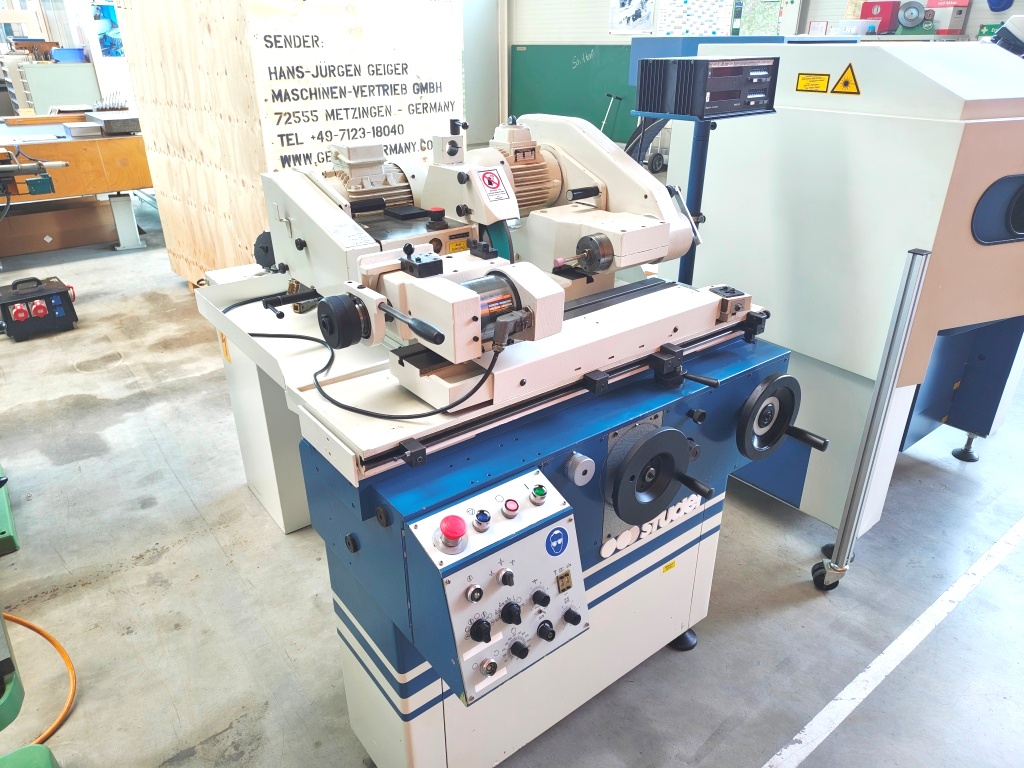

STUDER  (CH)

Universal Precision Cylindrical Grinding Machine

Model              S 20-12

Year                                                                                       674.30





Height of centers / Grinding Ø                                       80 / 160   mm

Center distance / Grinding length Z-axis                     400 / 420   mm

Internal Grinding Ø                                                                       mm

Workpiece weight flying / between centers max.                 5 / 20   kg

Table speeds                                                               0,1 – 3,5   m/min

Table way automatic, min.                                                        1   mm

Table swivable max.                                                              30   °



Universal Grinding Head

cross way max                                                                     170   mm

Rapid infeed way                                                                   30   mm

Infeed way                                                                           1,9   mm

Feeds                                                                    0,001 – 0,04   mm/Ø

Swivable                                                                        10 / 30   °

Grinding wheel dimension : bore x width x Æ         127 x 30 x 300   mm

Internal Grinding device separately mounted                                  mm



Workhead

Fitting taper/conus                                                             MK 2

Speeds                                                                     60 – 1.200   rpm



Spindle drive                                                                        2,2   kW

Total electric load approx..                              5 kW - 400 V – 50   Hz

Weight approx.                                                                 1.000   kg



Accessories / Special Features:



·      Electrohydraulic conventional control with PHILIPS Digital Readout for the infeed (x-axis)

·      Preinstalled automatic cycles for plunge-in grinding, traverse grinding, internal grinding with roughing, finishing, fine-finishing, spark-out

·      Separately mounted Internal Grinding Device with belt-driven internal grinding spindle

·      Workhead with Quck-release collet chuck, swivable 90°

·      (right now the machine is not equipped with a tailstock, an original STUDER tailstock; used can be supplied for approx.. EUR 5.000,--)

·      Wet grinding equipment with coolant filtration unit, separate electric cabinet, manuals









Condition  :     Very good ! Universal machine for all sorts of grinding tasks !

                        Video : https://www.geiger-germany.com/images/videos/STUDER-S20-12/vid.mp4 !

Delivery     :     immediately available, FCA Metzingen

Payment    :     100 % Net, before loading
